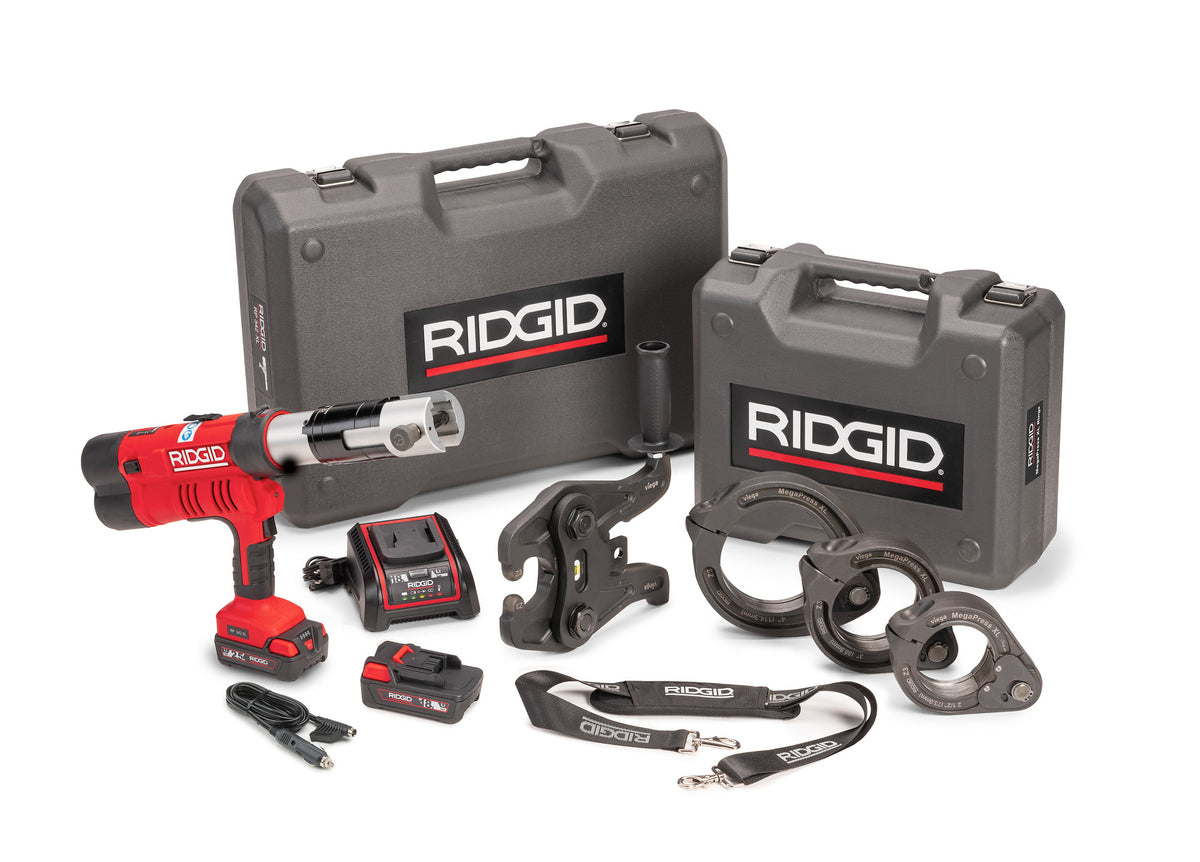

RIDGID 65478 RP 342-XL with Viega Z3 Actuator and 2-1/2"-4" MegaPress XL Rings
Regular price
$14,790.00 CAD
Model / Part #65478
Special Order Product · Delivery 2–3 WeeksDelivery is 2–3 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Buy From Us — Get an Updated Calibration CertificateIncluded on all new press tools purchased from TrueNorth Industrial Tool Company.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days.
🚚
Freight item · freight charge added at checkoutThis item ships by freight truck. A fixed freight charge is added at checkout, or you can use your own carrier (carrier name and account number required). Questions? Call 1-888-598-6657 or 604-873-5394 · Shipping details

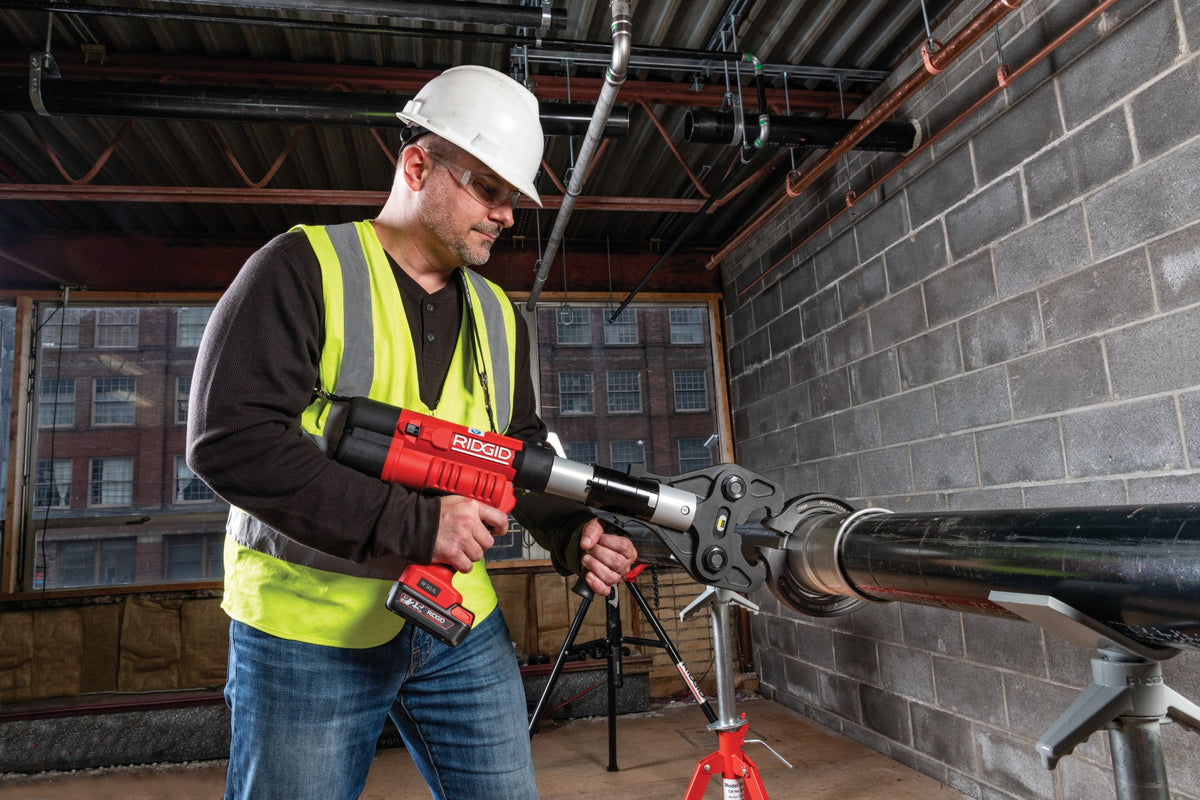

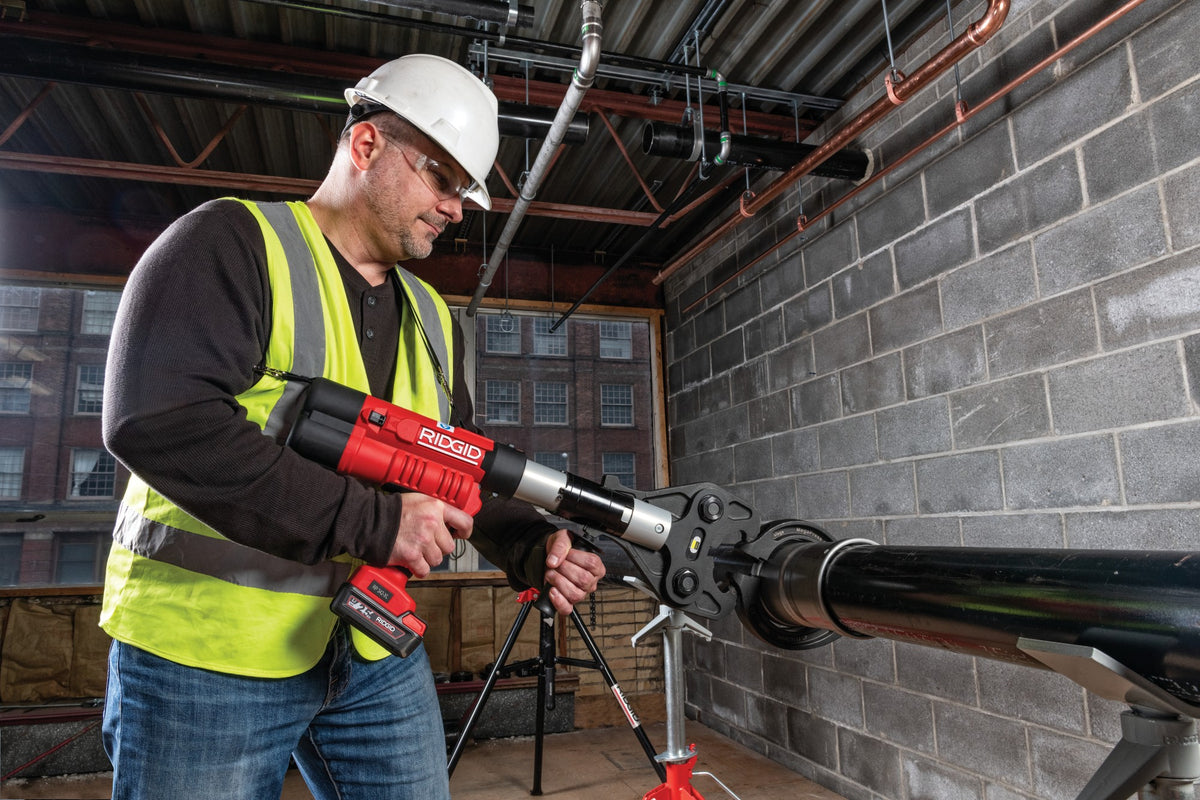

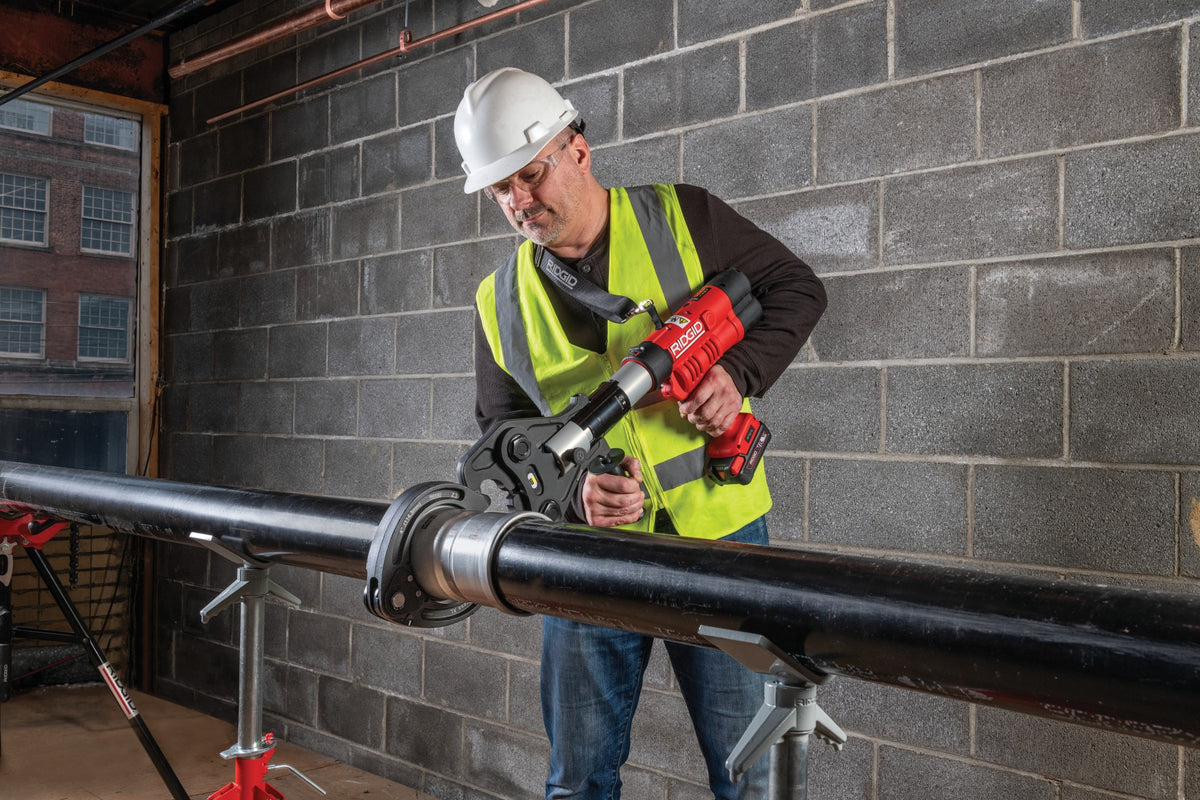

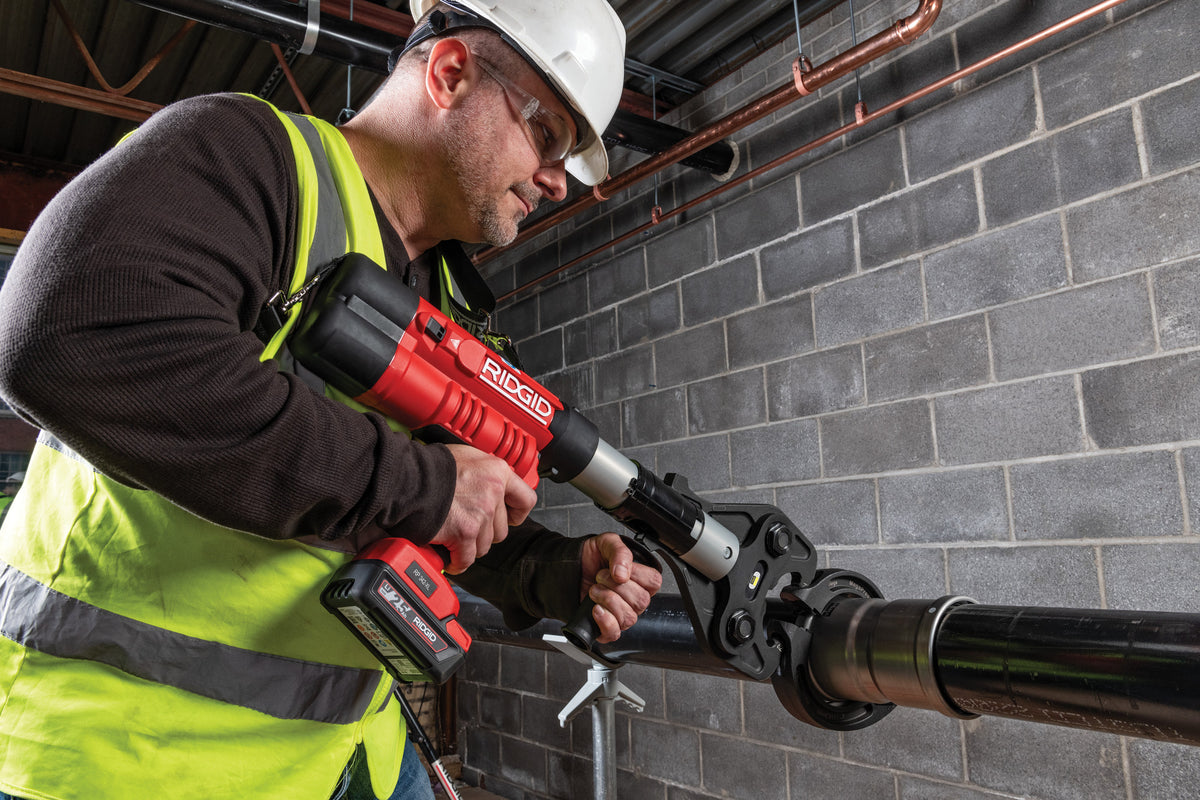

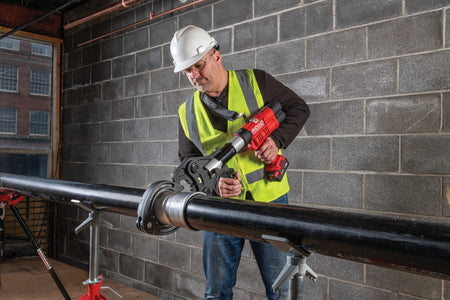

The RP 342XL is the first-ever RIDGID press tool that works on any size and material pipe, from ½" PEX all the way up to 4" carbon steel. Compatible with all RIDGID standard and extended 32kN attachments.
Features

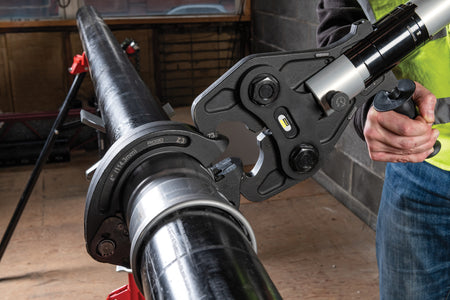

- Fast: Presses up to 4" carbon steel in one trigger pull
- Simple: QuickSwitch™ collar for standard and extended applications

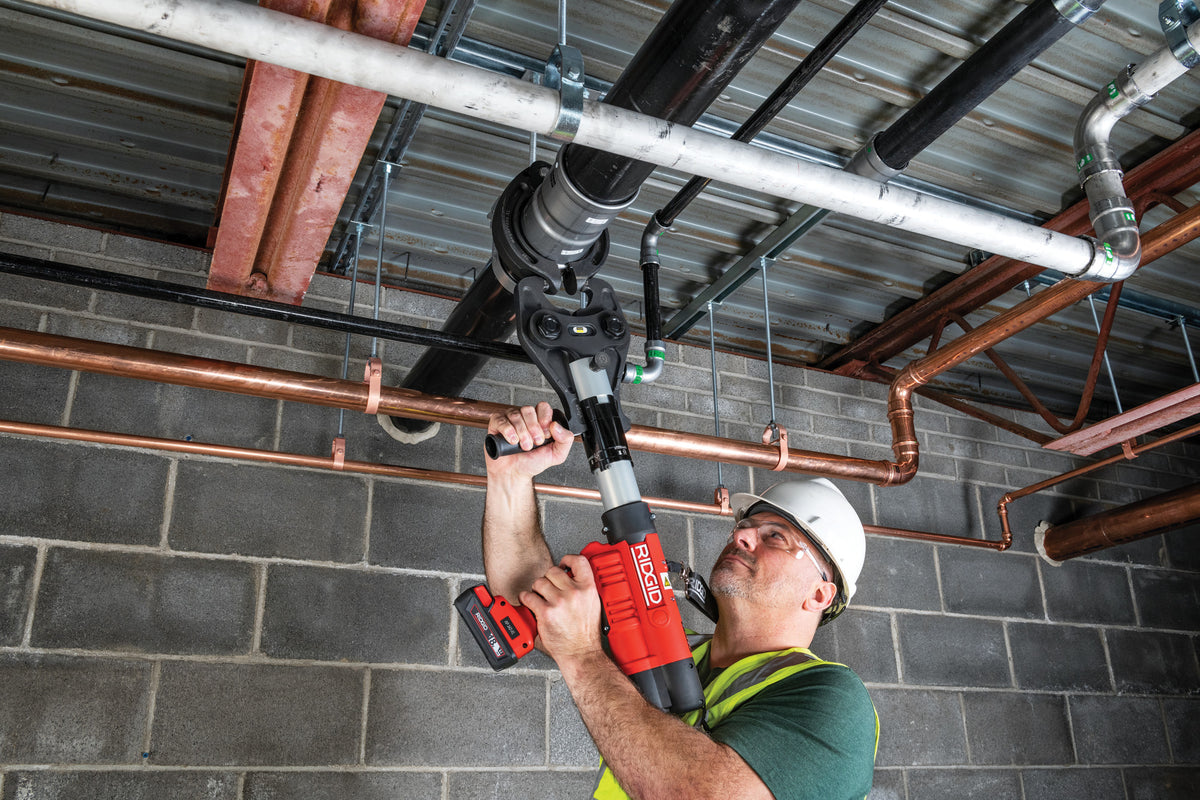

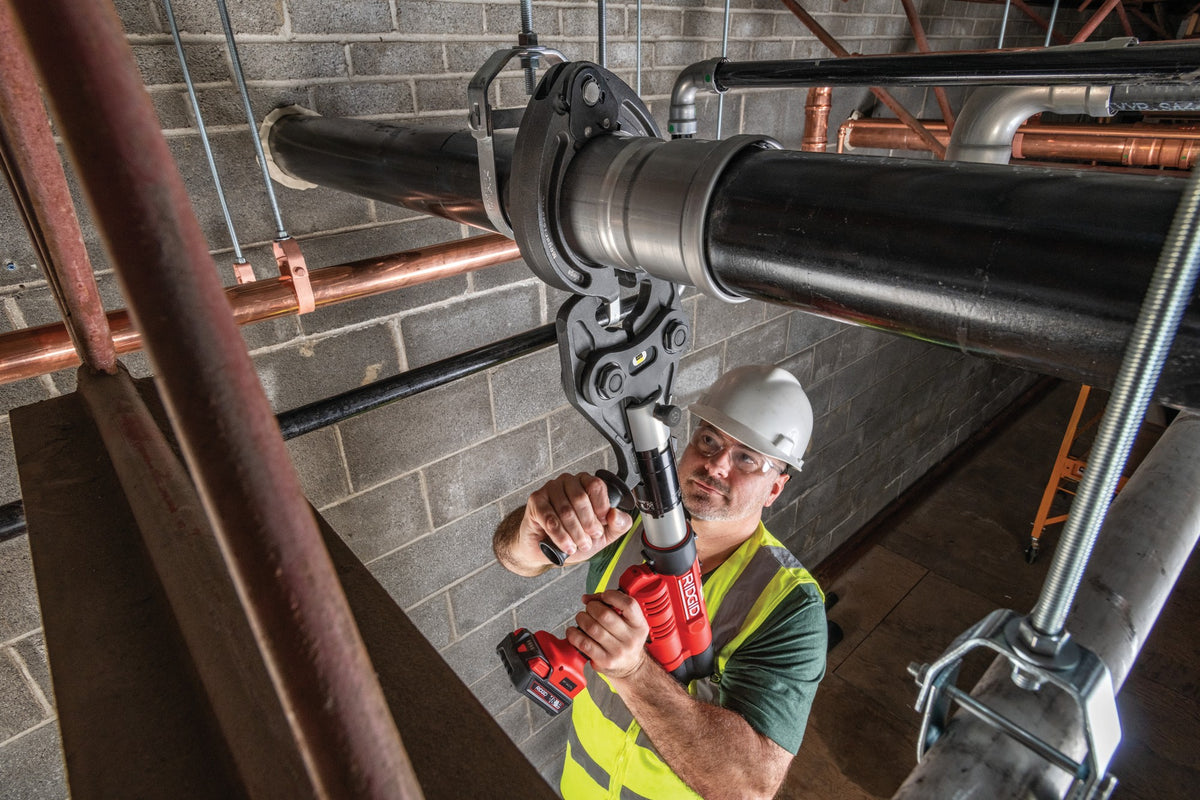

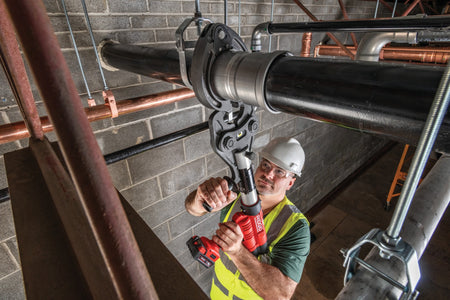

- Agile: 270° head swivel for access to tight spaces
- Convenient: LED Light for low light applications
- Versatile: Compatible with all RIDGID standard and extended 32kN attachments
Specifications
| Catalog # | 65478 |
| Model | RP 342-XL |
| Capacity | 1/2" to 4" for carbon steel, copper and stainless steel, 1/2" to 2" for PEX |
| Head Rotation | 270° head swivel |
| Hydraulic Ram Output | 7,200 lbs. (32kN) |
| Weight | 10.8 lbs./4.9 kg (no battery/attachment) |
| Length | 20.9" (531 mm) |
| Height | 10.5" (267 mm) |
| Width | 3.35" (85 mm) |
| Crimp Cycle Time | Standard - ~4 seconds, Extended - ~ 9 seconds |
| Lighting | LED-Light |
| Service Cycle Interval | 20,000 |
| Colour | RIDGID Red |
| Voltage | 18V |
| Battery Type | Lithium Ion |

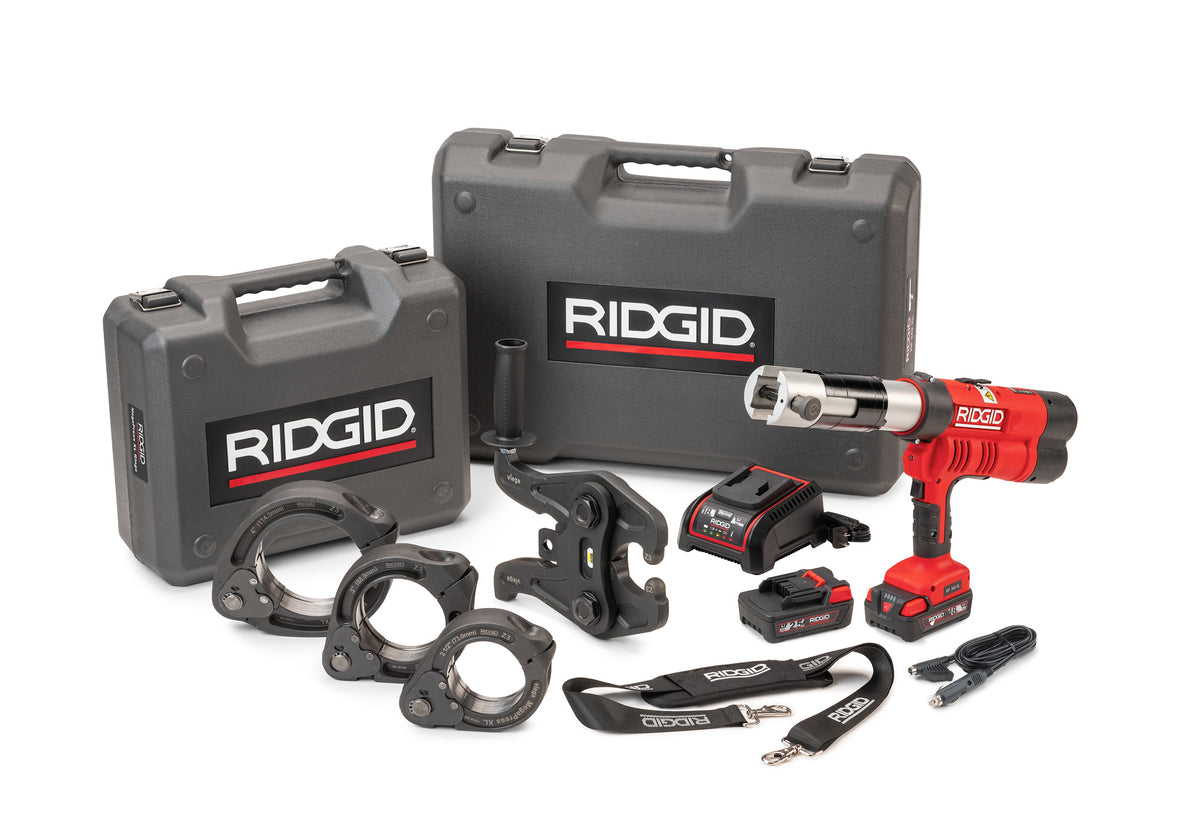

| Included | 65858: RIDGID RP 342-XL Press Tool Only 65483: RP 342-XL Carrying Case 64383: RIDGID 120/230V Charger 56513: 18V 2.5Ah Advanced Lithium Battery 67818: Viega Z3 Actuator 60643: MegaPress XL Ring 2-1/2" 60648: MegaPress XL Ring 3" 60653: MegaPress XL Ring 4" |

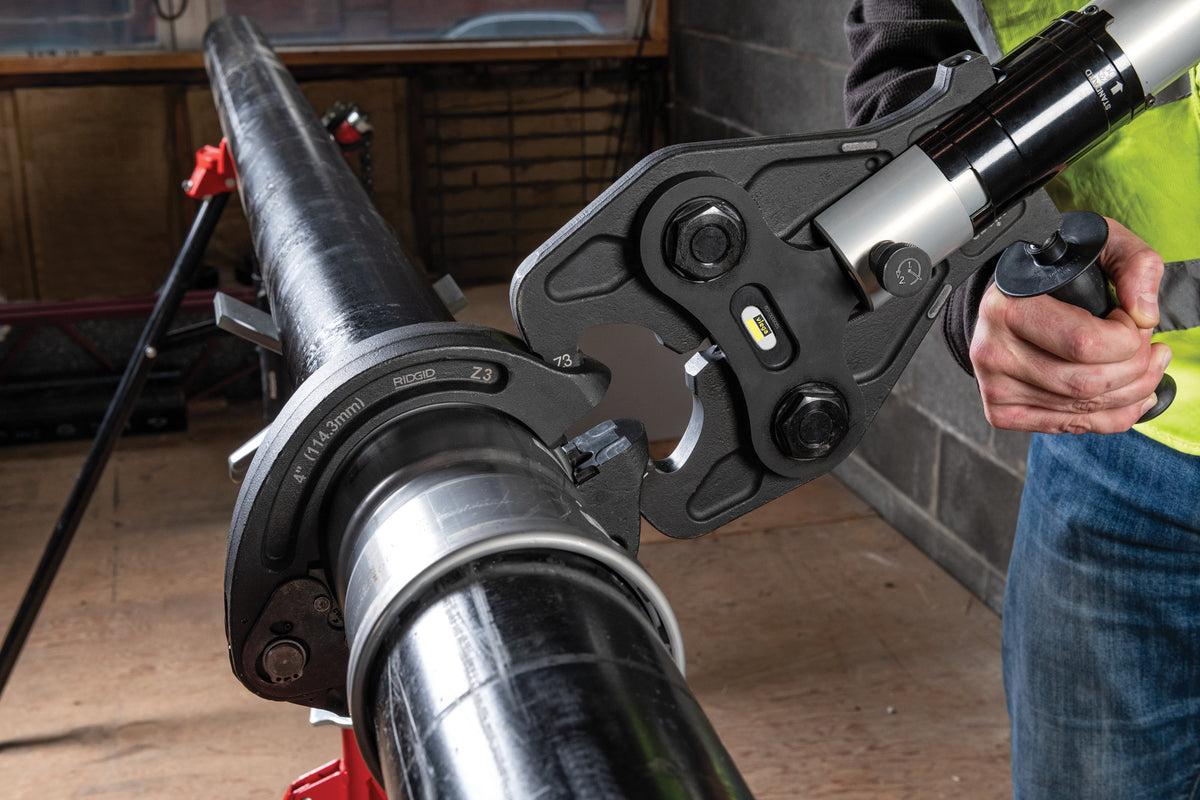

| Compatible With | Viega Z3 Actuator |
| UPC | 095691654786 |
| Country of Origin | CN |
Documents
- Operator's Manual (PDF)
- Operator's Manual (2) (PDF)
- Catalog Sheet (PDF)
- Brochure (PDF)
- Brochure (2) (PDF)
Backed by the RIDGID Full Lifetime Warranty.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC. Call 1-888-598-6657 or email sales@wctool.ca for pricing and availability.
