Call for price
Pricing for this size is by request. Click Request pricing and we'll get back to you within 1 business day, or give us a call.

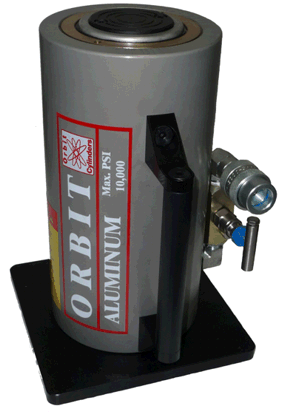

The Orbit ORBV is built for the tire service industry: a single-acting aluminum jack with a steel base plate for stability and a shut-off valve. Close the valve and disconnect the pump while the jack keeps holding the load, so there's no need for separate vehicle stands.
Why aluminum?
- Up to 60% lighter than a comparable steel cylinder, so it's far easier to carry and position, with less back strain
- Hard anodized aluminum resists corrosion and scoring, even with long field use
- Large bearing surface handles unavoidable side loading
- Rated to 10,000 PSI (700 bar) working pressure
- 3/8" high-flow quick-disconnect coupler
- Built and tested to ANSI B30.1
- Made in Vancouver, BC by Orbit Manufacturing
Specifications
| Model | Capacity | Stroke | Closed height (incl. base & cap) | Base plate | Oil capacity | Body dia. | Weight |
| ORBV 30/6 | 30 ton | 6" | 11.23" | 6 x 6 x 0.5" | 39 cu.in | 4.5" | 20 lb |
| ORBV 30/10 | 30 ton | 10" | 15.23" | 6 x 6 x 0.5" | 65 cu.in | 4.5" | 27 lb |
| ORBV 50/6 | 50 ton | 6" | 11.23" | 7.5 x 7.5 x 0.5" | 68 cu.in | 5.5" | 30 lb |
| ORBV 50/10 | 50 ton | 10" | 15.23" | 7.5 x 7.5 x 0.5" | 110.4 cu.in | 5.5" | 39 lb |
Need a custom size?
Orbit builds custom capacities and strokes. Contact us or call 604-873-5394 with what you need and we'll get you a quote.
Specifications from Orbit Manufacturing; subject to change. Warranty: Orbit cylinders are guaranteed against defects in materials and workmanship (excludes normal wear, overloading and misuse).
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model ORBV 30/6
Need a replacement part for your Orbit? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
