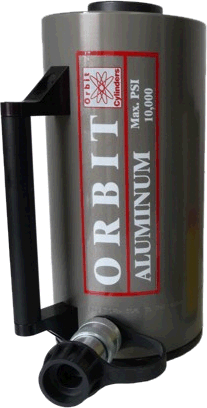

Orbit ORSH Single Acting Hollow Center Aluminum Hydraulic Cylinder
Call for price
Pricing for this size is by request. Click Request pricing and we'll get back to you within 1 business day, or give us a call.
The Orbit ORSH is a single-acting, spring-return hollow-center aluminum cylinder. The centre hole lets a rod or cable pass straight through for pulling, tensioning and puller work.
Why aluminum?
- Up to 60% lighter than a comparable steel cylinder, so it's far easier to carry and position, with less back strain
- Hard anodized aluminum resists corrosion and scoring, even with long field use
- Large bearing surface handles unavoidable side loading
- Rated to 10,000 PSI (700 bar) working pressure
- 3/8" high-flow quick-disconnect coupler
- Built and tested to ANSI B30.1
- Made in Vancouver, BC by Orbit Manufacturing
Specifications
| Model | Capacity | Stroke | Closed height (incl. base & cap) | Centre hole | Effective area | Oil capacity | Body dia. | Weight |
| ORSH 30/3 | 30 ton | 3" | 8.675" | 1.312" | 7.21 sq.in | 22.0 cu.in | 5.5" | 22 lb |
| ORSH 30/6 | 30 ton | 6" | 11.675" | 1.312" | 7.21 sq.in | 44.0 cu.in | 5.5" | 30 lb |
| ORSH 60/3 | 60 ton | 3" | 10.25" | 2.125" | 12.30 sq.in | 37.0 cu.in | 7.5" | 42 lb |
| ORSH 60/6 | 60 ton | 6" | 13.25" | 2.125" | 12.30 sq.in | 74.0 cu.in | 7.5" | 55 lb |
Downloads
- Single acting hollow center brochure (PDF)
- ORSH 30 parts breakdown (PDF)
- ORSH 60 parts breakdown (PDF)
Need a custom size?
Orbit builds custom capacities and strokes. Contact us or call 604-873-5394 with what you need and we'll get you a quote.
Specifications from Orbit Manufacturing; subject to change. Warranty: Orbit cylinders are guaranteed against defects in materials and workmanship (excludes normal wear, overloading and misuse).
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model ORSH 30/3
Need a replacement part for your Orbit? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
