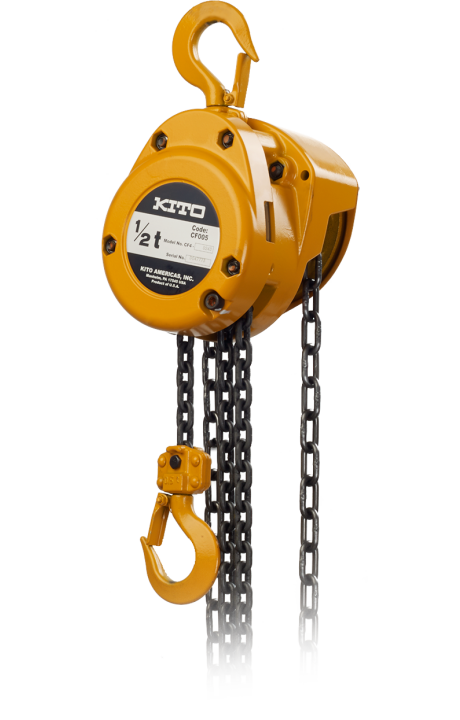

The Kito CF is an economical, standard-duty hand chain hoist that doesn't skimp on toughness. Its die-cast aluminum body keeps the weight down and won't corrode outdoors, and single-reduction gearing gives fast hook travel. Rated for -40°C to +60°C.
Choose your hoist
Pick the capacity, then the lift & hand chain. The part number and price update for your combination.
Need a different lift or setup?
Custom lift lengths and nickel-plated chain for corrosive environments are available. Send us a Custom Hoist Request and our sales team will quote it.
Features

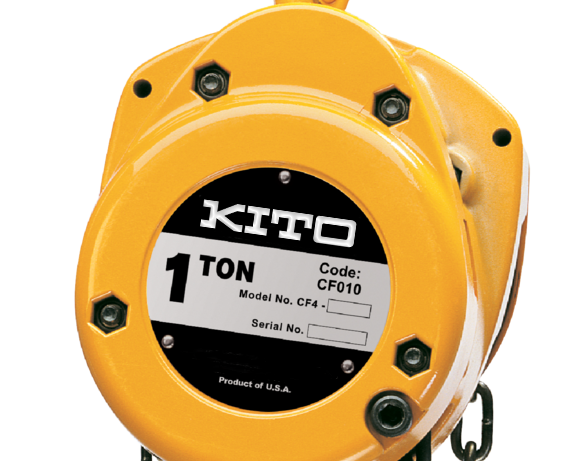

- Thick die-cast aluminum body: compact, lightweight, portable and corrosion-resistant

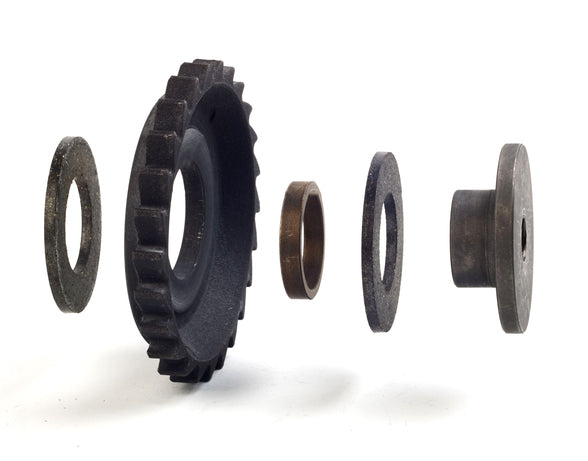

- Weston-style load brake with two moisture-resistant pads and four braking surfaces; enclosed against dust, rain and dirt

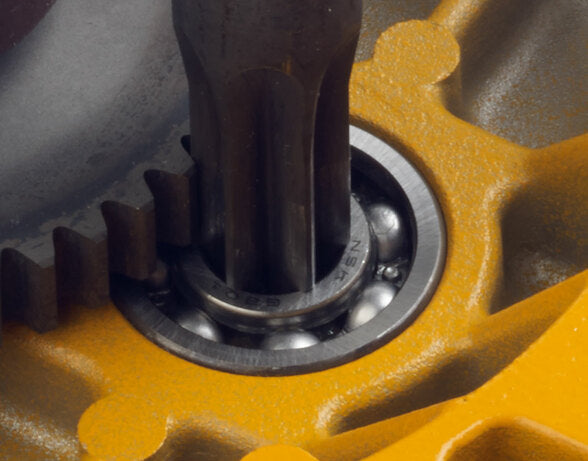

- Smooth-running, pre-lubricated sealed ball bearings and precision-machined drive train for low hand pull
- Single-reduction gearing, induction heat-treated and case-hardened, for fast load hook travel

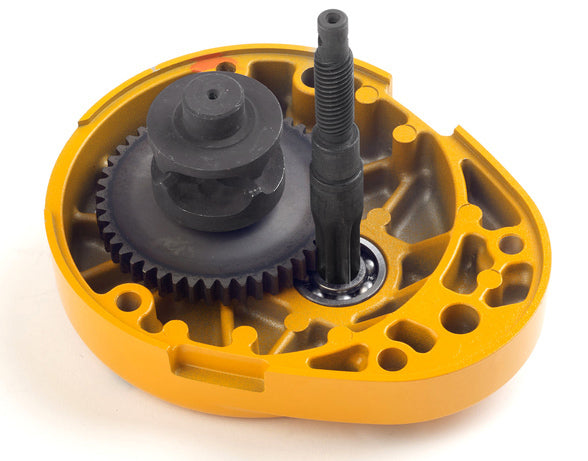

- High-strength, heat-treated main pinion shaft and load gear
- Fewer parts for simpler inspection and maintenance
- Grade 100 heat-treated manganese alloy steel load chain with high-impact steel chain guide
- Forged, heat-treated hooks open slowly rather than fracture; heavy-duty hook latches
- Meets ASME B30.16 and ASME HST-2
Specifications (Kito)
| Capacity | Model | Standard lift | Hand pull, full load | Headroom (hook) | Load chain falls | Ship weight | Each extra 5 ft |
| 1/2 Ton | CF005 | 8 ft | 30 kg | 13" | 1 | 22 lb | +5 lb |
| 1 Ton | CF010 | 8 ft | 36 kg | 14.5" | 1 | 31 lb | +6 lb |
| 1-1/2 Ton | CF015 | 8 ft | 42 kg | 17.5" | 1 | 42 lb | +7 lb |
| 2 Ton | CF020 | 10 ft | 40 kg | 20" | 2 | 51 lb | +9 lb |
| 3 Ton | CF030 | 10 ft | 46 kg | 23" | 2 | 60 lb | +11 lb |
Reading the part number
Example: CF010-15-15 = CF hoist, 1 Ton (010), 15 ft of lift (first number) and 15 ft of hand chain (second number). Standard hoists come with hand chain the same length as the lift. Capacities are metric tonnes.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model CF005
Need a replacement part for your Kito? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
