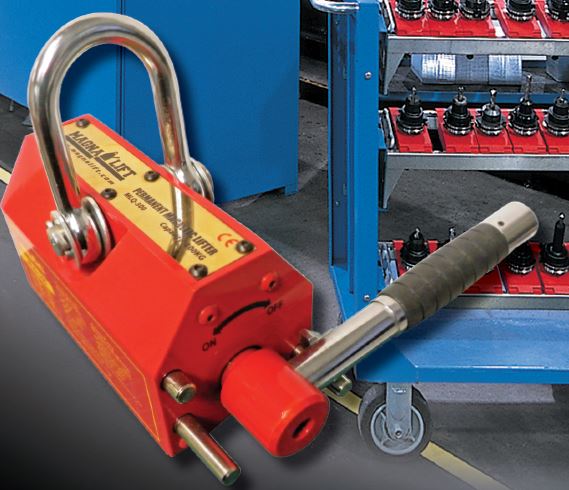

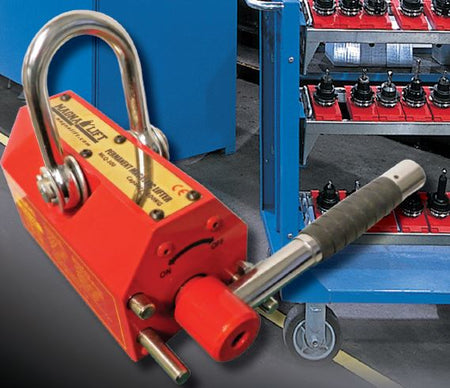

MagnaLift MLQ permanent magnetic lifters lift and transfer steel and iron plate, blocks and round stock without slings, hooks or cables — and without marking the surface finish. No power is needed, so there is no risk from a power failure and no running cost.
Features
- 3.5:1 safety factor
- No power required — no hazards from power failure, no running costs
- Magnet cannot be switched on until it is sitting on the ferrous load
- Safety lock mechanism prevents accidental release
- Simple installation — just attach the top hook/eye to your hoist or crane
- Lightweight and compact; V-groove base lifts both flat and round material
- Lifts without damaging the surface finish
Specifications — flat steel

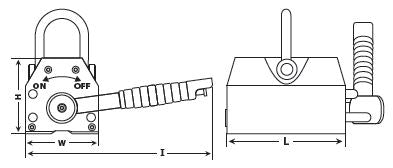

| Model | Rated capacity | Min. plate thickness | Contact surface (W x L) | H | I | Weight |
|---|---|---|---|---|---|---|
| MLQ-100 | 220 lb / 100 kg | 0.59" / 15 mm | 2.44" x 3.62" | 2.63" | 6.50" | 6.6 lb |
| MLQ-300 | 660 lb / 300 kg | 0.98" / 25 mm | 3.62" x 6.37" | 3.58" | 8.30" | 22 lb |
| MLQ-600 | 1,320 lb / 600 kg | 1.18" / 30 mm | 4.80" x 9.13" | 4.60" | 11.90" | 52.8 lb |
| MLQ-1000 | 2,200 lb / 1,000 kg | 1.57" / 40 mm | 6.90" x 10.15" | 6.41" | 16.30" | 110 lb |
| MLQ-2000 | 4,400 lb / 2,000 kg | 2.16" / 55 mm | 9.21" x 14.88" | 8.34" | 22.70" | 275 lb |
| MLQ-3000 | 6,600 lb / 3,000 kg | 2.36" / 60 mm | 11.26" x 18.03" | 10.28" | 27.88" | 484 lb |
Round steel (solid, not hollow)
| Model | Capacity | Max. diameter | Max. length |
|---|---|---|---|
| MLQ-100 | 99 lb / 45 kg | 5.9" / 150 mm | 39" / 1000 mm |
| MLQ-300 | 297 lb / 135 kg | 9.8" / 250 mm | 59" / 1500 mm |
| MLQ-600 | 600 lb / 270 kg | 13.7" / 350 mm | 78" / 2000 mm |
| MLQ-1000 | 990 lb / 450 kg | 17.7" / 450 mm | 98" / 2500 mm |
| MLQ-2000 | 1,910 lb / 870 kg | 21.6" / 550 mm | 118" / 3000 mm |
| MLQ-3000 | 2,904 lb / 1,320 kg | 25.6" / 650 mm | 137" / 3500 mm |
% of rated capacity by plate thickness
| Plate thickness | MLQ-3000 | MLQ-2000 | MLQ-1000 | MLQ-600 | MLQ-300 | MLQ-100 |
|---|---|---|---|---|---|---|
| ≥ 60 mm (2.36") | 100% | 100% | 100% | 100% | 100% | 100% |
| 55 mm (2.16") | 95% | 100% | 100% | 100% | 100% | 100% |
| 50 mm (1.96") | 90% | 95% | 100% | 100% | 100% | 100% |
| 45 mm (1.77") | 85% | 90% | 100% | 100% | 100% | 100% |
| 40 mm (1.57") | 75% | 85% | 100% | 100% | 100% | 100% |
| 35 mm (1.37") | 65% | 75% | 90% | 100% | 100% | 100% |
| 30 mm (1.18") | 55% | 65% | 80% | 100% | 100% | 100% |
| 25 mm (0.98") | 45% | 55% | 70% | 90% | 100% | 100% |
| 20 mm (0.78") | 35% | 45% | 60% | 75% | 90% | 100% |
| 15 mm (0.59") | 25% | 35% | 50% | 60% | 70% | 100% |
| 10 mm (0.39") | 15% | 25% | 35% | 45% | 50% | 70% |
| 5 mm (0.19") | 10% | 15% | 20% | 25% | 30% | 40% |
Holding power adjustments
| Surface condition | Holding power |
|---|---|
| S1 – Ground | 125% |
| S2 – Rough machined | 100% |
| S3 – Flame cut | 90% |
| S4 – Rough cast | 65% |
| Material | Holding power |
|---|---|
| Low carbon steel | 125% |
| Moderate carbon steel | 85% |
| High carbon steel | 75% |
| Cast iron | 70% |
Rated capacities are for clean, flat, low-carbon steel at or above the minimum thickness, with the full magnet face in contact. Thin, rough, high-carbon or cast material reduces capacity — derate using the tables above. Never lift over people.
