The Kito M3CB is a heavy-duty hand chain hoist built for tough industrial and contracting work, rated from -40°C to +60°C. Its high-impact steel body and hand wheel cover are about as light as aluminum, and double-reduction gearing keeps the hand pull low even at full capacity.
Choose your hoist
Pick the version (hook or lug mount, with or without slip clutch), the capacity, then the lift & hand chain. The part number and price update for your combination; combinations Kito doesn't make show as unavailable.
- Hook Mount: top hook for hanging from a beam clamp, eye or fixed point.
- Lug Mount: perpendicular lug top suspension for mounting to a trolley (part numbers with L).

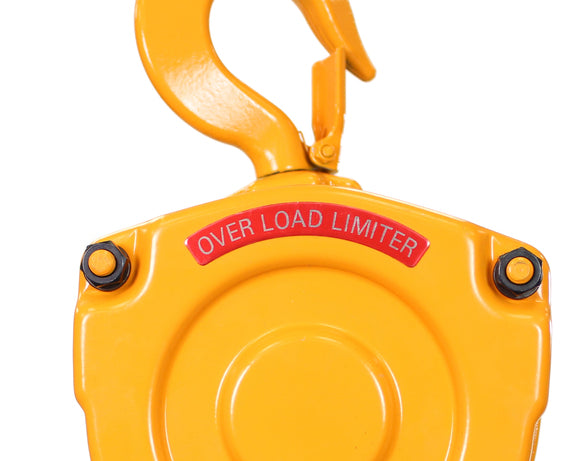

- Slip Clutch: protects the hoist from lifting damaging loads beyond its rated capacity (part numbers ending -SC).
Need a different lift or setup?
Custom lift lengths, chain containers, corrosion-resistant chain and trolley-mounted hoists are available. Send us a Custom Hoist Request and our sales team will quote it.
Features

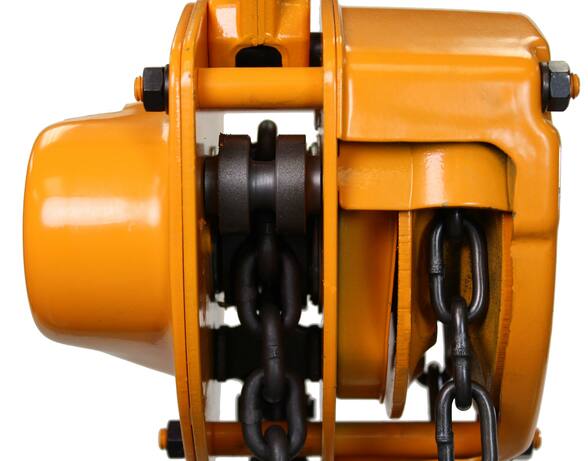

- Heavy-duty, high-impact steel construction with rugged gear case and hand wheel cover
- Compact design for low headroom and portability
- Double-reduction gearing, induction heat-treated and case-hardened, enclosed against dust and water

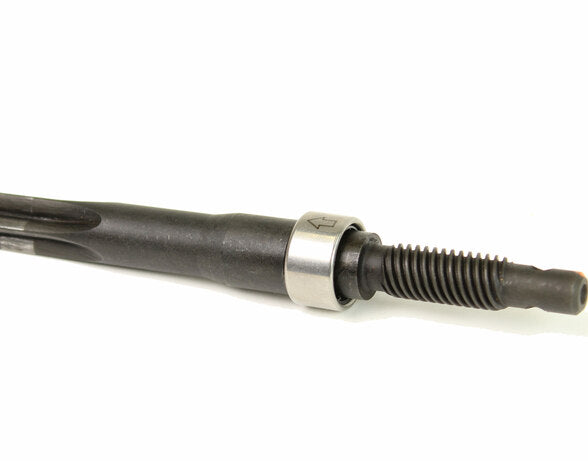

- Bearing-supported one-piece machined pinion for smooth, efficient lifting
- Maintenance-free sealed bearings reduce the pull needed to lift

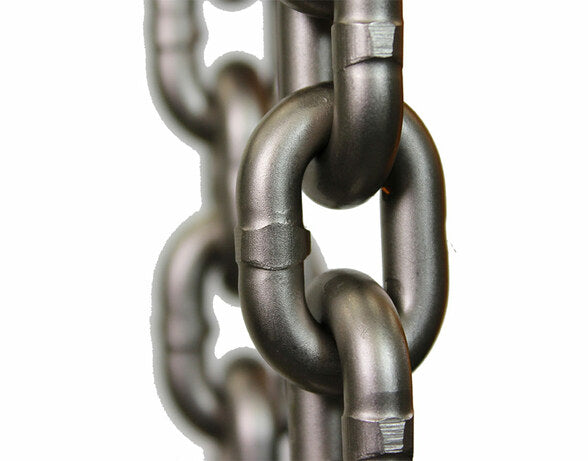

- Grade 100 heat-treated alloy steel load chain with high-impact steel chain guide
- Forged, heat-treated hooks open gradually rather than fracture; self-closing heavy-duty latches
- Double pawl springs for reliable, instant brake activation; enclosed brake
- Open load sheave for inspection and cleaning without dismantling
- Meets ASME B30.16 and ASME HST-2; load-bearing parts stressed to only 25% of their limit at rated capacity
Specifications (Kito)
| Capacity | Model | Standard lift | Hand pull, full load | Headroom (hook) | Load chain falls | Ship weight | Each extra 5 ft |
| 1/2 Ton | M3CB005 | 8 ft | 24 kg | 11.25" | 1 | 23 lb | +5 lb |
| 1 Ton | M3CB010 | 8 ft | 29 kg | 11.6" | 1 | 27 lb | +6 lb |
| 1-1/2 Ton | M3CB015 | 8 ft | 35 kg | 13.75" | 1 | 33 lb | +7 lb |
| 2 Ton | M3CB020 | 10 ft | 36 kg | 14.75" | 1 | 44 lb | +8 lb |
| 2-1/2 Ton | M3CB025 | 10 ft | 33 kg | 16.5" | 1 | 60 lb | +9 lb |
| 3 Ton | M3CB030 | 10 ft | 36 kg | 20" | 2 | 53 lb | +11 lb |
| 5 Ton | M3CB050 | 10 ft | 34 kg | 23.6" | 2 | 90 lb | +15 lb |
| 7-1/2 Ton | M3CB075 | 12 ft | 35 kg | 30.5" | 3 | 145 lb | +21 lb |
| 10 Ton | M3CB100 | 12 ft | 36 kg | 30" | 4 | 200 lb | +27 lb |
| 15 Ton | M3CB150 | 12 ft | 37 kg | 40.25" | 6 | 363 lb | +38 lb |
| 20 Ton | M3CB200 | 12 ft | 36 x 2 kg | 46.5" | 8 | 671 lb | +53 lb |
Reading the part number
Example: M3CB005-10-10
| M3CB005 | Model and capacity (005 = 1/2 Ton, 010 = 1 Ton, 020 = 2 Ton, 050 = 5 Ton, 200 = 20 Ton) |
| L (if shown) | Lug mount top suspension, e.g. M3CB005L10-10. No letter = hook mount. |
| First number | Lift: how far the hook travels, in feet (10 = 10 ft of lift) |
| Second number | Hand chain length, in feet (10 = 10 ft of hand chain) |
| -SC (if shown) | Slip clutch overload protection |
Standard hoists come with hand chain the same length as the lift. Need a different hand chain length (for example 15 ft of lift with 25 ft of hand chain)? Send us a Custom Hoist Request. Capacities are metric tonnes.
CB operation and parts manual (PDF)
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model M3CB005
Need a replacement part for your Kito? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
