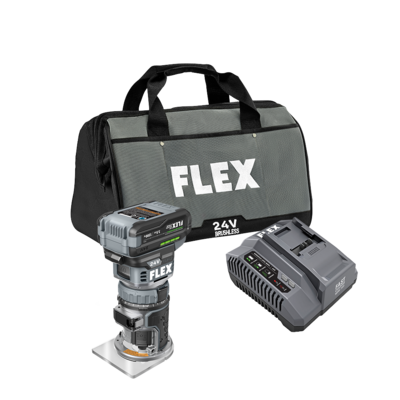

Finish furniture and cabinetry or cut door and window holes from plywood and OSB with the FLEX 24V Trim Router. This 24V trim router tool features a patent-pending innovative Spindle Stop™ shaft lock system for fast, easy bit changes and added safety by preventing accidental startups. Its powerful 1.5 max horsepower brushless motor delivers constant speed under the toughest conditions, and its variable speed dial offers six settings from 16,000 to 31,000 RPM. Quick-release collars deliver easy and reliable depth adjustment accurate to 1/64 inch. This trim router dominates with the FLEX Stacked Lithium Advantage: unmatched battery power, runtime, and charging capability. The cordless trim router kit includes the trim router, a 3.5Ah Stacked Lithium battery, and 160W Fast Charger.
Key Features
- THE FLEX STACKED LITHIUM ADVANTAGE - 200% more power with 24V Stacked Lithium, 300% longer runtime with THERMA-TECH™+ heat management, 100% faster charging, 100% cross-compatible with all FLEX 24V tools and chargers
- CORDLESS TRIM ROUTER KIT - Includes a trim router, 3.5Ah Stacked Lithium battery, 160W Fast Charger, (2) wrenches, an edge guide, dust shroud, round subbase, and centering cone
- SPINDLE STOP™ - Patent-pending shaft lock system for fast, easy bit changes and preventing inadvertent startups
- 1.5 MAX HORSEPOWER BRUSHLESS MOTOR - Intelligent sensor-free brushless motor designed to eliminate friction and optimized for higher efficiency and power under the toughest applications
- ACCURATE DEPTH ADJUSTMENT - Quick-release collars deliver easy and reliable depth adjustment to 1/64 inch
- QUICK-ADJUST EDGE GUIDE - Allows convenient parallel cuts along a straight edge
- VARIABLE SPEED DIAL - Six settings from 16,000 to 31,000 RPM
- FLEX 5-YEAR LIMITED WARRANTY - Register your new FLEX tool, battery, or charger within 30 days of purchase to receive a 5-year limited warranty; 3-year limited warranty without registration
What's in the Box
- (1)FLEX 24V Compact Router
- (1)3.5Ah Stacked Lithium Battery
- (1)160W Charger
- (2)Spanner
- (1)Edge Guide
- (1)Dust Shroud
- (1)Big Subbase
- (1)Centering Cone
- (1)Canvas Bag.
Specifications
| LED | Yes |
| Spindle Lock | Yes |
| Dust Port | Yes |
| Edger Guide | Yes |
| Soft Start | Yes |
| Overload Protection | Yes |
| Electric Brake | Yes |
| Voltage (V) | 24 V |
| Brushless | Yes |
| Router Type | Compact Router |
| No Load Speed | 16,000 - 31,000 RPM r.p.m. |
| Number of Speed Settings | 6 |
| Collet Size | 1/4" |
| Depth Range - Fixed | 1.97" |
| Depth Range - Plunge | 2" |
| Depth Adjustment-Fixed | 1/64" |
| Depth Adjustment-Plunge | 1/32" |
| Base Opening | 1-1/2" |
| Tool Weight (pound) | 3.5 lbs (w/ fixed base, no battery) |
| Tool Height (inch) | 7.4 |
| Tool Length (inch) | 4.8 |
| Tool Width (inch) | 4 |
| Model / Part # | FX4221-1F |
| UPC | 195532300190 |
Documents
- FX0321-1 & FX0331-1 & FX0341-1 FLEX 24V-STACKED-LITHIUM-ION-BATTERY 21-1026 MANUAL (PDF)
- FX0411 FLEX 24V-160W-CHARGER 22-0607 MANUAL (PDF)
