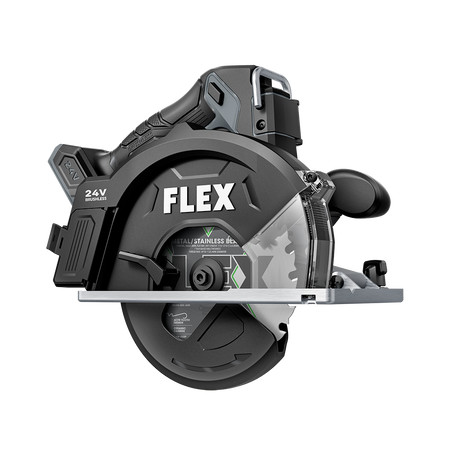

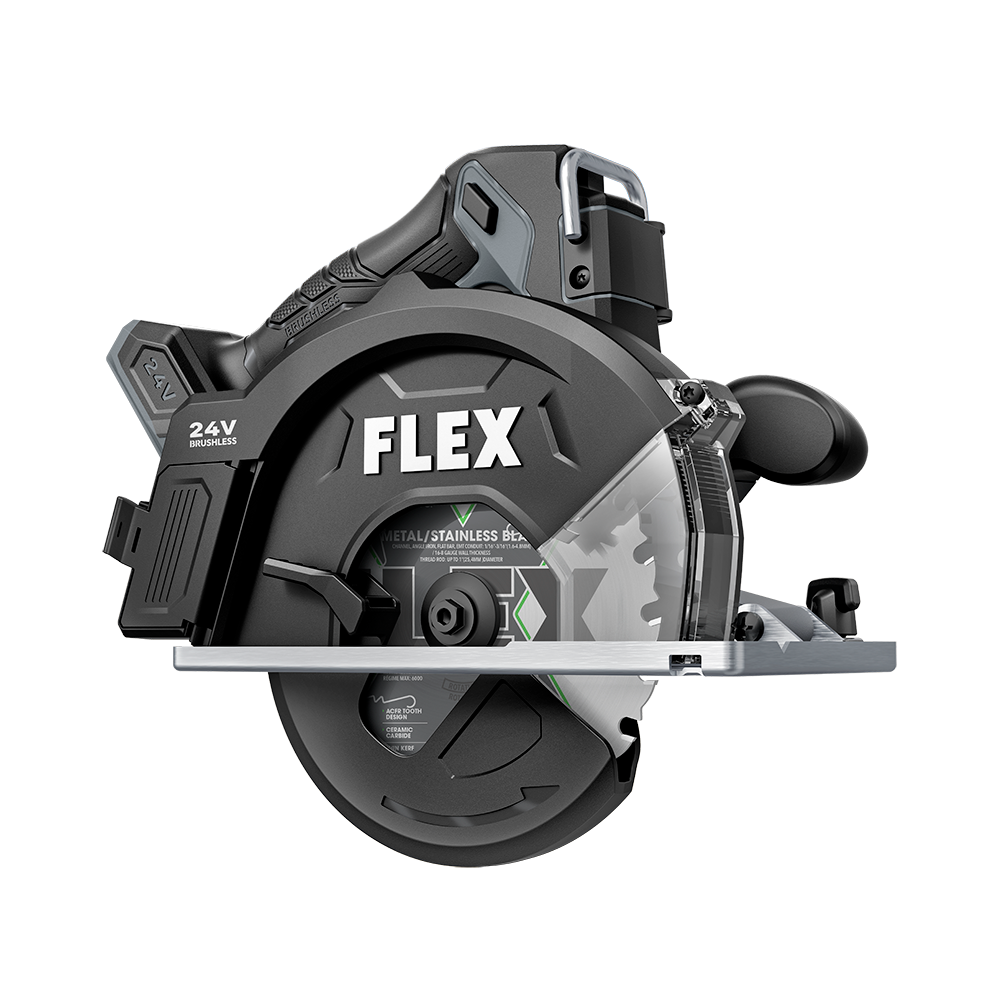

Power through a variety of metal including decking, sheet metal, conduit, strut, pipe, and metal roofs and siding with up to 4,500 RPM and an up to 2-1/4-inch cut capacity using the FLEX 24V 5-7/8” Metal Cutting Circular Saw. This cordless metal cutting circular saw features an on-tool chip collector that captures metal debris during cutting.An easy access door allows for easy cleanup of the collection box. The metal cutting saw has a clear viewing window to maintain visibility to your cut line while blocking flying chips as you cut. The cordless saw includes a 5-7/8” 36-tooth ceramic carbide metal cutting circular saw blade built with an ACFR tooth design and thin kerf for demanding metal cutting applications.The saw features a brake that rapidly stops the blade rotation when the trigger is released. An LED lights up dark workspaces on the jobsite while a rafter hook allows easy storage between cuts. The saw also features an auxiliary handle for increased control while cutting. This battery-powered metal cutting circular saw delivers the FLEX Advantage of unmatched battery power, runtime, and fast charging (batteries and chargers sold separately).
Key Features
- THE FLEX ADVANTAGE - 20% more power with 24V lithium, 25% longer runtime with THERMA-TECH™ heat management, up to 50% faster charging with high-power, dual fan chargers
- UP TO 4,500 RPM - Fast cutting speed in metal for decking, sheet metal, conduit, strut, pipe, metal roofing, and siding
- ON-TOOL CHIP COLLECTOR - Collection box captures metal debris while cutting, with an easy access door for simple chip disposal
- CLEAR VIEWING WINDOW - Maintains visibility to cut line while blocking chips during cutting
- BRAKE - Rapidly stops blade rotation when the trigger is released
- 5-7/8-INCH BLADE CAPACACITY - Delivers up to 2-1/4-inch depth of cut for a variety of metal cutting applications
- CLEAR VIEWING WINDOW - Maintains visibility to cut line while blocking chips during cutting
- RAFTER HOOK - For easy storage between cuts
- FLEX 5-YEAR LIMITED WARRANTY - Register your new FLEX tool, battery, or charger within 30 days of purchase to receive a 5-year limited warranty; 3-year limited warranty without registration
What's in the Box
- (1) 5-7/8 Inch Metal Cutting Circular Saw
- (1) Hex Key
- (1) 5-7/8 Inch FLEX Blade
Specifications
| Power Source | DC |
| Voltage (V) | 24 V |
| One-Hand Depth Adjustment | Yes |
| Saw Line Visor | Yes |
| Constant Speed | Yes |
| Electric Brake | Yes |
| Shoe Material | Punched Steel |
| Upper Guard Material | Plastic |
| Lower Guard Material | Plastic |
| LED Light | Yes |
| Pre-Light | Yes |
| After-glow | Yes |
| Onboard Wrench Storage | Yes |
| Lock-Off | 1 |
| Spindle Lock | Yes |
| Rafter Hook | Yes |
| Depth Adjustment | Yes |
| Blade Mount | Blade Right |
| No Load Speed (rpm) | 4500 |
| Blade Size (mm) | 150 |
| Blade Size (inch) | 5-7/8 |
| Arbor Size (mm) | 20 |
| Max. Cutting Capacity at 90° (mm) | 57 |
| Max. Cutting Capacity at 90° (inch) | 2-1/4 |
| Tool Weight (kg) | 2.5 |
| Tool Weight (lbs) | 5.5 |
| Tool Length (mm) | 299.1 |
| Tool Width (mm) | 162.4 |
| Tool Height (mm) | 189.6 |
| Tool Length (inch) | 11.8 |
| Tool Width (inch) | 6.4 |
| Tool Height (inch) | 7.5 |
| Model / Part # | FX2461-Z |
| UPC | 195532301494 |
