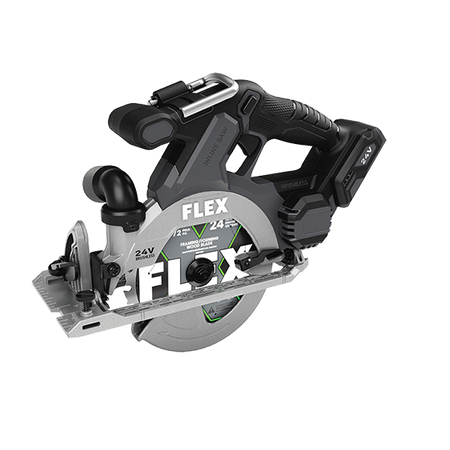

First of its kind, this in-line saw design provides total balance and improved visibility with a clear view on both sides of every cut. The FLEX 24V 6-Β½" In-Line Circular Saw rips through 3X in one pass. The built-in LED illuminates the workpiece for superior precision and accuracy. This advanced saw also features the FLEX Advantage of unmatched battery power, runtime, and faster charging (battery and charger sold separately).
Key Features
- THE FLEX ADVANTAGE - 20% more power with 24V lithium, 25% longer runtime with THERMA-TECHβ’ heat management, up to 50% faster charging with high-power, dual fan chargers.
- SENSOR-FREE BRUSHLESS MOTOR - Every FLEX 24V tool is built around an intelligent sensor-free brushless motor designed to eliminate friction and optimized for higher efficiency and power
- WORLD'S FIRST IN-LINE CIRCULAR SAW - Provides superior balance, clear visibility on each side of the blade, and control for a more accurate cut
- MAXIMUM CUTTING CAPACITY - Cuts 3x lumber in one pass (2-9/16" depth of cut)
- EXCEPTIONAL RUNTIME - Makes up to 430 cuts in 2x4 lumber with a 5.0Ah battery
- FLEX 24V CROSS-COMPATIBILITY - Compatible with all FLEX 24V batteries, chargers, and tools (Battery and charger sold separately)
- FLEX 5-YEAR LIMITED WARRANTY - Register your new FLEX tool, battery, or charger within 30 days of purchase to receive a 5-year limited warranty; 3-year limited warranty without registration
What's in the Box
- 6-1/2" In-Line Circular Saw
- Hook Cover
- Blade Wrench
Specifications
| Saw Drive Type | belt, gear |
| Preset Bevel Angle Detent | 45 |
| Depth Adjustment | Yes |
| LED Light | Yes |
| Pre-Light | Yes |
| After-glow | Yes |
| Dust blower | Yes |
| Spindle Lock | Yes |
| Electric Motor Brake | 7-1/4 |
| Soft Grip | Yes |
| Rafter Hook | Yes |
| Gear Housing Material | Aluminum |
| Guards material | 1-7/8 |
| Foot Material | Aluminum |
| Voltage (volt) | 24 |
| Brushless | Yes |
| Saw blade Γ (inch) | 6-1/2 |
| Arbor Γ (inch) | 5/8 |
| No-load speed (r.p.m) | 5500 |
| Blade Location | 7/8 |
| Sawing capacity at 45Β° (inch) | 1-9/16 |
| Sawing capacity at 90Β° (inch) | 2-9/16 |
| Bevel capacity (Β°) | 2-5/8 |
| Tool Weight (pound) | 5/8 |
| Tool Height (inch) | 11.2 |
| Tool Length (inch) | 14.2 |
| Tool Width (inch) | 1-1/4 |
| Model / Part # | FX2131A-Z |
| UPC | 840163201025 |
