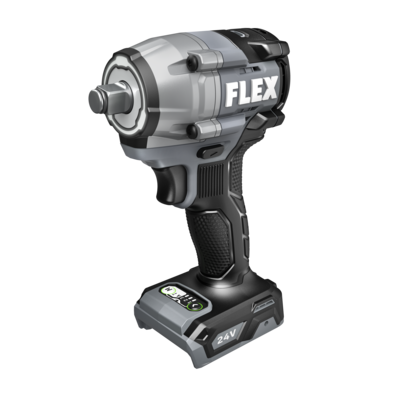

The FLEX 24V 1/2β Compact Impact Wrench packs big power into a compact size so you can power through the day with a lightweight, durable tool built to conquer hard-to-reach spaces. This compact cordless impact wrench is 38 percent lighter than its larger counterpart, FX1451, and an ideal tool for automotive and framing applications. This powerful 1/2-inch impact wrench delivers 300 foot-pounds of fastening torque and 450 foot-pounds of nut-busting torque for demanding jobs. When tightening or loosening bolts and lug nuts, Bolt Auto Stop Mode prevents over-tightening, breaking, or stripping the bolt while Bolt Removal Mode stops the tool when it senses the bolt is loosened. Screw Mode delivers faster speed for wood-driving applications like driving SDS screws into pine or LVL. Its 360-degree LED lights up dark areas with five adjustable brightness settings. The ergonomic design and soft-grip handle paired with a variable speed trigger deliver ideal balance, comfort, and total control. This compact impact wrench delivers the FLEX Advantage of unmatched battery power, runtime, and fast charging (battery and charger sold separately).
Key Features
- THE FLEX ADVANTAGE - 20% more power with 24V lithium, 25% longer runtime with THERMA-TECHβ’ heat management, up to 50% faster charging with high-power, dual fan chargers (batteries and chargers sold separately)
- COMPACT AND LIGHTWEIGHT - Ideal for conquering tight spaces; 38 percent lighter than larger counterpart, FX1451
- HIGH POWER - 450 foot-pounds of nut-busting torque
- AUTO CONTROL AND SCREW MODES - Bolt Auto Stop Mode prevents overtightening, breaking, or stripping; Bolt Removal Mode stops the tool when the bolt is loosened; Screw Mode delivers faster speed in wood-driving applications
- 360Β° LED - Lights up dark areas with five adjustable brightness settings
- FLEX 24V CROSS-COMPATIBILITY - Compatible with all FLEX 24V batteries, chargers, and tools (batteries and chargers sold separately)
- FLEX 5-YEAR LIMITED WARRANTY - Register your new FLEX tool, battery, or charger within 30 days of purchase to receive a 5-year limited warranty; 3-year limited warranty without registration
What's in the Box
- (1)1/2" Compact Size Impact Wrench
- (1)Belt Clip
Specifications
| Brushless | Yes |
| Process control | Yes |
| Metal gearbox | Yes |
| LED Light | Yes |
| Pre-Light | Yes |
| After-glow | Yes |
| Halo light | Yes |
| Variable speed switch | 1 |
| Electric Brake | Yes |
| Soft Grip | Yes |
| Voltage (volt) | 24 |
| No Load Speed (rpm) | 0-1000/1800/2700 |
| Max. impact rate | 3750 IPM |
| Fastening torque | 300 ft-lbs (406Nm) |
| Nut-busting torque | 450 ft-lbs (610Nm) |
| Torque setting | 3 |
| Anvil size | 1/2" |
| Anvil type | Square - Friction Ring |
| Tool Length (inch) | 4.9 |
| Model / Part # | FX1431-Z |
| UPC | 195532300572 |
