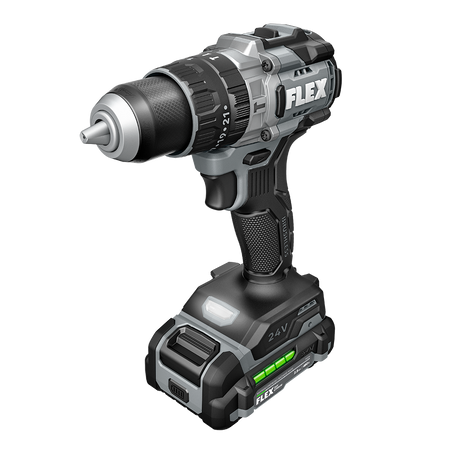

FLEX FX1252-2A 24V 1/2" 2 Speed Standard Hammer Drill G2 (2x2.5Ah Battery +75 Charger)
Power into concrete, brick, and other masonry with the power, performance, and versatility packed into the FLEX 24V Brushless 1/2" 2-Speed Hammer Drill. This powerful cordless hammer drill delivers up to 1,000 in-lbs of torque and up to 36,800 IPM for drilling holes into concrete, brick, or stone for your anchors and fasteners. Its compact size allows you to conquer tight spaces on the jobsite while built-in LED lighting assists in dark work areas. Its durable construction includes a 1/2-inch metal ratcheting chuck for long-lasting reliability. This cordless drill driver delivers the FLEX Advantage of unmatched battery power, runtime, and fast charging. This FLEX drill set includes the 24V cordless hammer drill, (2) 2.5Ah lithium batteries, 75W charger, side handle, bit holder, belt clip, and a FLEX bag.
Key Features
- THE FLEX ADVANTAGE β 20% more power with 24V lithium, 25% longer runtime with THERMA-TECHβ’ heat management, up to 50% faster charging with high-power, dual fan chargers
- HIGH POWER β Delivers up to 1,000 in-lbs of torque and up to 36,800 IPM
- COMPACT SIZE β Conquers tight spaces
- ANTI-KICKBACK β Advanced braking technology lets you work with confidence
- 1/2-INCH METAL RATCHETING CHUCK β Long-lasting and reliable
- FLEX 24V CROSS-COMPATIBILITY β Compatible with all FLEX 24V batteries, chargers, and tools
- FLEX 5-YEAR LIMITED WARRANTY β Register your new FLEX tool, battery, or charger within 30 days of purchase to receive a 5-year limited warranty; 3-year limited warranty without registration
- HAMMER DRILL KIT WITH BATTERY AND CHARGER INCLUDED β Set includes the 24V cordless hammer drill, (2) 2.5Ah lithium batteries, 75W charger, side handle, bit holder, belt clip, FLEX bag
What's in the Box
- (1) 1/2" 2 Speed Hammer Drill
- (2) 2.5Ah Lithium-Ion Battery
- (1) 75W Fast Charger
- (1) FLEX Bag
- (1) Side Handle
- (1) Bit Holder
- (1) Belt Clip
Specifications
| Power Source | DC |
| Voltage (V) | 24 V |
| Illumination | Yes,Single LED |
| Pre-Light | Yes |
| After-glow | Yes |
| Variable Speed Switch | Yes |
| Lock-Off | Yes |
| Soft Start | Yes |
| Electric Brake | Yes |
| Forward / Reverse Selector | Yes |
| Soft Grip | Yes |
| Chuck with Carbide Teeth | Yes |
| Anti-kickback | Yes |
| Live-On Indicator | Yes |
| Integrated Belt Clip | Yes |
| Motor Type | Brushless |
| Number Of Gear Speeds | 2 |
| No Load Speed (rpm) | 0-600/2300 |
| Impact Rate (ipm) | 0-9600/36800 |
| Max. Torque (in.lbs) | 1000 |
| Tested Torque (W/2P) (Nm) | 55-60/2P |
| Clutch Settings | 22+D+H |
| Chuck Capacity (mm) | 13 |
| Chuck Capacity (inch) | 1/2 |
| Chuck Material | Metal |
| Chuck Type | Keyless Single-sleeve Ratchet |
| Cord Type | / |
| Max. Screw Capacity (mm) | 12.5 |
| Max. Screw Capacity (inch) | 0.5 |
| Tool Weight (kg) | 1.5 |
| Tool Weight (lbs) | 3.31 |
| Tool Length (mm) | 163 |
| Tool Width (mm) | 76 |
| Tool Height (mm) | 212 |
| Tool Length (inch) | 6.42 |
| Tool Width (inch) | 2.99 |
| Tool Height (inch) | 8.35 |
| Model / Part # | FX1252-2A |
| UPC | 195532302415 |
Documents
- FX0461 FLEX-24V-75W-CHARGER 26-0121 MANUAL (PDF)
- FX0111 FX0121 FX0221 FX0231 FLEX 24V BATTERY 20-1210 MANUAL (PDF)
- FX1152&FX1252 FLEX-24V-DRILL-DRIVER-&-HAMMER-DRILL 25-1223 MANUAL (PDF)
