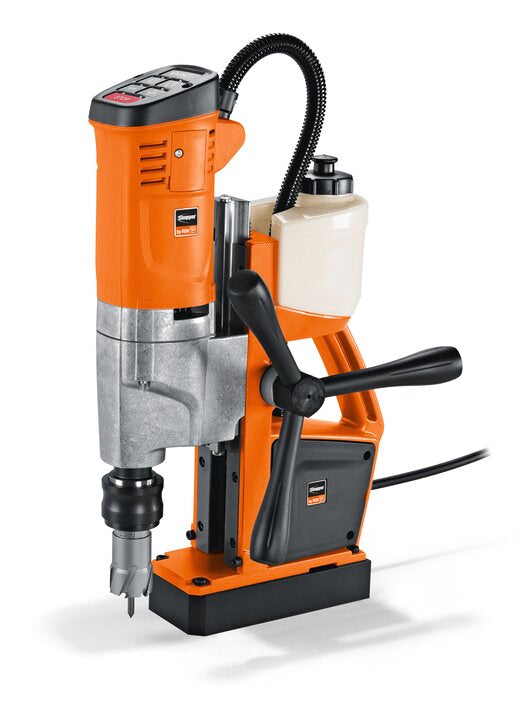

FEIN JMU 137 QW Universal Magnetic Core Drill, 1-3/8" Capacity, 120V – 72705461120
Regular price
$2,100.00 CAD
Regular price
-12%
$2,399.00 CAD
Sale price
$2,100.00 CAD
Model / Part #72705461120
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days.
Free shipping on tools over $299.99Under $299.99, shipping is calculated at checkout · Shipping details
A small, long-stroke, single-speed universal magnetic core drill from FEIN's JMU 137 family, for core drilling up to 1-3/8 in. (35 mm) plus twist drilling, tapping, countersinking and reaming on site. Light enough for overhead and assembly work.
Features
- Rugged build with a swivelling motor-cable protection sleeve for tough industrial and trade use
- FEIN 1,100 W high-performance motor with tacho electronics for steady speed under load
- Forward/reverse, electronic speed control and a long 10-1/4" (260 mm) stroke range for core drilling, twist drilling, tapping, countersinking and reaming
- Small, light and well balanced
- Controls in the operator's line of sight for simple, error-proof use
- Strong magnet with a holding-force indicator; extra magnet switch on the drill stand
- Tilt/motion sensor for added safety
- Built-in coolant tank for longer cutter life
- Feed handle mounts on either side; speed memory function
Technical data
| Carbide cutter max. dia. | 1-3/8" (35 mm) |
| HSS cutter max. dia. | 1-3/8" (35 mm) |
| Max. cutting depth | 2" (50 mm) |
| Twist drill max. dia. | 5/8" (16 mm) |
| Tapping | 1/2" |
| Countersinking max. dia. | 1-1/4" (31 mm) |
| Reaming max. dia. | 5/8" (16 mm) |
| Power input / output | 1,100 W / 550 W |
| Full-load speed | 130–520 rpm |
| Cutter holder | 3/4" straight shank; tool-free cutter change |
| Stroke / total stroke range | 5-5/16" (135 mm) / 10-1/4" (260 mm) |
| Magnetic holding force | 2,248 lb (10,000 N) |
| Cable | 13.1 ft (4 m) |
| Tool weight | 23.6 lb (10.7 kg) |
| Shipping weight | 16.8 kg (37 lb) |
| UPC | 4014586886046 |
| Country of origin | Germany |
| FEIN part # | 72705461120 |
Included
- Magnetic base drill
- Coolant tank
- Safety strap
- Chip hook
- Pilot pin
- Chip guard
- Carrying case
