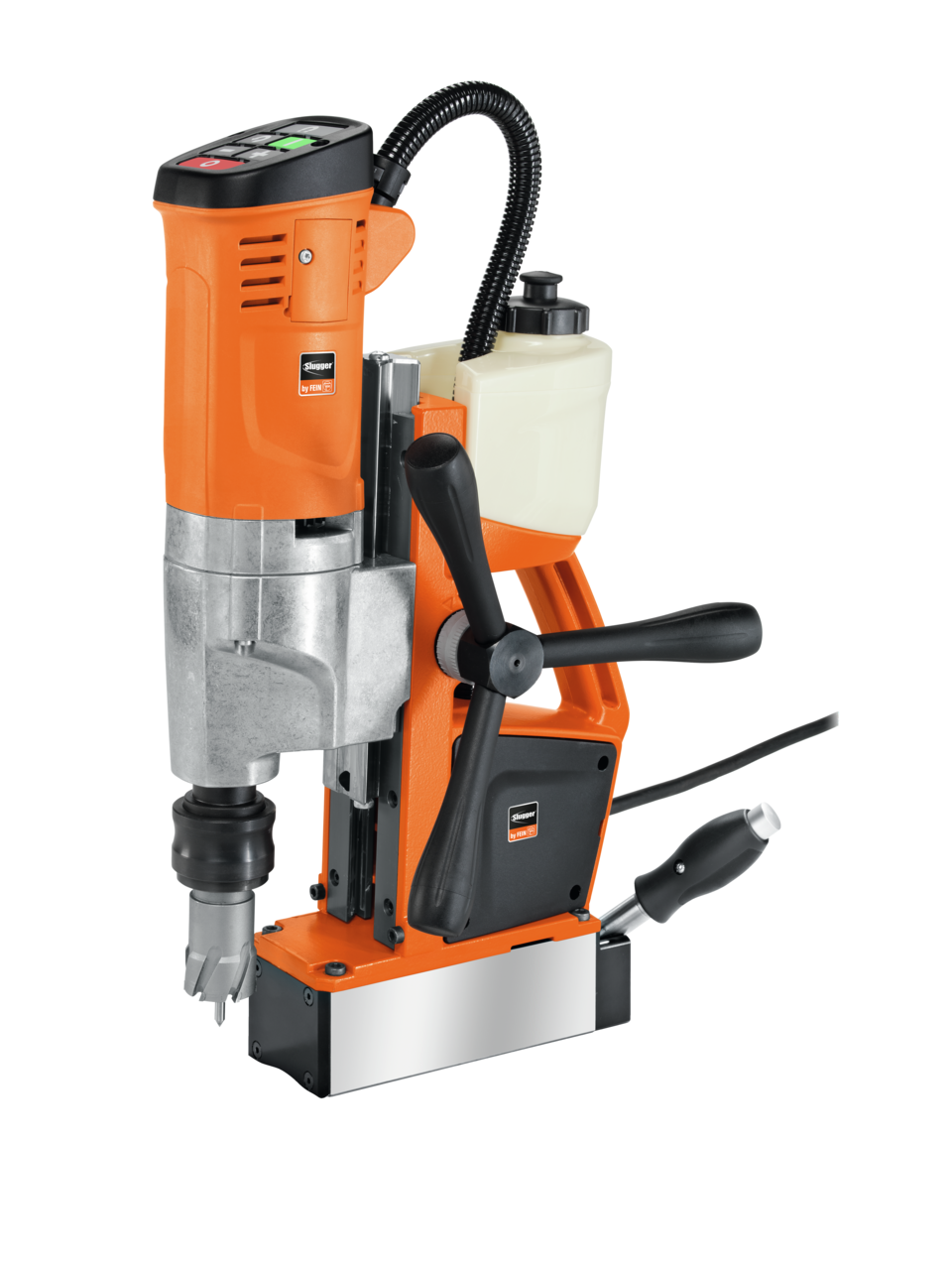

FEIN JMU 137 P QW Permanent Magnet Universal Core Drill, 1-3/8" Capacity, 120V – 72707361090
Regular price
$2,800.00 CAD
Regular price
-12%
$3,199.00 CAD
Sale price
$2,800.00 CAD
Model / Part #72707361090
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days.
Free shipping on tools over $299.99Under $299.99, shipping is calculated at checkout · Shipping details
A JMU 137 universal magnetic core drill with a permanent magnet, which FEIN designs for extra-safe work at height. Core drilling up to 1-3/8 in. (35 mm), plus twist drilling, tapping, countersinking and reaming, with a long stroke for all of them.
Features
- Permanent magnet for extra-safe work at height; extra-narrow magnet base
- Pivoting motor-cable protection sleeve and high-quality build for tough use
- FEIN high-performance motor with tacho electronics for strong, steady torque
- Extra-long 10-1/4" (260 mm) stroke range for core and twist drilling, tapping, countersinking and reaming
- Reversible, with electronic speed control
- Holding-force indicator to help position the drill safely
- Tilt/motion sensor for added safety
- Built-in coolant tank for longer cutter life
- Feed handle mounts on either side; speed memory function
- Controls in the operator's line of sight
Technical data
| Carbide cutter max. dia. | 1-3/8" (35 mm) |
| HSS cutter max. dia. | 1-3/8" (35 mm) |
| Max. cutting depth | 2" (50 mm) |
| Twist drill max. dia. | 5/8" (16 mm) |
| Tapping | 1/2" |
| Countersinking max. dia. | 1-1/4" (31 mm) |
| Reaming max. dia. | 5/8" (16 mm) |
| Power input / output | 1,010 W / 550 W |
| Full-load speed | 130–520 rpm |
| Cutter holder | 3/4" straight shank; tool-free cutter change |
| Stroke / total stroke range | 5-5/16" (135 mm) / 10-1/4" (260 mm) |
| Magnet | Permanent magnet, 2,023 lb (9,000 N) holding force |
| Cable | 13.1 ft (4 m) |
| Tool weight | 27.6 lb (12.5 kg) |
| Shipping weight | 19.0 kg (42 lb) |
| UPC | 4014586890579 |
| Country of origin | Germany |
| FEIN part # | 72707361090 |
Included
- Magnetic base drill
- Coolant tank
- Safety strap
- Chip hook
- Pilot pin
- Chip guard
- Drift
- Carrying case
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
