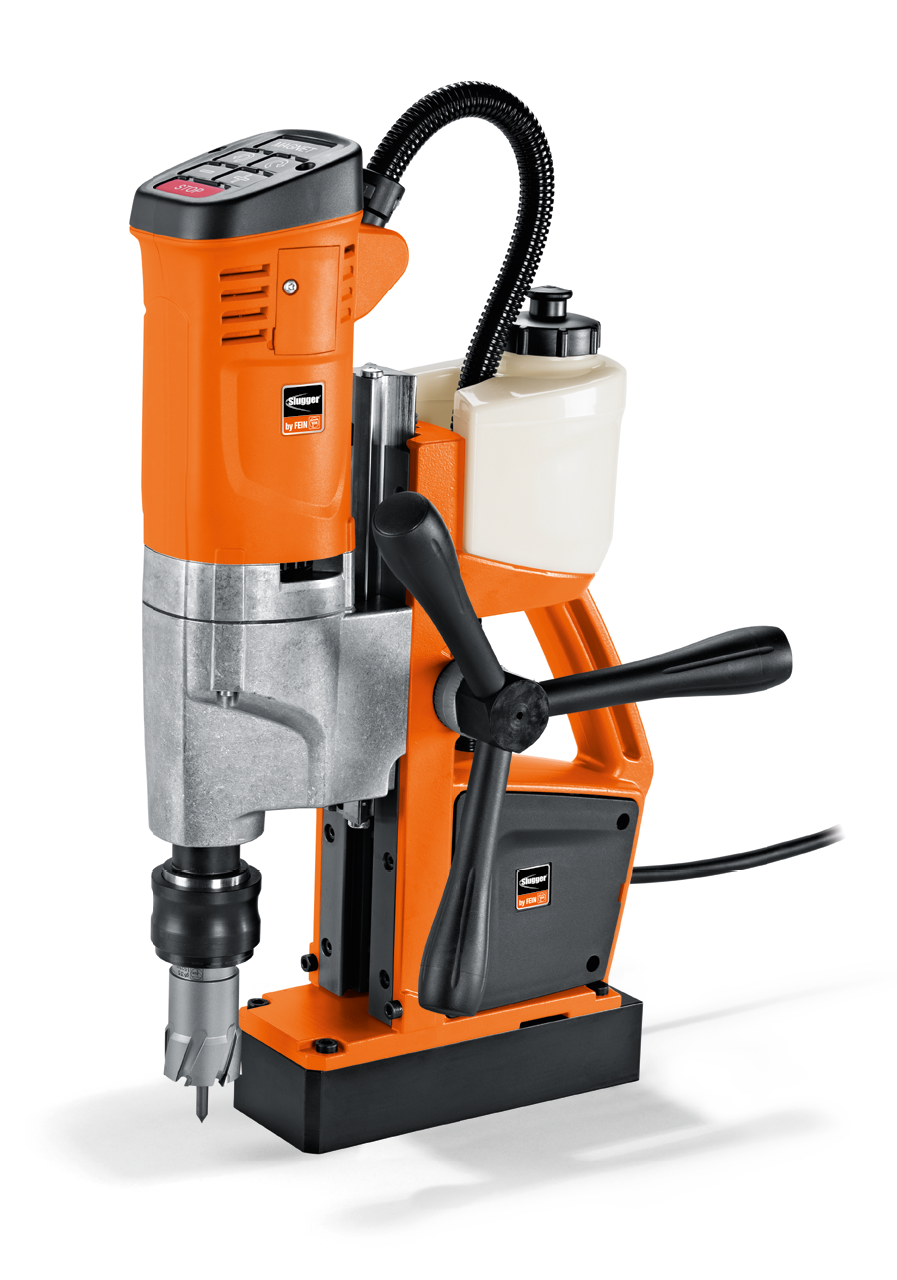

FEIN JMU 137-2 QW Universal Magnetic Core Drill, 1-3/8" Capacity, 2-Speed, 120V – 72705861120
The 2-speed member of FEIN's JMU 137 family: a small, long-stroke universal magnetic core drill with a mechanical 2-speed gearbox, adding a high-speed gear for efficient twist drilling on site alongside core drilling up to 1-3/8 in. (35 mm).
Features
- Mechanical 2-speed gearbox, with a high-speed gear for efficient twist drilling
- Rugged build with a swivelling motor-cable protection sleeve for heavy trade and industrial use
- FEIN 1,100 W high-performance motor with tacho electronics for steady speed under load
- Forward/reverse, electronic speed control and a long 10-1/4" (260 mm) stroke range for core drilling, twist drilling, tapping, countersinking and reaming
- Small, light and well balanced
- Controls in the operator's line of sight for simple, error-proof use
- Strong magnet with a holding-force indicator; extra magnet switch on the drill stand
- Tilt/motion sensor for added safety
- Built-in coolant tank for longer cutter life
- Feed handle mounts on either side; speed memory function
Technical data
| Carbide cutter max. dia. | 1-3/8" (35 mm) |
| HSS cutter max. dia. | 1-3/8" (35 mm) |
| Max. cutting depth | 2" (50 mm) |
| Twist drill max. dia. | 5/8" (16 mm) |
| Tapping | 1/2" |
| Countersinking max. dia. | 1-1/4" (31 mm) |
| Reaming max. dia. | 5/8" (16 mm) |
| Power input / output | 1,100 W / 550 W |
| Gearbox | Mechanical 2-speed |
| Cutter holder | 3/4" straight shank; tool-free cutter change |
| Stroke / total stroke range | 5-5/16" (135 mm) / 10-1/4" (260 mm) |
| Magnetic holding force | 2,136 lb (9,500 N) |
| Cable | 13.1 ft (4 m) |
| Tool weight | 24.5 lb (11.1 kg) |
| Shipping weight | 17.7 kg (39 lb) |
| UPC | 4014586886084 |
| Country of origin | Germany |
| FEIN part # | 72705861120 |
Included
- Magnetic base drill
- Coolant tank
- Safety strap
- Chip hook
- 3 centering (pilot) pins, 1/4" dia.: 3-1/4", 3-9/16" and 4" long
- Chip guard
- Tool case
