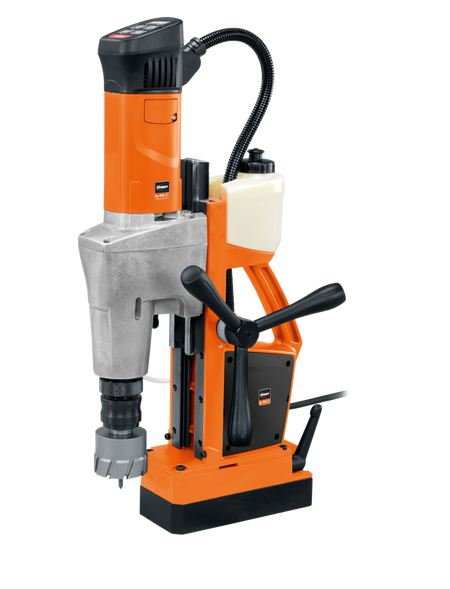

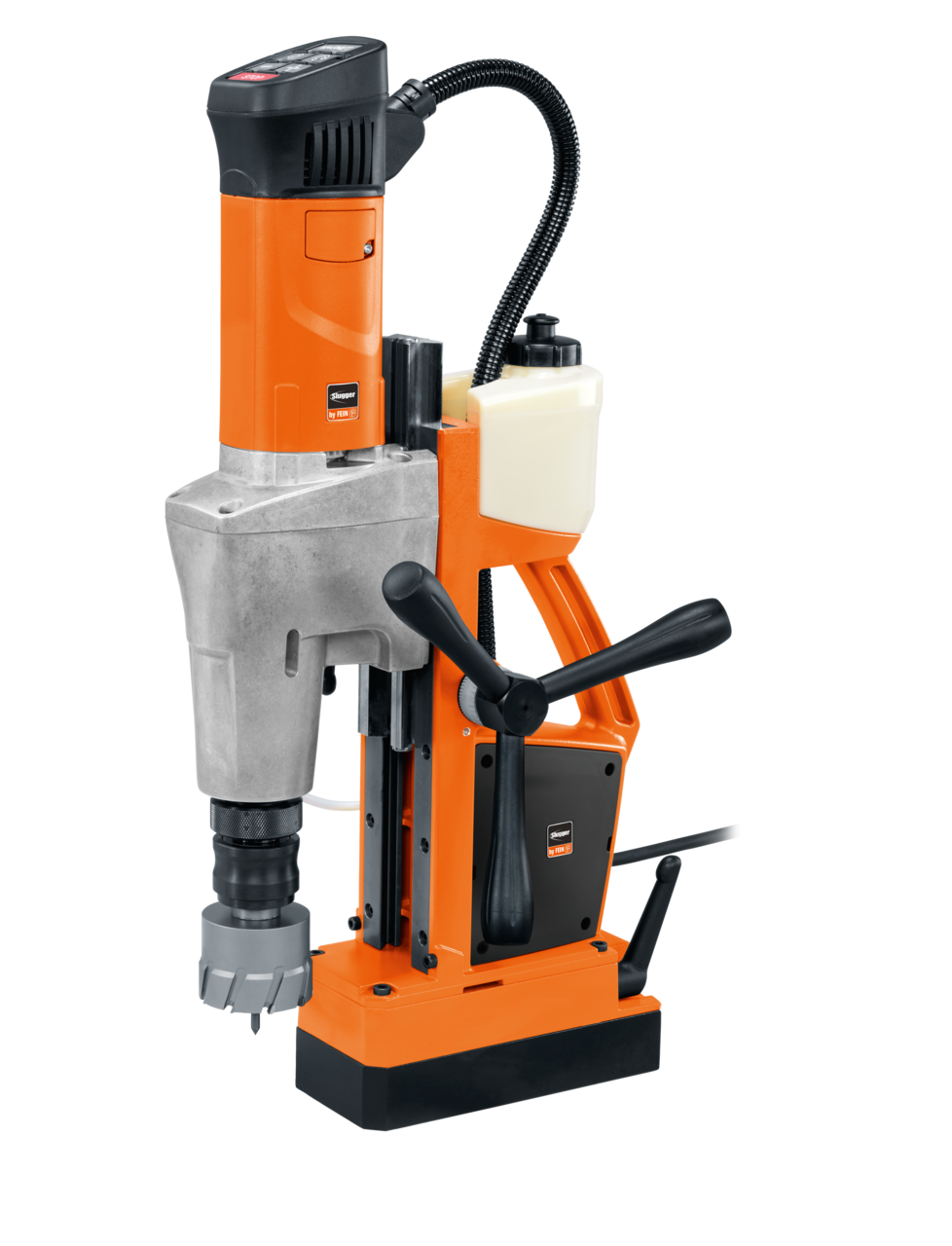

FEIN JCM 256 U Universal Magnetic Core Drill, 2-1/2" (65 mm) Capacity, MT3, 2-Speed, 120V – 72704761120
Regular price
$4,252.00 CAD
Regular price
-12%
$4,859.00 CAD
Sale price
$4,252.00 CAD
Model / Part #72704761120
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days.
🚚
Freight item · freight charge added at checkoutThis item ships by freight truck. A fixed freight charge is added at checkout, or you can use your own carrier (carrier name and account number required). Questions? Call 1-888-598-6657 or 604-873-5394 · Shipping details
The larger of FEIN's two JCM universal magnetic core drills: a 2-speed, 1,300 W machine for core drilling up to 2-1/2 in. (65 mm), built for efficient, heavy-duty work in the shop. It also handles twist drilling, tapping up to M20, countersinking and reaming.
Features
- Holds stable speed even in the toughest applications
- Fine spindle adjustment (with 7° angular adjustment) for easy alignment
- Double drill motor guides take the longest annular cutters
- Reversible, with electronic speed control
- MT3 taper interface; tool-free cutter change
- Strong magnet with a holding-force indicator to help position the drill safely
- Built-in coolant tank for longer cutter life
- Magnet monitoring, speed memory and tacho speed control
Technical data
| Carbide cutter max. dia. | 2-1/2" (65 mm) |
| HSS cutter max. dia. | 1-3/4" (45 mm) |
| Max. cutting depth | 2" (50 mm) |
| Twist drill max. dia. | 1" (25 mm) |
| Tapping | M20 |
| Countersinking max. dia. | 2" (50 mm) |
| Reaming max. dia. | 1" (25 mm) |
| Power input / output | 1,300 W / 730 W |
| Speed, 1st gear | 120–240 rpm |
| Speed, 2nd gear | 260–520 rpm |
| Tool mount | MT3; 3/4" straight shank cutter holder |
| Stroke / total stroke range | 5-11/16" (145 mm) / 12-3/8" (315 mm) |
| Drill stand adjustment | 1/4" (6 mm), 7° angular |
| Magnetic holding force | 3,147 lb (14,000 N) |
| Cable | 13.1 ft (4 m) |
| Tool weight | 35.1 lb (15.9 kg) |
| Shipping weight | 22.2 kg (49 lb) |
| UPC | 4014586872988 |
| Country of origin | Germany |
| FEIN part # | 72704761120 |
Included
- Magnetic base drill
- Coolant tank
- Safety strap
- 2 pilot pins
- Chip guard
- Hex keys, 3/16" and 1/4" (5 and 6 mm)
- T-handle hex key, 5 mm
- Carrying case
