FEIN JCM 200 U Universal Magnetic Core Drill, 2" Capacity, MT3, 2-Speed, 120V – 72704461120
Regular price
$3,456.00 CAD
Regular price
-12%
$3,949.00 CAD
Sale price
$3,456.00 CAD
Model / Part #72704461120
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days.
🚚
Freight item · freight charge added at checkoutThis item ships by freight truck. A fixed freight charge is added at checkout, or you can use your own carrier (carrier name and account number required). Questions? Call 1-888-598-6657 or 604-873-5394 · Shipping details

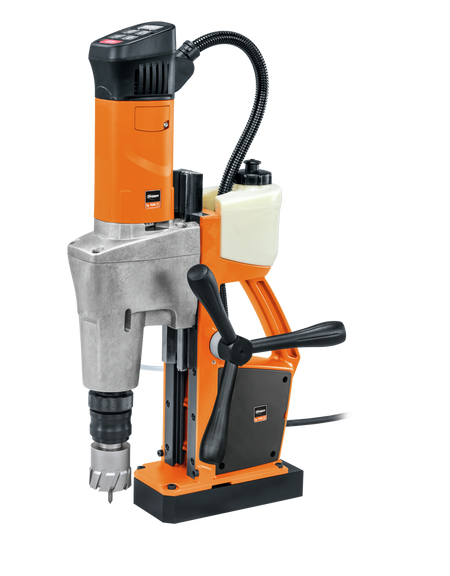

A universal FEIN magnetic core drill with a 2-speed gearbox, built for flexible work in the shop and on site: core drilling up to 2 in., plus twist drilling, tapping, countersinking and reaming.
Features
- 2-speed gearbox with electronic speed control and a stable-speed, high-power motor
- Double drill motor guides take the longest annular cutters
- Controls sit in the operator's line of sight for simple, error-proof use
- Reversible, for tapping
- Strong magnet with a holding-force indicator to help position the drill safely
- Built-in coolant tank for longer cutter life
- Feed handle mounts on either side
- MT3 taper interface; tool-free cutter change
- Magnet monitoring, speed memory and tacho speed control
Technical data
| Carbide cutter max. dia. | 2" (50 mm) |
| HSS cutter max. dia. | 1-5/8" (40 mm) |
| Max. cutting depth | 2" (50 mm) |
| Twist drill max. dia. | 7/8" (23 mm) |
| Tapping | M16 |
| Countersinking max. dia. | 2" (50 mm) |
| Reaming max. dia. | 7/8" (23 mm) |
| Power input / output | 1,200 W / 610 W |
| Speed, 1st gear | 130–260 rpm |
| Speed, 2nd gear | 260–520 rpm |
| Tool mount | MT3; 3/4" straight shank cutter holder |
| Stroke / total stroke range | 5-11/16" (145 mm) / 12-3/8" (315 mm) |
| Magnetic holding force | 2,810 lb (12,500 N) |
| Cable | 13.1 ft (4 m) |
| Tool weight | 31.3 lb (14.2 kg) |
| Shipping weight | 21.0 kg (46 lb) |
| UPC | 4014586873060 |
| Country of origin | Germany |
| FEIN part # | 72704461120 |
Included
- Magnetic base drill
- Coolant tank
- Safety strap
- Chip hook
- Pilot pin
- Drift
- Chip guard
- Carrying case
Shipping: this drill ships by freight. Freight is collect: you arrange your own carrier.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 72704461120
Need a replacement part for your FEIN? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
