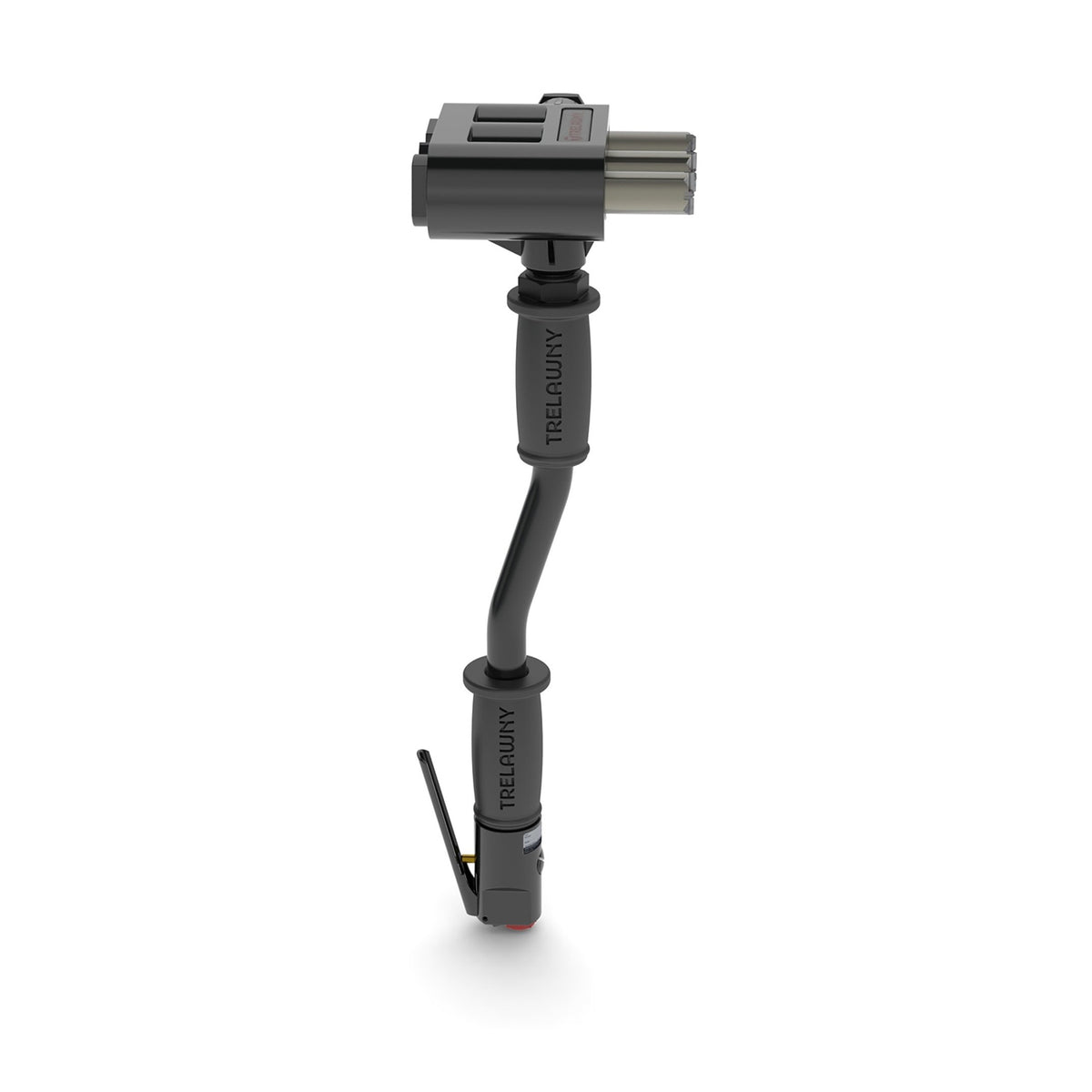

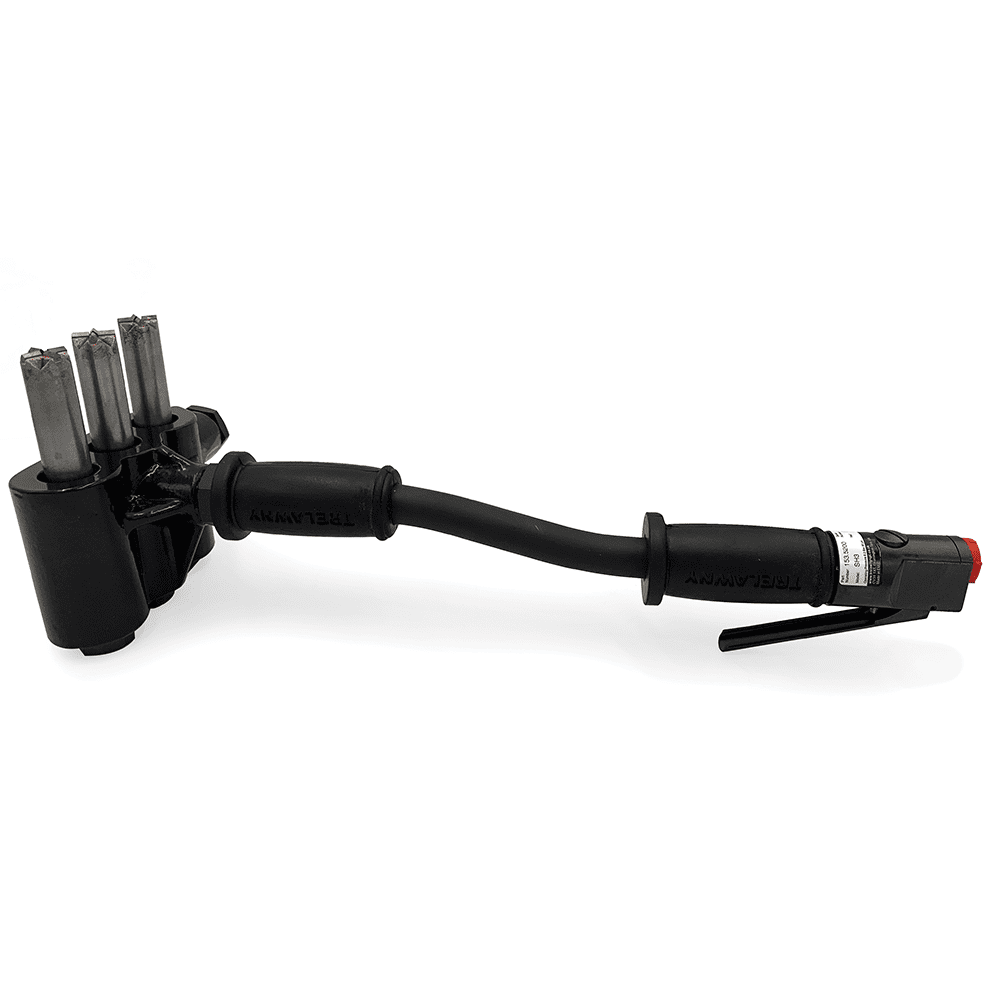

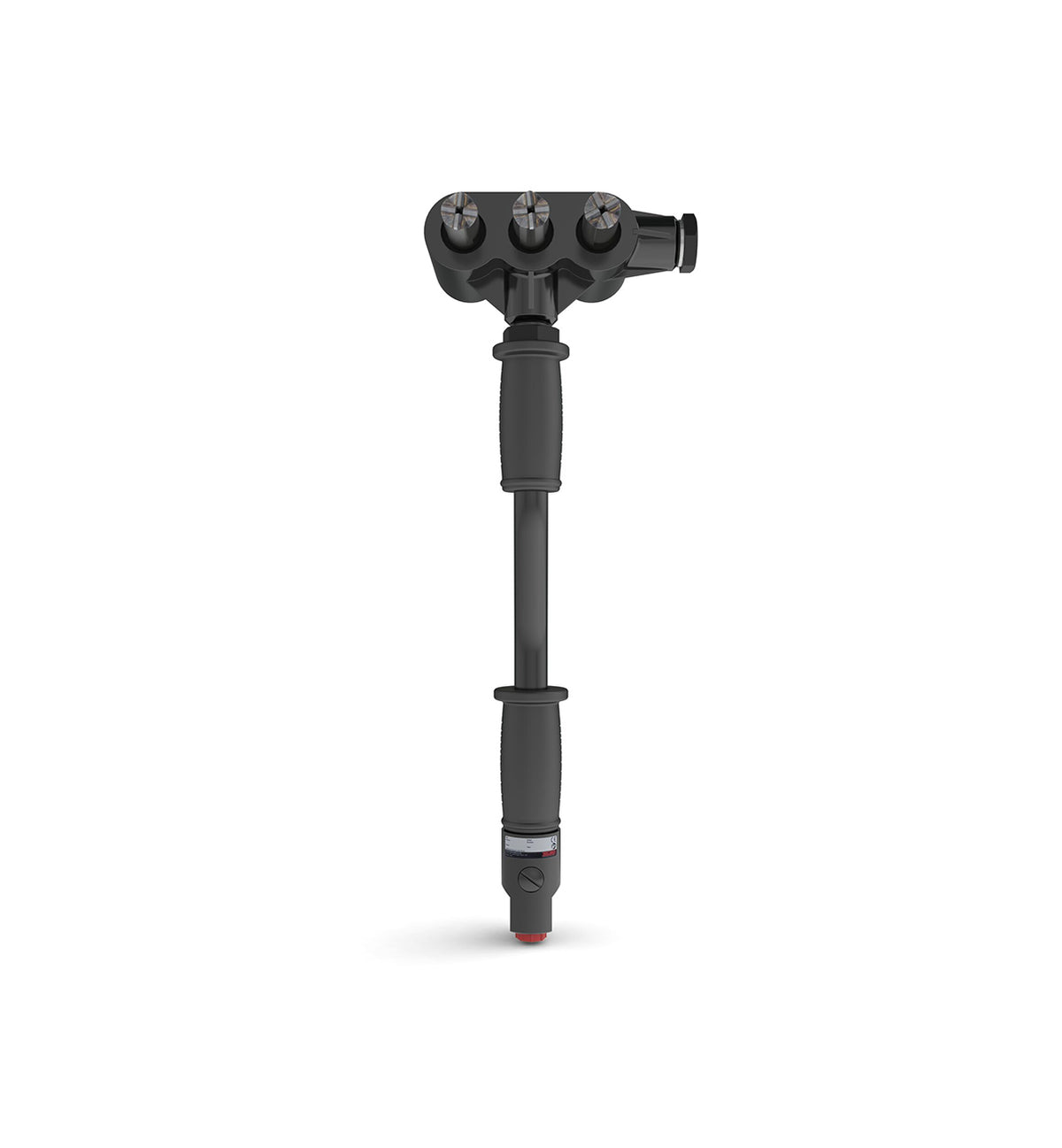

CS Unitec Triple-Head Pneumatic Scabbling Hammer Heavy-Duty SH3

Description

Key specifications

• Production rate: 100 sq. ft./hr.
• Blows per minute: 7200
• Vibration levels: 8.7 m/s²
• Air consumption: 15.9 CFM (90 PSI)

Features & applications

• Heavy-duty triple-head scabbler for removing steel scale deposits and tough contamination on concrete and metal.
• Prepares concrete cracks for repair with a clean, roughened profile for patching and epoxy fillers.

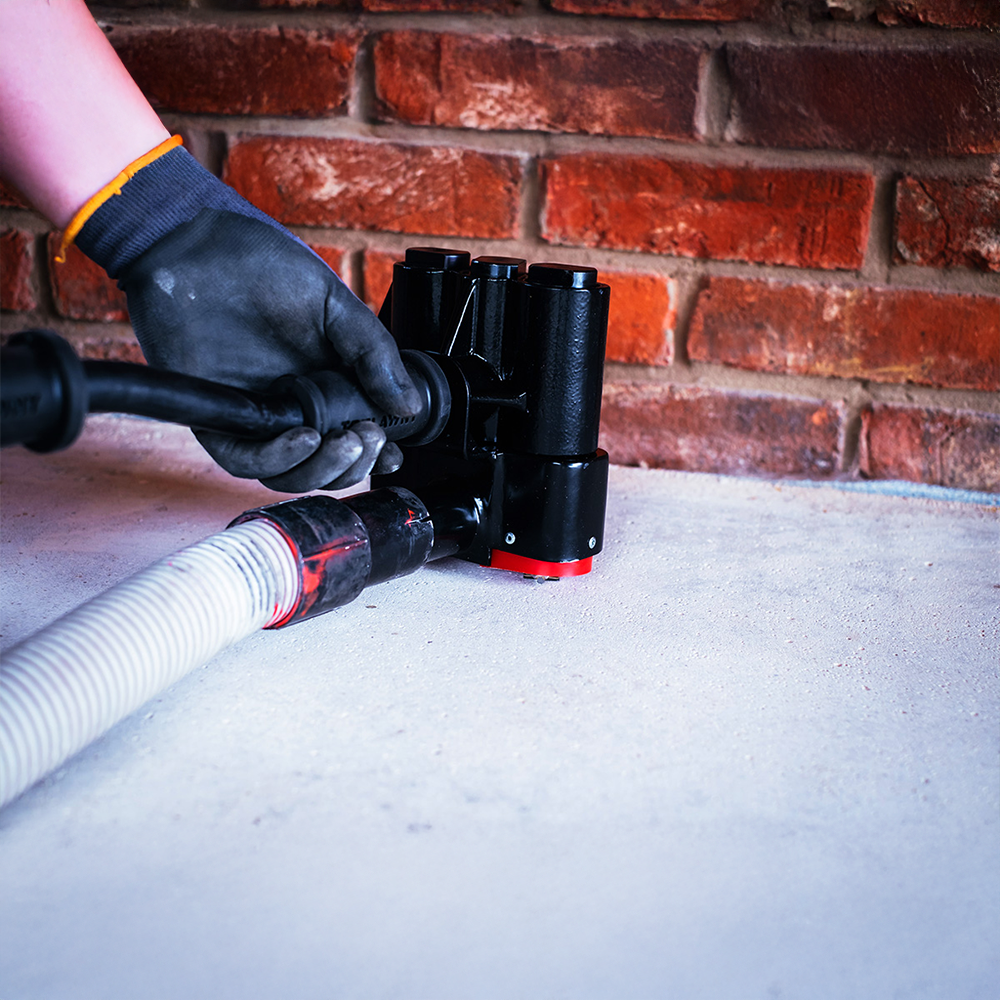

• Textures, roughens and reduces concrete to establish a uniform concrete surface profile (CSP).
• Exposes aggregate for proper bonding of overlays, repair mortars, waterproofing membranes, and coatings.

Specifications

Model	Pistons	Handle	Dimensions (L x H)	Weight (lbs.)	CFM @ 90 PSI	Noise dB(a)	Vibration m/s²
153.5250	Steel bush hammer	Long	19″ x 6.2″	11.5	15.9	98	8.7
153.5200	TCT cruciform	Long	19″ x 6.2″	11.5	15.9	98	8.7
199.6390	TCT cruciform	Short	9.25″ x 6″	7	15.9	98	8.7

7200 BPM; production rate 100 sq. ft./hr; cutter life 10,500 sq. ft.

Pricing: call 1-888-598-6657 or click Request pricing for a quote on any model.
