Call for price
Pricing for this size is by request. Click Request pricing and we'll get back to you within 1 business day, or give us a call.

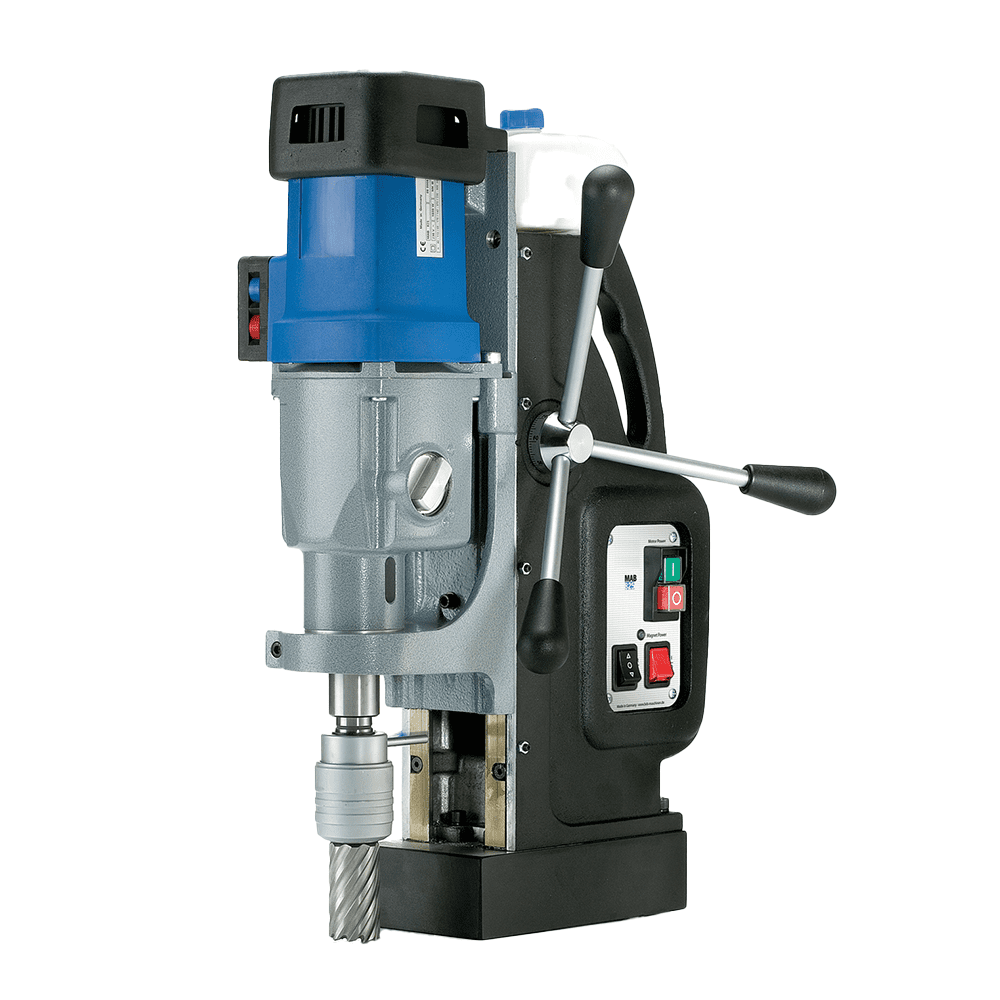

MAB 825 & MAB 845 are portable magnetic drills engineered for powerful performance in metals and steel. Reversible options available.
Features
- Powerful and reliable
- Designed for continuous use
- Quick-change keyless cutter system
- Integrated cutting oil reservoir
- Automatic internal lubrication
- Internal cable routing for damage reduction

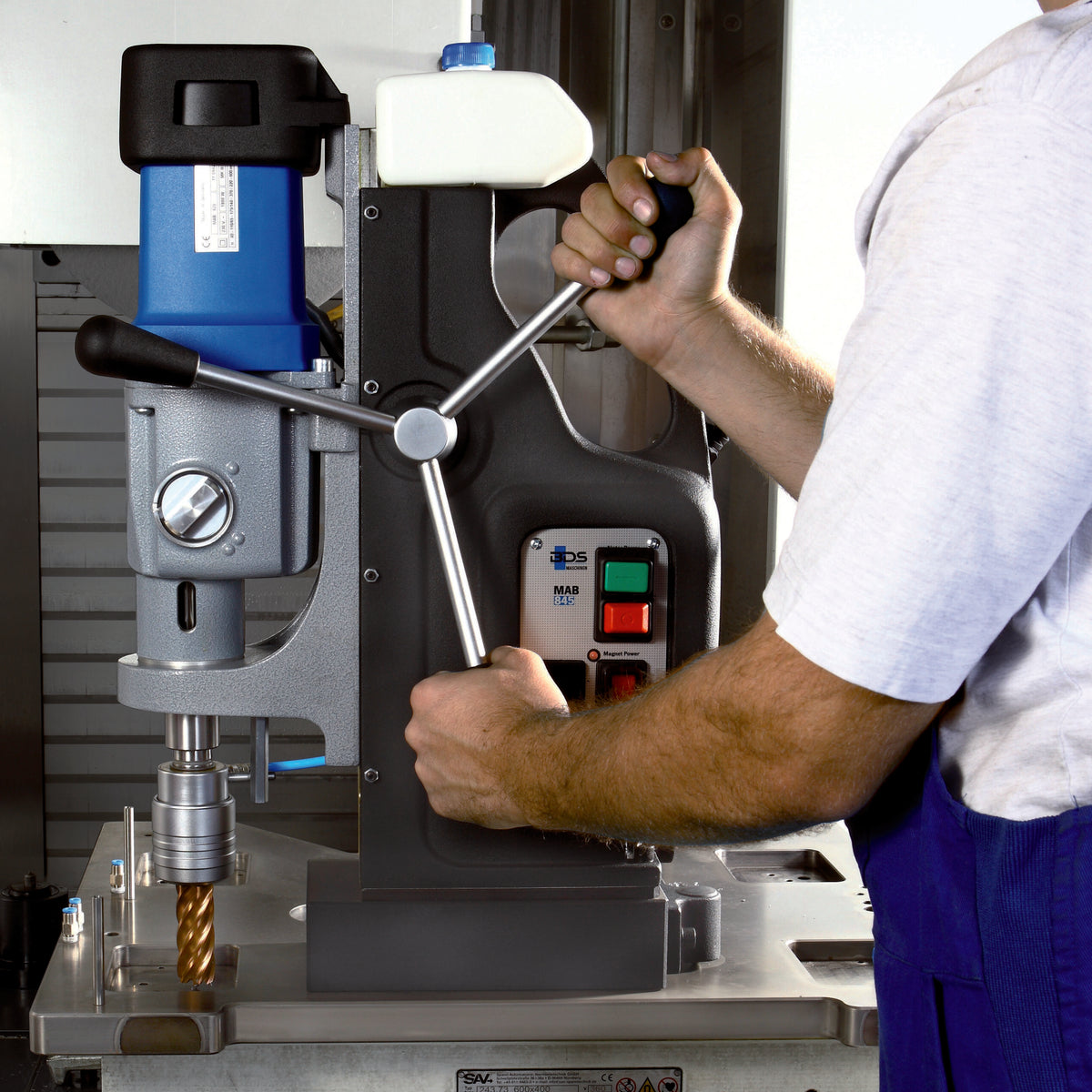

- Simple, ergonomic arrangement of controls for one-handed operation
- SafeMag™: Green/Red LED magnetic force indicator for safe operation
- CoolMag™: Magnet overheating protection
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
Applications

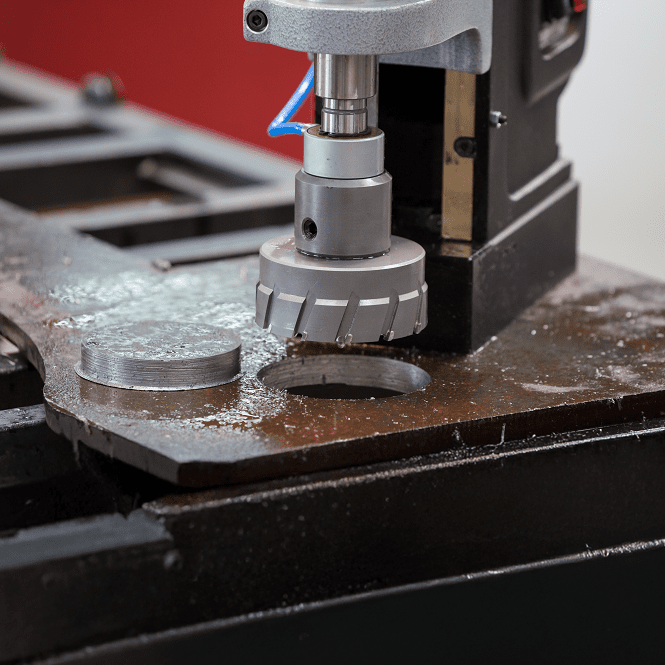

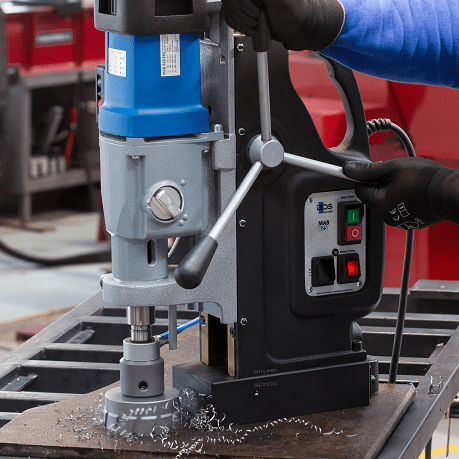

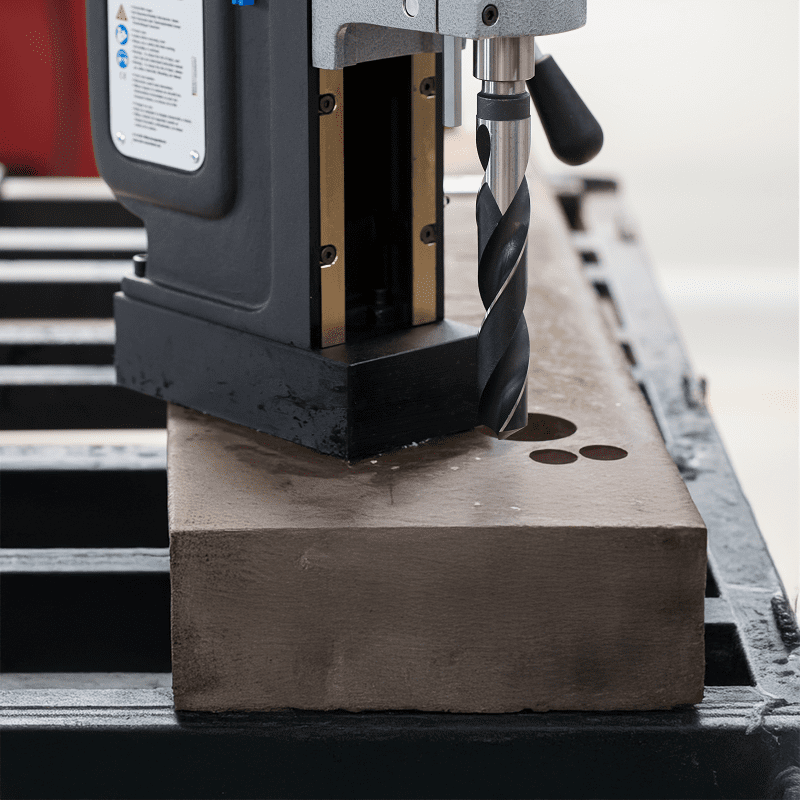

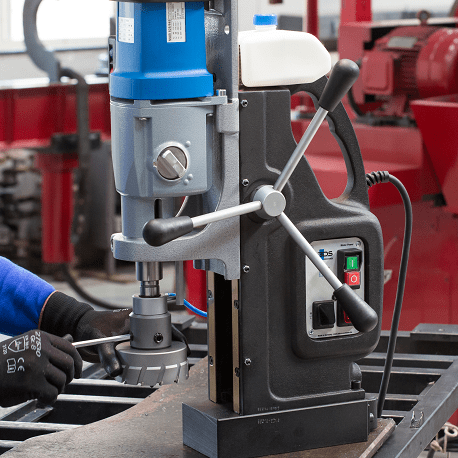

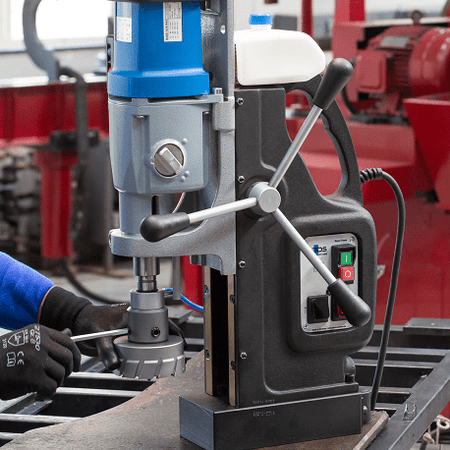

MAB 825 & MAB 845 are for drilling large diameter holes in thick structural steel, plate, beams, and heavy assemblies. Ideal for fabrication shops requiring high torque, precision, and multi‑speed control. Supports annular cutters, twist drills, reamers, countersinks, and tapping operations. Suitable for steel mills, refineries, power plants, and heavy industrial facilities. Automatic feed models are ideal for production applications.
Specifications
| Model | MAB 825 | MAB 845 | MAB 825 V | MAB 845 V |
|---|---|---|---|---|
| Motor Power | 16 Amp / 110 Volt | – | – | – |
| Weight | 68 lbs. | 68 lbs. | 68 lbs. | 68 lbs. |
| Stroke | 10" | 10" | – | 10" |
| Hole Capacity | 4-1/16" dia. | 4-1/16" dia. | 4-1/16" dia. | 4-1/16" dia. |
| Twist Drill Capacity | 1-1/4" dia. | 1-1/4" dia. | 1-1/4" dia. | 1-1/4" dia. |
| Tapping Capacity | 1-3/16" dia. | 1-3/16" dia. | 1-3/16" dia. | 1-3/16" dia. |
| Ream Capacity | 1-1/4" dia. | – | – | – |
| Speeds | 40-110, 65-175, 140-360, 220-600 RPM | 40-110, 65-175, 140-360, 220-600 RPM | 40-110, 65-175, 140-360, 220-600 RPM | 40-110, 65-175, 140-360, 220-600 RPM |
| Magnet Base Size | 8-5/8" L x 4-1/3" W | 8-5/8" L x 4-1/3" W | 8-5/8" L x 4-1/3" W | 8-5/8" L x 4-1/3" W |
| Dimensions | 18-5/8" H x 14-7/16" L x 9-7/16" W | 18-5/8" H x 14-7/16" L x 9-7/16" W | 18-5/8" H x 14-7/16" L x 9-7/16" W | 18-5/8" H x 14-7/16" L x 9-7/16" W |
| Magnetic Force (1" plate) | 6600 lbs. | 6600 lbs. | 6600 lbs. | 6600 lbs. |
| Arbor Bore | 3/4" and 1-1/4" Weldon Shank, standard | 3/4" and 1-1/4" Weldon Shank, standard | 3/4" and 1-1/4" Weldon Shank, standard | 3/4" and 1-1/4" Weldon Shank, standard |
| Spindle | MT3 | MT3 | MT3 (optional) | MT3 |
| Automatic Lubrication | Included | Included | Included | Included |
| Automatic Feed | Order model no. MAB 825 V | – | Included | Included |
| Swivel Base | – | Included | – | Included |
Pricing: call 1-888-598-6657 or click Request pricing for a quote on any model. Shipped across Canada from Burnaby, BC.
