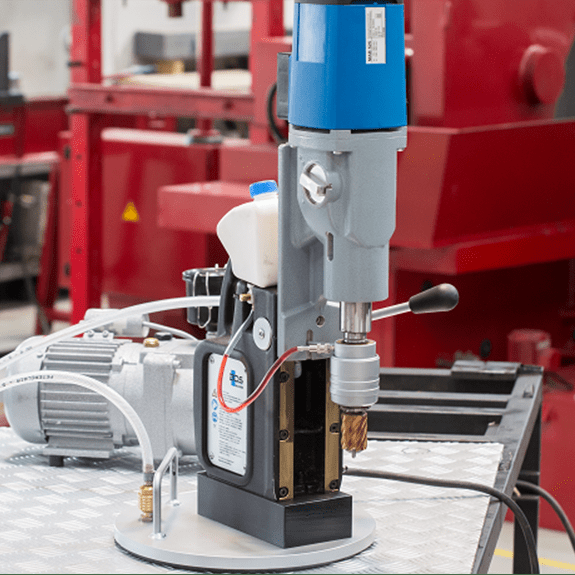

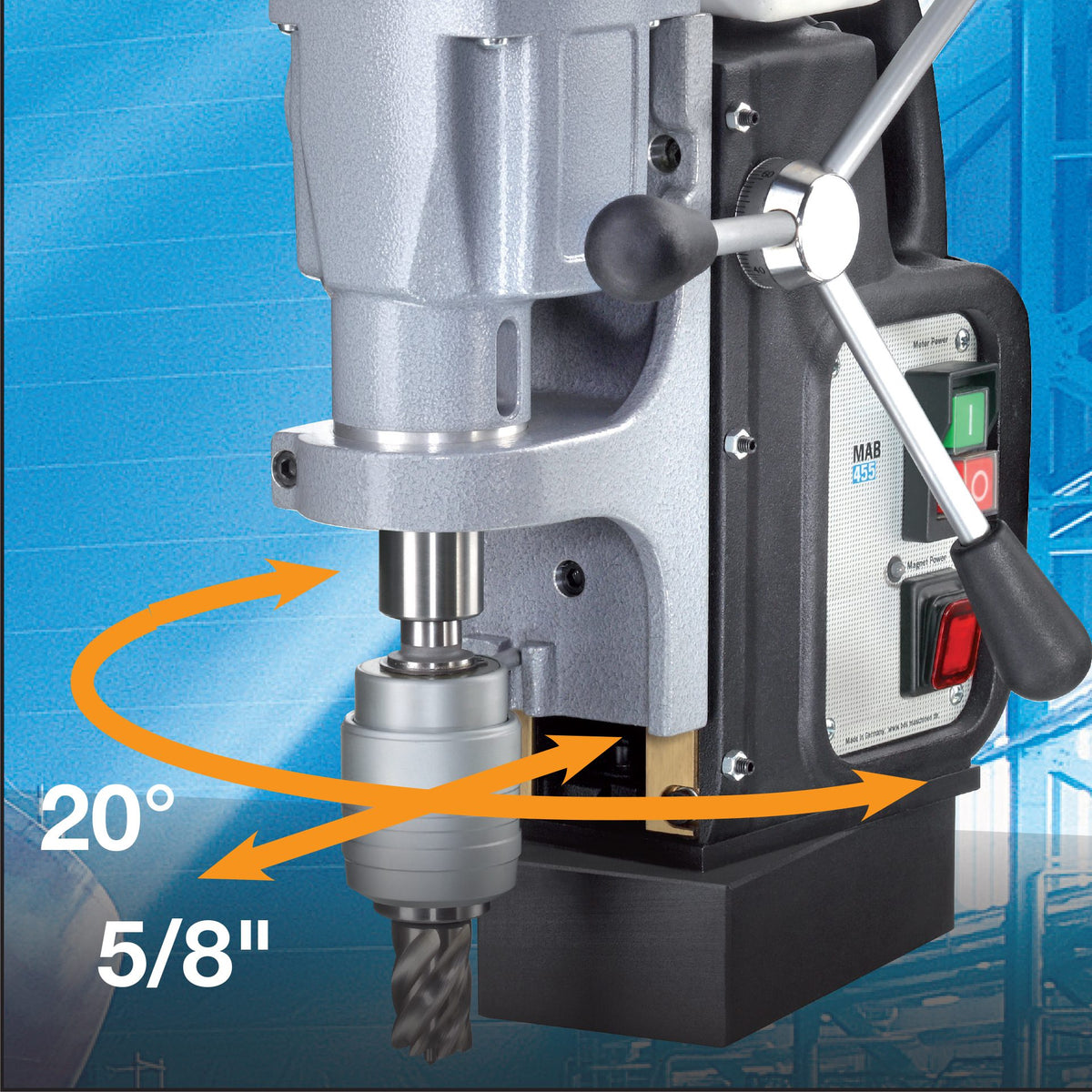

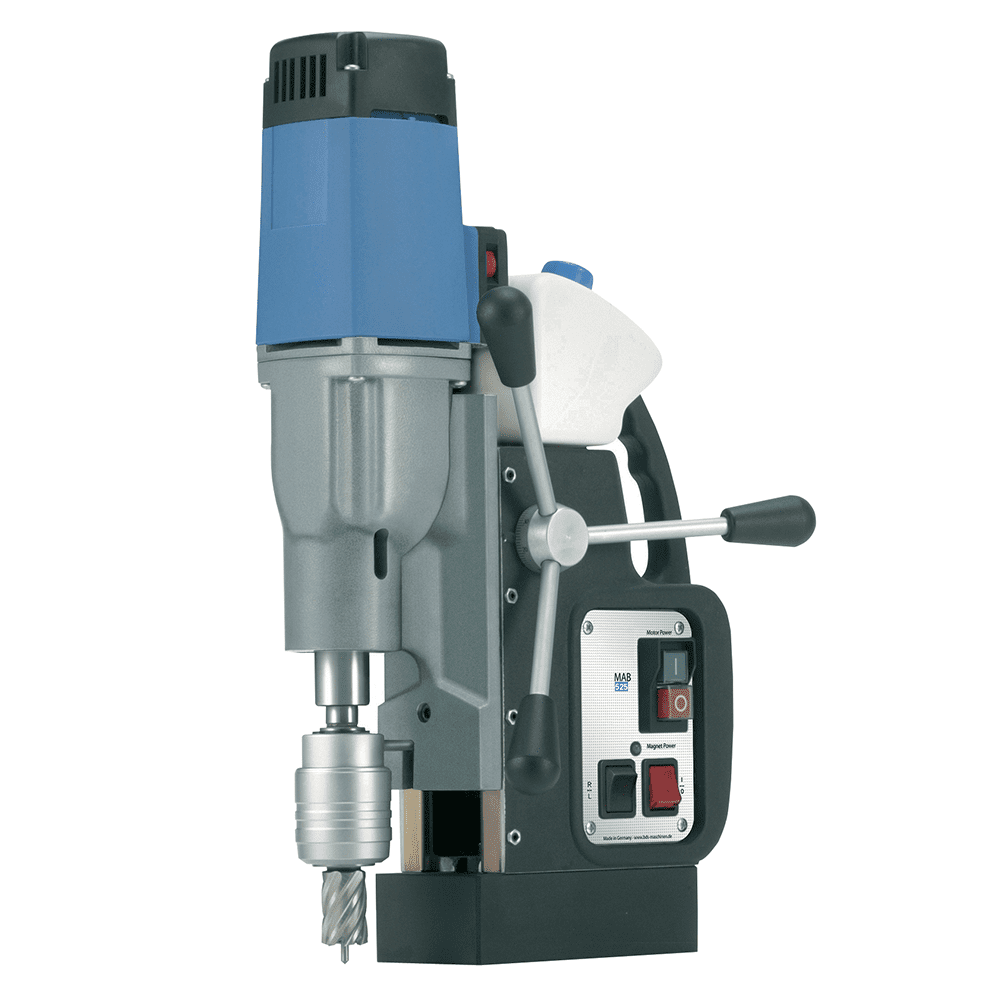

The MAB 525 is a high capacity portable magnetic drill engineered for precise drilling in steel, stainless steel, and more. Swivel base option available.
Features
- High performance 14.5 Amp motor delivers exceptional torque and cutting power for demanding steel fabrication and industrial drilling tasks.
- Quick-change keyless cutter system.
- Integrated cutting oil reservoir.
- Automatic internal lubrication.
- Internal cable routing for damage reduction.
- Simple, ergonomic arrangement of controls for one-handed operation.
- SafeMag™: Green/Red LED magnetic force indicator for safe operation
- CoolMag™: Magnet overheating protection
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
Applications

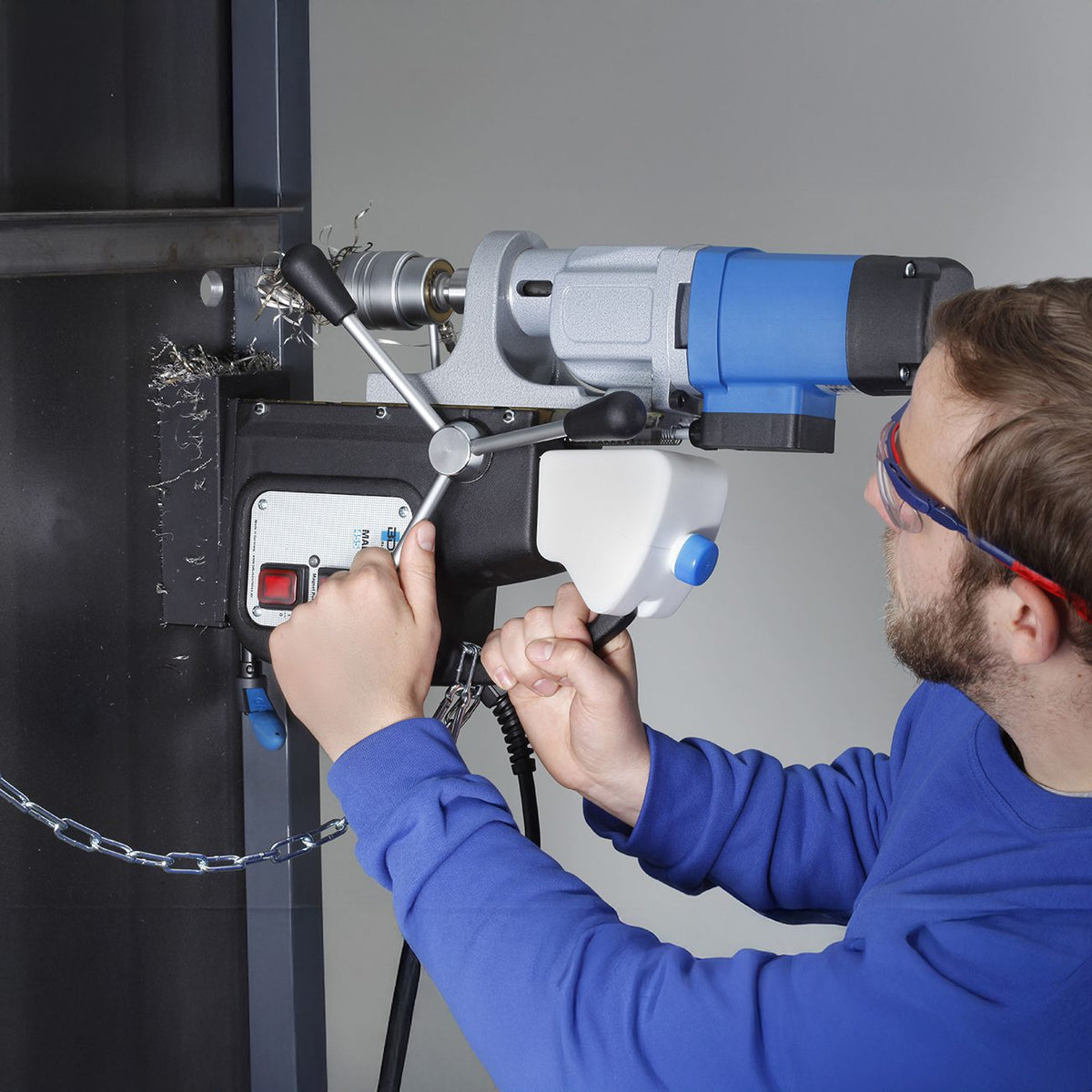

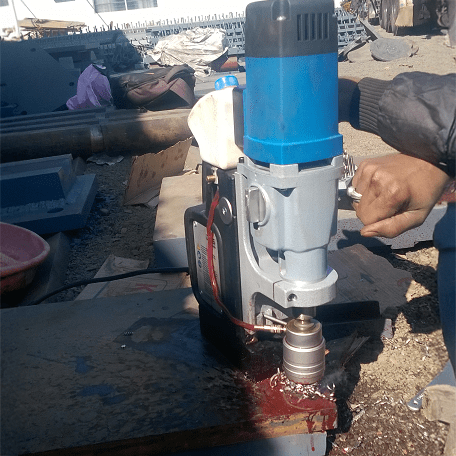

MAB 525 & 525 SB for drilling large diameter holes in structural steel, plate, beams, and heavy assemblies. Ideal for shop or field fabrication requiring high torque and precision. Vertical, horizontal, and overhead drilling on I‑beams, columns, and steel frameworks. Perfect for installing heavy brackets, supports, and bolted connections. Drilling mounting holes for piping systems, conduit supports, HVAC brackets, and mechanical equipment. Supports heavy duty installations requiring accurate, repeatable hole placement. Portable design makes it ideal for technicians who need a powerful magneti
Specifications
| Model | MAB 525 | MAB 525 SB |
|---|---|---|
| Motor Power | 14.5 Amp / 110 Volt | 14.5 Amp / 110 Volt |
| Weight | 35 lbs. | 35 lbs. |
| Hole Capacity | 2-1/2" dia. | 2-1/2" dia. |
| Twist Drill Capacity | 1" dia. | 1" dia. |
| Tapping Capacity | 15/16" dia. | 15/16" dia. |
| Speeds | 70-280 and 180-580 RPM | 70-280 and 180-580 RPM |
| Magnet Base Size | 7-1/8" L x 3-1/2" W | 7-1/8" L x 3-1/2" W |
| Dimensions | 19" H x 11-3/4" L x 6-3/4" W | 19" H x 11-3/4" L x 6-3/4" W |
| Magnetic Force (1" plate) | 4500 lbs. | 4500 lbs. |
| Arbor Bore | 3/4" Weldon Shank | 3/4" Weldon Shank |
| Spindle | MT3 | MT3 |
| Automatic Lubrication | Included | Included |
| Stroke | – | 6-1/3" |
| Swivel Base | – | Included |
