Call for price
Pricing for this size is by request. Click Request pricing and we'll get back to you within 1 business day, or give us a call.

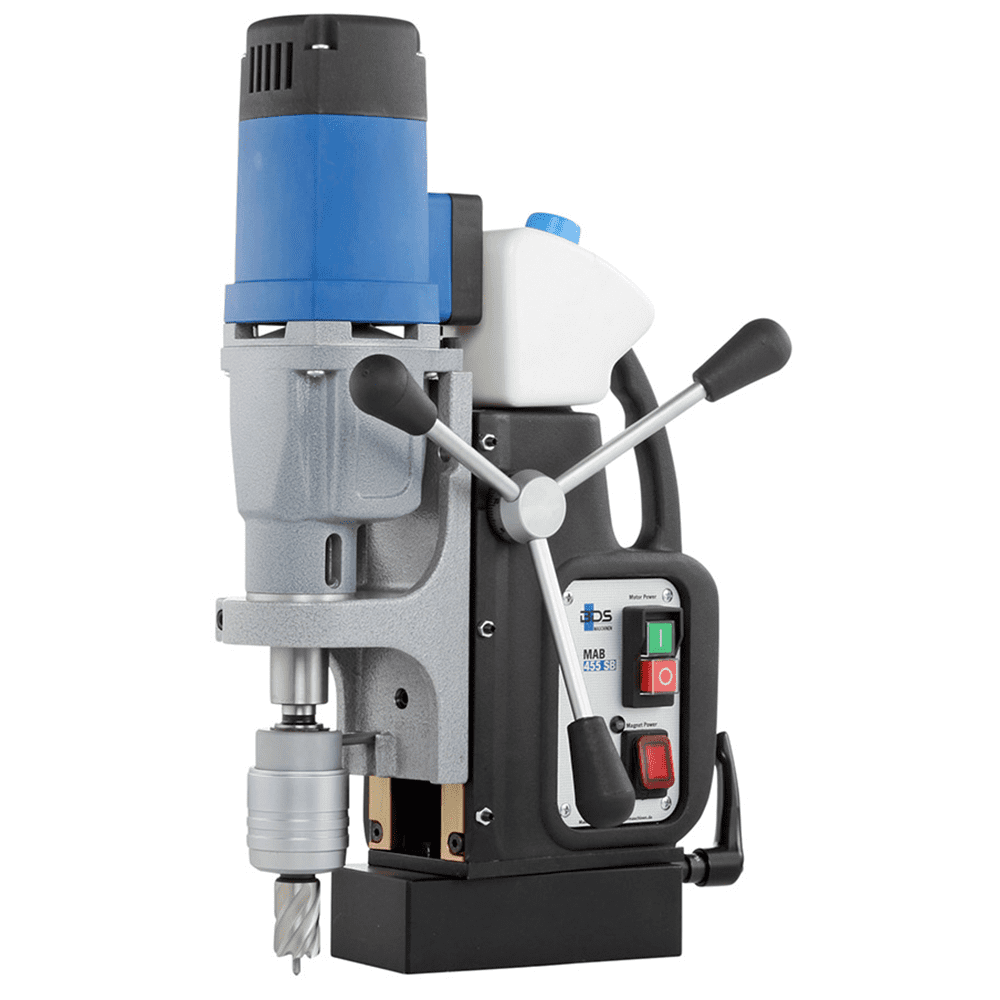

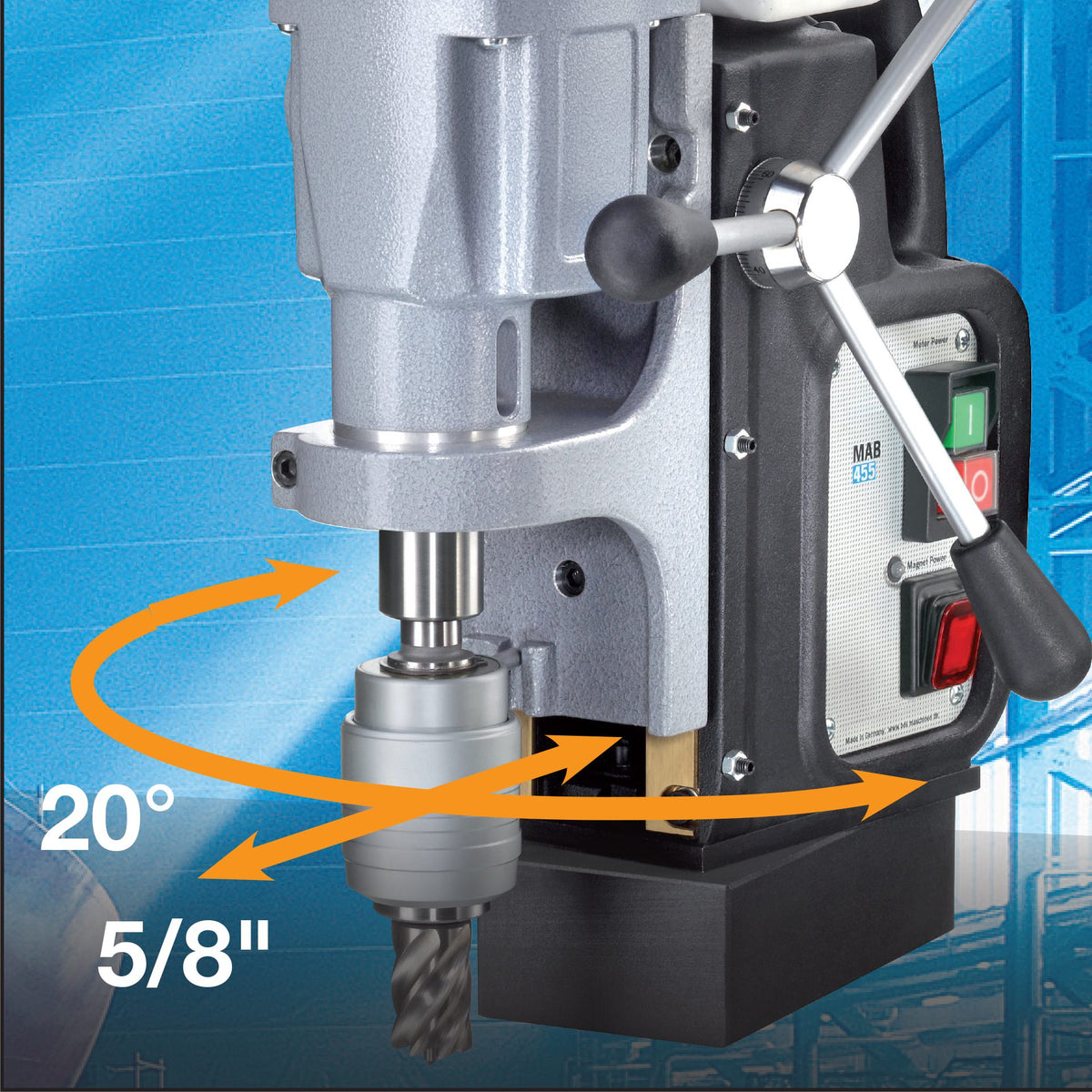

MAB 455 is a versatile portable magnetic drill engineered for powerful, accurate drilling in steel, stainless steel, and more. Swivel base available.
Features

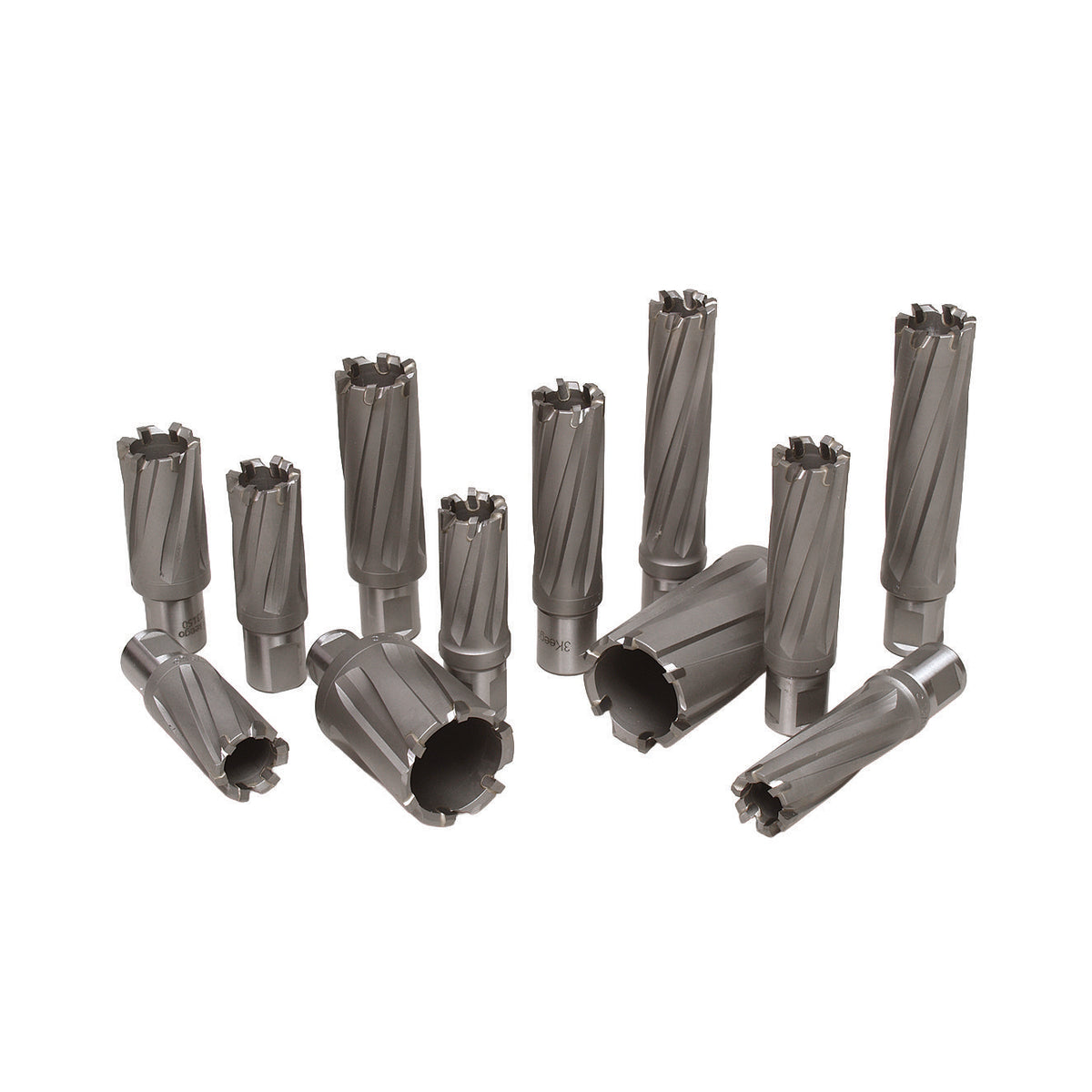

- Annular cutting capacity up to 2-1/16" diameter provides excellent versatility for medium to heavy duty hole-making.
- Powerful 10.5 Amp motor delivers strong, reliable drilling performance for structural steel, fabrication, and industrial applications.
- Internal cable routing for damage reduction.
- Simple, ergonomic arrangement of controls for one-handed operation.
- SafeMag™: Green/Red LED magnetic force indicator for safe operation
- CoolMag™: Magnet overheating protection
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
Applications

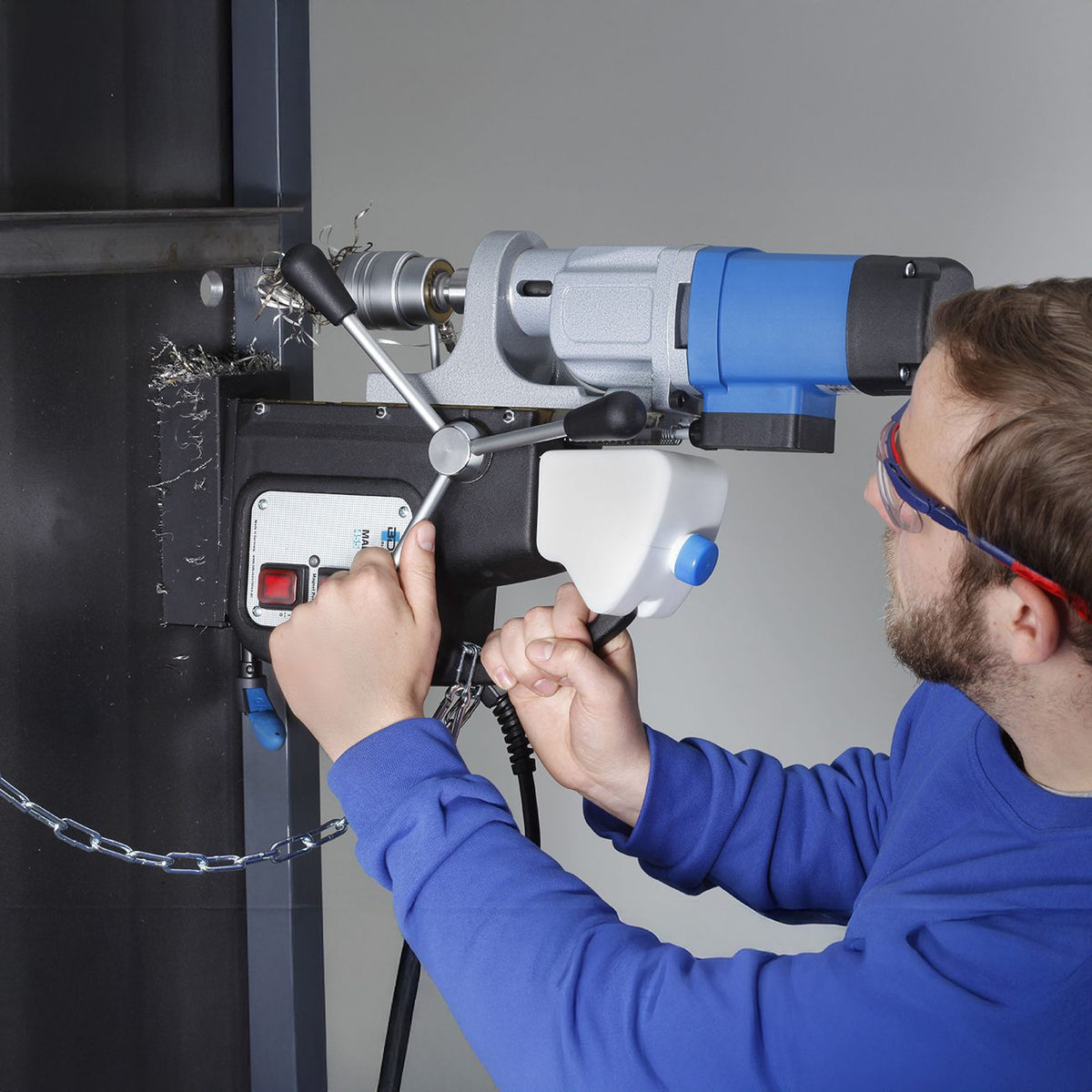

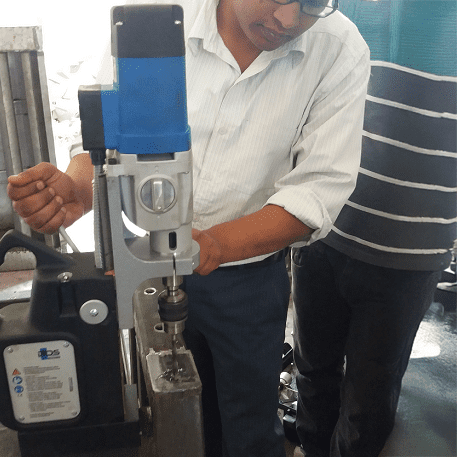

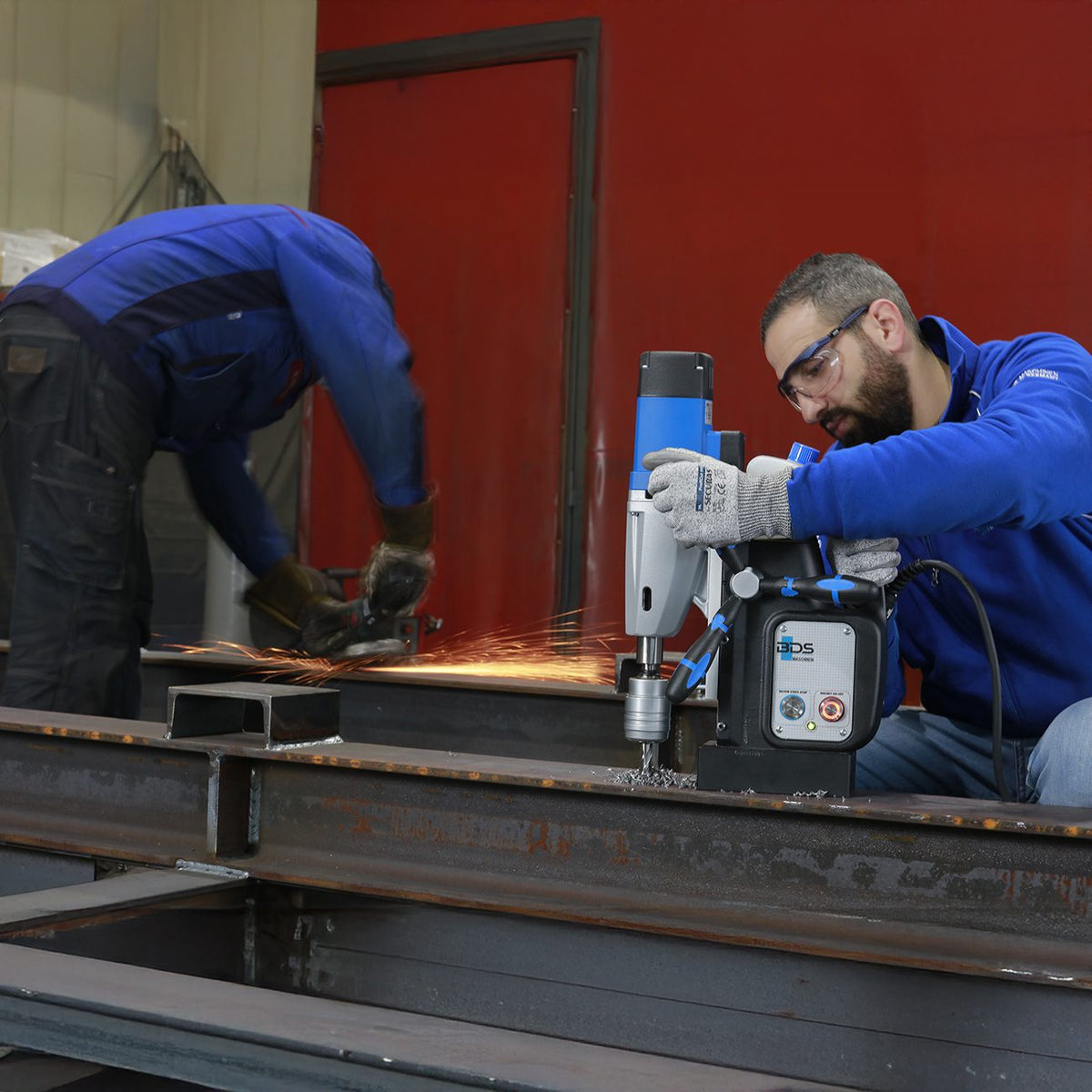

MAB 455 & 455 SB drills holes in structural steel, plate, beams, and fabricated assemblies. Vertical, horizontal, and overhead drilling on I‑beams, columns, and steel frameworks. On‑site drilling for equipment repair, retrofits, and plant maintenance. Useful in industrial facilities, refineries, and power plants. Drilling mounting holes for piping, conduit supports, HVAC brackets, and mechanical systems. Suitable for heavy duty installations requiring precise hole placement. Portable design makes it ideal for technicians who need a reliable magnetic drill for multi‑location or remote work.
Specifications
| Model | MAB 455 |
|---|---|
| Motor Power | 10.5 Amp / 110 Volt |
| Weight | 29 lbs. |
| Stroke | 6-1/3" |
| Hole Capacity | 2-1/16" dia. |
| Twist Drill Capacity | 7/8" dia. |
| Speeds | 250/450 RPM (2 gears) |
| Magnet Base Size | 6-5/8" H x 3-1/3" W |
| Dimensions | 17-1/4" H x 11-5/8" L x 7" W |
| Magnetic Force (1" plate) | 3750 lbs. |
| Arbor Bore | 3/4" Weldon Shank |
| Spindle | MT2 |
| Automatic Lubrication | Included |
Pricing: call 1-888-598-6657 or click Request pricing for a quote on any model. Shipped across Canada from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model MAB 455
Need a replacement part for your CS Unitec? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
