Call for price
Pricing for this size is by request. Click Request pricing and we'll get back to you within 1 business day, or give us a call.

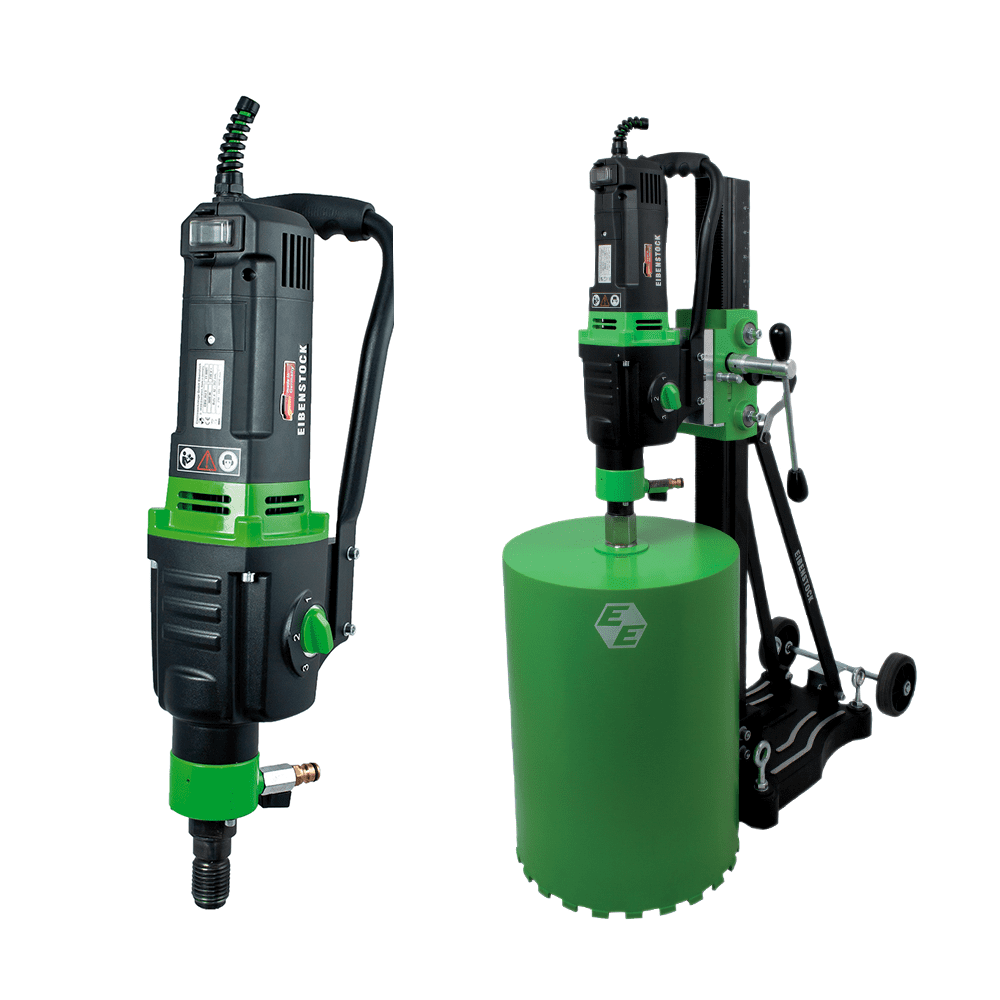

Core Drill Motor EBM 352/3 P is a core drill motor that can drill holes up to 14" diameter in concrete, reinforced concrete, & stone, while rig mounted.
Features
- Powerful 20 Amp motor with high power reserves and a long lifetime maintains consistent speed under load for fast, efficient drilling.
- 3-speed oil bath gearbox guarantees optimal lubrication in all working positions, due to the developed oil pump.
- Safety features for operator include mechanical safety clutch, temperature control and over current cut-off, optical overload indication, and Service-LED (lights up approx. 10 working hours before the carbon brushes need to be replaced).
- Integrated bubble levels on the motor.
- Dovetail slide mountโ fasten the motor to the drill rig without any tools. Also mounts to a variety of drill stands.

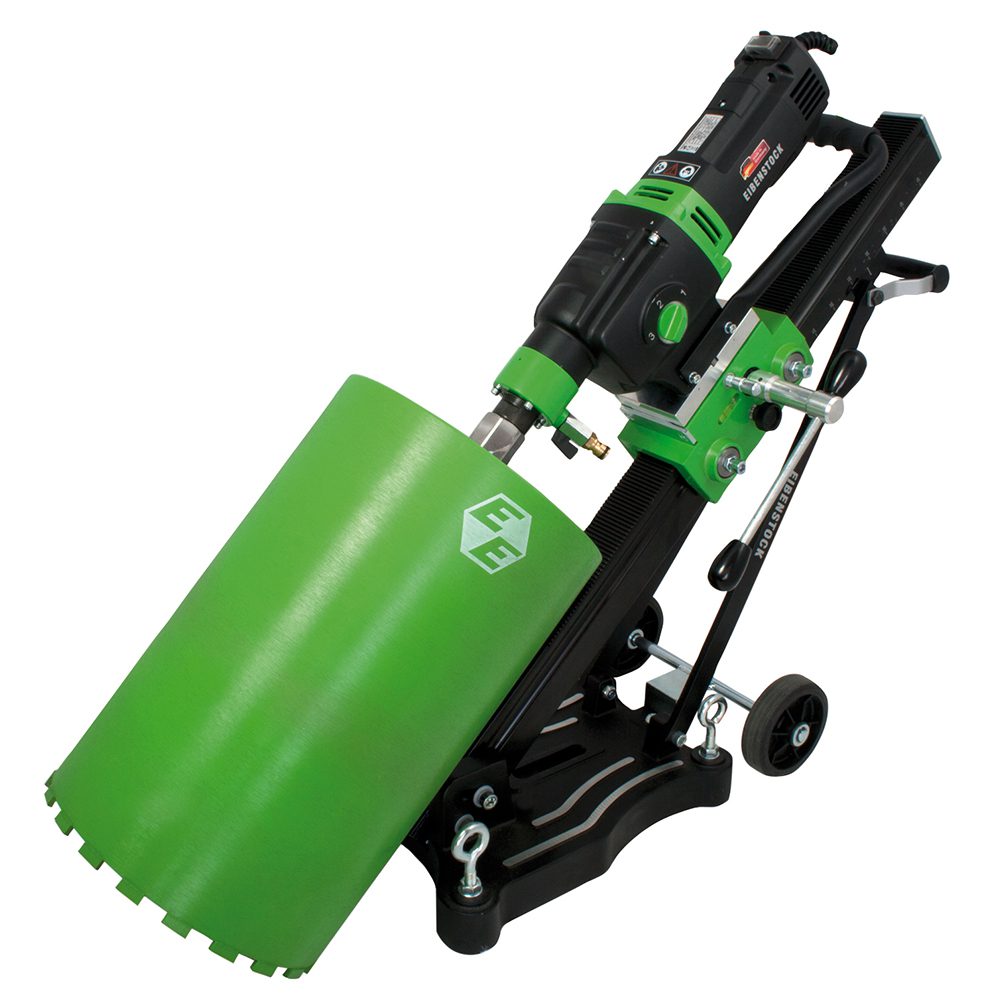

- On a vacuum or anchor drill stand, the column of the rig can be adjusted to 45ห. The drill stand has two 5" wheels for easy portability, and a removeable wheel axle for easy transport.
Applications

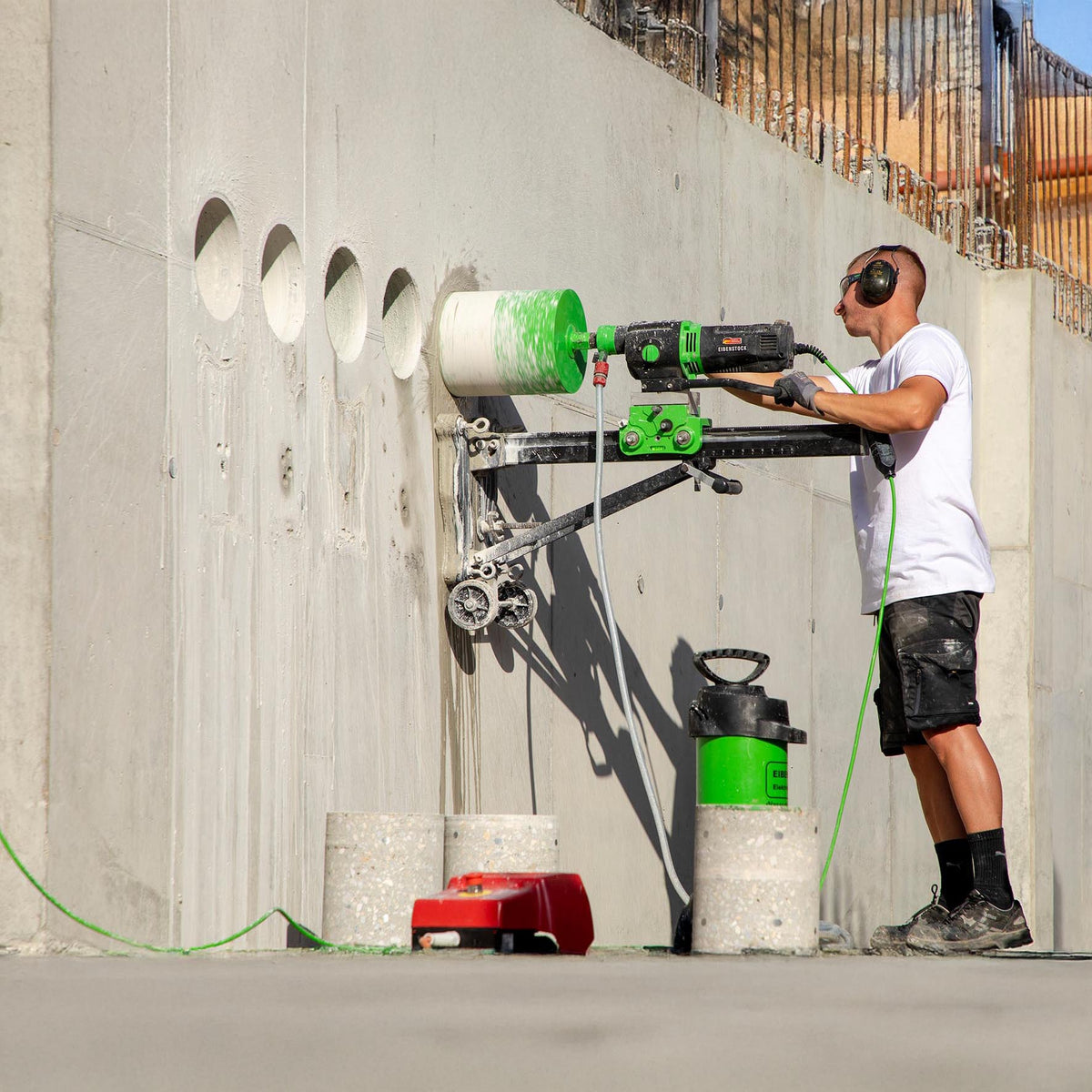

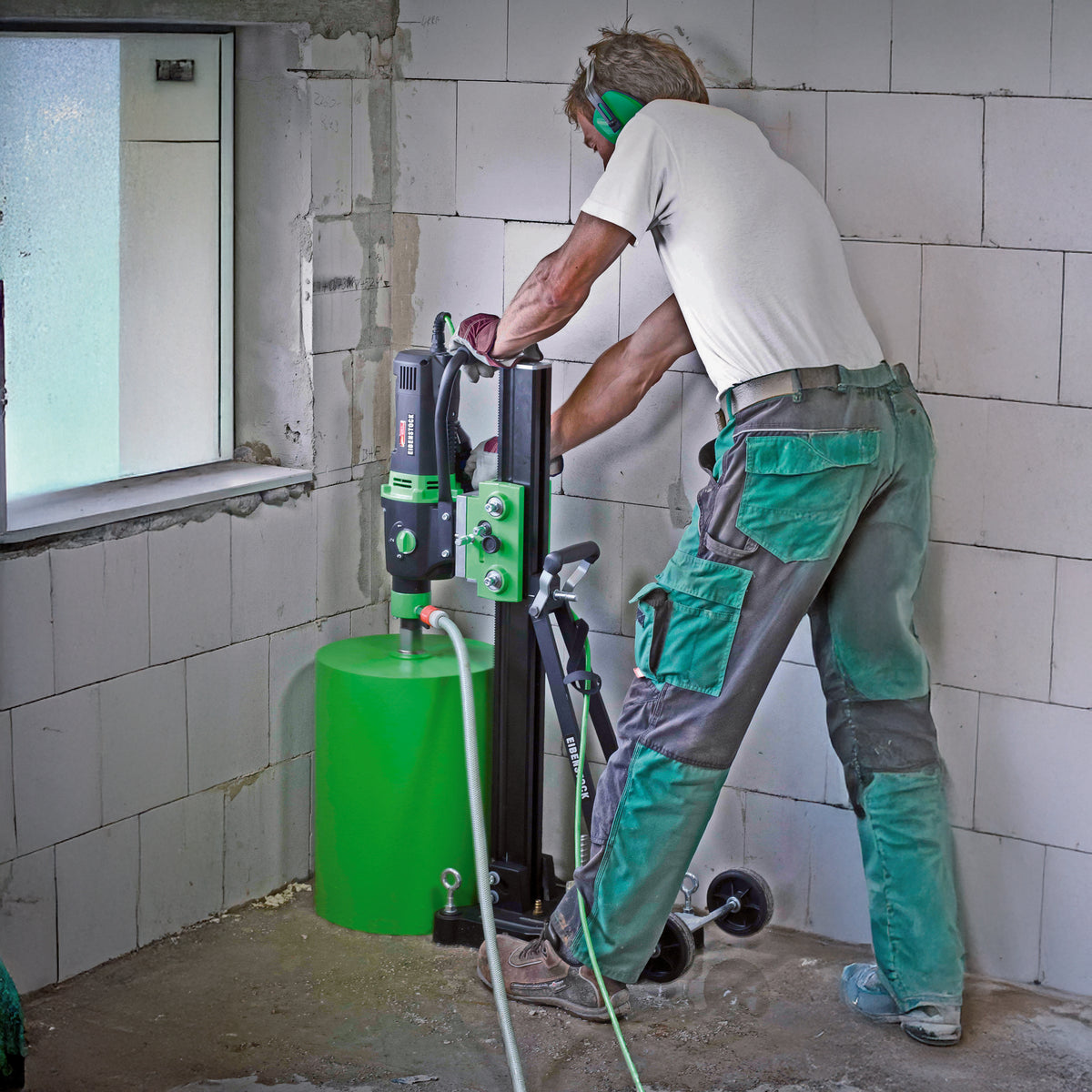

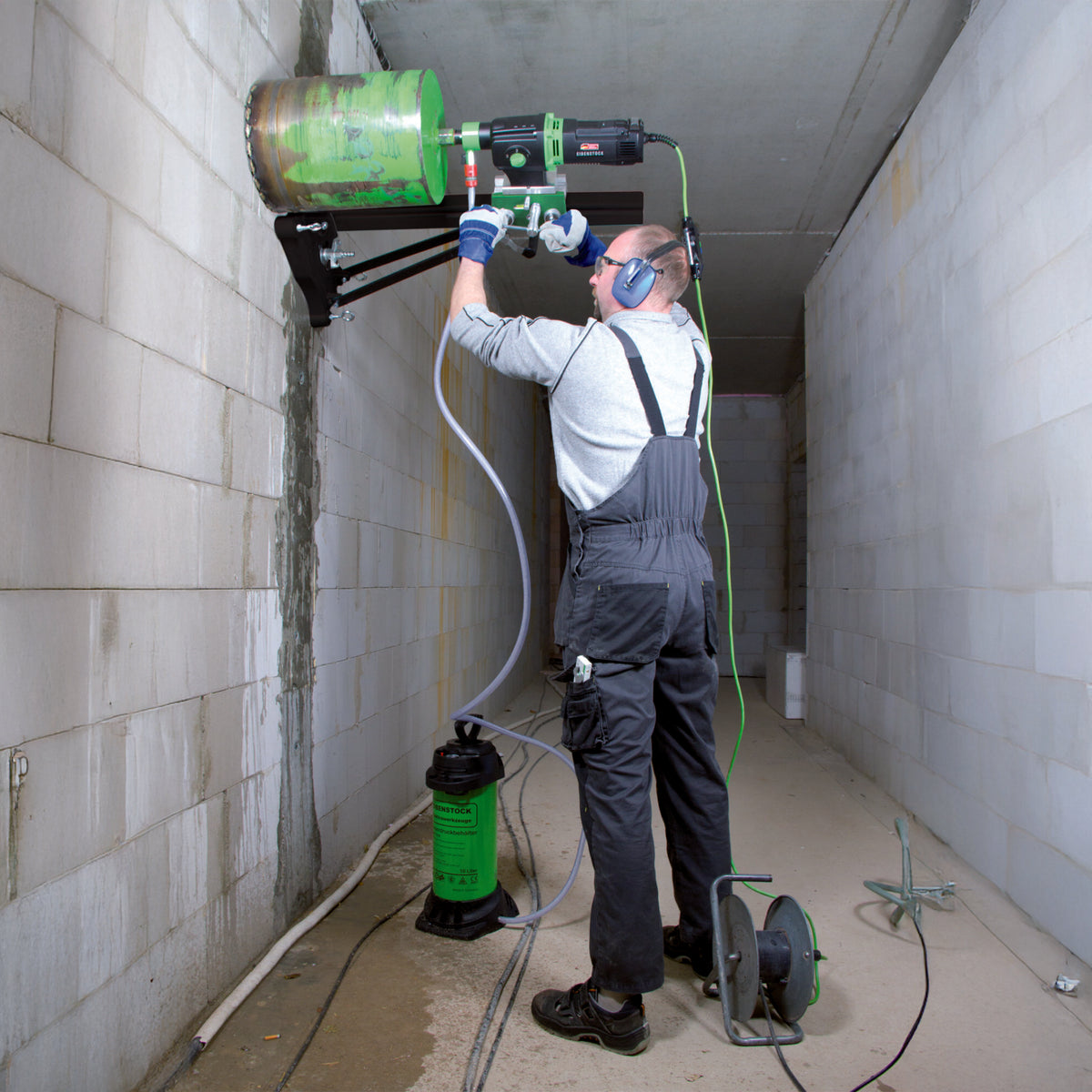

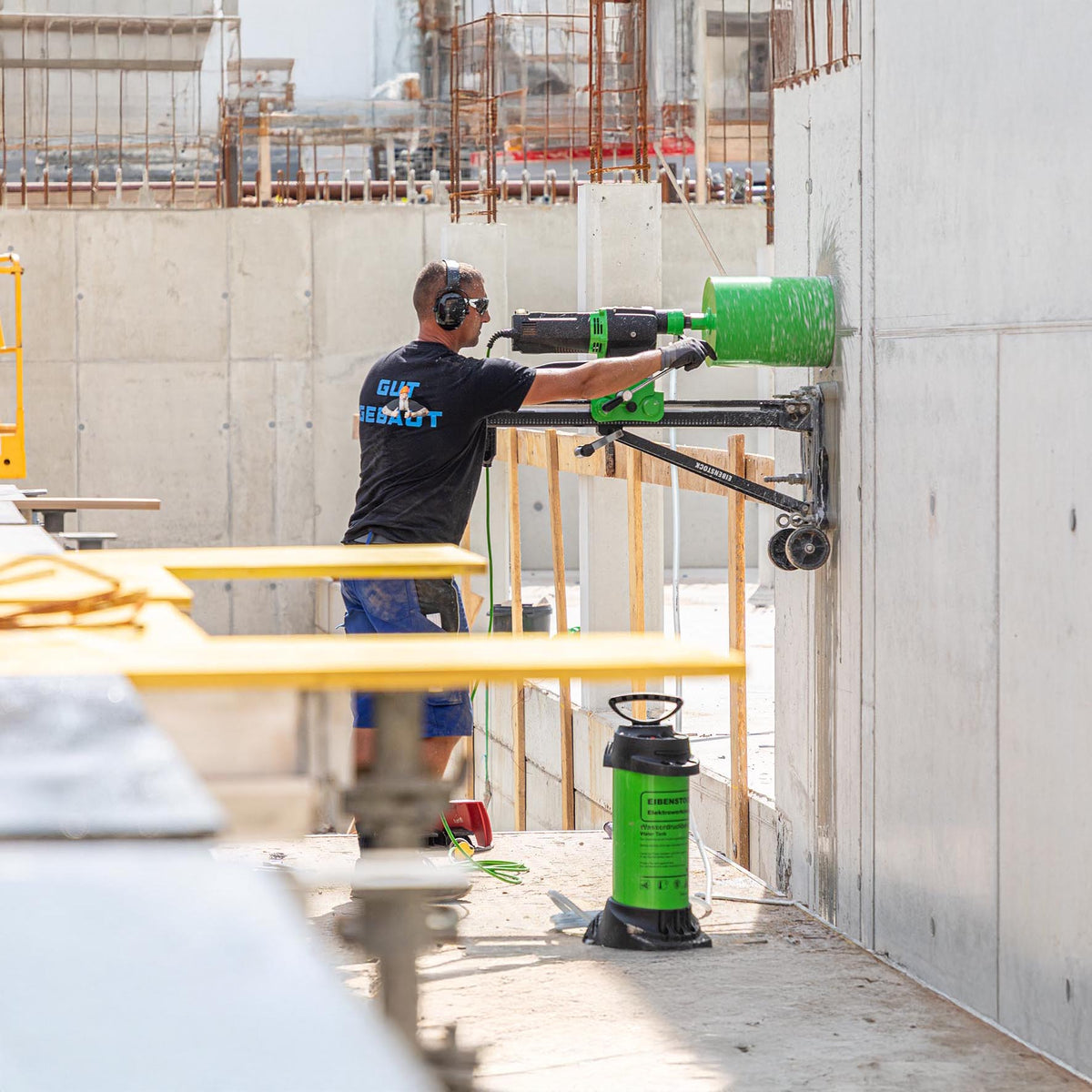

Core Drill Motor high torque, easy operation and solid, sturdy construction make this motor ideal for construction applications. Wet drilling in reinforced concrete, natural stone and asphalt. Ideal for plumbing, mechanical, electrical and general construction, as well as civil engineering. Drills holes up to 14โณ diameter in tough, hard to cut materials. Supports coring for bridges, tunnels, foundations, utility vaults, and infrastructure projects. Used for coring holes for postโinstalled anchors, rebar dowels, structural supports, and heavy duty fasteners. UNCODE.initRow(document.getElementB
Specifications
| Model | EBM 352/3 | EBM 352/3 PSA | EBM 352/3 PSV |
|---|---|---|---|
| Power input | 20 Amp | 20 Amp | 20 Amp |
| Rated Voltage | 110 V | 110 V | 110 V |
| Load Speeds (RPM) | 230/500/1030 | 230/500/1030 | 230/500/1030 |
| Maximum Drilling Dia. | 14" | 14" | 14" |
| Spindle Connection | 1-1/4"x7 UNC 5/8"x11 UNC | 1-1/4"x7 UNC 5/8"x11 UNC | 1-1/4"x7 UNC 5/8"x11 UNC |
| Machine Connection to Stand | Universal tool holder/ Slide mount | โ | โ |
| Weight | 27.5 lbs (motor only) | 77 lbs. | 77 lbs. |
| Package Contents | In a box with open end wrench SW 32+41 | EBM 352/3 PSA = EBM 352/3 + BST 300 Anchor Stand without drill bit | EBM 352/3 + BST 300 V Combination Anchor/Vacuum Stand + vacuum pump (P/N 253 511), without drill bit |
| Column Length | โ | 39-1/4" | 39-1/4" |
| Hub | โ | 24-1/4" | 24-1/4" |
Pricing: call 1-888-598-6657 or click Request pricing for a quote on any model. Shipped across Canada from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model EBM 352/3
Need a replacement part for your CS Unitec? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
