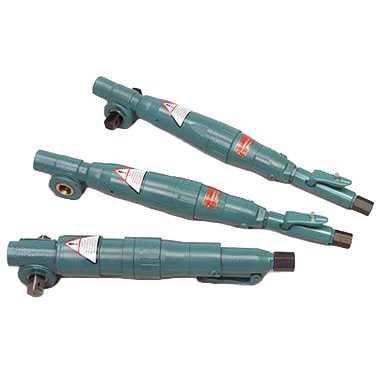

CS Unitec Air Nut Runners

Description

Key specifications

• Stall torque: Up to 405 ft.-lbs.

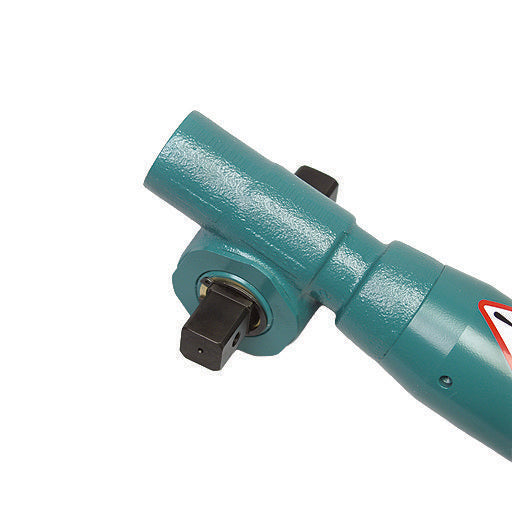

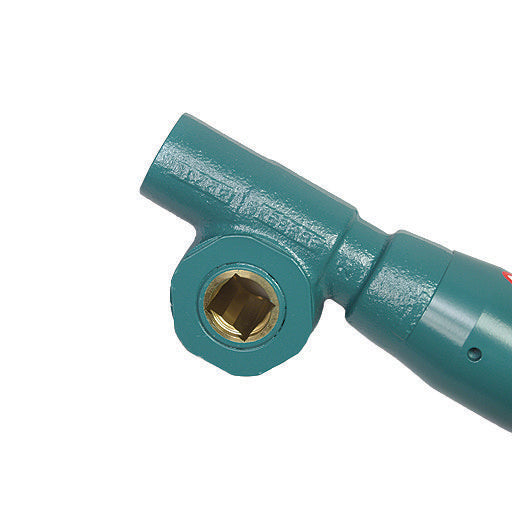

• Male or female square drives: 1/2″, 3/4″ and 7/8″
• Turning and tightening for valves and more
• Load Speed: Up to 125 RPM
• Power: 0.9 HP

Features & applications

• Air nut runners for turning valves, tightening, tapping, reaming, pipe beveling, expanding, and more.
• Female-drive models are ATEX certified for potentially explosive or hazardous work zones.
• Available with male or female square drives in a variety of sizes.

Specifications

Model No.	Square Drive	Stall Torque at 90 PSI (ft.-lbs.)	Drive Torque (ft.-lbs.)	Free Speed (RPM)	Load Speed (RPM)	Length (in.)	Weight (lbs.)	ATEX
6 1014 0050	3/4″ F	95	48.6	170	100	22	10	Yes
6 1014 0075	3/4″ M	95	48.6	170	100	22	11
6 1014 0099	1/2″ M	95	48.6	170	100	22	11
6 1055 0010	3/4″ F	405	206.5	40	22	21	10	Yes
6 1055 0075	3/4″ M	405	206.5	40	22	21	10
6 1055 0099	1/2″ M	405	206.5	40	22	21	10
6 1056 0010	3/4″ F	133	68.3	120	67	21	10	Yes
6 1056 0075	3/4″ M	133	68.3	120	67	21	11
6 1056 0099	1/2″ M	133	68.3	120	67	21	11
6 1057 0010	3/4″ F	73.5	36.8	250	125	21	11	Yes
6 1057 0075	3/4″ M	73.5	36.8	250	125	21	11
6 1057 0099	1/2″ M	73.5	36.8	250	125	21	11
6 1061 0010	7/8″ F	405	206.5	40	22	21	11	Yes

Pricing: call 1-888-598-6657 or click Request pricing for a quote on any model.
