CS Unitec Air Diamond Core Drills

Description

Key specifications

• Drilling Diameter: Up to 3″ or 6″ (hand-held) and up to 12″ (with stand)
• Load Speeds: 300 / 700 / 1350 RPM
• Wet Drilling

Features & applications

• Air Diamond Core Drills ideal for drilling refractory brick, concrete and reinforced concrete, as well as use in hazardous environments.
• Drill holes from 1/2″ to 12″ diameter in concrete, reinforced concrete, asphalt, natural stone and refractory.
• Ideal for chemical plants, wastewater facilities, tunnels, mines, shipyards, and industrial zones where electric tools pose risks.
• Safe for environments with moisture, conductive materials, or airborne particulates.
• Supports coring for bridges, tunnels, foundations, utility vaults, and infrastructure upgrades.

Specifications

Motor	2 1333 0010	2 1335 0010	2 1328 0050
Motor Power	2.1 HP (1.6 kW)	3.8 HP (2.8 kW)	3.8 HP (2.8 kW)
Max. Drilling Dia.	6"	3"	12" (stand only)
Air Consumption	77 CFM @ 90 PSI	123 CFM @ 90 PSI	123 CFM @ 90 PSI
Free Speed (RPM)	400 / 900 / 1600	300 / 700 / 1350	300 / 700 / 1350
Air Connection	3/4" NPT
Connecting Threads	1-1/4"x7 UNC Male; 5/8"x11 UNC Male; G 1/2" Female
Motor ATEX Classification	II2GcT6

Model No.	Weight	Stand

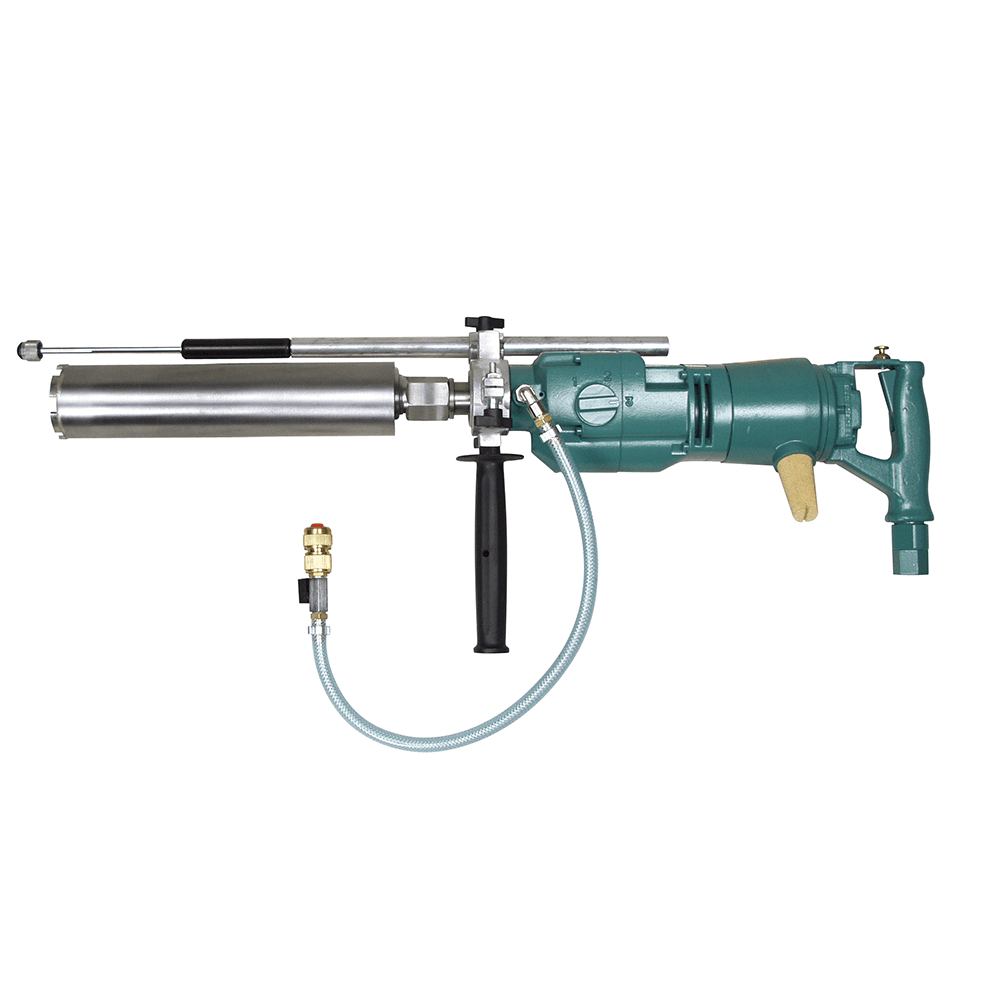

2 1333 0010 Hand-Held	18 lbs.	N/A

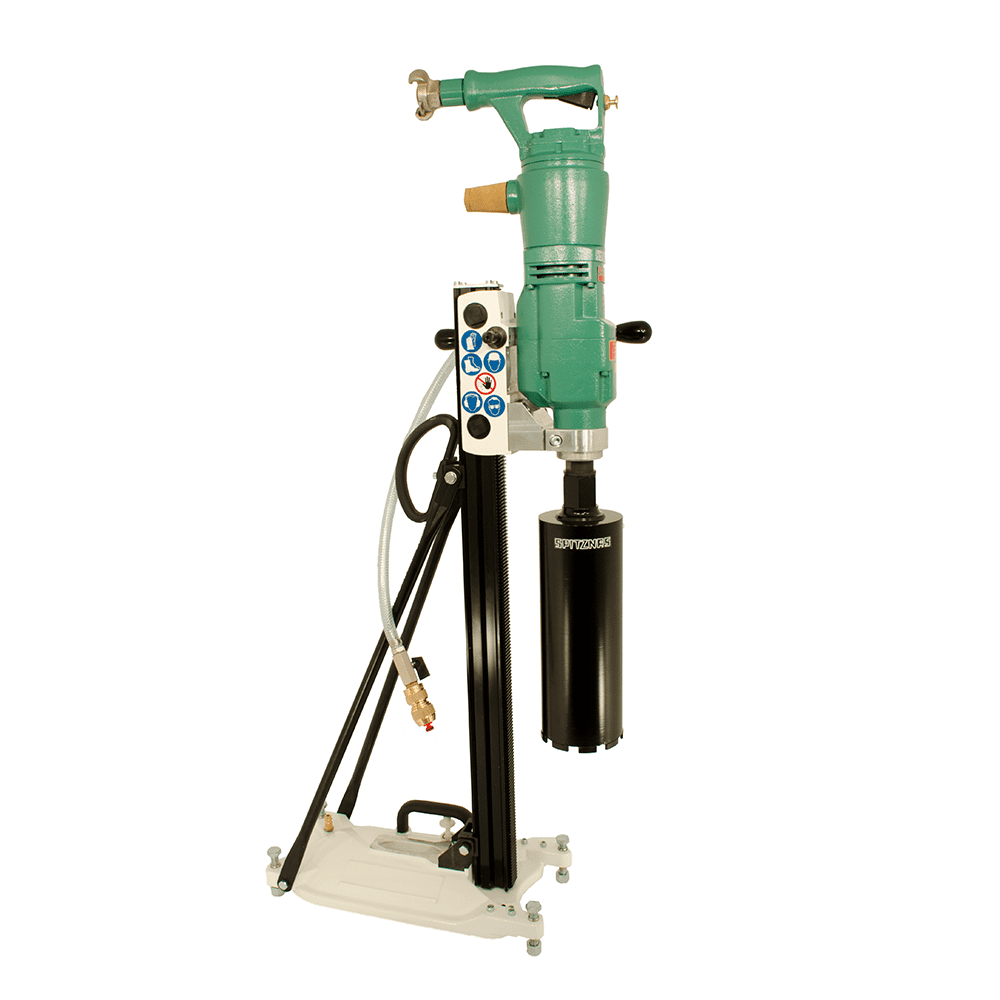

2 1333 0010 SA	49 lbs.	Anchor Stand
2 1333 0010 SV	51 lbs.	Combination Anchor / Vacuum Stand with Vacuum Pump
2 1335 0010 Hand-Held	21 lbs.	N/A
2 1335 0010 SA	52 lbs.	Anchor Stand
2 1335 0010 SV	54 lbs.	Combination Anchor / Vacuum Stand with Vacuum Pump

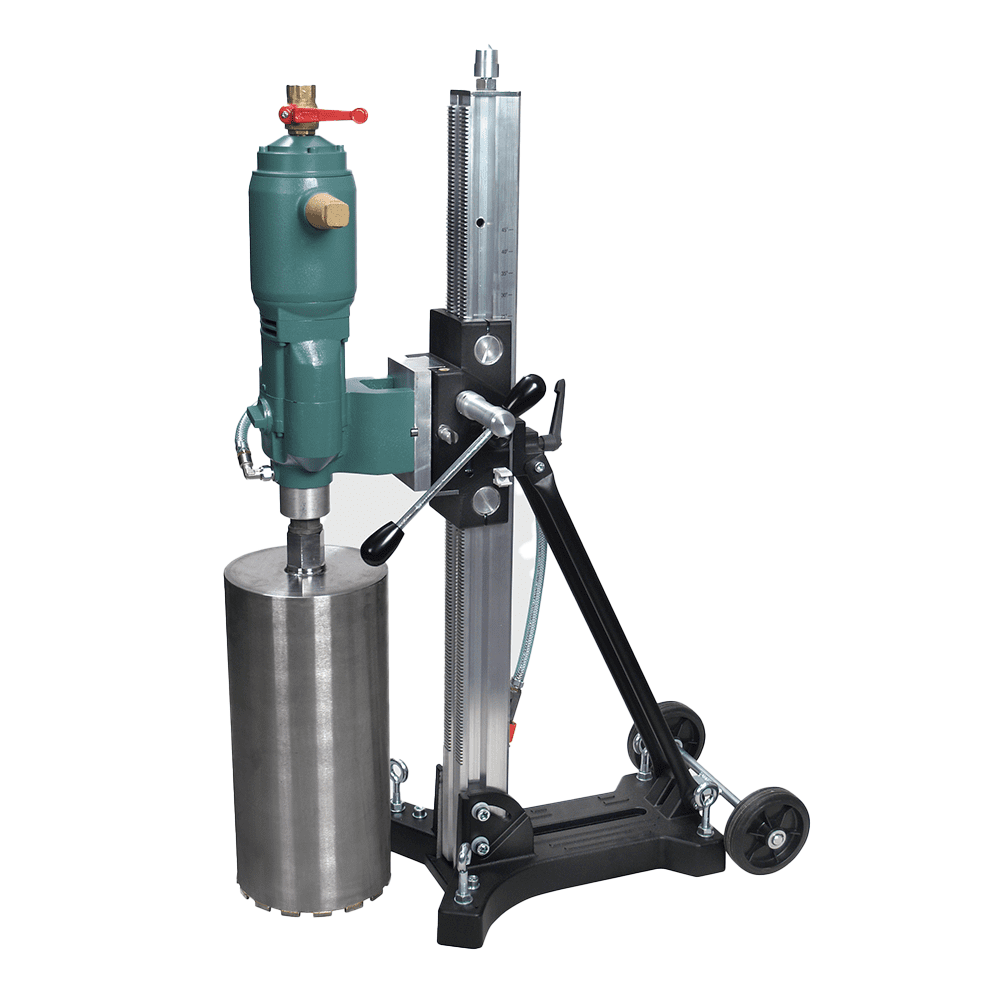

2 1328 0050 SA	66 lbs.	Anchor Stand (BST 300 V)
2 1328 0050 SV	72 lbs.	Anchor Stand (BST 300 V) and Vacuum Pump (253 542)

Pricing: call 1-888-598-6657 or click Request pricing for a quote on any model.
