Model / Part #2 1602 0030
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days. Once stock runs out, it can still be special ordered with 1–2 week delivery.
Call for price
Pricing for this size is by request. Click Request pricing and we'll get back to you within 1 business day, or give us a call.
Free shipping on tools over $299.99Under $299.99, shipping is calculated at checkout · Shipping details
Key specifications
- Morse taper #1 to #4 models
- Drilling in steel up to 2-5/32″; reaming up to 2″
- 0.7 to 2.95 HP air motors
Specifications

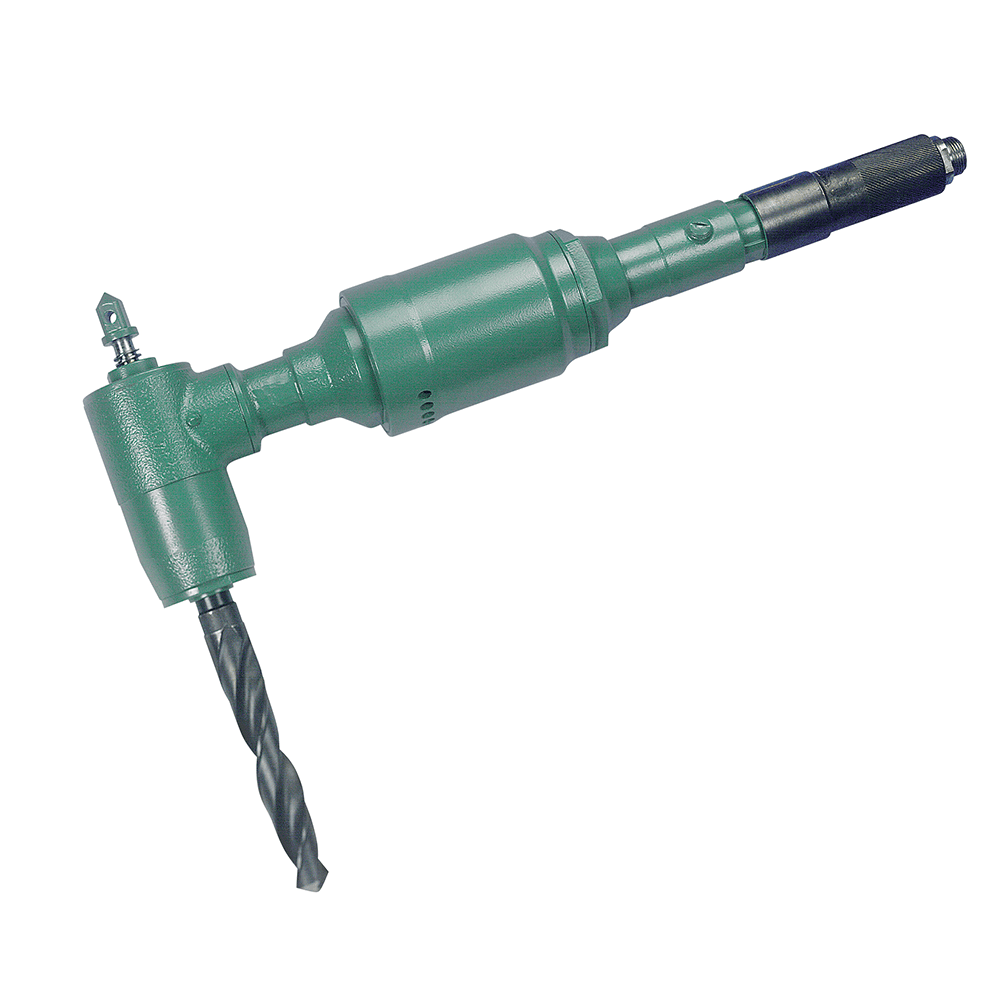

| Pneumatic Corner Drill and Bridge Reamer | ||||
|---|---|---|---|---|
| Spec / Model | 2 1602 0030 | 2 1701 0030 | 2 1801 0030 | 2 2104 0030 |
| Morse Taper | #1 | #2 | #3 | #4 |
| Drilling (in steel) | 5/8″ | 7/8″ | 1-1/4″ | 2-5/32″ |
| Reaming (in steel) | 1/2″ | 5/8″ | 1″ | 2″ |
| Torque Output (ft.-lbs.) | 7 | 35 | 53 | 85 |
| Load Speed (RPM) | 500 | 270 | 26 | 180 |
| Motor Power (HP) | 0.7 | 1.8 | 2.6 | 2.95 |
| CFM at 90 PSI | 21 | 49 | 63 | 70 |
| Length | 12.5″ | 20.9″ | 22.5″ | 10″ |
| Weight | 7 lbs. | 19 lbs. | 25 lbs. | 37 lbs. |
| 2 1602 0030: 3/8″ NPT air inlet, 1/2″ hose recommended. 2 1701 0030: 3/4″ NPT inlet, 1/2″ hose. 2 1801 0030: 3/4″ NPT inlet, 5/8″ hose. 2 2104 0030: R3/4″ female connection. | ||||
Pricing: call 1-888-598-6657 or click Request pricing for a quote on any model.
🔧 Manuals & Parts
Parts diagrams and manuals for model 2 1602 0030
Need a replacement part for your CS Unitec? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
