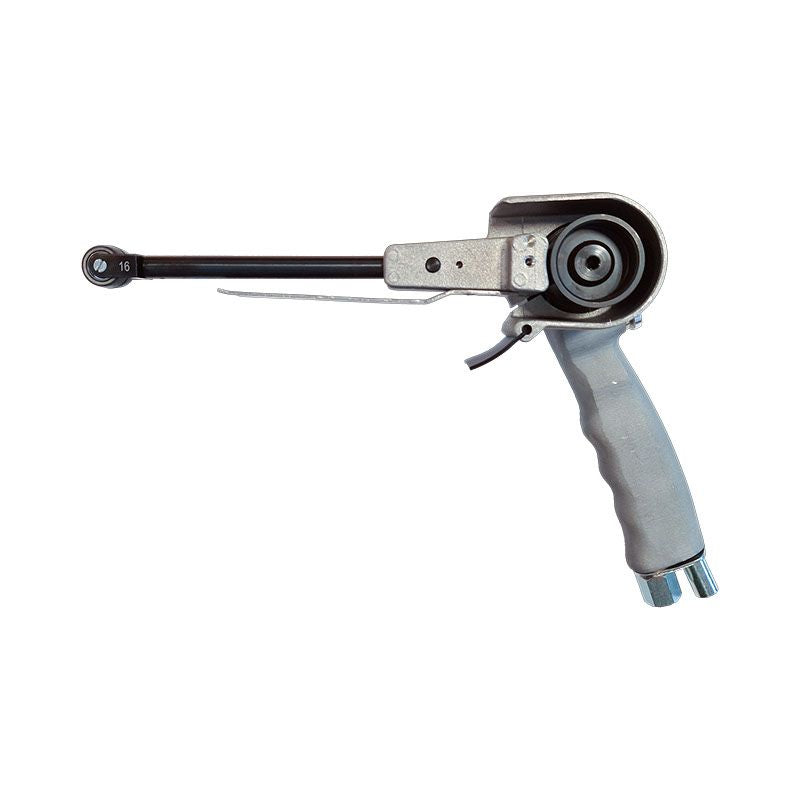

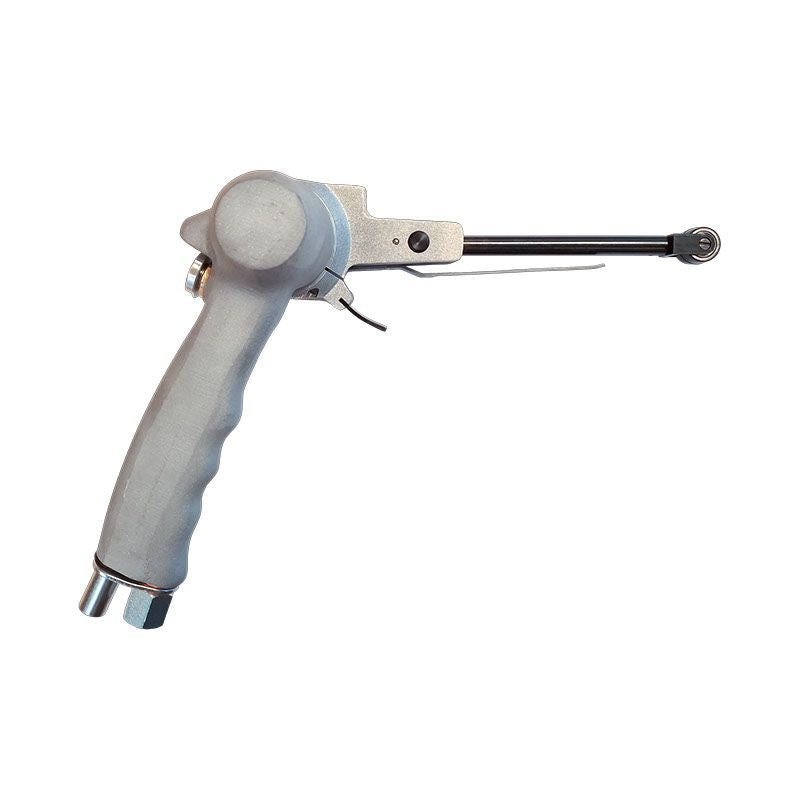

PNEUMATIC BELT SANDER 63/64x18-7/8" (24x480 mm)
Built to last and proven to perform, the PL05-10F delivers reliable power and precision for demanding industrial work. Its robust 300 W pneumatic motor reaches up to 16,000 rpm for fast material removal and fine finishing. Equipped with a 63/64x18-7/8" (24x480 mm) belt, it's designed for heavy-duty sanding and finishing tasks. Strong, reliable, and built for endurance, the PL05-10F is your go-to for tough jobs.
Features
- Quick belt change for easy maintenance
- 3 belt sizes for versatile applications
- Robust, long-lasting design
- High-speed 16,000 rpm motor
- Comfortable grip for operator ease
Specifications
| Length (L) | 15.16 in |
| Weight | 2.09 lb |
| Free Speed | 16000 rpm |
| Air consumption at free speed | 25 cfm |
| Air consumption at load | 93 cfm |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | BSP |
| Min hose diam (16 ft hose length) | 0.2 in |
| Min hose diam (5 m hose length) | 6 mm |
| Max power | 0.4 hp |
| Belt Size WxL (in) | 18-7/8x63/64 |
| Belt Size WxL (mm) | 25x480 |
| Starting system | Button |
| Sound Power | 95 dB(A) |
| Vibration (m/sยฒ) | <2.5 |
| CP part # | 6151701330 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151701330
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
