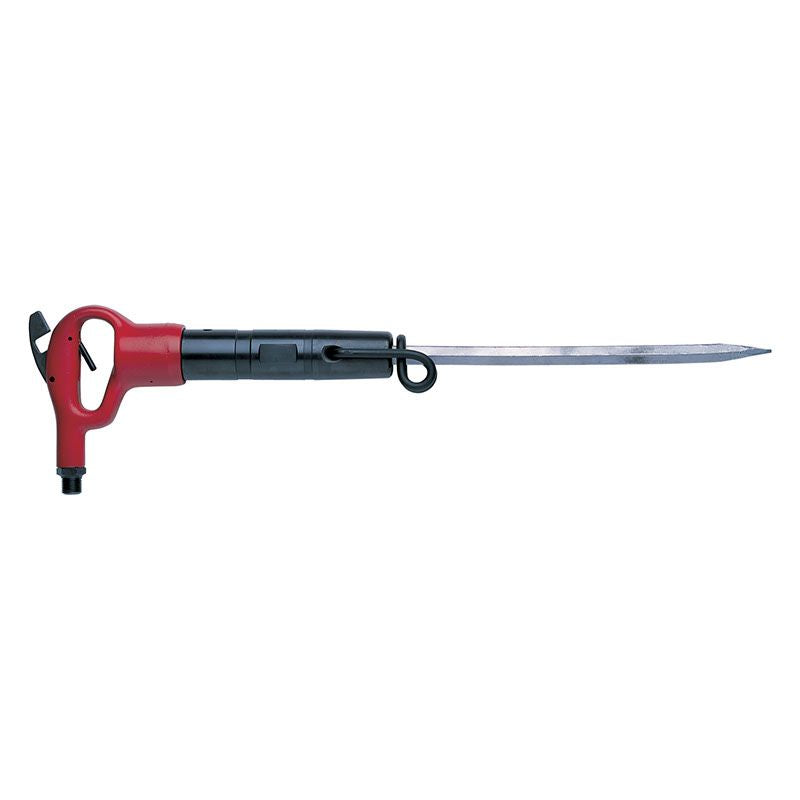

3/4"(19.2mm) HEX PNEUMATIC CHIPPING HAMMER
Dedicated to heavy industrial applications, GV5 hammer combines hard hits, efficient blow rate and sturdy design. Thanks to it metal body, large stroke volume and efficient blow rate, the GV5 combines hard power and durability. It is ideal for roughering, chipping or cutting applications
Features
- Sturdy design thanks to its metal body and D-handle
- A strong hitting power, perfect for heavy industrial applications like roughering, chipping or cutting
- GV5 has a blow rate which makes it particularly suitable for roughening
- Hexagonal 3/4" (19,2 mm) Shank
Specifications
| Blow per minute | 2400 |
| Chisel shank | Hex |
| Chisel shank diameter | 3/4" |
| Energy | 12 J |
| Starting system | Trigger |
| Sound Power | 106 dB(A) |
| Sound Pressure | 95 dB(A) |
| Vibration | 65 ft/sยฒ |
| Bore diameter | 1.1 in |
| Length | 15.16 in |
| Stroke | 2.07 in |
| Weight | 11.2 lb |
| Air consumption at load | 17 cfm |
| Air inlet thread size | 1/2" |
| Max dynamic air working pressure | 90 psi |
| CP part # | 6151740170 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151740170
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
