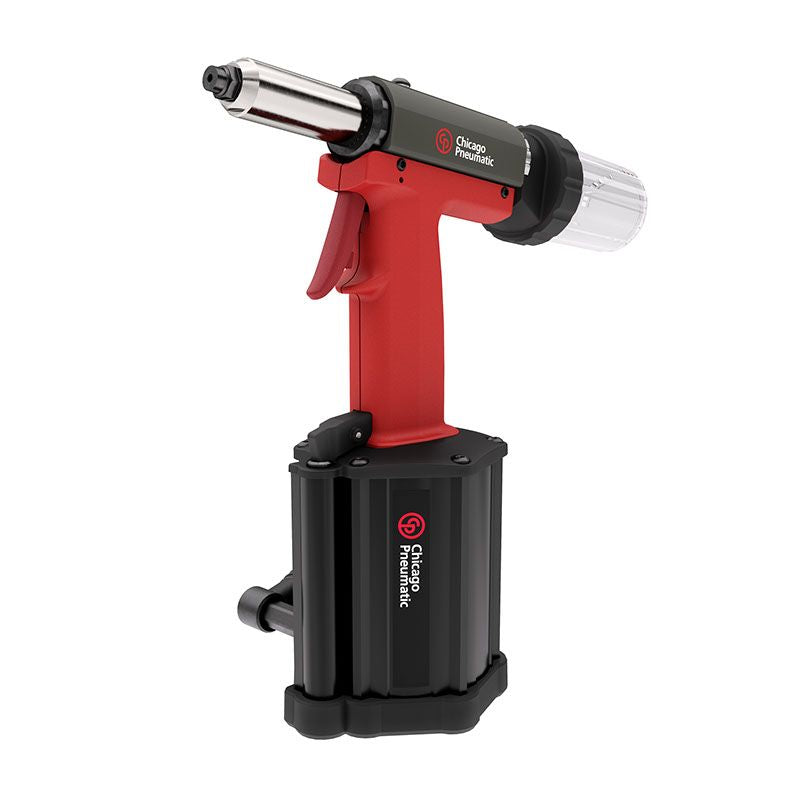

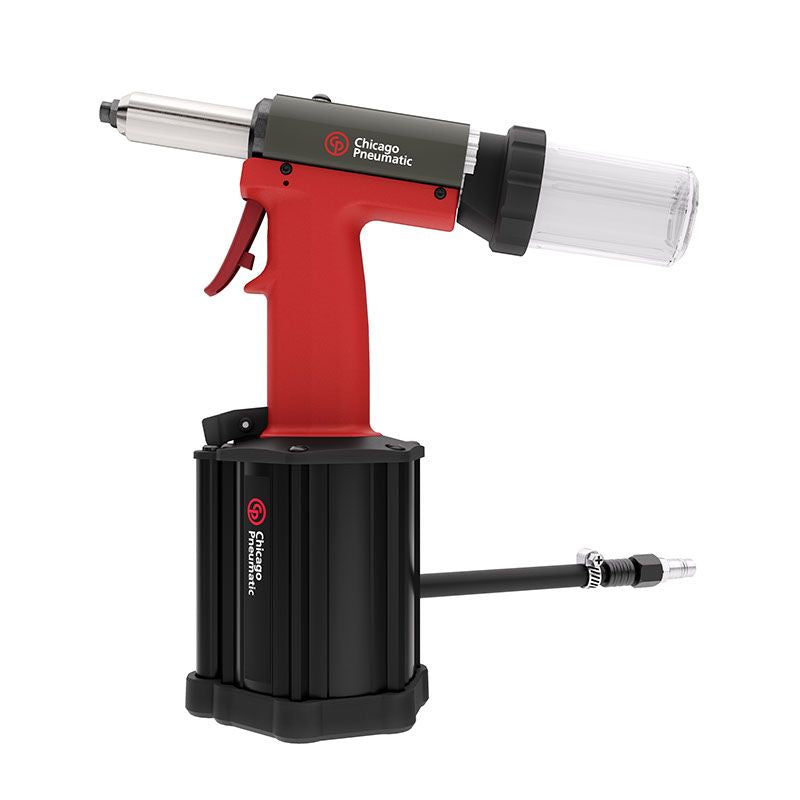

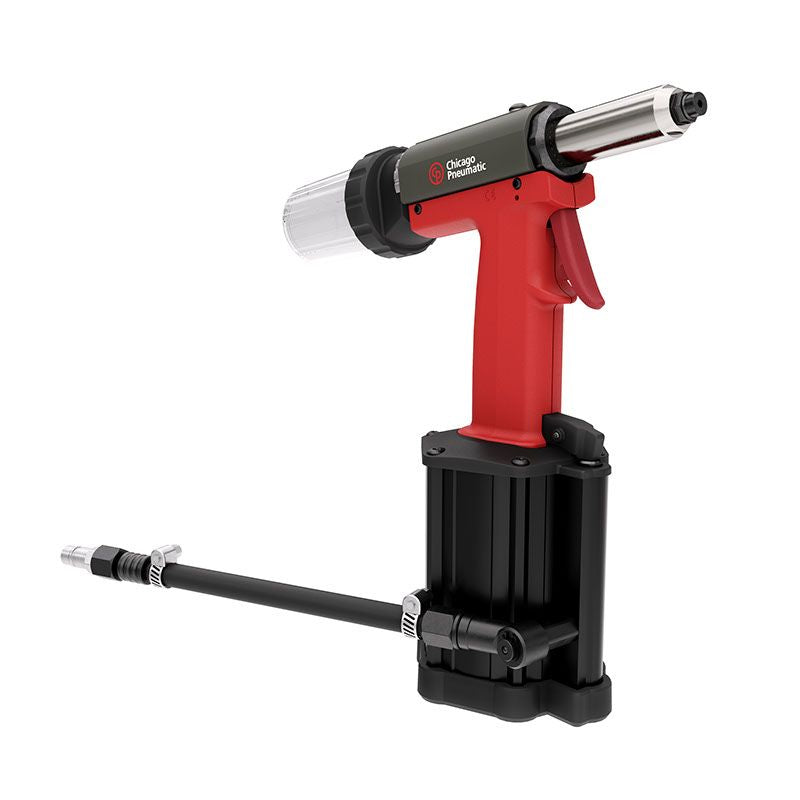

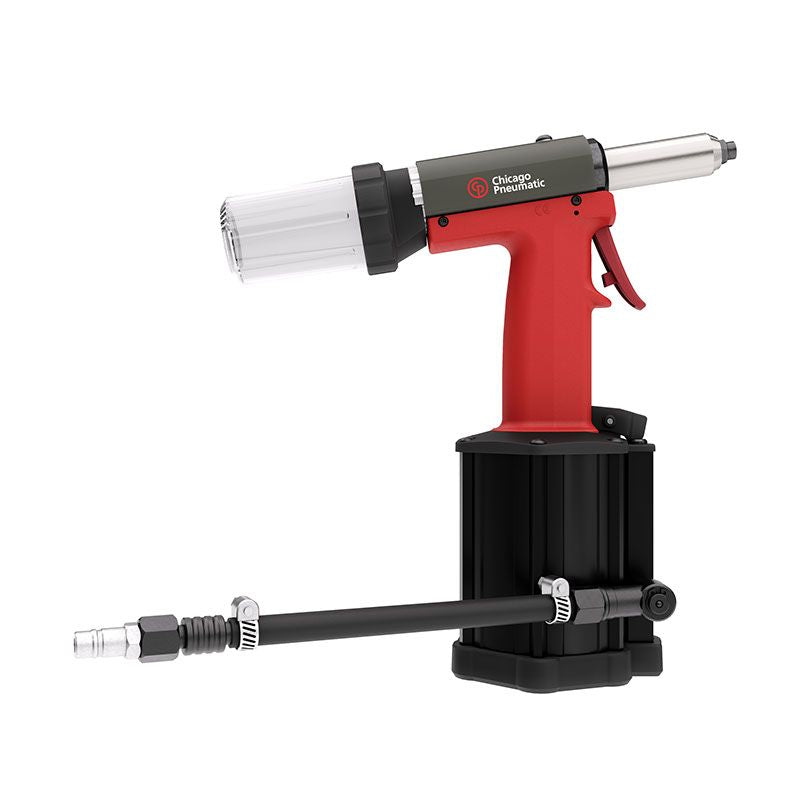

Chicago Pneumatic CP9886 Riveter 3/16" – 8941098860

Description

Pneumatic riveter, up to 5 mm steel blind rivets

The CP9886 is part of a complete range of professional pneumatic blind riveters and blind nut riveter. The CP9886 can process blind rivets up to 5mm in steel and stainless steel.

Features

• Powerful with high setting forces
• Comfortable and safe with low vibration and kickback
• Cold insulating composite handle higher comfort
• Flexible air connection with 360° rotation option
• Robust with an industrial-grade aluminum alloy cylinder material

Specifications

Height (H)	4.53 in
Length (L)	10.91 in
Width (W)	11.42 in
Max stroke length	0.75 in
Pulling force	1260 kg
Weight	3.75 lb
Sound Power	88.8 dB(A)
Sound Pressure	77.8 dB(A)
Uncertainty vibration-K	2 ft/s²
Vibration	8.2 ft/s²
Main Material type	Aluminium, Composite over-sleeve
Max rivet size (mm)	5.0
Min rivet size (mm)	3.2
Mouthpiece delivered	3
Pulling force	2770 lb
Rivet type	Blind
Starting system	Trigger
Air consumption at load	8.5 cfm
Air inlet thread size (in)	1/4
Air inlet thread type	NPT
Max dynamic air working pressure	90 psi
Min hose diam (5 m hose length)	10 mm
CP part #	8941098860

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
