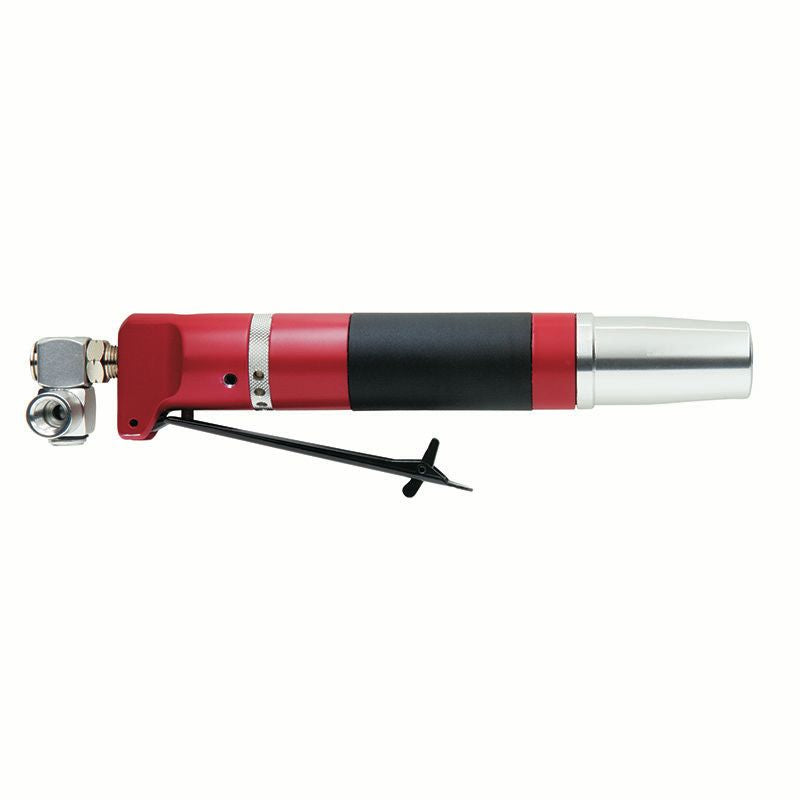

0.2"(5 mm) PNEUMATIC AIR FILES
Designed for body shops or general maintenance applications in confined area, the CP9705 / 10 series offers high cutting efficiency and precision. With it, you will be able to deburr or sharpe different type of material such as metal, iron or plastic. 4 types of files are included: flat, half round, round, triangular. The CP9705 / 10 series is composed of 2 models: 0.2" (5mm) stroke and 0.4" (10mm) stroke
Features
- Lock-off lever to prevent accidental start-up
- 360ยฐ swivel air inlet
- Rubber handle grip for better operator's comfort
Specifications
| Main Material type | Aluminium |
| Starting system | Safety lever |
| Stroke per minute | 8000 |
| Sound Power | 84 dB(A) |
| Sound Pressure | 73 dB(A) |
| Uncertainty vibration-K | 9.8 ft/sยฒ |
| Vibration | 16.4 ft/sยฒ |
| Air consumption at load | 5.9 cfm |
| Air inlet thread size | 1/4 in |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Length | 9.84 in |
| Stroke | 0.39 in |
| Weight | 1.3 lb |
| CP part # | 6151939710 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151939710
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
