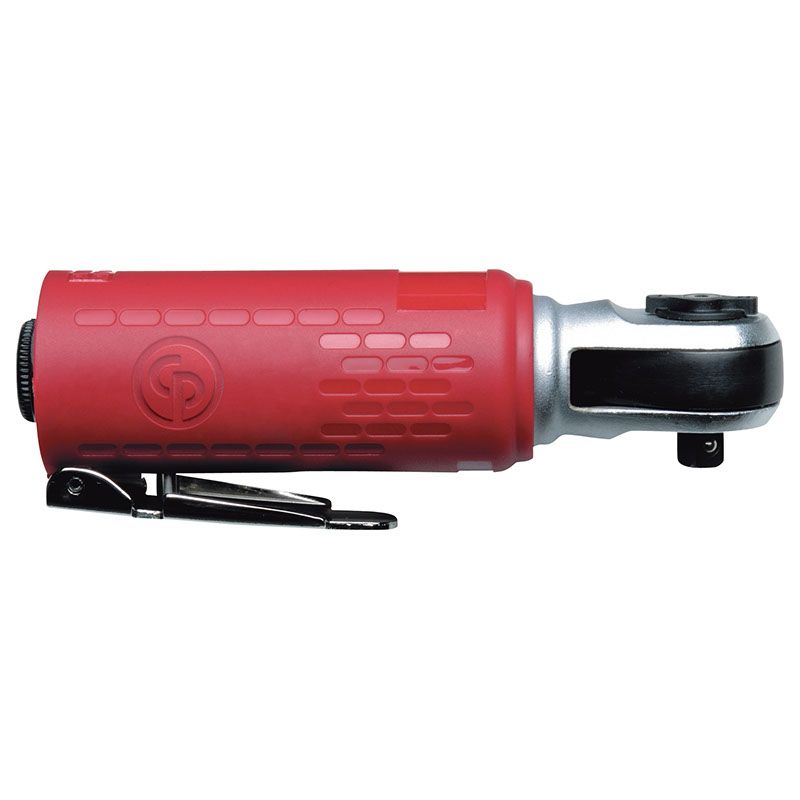

Chicago Pneumatic CP9426 Ratchet Wrench Mini 1/4" โ 6151919426
1/4" pneumatic ratchet wrench
The Chicago pneumatic mini pneumatic ratchet wrench is designed for general mechanics. With a torque of 27 ft.lbs / 35 Nm and ultra compact design, it offers premium long-lasting features in tough conditions. The CP9426 / CP9427 series has 2 models: 1/4" and 3/8" anvil.
Features
- High power (27 ft.lbs / 35 Nm) for better productivity
- Extremely compact tool (5.1" / 130 mm) that enables improved comfort and access in hard to reach places
Specifications
| Free Speed | 270 rpm |
| Max working torque reverse | 25.8 ft.lbf |
| Max torque reverse | 25.8 ft.lbf |
| Min working torque reverse | 5.2 ft.lbf |
| Length (L) | 5.04 in |
| Weight | 1.08 lb |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Vibration (m/sยฒ) | 5 |
| Main Material type | Composite |
| Output drive size (in) | 1/4 |
| Output drive type | Sq |
| Output retainer type | Quick release |
| Starting system | Lever |
| Air consumption at load | 11 cfm |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPTF |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (5 m hose length) | 10 mm |
| CP part # | 6151919426 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151919426
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
