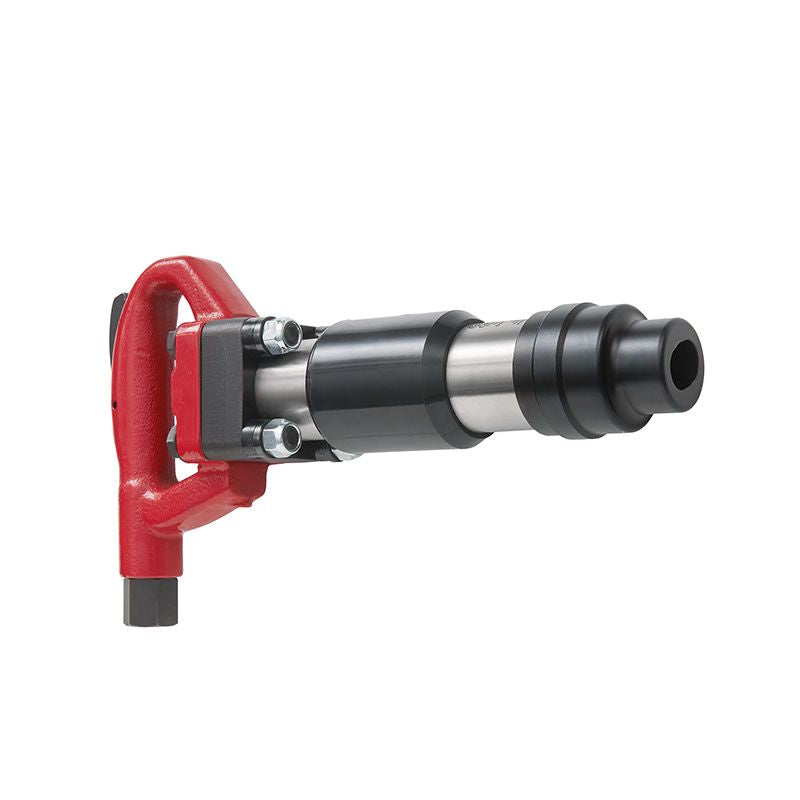

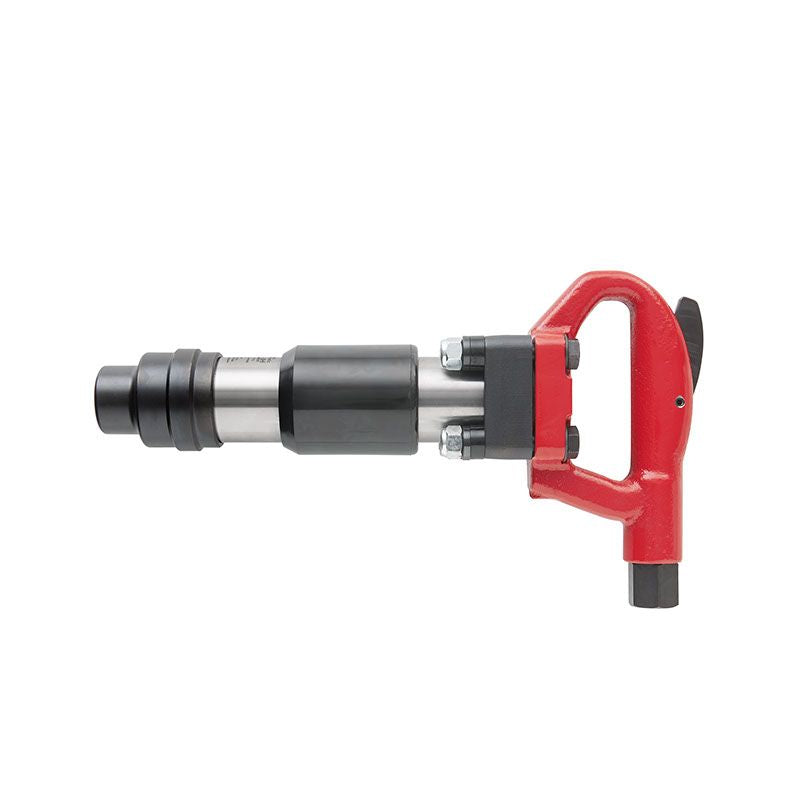

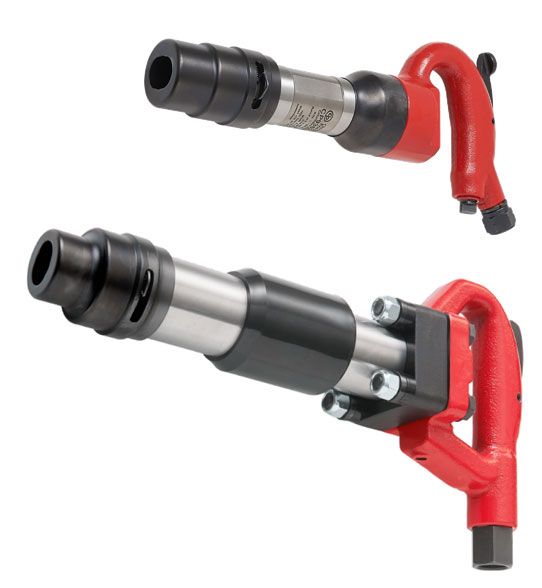

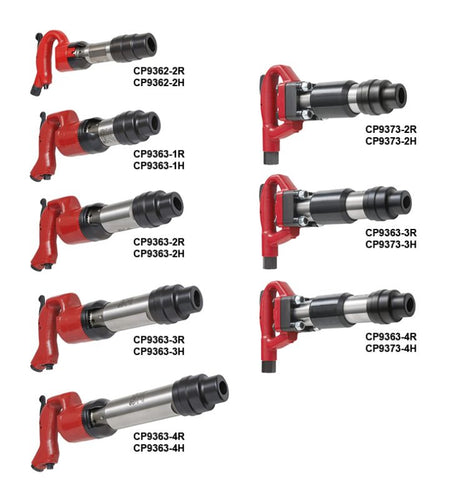

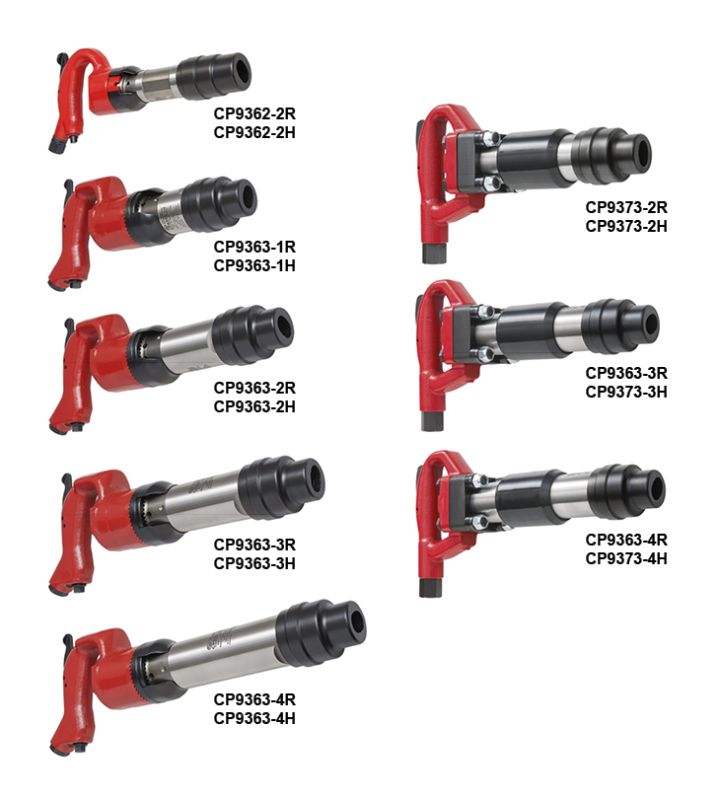

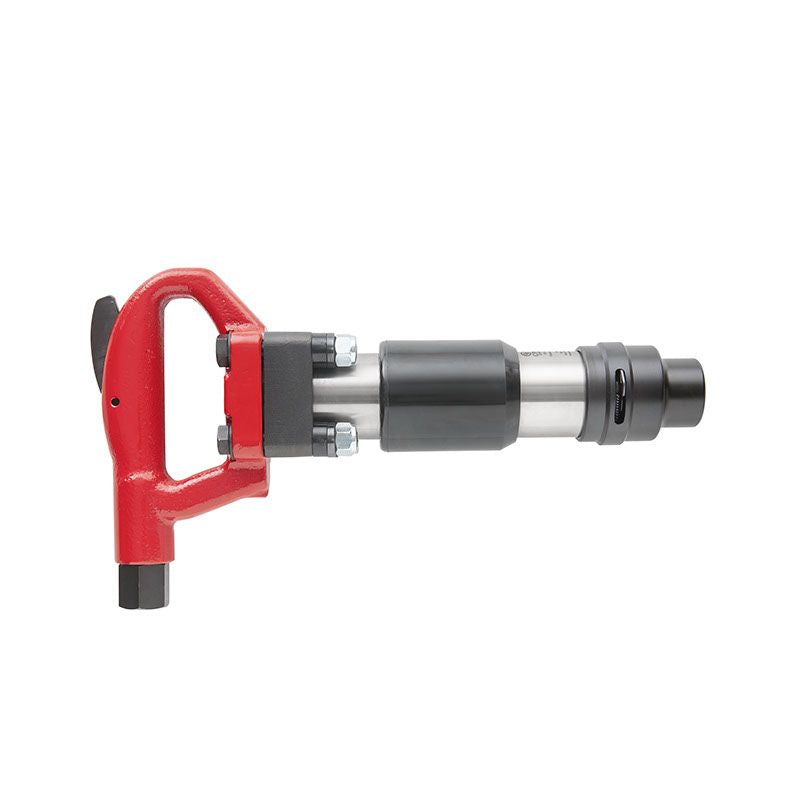

Chicago Pneumatic CP9373-3R Chipping Hammer โ 6151612130
0.680"(17.2 mm) ROUND PNEUMATIC CHIPPING HAMMER
The CP9373 chipping hammer is built for the toughest industrial applications. The CP9373 chipping hammer delivers maximum power in a compact and robust industrial design. It features an extremely durable 4-bolt designed D-handle ideal for super intensive use.
Features
- 4-bolt designed D-handle for intensive use and maximum durability
- Secure grip for more safety
- Retainer ring for secure yet fast chisel replacement
- Heat treated durable cylinder for maximum security
- Thick steel safety lever
Specifications
| Blow per minute | 2150 |
| Chisel shank | Round |
| Chisel shank diameter (in) | 0.680 |
| Chisel shank diameter (mm) | 17.21 |
| Main Material type | Steel |
| Starting system | Trigger |
| Sound Power | 110.3 dB(A) |
| Sound Pressure | 993 dB(A) |
| Uncertainty vibration-K | 10.2 ft/sยฒ |
| Vibration | 44.9 ft/sยฒ |
| Bore diameter | 1.14 in |
| Length (L) | 15.75 in |
| Stroke | 2.52 in |
| Weight | 194 lb |
| Air consumption at load | 31 cfm |
| Air inlet thread size (in) | 3/8 |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| CP part # | 6151612130 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
