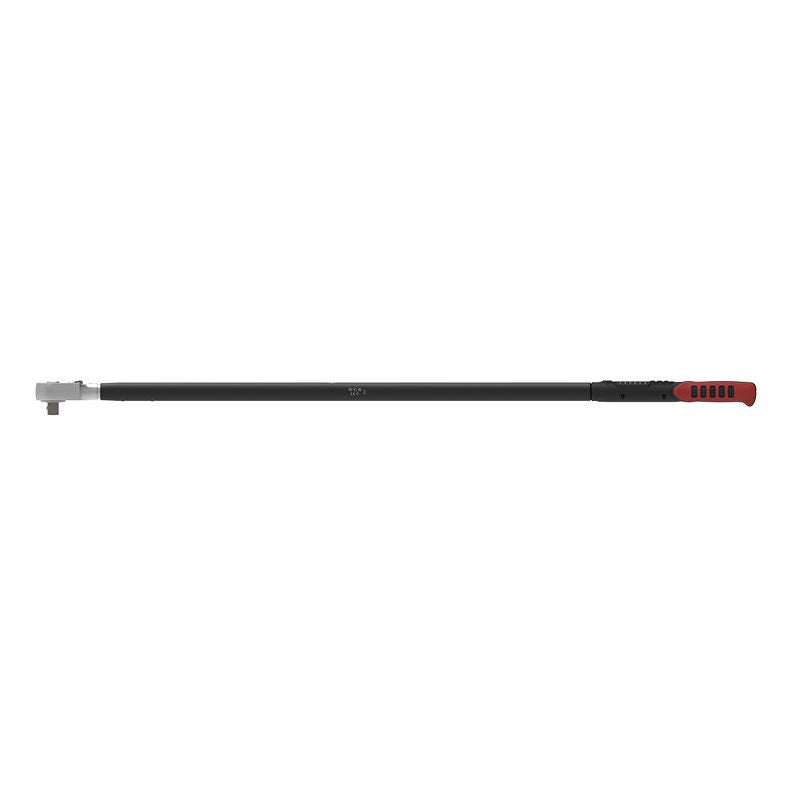

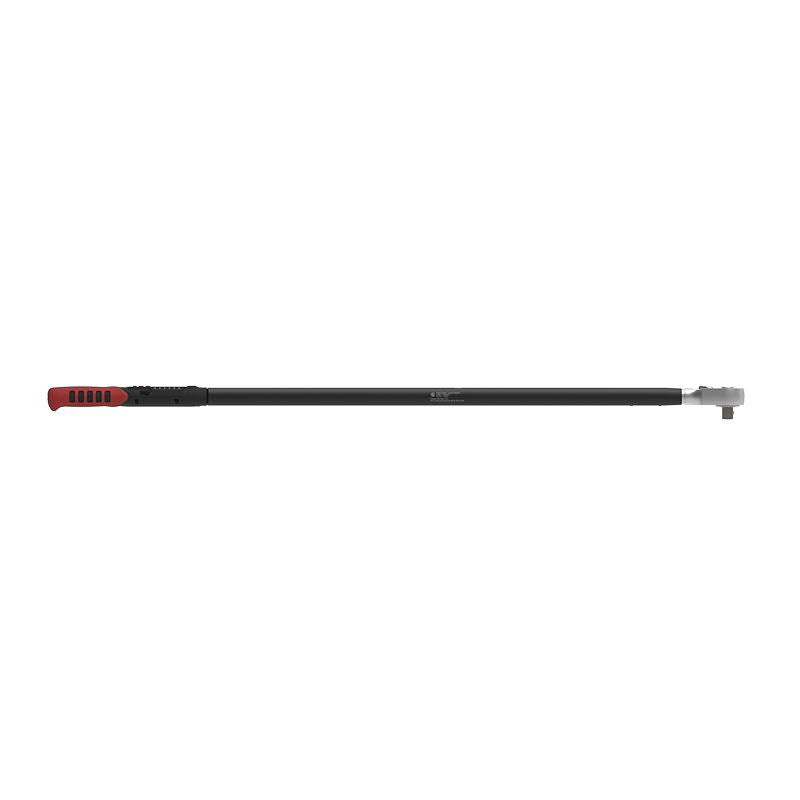

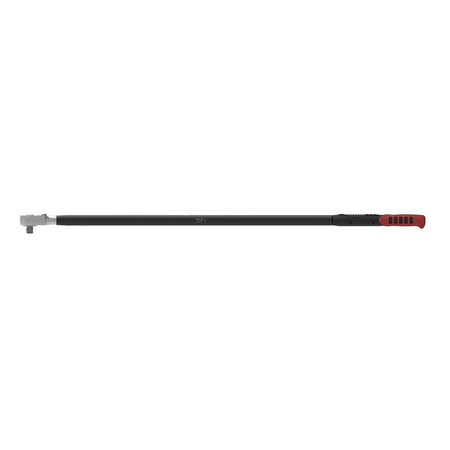

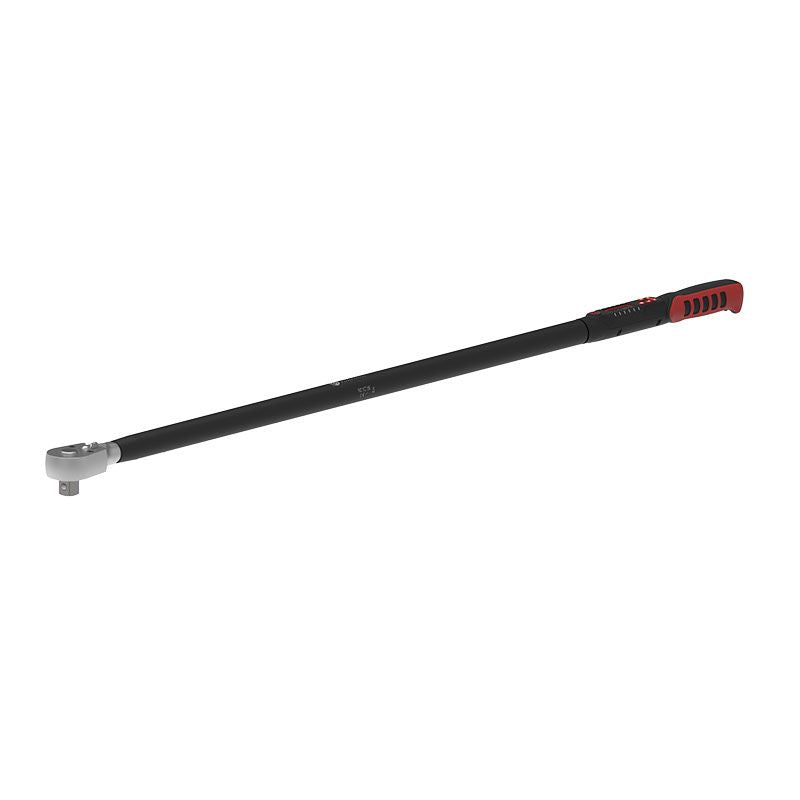

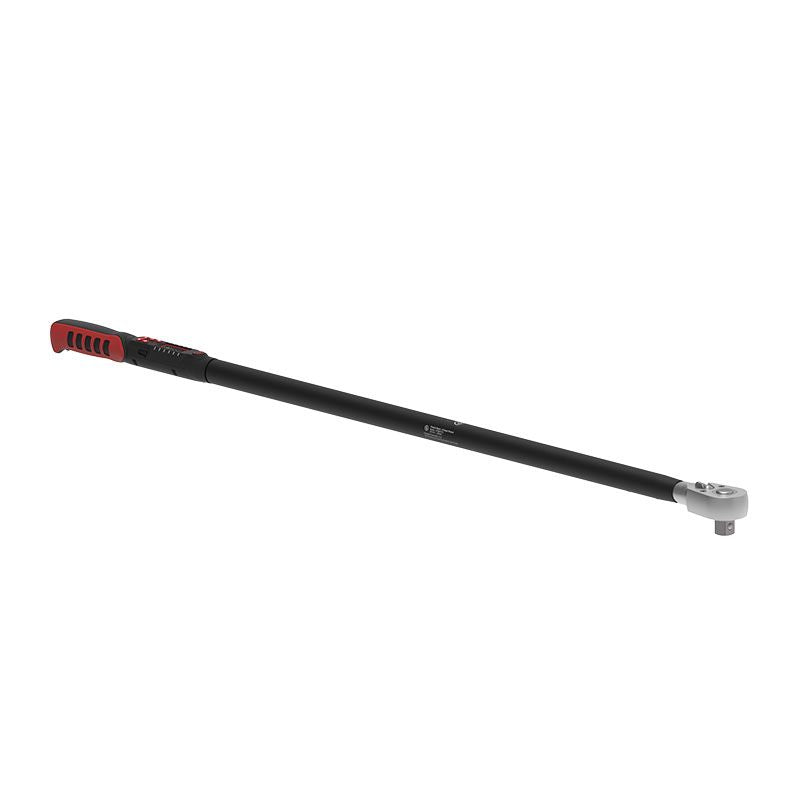

Chicago Pneumatic CP8922TC Etorque Wrench 3/4" – 8941189221

Description

3/4" Electronic Torque Wrench Torque Check 50 - 850Nm​ (32 - 625 ft/lb)

To further extend our range of high precision, cordless torque tools, Chicago Pneumatic is introducing CP89 eTorque - Electronic Torque Wrench. CP8922TC is a 3/4" drive model covering a torque range of 50Nm (32 ft/lb) to 850Nm (625 ft/lb) at +/- 3% accuracy. CP8922TC features Torque and Angle measurement, P-Sets, Sequencing, Torque Check, Re-Hit Detection, and reporting via the CPLinQ application.

Features

• CPLinQ compatibility, high precision at +/- 3% Torque & +/- 2° Angle
• Robust gear system accurate up to 25,000 cycles
• 12 LED progressive light display
• Strong vibration motor
• Soft grip, non-slip handle

Specifications

Type class	Type I, Class 3
Battery type	AA Batteries
Max Ambient Operating Temperature	104 ºF
Min Ambient Operating Temperature	14 ºF
Feedback type	Acoustic Buzzer and 2x6 Leds
Max torque	627 ft.lbf
Min torque	36.9 ft.lbf
Overload Torque (%)	10
Overload torque	690 ft.lbf
Height (H)	1.77 in
Length (L)	48.03 in
Width (W)	2.36 in
Lever arm length	48.03 in
Weight	9.19 lb
Family	Manual torque wrenches
Subfamily	Digital torque wrenches
Angle accuracy (%)	±2 degree (rotating 90° at angular speed of 30°/s)
Angle measure	Yes
Tightening direction	CW Only
Accuracy (ID accuracy_measurement tool) (%)	±3%
Autonomy (h)	8h
Communicating	Yes
Communication type	Bluetooth
Compliance	ISO 6789:2017
Output drive size (in)	3/4
Output drive type	Sq
Quality strategies	Yes
Results memory capacity	2000
Unit measurement supported	Nm, ft/lb
Wireless communication	Yes
CP part #	8941189221

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
