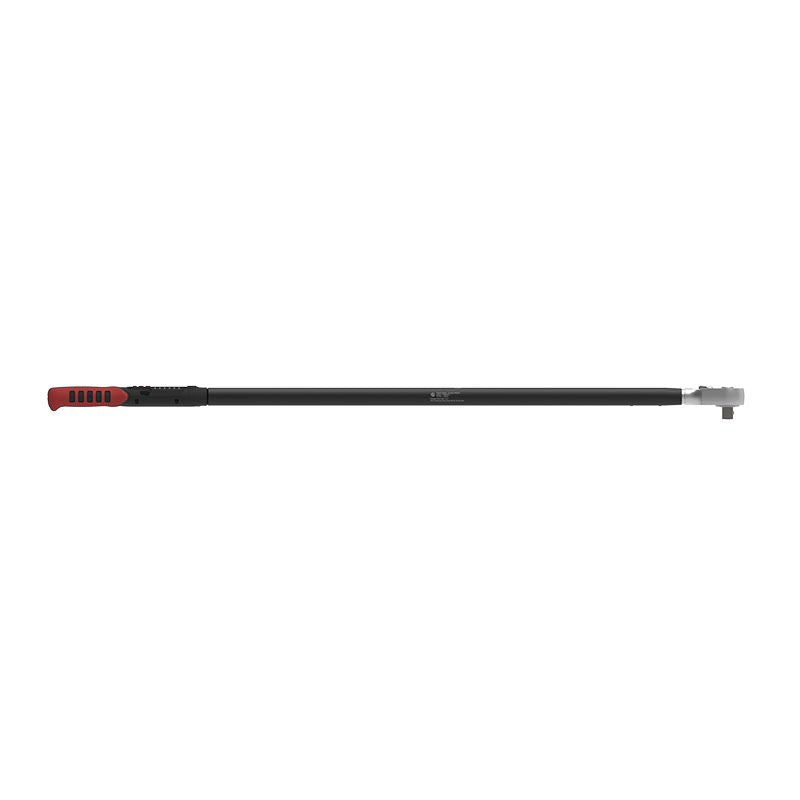

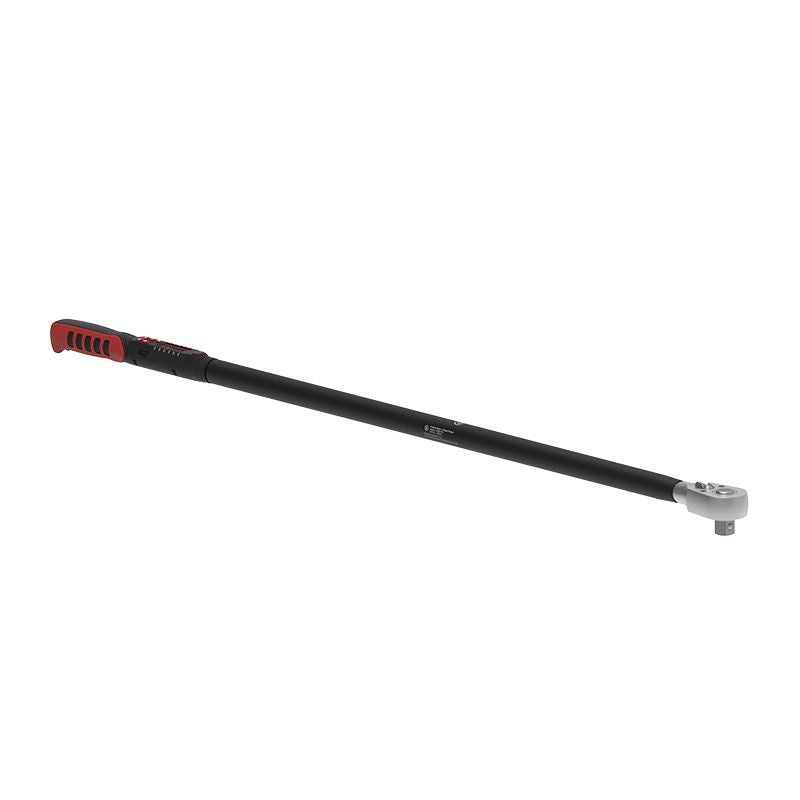

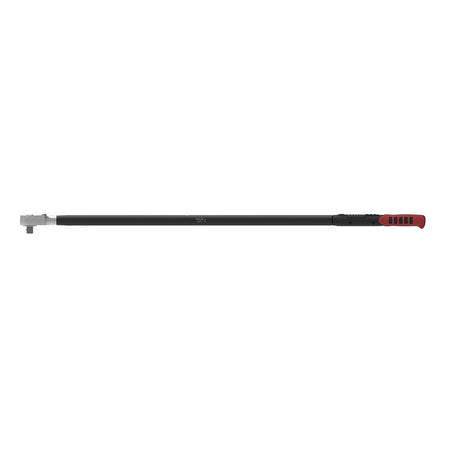

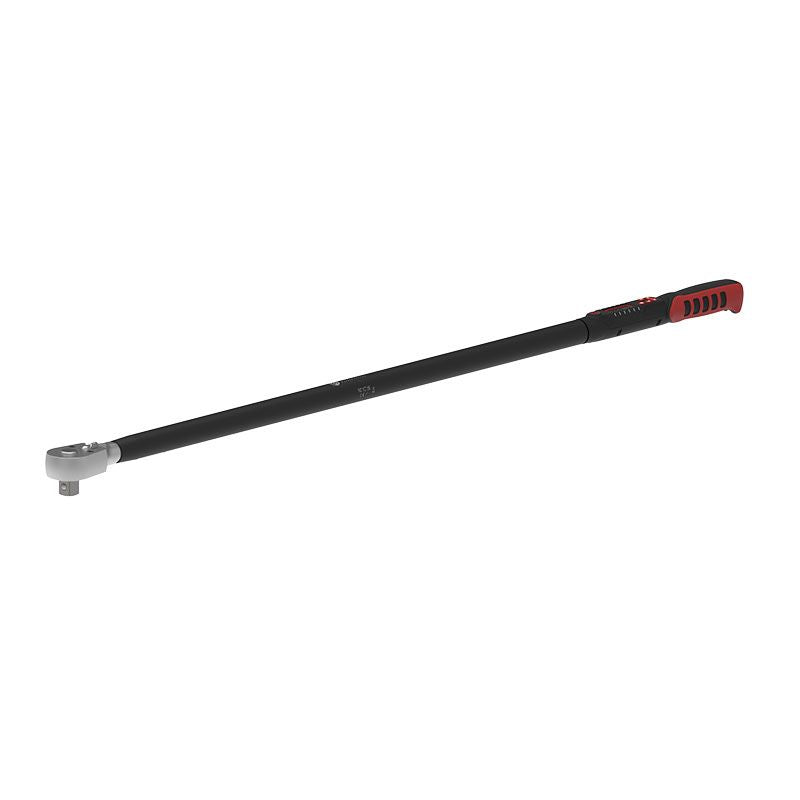

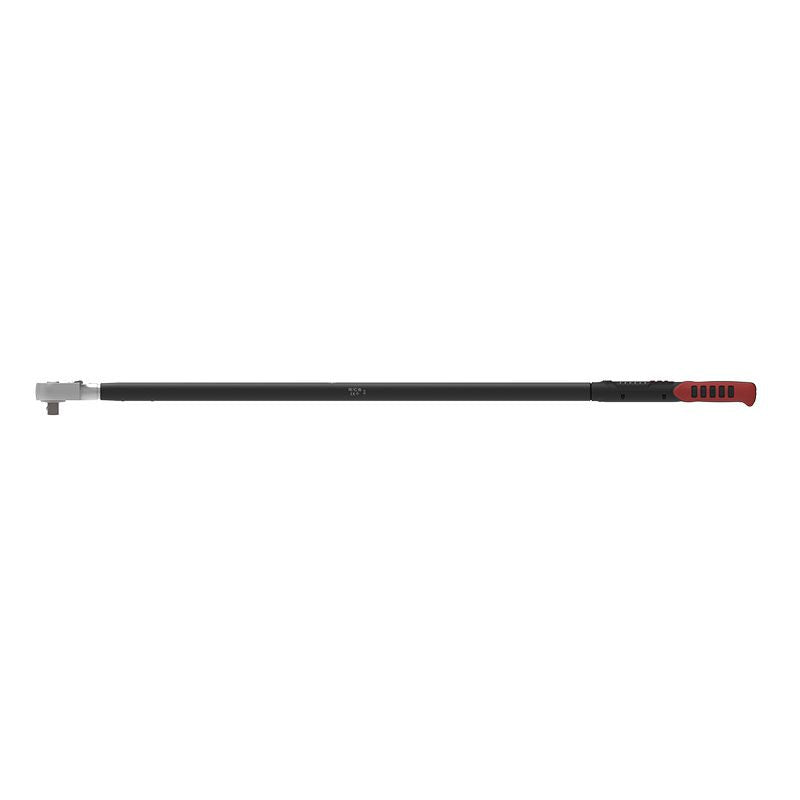

Chicago Pneumatic CP8922 Etorque Wrench 3/4" – 8941189220

Description

3/4" Electronic Torque Wrench 50 - 850Nm​ (32 - 625 ft/lb)

To further extend our range of high precision, cordless torque tools, Chicago Pneumatic is introducing CP89 eTorque - Electronic Torque Wrench. CP8922 is a 3/4" drive model covering a torque range of 50Nm (32 ft/lb) to 850Nm (625 ft/lb) at +/- 3% accuracy.

Features

• CPLinQ compatibility, high precision at +/- 3% Torque & +/- 2° Angle​
• Robust gear system accurate up to 25,000 cycles
• 12 LED progressive light display
• Strong vibration motor​
• Soft grip, non-slip handle

Specifications

Type class	Type I, Class 3
Battery type	AA Batteries
Max Ambient Operating Temperature	104 ºF
Min Ambient Operating Temperature	14 ºF
Feedback type	Acoustic Buzzer and 2x6 Leds
Max torque	627 ft.lbf
Min torque	36.9 ft.lbf
Overload Torque (%)	10
Overload torque	690 ft.lbf
Height (H)	1.77 in
Length (L)	48.03 in
Width (W)	2.36 in
Lever arm length	48.03 in
Weight	9.19 lb
Family	Manual torque wrenches
Subfamily	Digital torque wrenches
Angle measure	No
Tightening direction	CW Only
Accuracy (%)	±3%
Autonomy (h)	8h
Communicating	No
Communication type	None
Compliance	ISO 6789:2017
Output drive size (in)	3/4
Output drive type	Sq
Unit measurement supported	Nm, ft/lb
Wireless communication	No
CP part #	8941189220

Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.

Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
