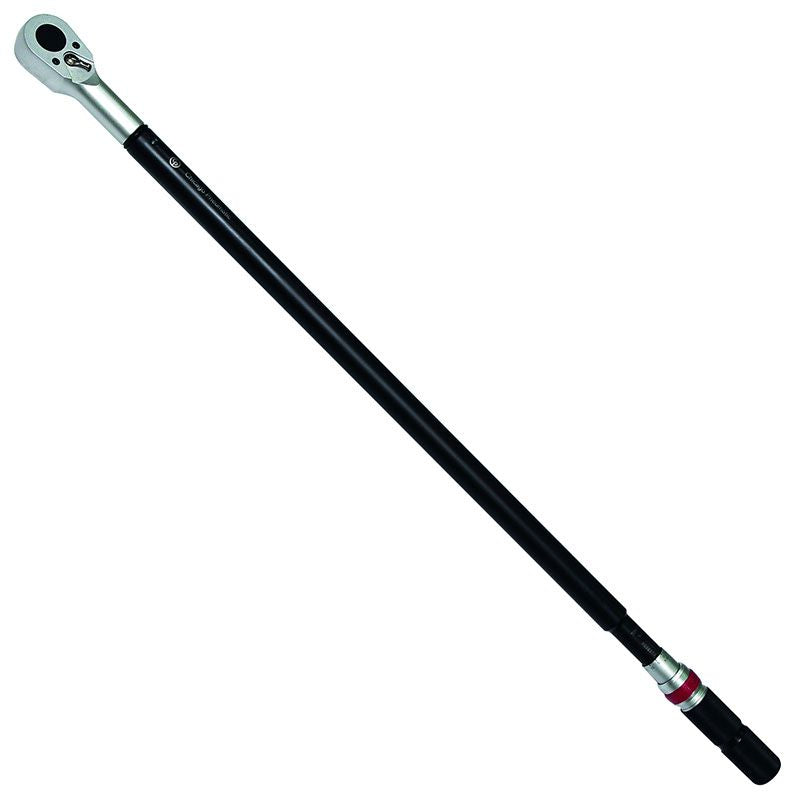

Chicago Pneumatic CP8920E 3/4" Torque Wrench - 150-750 NM β 8941089200
3/4" TORQUE WRENCH - Nm

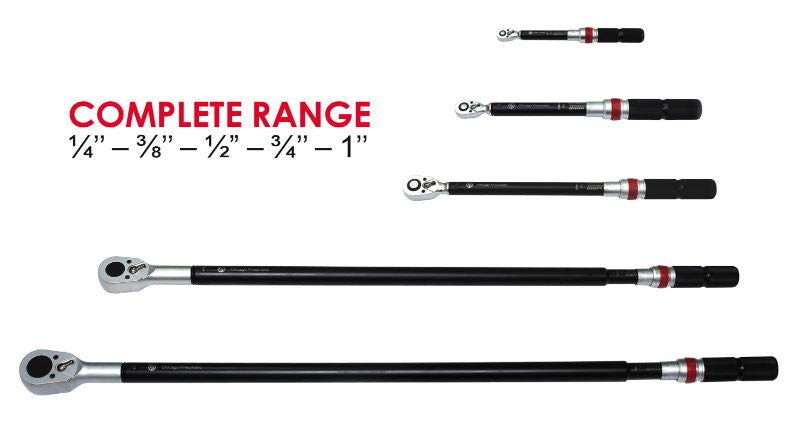

Chicago pneumatic torque wrenches are designed for long-lasting accuracy up to 25,000 cycles at 4% according to the ISO 6789 β 1 : 2017. To ensure robustness, the fixed pear head ratchet has a 54 teeth mechanism for 6.6Β° increments. A non-intrusive audible signal is made when the torque is reached. Each torque wrench is delivered with a protective blow-moulded case with ISO 6789 calibration certificate. The head ratchet is built with socket locking and quick release system. The CP89 series is composed of 6 models from ΒΌ'' to 1'', from 5 Nm to 1,000 Nm / 50 inch pound to 750 ft.lbs.
Features
- 4% accuracy according to ISO 6789 β 1 : 2017 specifications
- Reliability up to 25,000 cycles guarantees long-lasting accuracy
- Torque adjustment with manual locking at the front of the handle
- Aluminium handle resistant to common workshop chemicals
- 54 teeth fixed pear head ratchet for durability
Specifications
| Accuracy | Β±4% |
| Compliance | ISO 6789:2017 |
| Output drive size (in) | 3/4 |
| Unit measurement supported | N.m |
| Length (L) | 41.73 in |
| Weight | 12.6 lb |
| Graduation (N*m) | 5 Nm |
| Max torque (N*m) | 750 Nm |
| Min torque (N*m) | 150 Nm |
| CP part # | 8941089200 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1β2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
