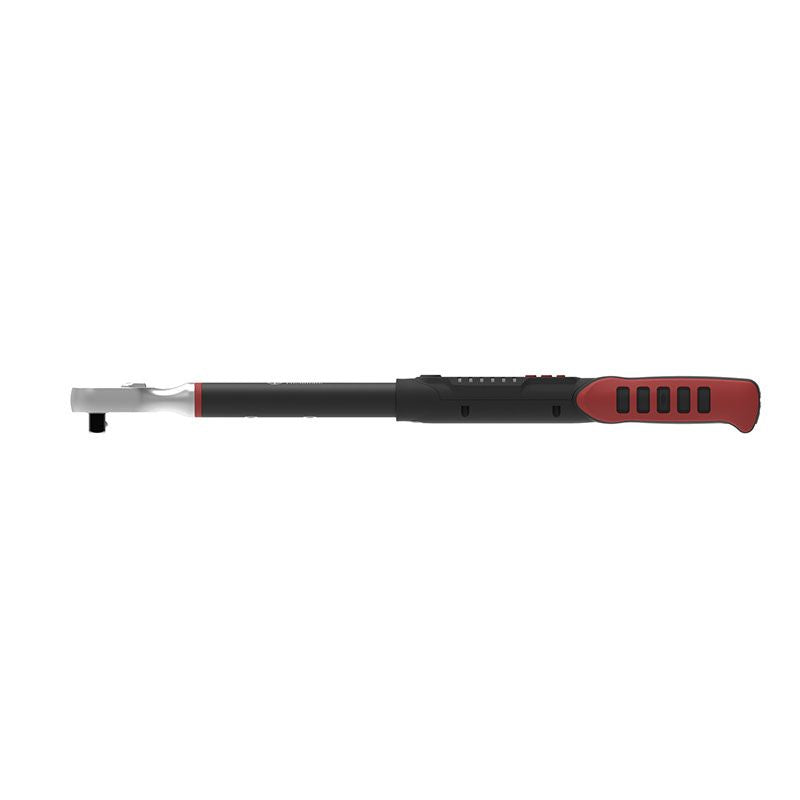

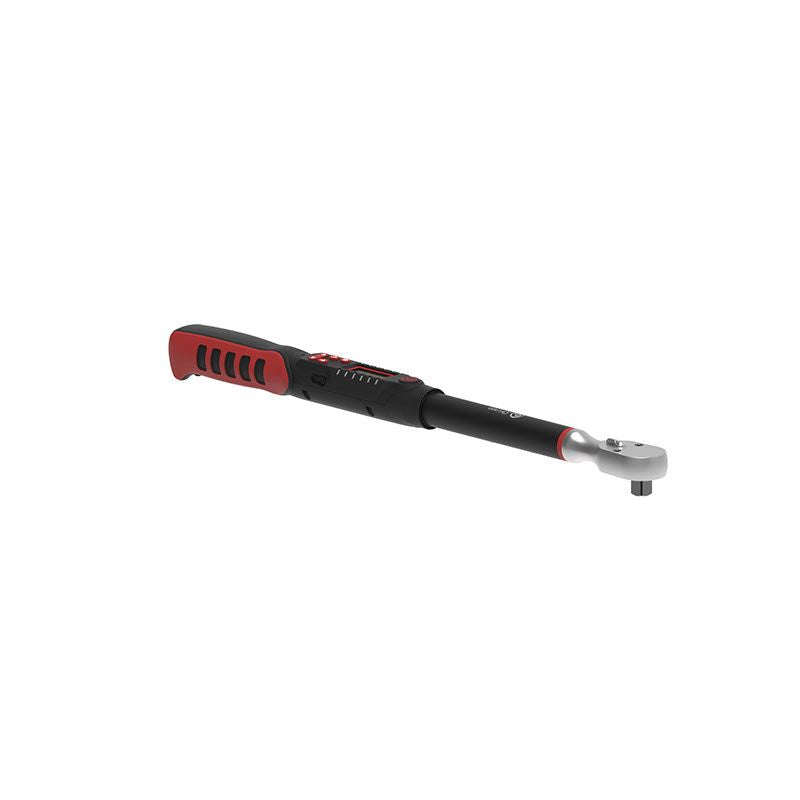

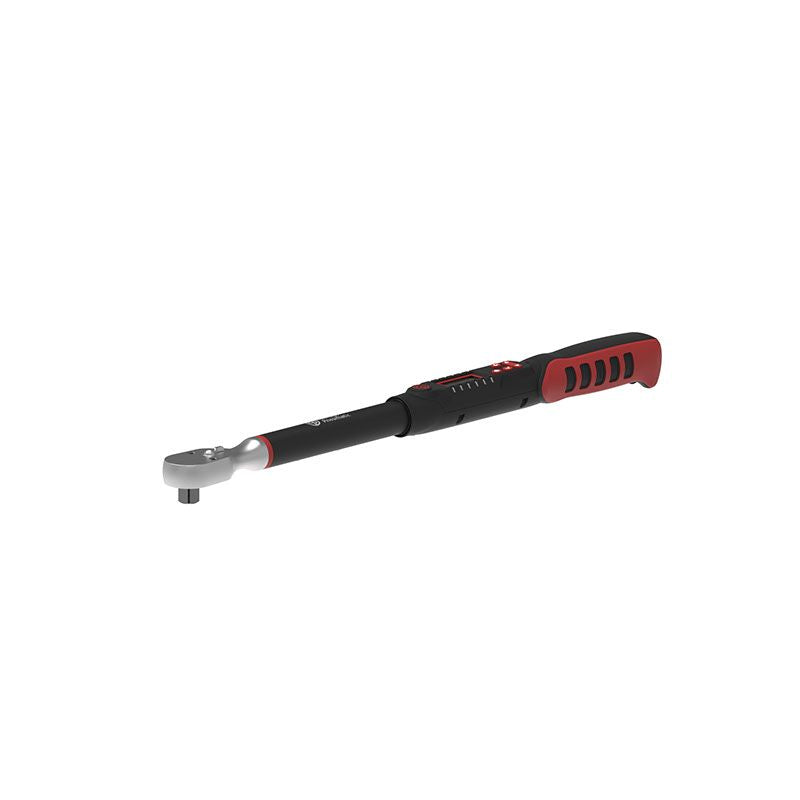

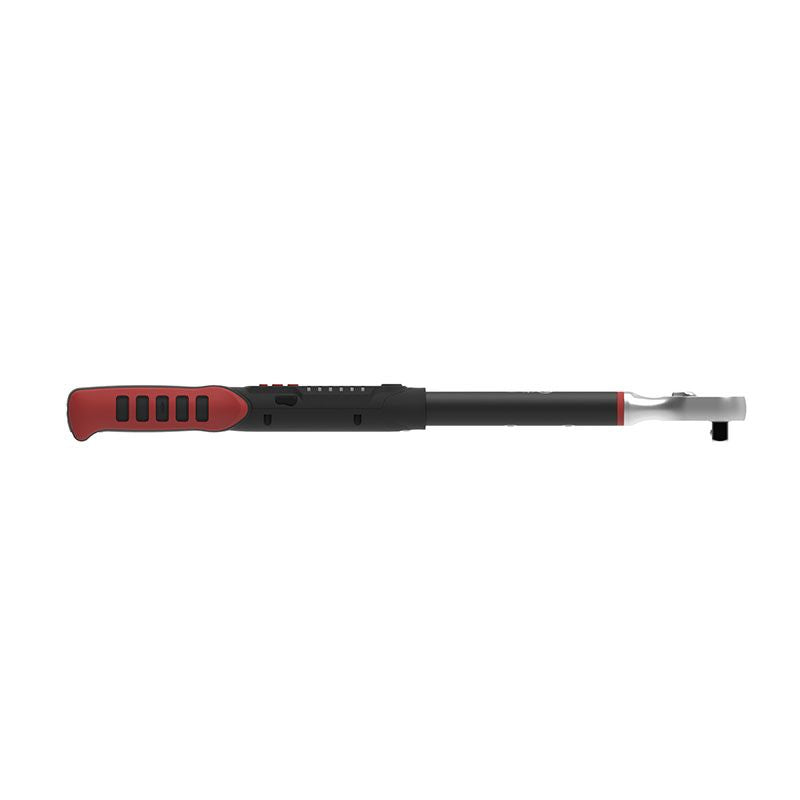

Chicago Pneumatic CP8916TC Etorque Wrench 1/2" β 8941089161
1/2" Digital Torque Wrench Torque Check 20 - 200 Nm (15 - 147 ft/lb)
To further extend our range of high precision, cordless torque tools, Chicago Pneumatic is introducing the CP89 Series of Digital Torque Wrenches. The CP8916TC is a 1/2" drive model covering a torque range of 20Nm (15 ft/lb) to 200Nm (147 ft/lb) at +/- 2% accuracy. The CP8916TC features Torque and Angle measurement, P-Sets, Sequencing, Torque Check, Re-Hit Detection, and reporting via the CPLinQ application. CP89 Series eTorque Wrench delivered with USB Connection Cable, Calibration Certificate, Molded Plastic Case, & Removable Foam Insert. This product is eligible for our Calibration services, ensuring high precision, compliance with industry standards, and optimal performance of your torque wrenches. Contact us to learn more.
Features
- CPLinQ compatibility, high precision at +/- 3% Torque & +/- 2Β° Angle
- Robust gear system accurate up to 25,000 cycles
- 12 LED progressive light display
- Strong vibration motor
- Soft grip, non-slip handle
Specifications
| Type class | Type I, Class 3 |
| Battery type | AA Batteries |
| Max Ambient Operating Temperature | 104 ΒΊF |
| Min Ambient Operating Temperature | 14 ΒΊF |
| Feedback type | Acoustic Buzzer and 2x6 Leds |
| Max torque | 148 ft.lbf |
| Min torque | 14.8 ft.lbf |
| Overload Torque (%) | 10 |
| Height (H) | 1.77 in |
| Length (L) | 20.87 in |
| Width (W) | 1.73 in |
| Lever arm length | 17.13 in |
| Side to Center | 0.81 in |
| Weight | 2.87 lb |
| Family | Manual torque wrenches |
| Subfamily | Digital torque wrenches |
| Angle accuracy (%) | Β±2 degree (rotating 90Β° at angular speed of 30Β°/s) |
| Angle measure | Yes |
| Tightening direction | CW Only |
| Accuracy (ID accuracy_measurement tool) (%) | Β±3% |
| Autonomy (h) | 8h |
| Communicating | Yes |
| Communication type | Bluetooth |
| Compliance | ISO 6789:2017 |
| Curves memory capacity | N/A |
| End-fitting management | No |
| Output drive size (in) | 1/2 |
| Output drive type | Sq |
| Quality strategies | Yes |
| Results memory capacity | 2000 |
| Unit measurement supported | Nm, ft/lb |
| CP part # | 8941089161 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1β2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
