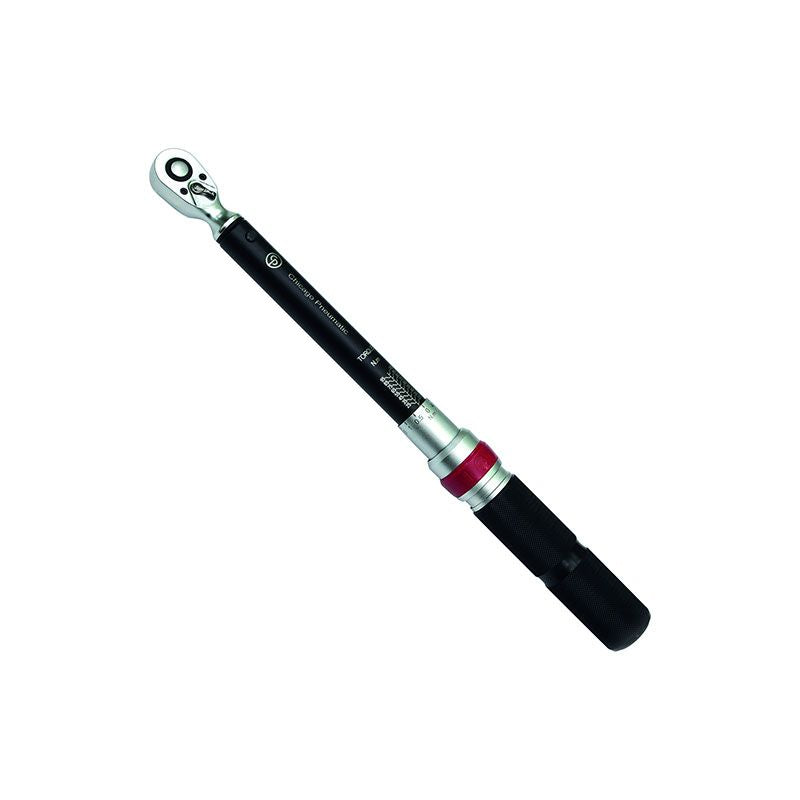

Chicago Pneumatic CP8910E 3/8" Torque Wrench - 20-100 NM โ 8941089100
3/8" TORQUE WRENCH - Nm
Chicago pneumatic torque wrenches are designed for long-lasting accuracy up to 25,000 cycles at 4% according to the ISO 6789 โ 1 : 2017. To ensure robustness, the fixed pear head ratchet has a 54 teeth mechanism for 6.6ยฐ increments. A non-intrusive audible signal is made when the torque is reached. Each torque wrench is delivered with a protective blow-moulded case with ISO 6789 calibration certificate. The head ratchet is built with socket locking and quick release system.
Features
- 4% accuracy according to ISO 6789 โ 1 : 2017 specifications
- Reliability up to 25,000 cycles guarantees long-lasting accuracy
- Torque adjustment with manual locking at front of handle
- Aluminium handle resistant to common workshop chemicals
- 54 teeth fixed pear head ratchet for durability
Specifications
| Compliance | ISO 6789:2017 |
| Output drive size | 3/8" |
| Unit measurement supported | N.m |
| Length | 16.14 in |
| Weight | 3.31 lb |
| Graduation | 0.5 Nm |
| Max torque | 100 Nm |
| Min torque | 20 Nm |
| CP part # | 8941089100 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
