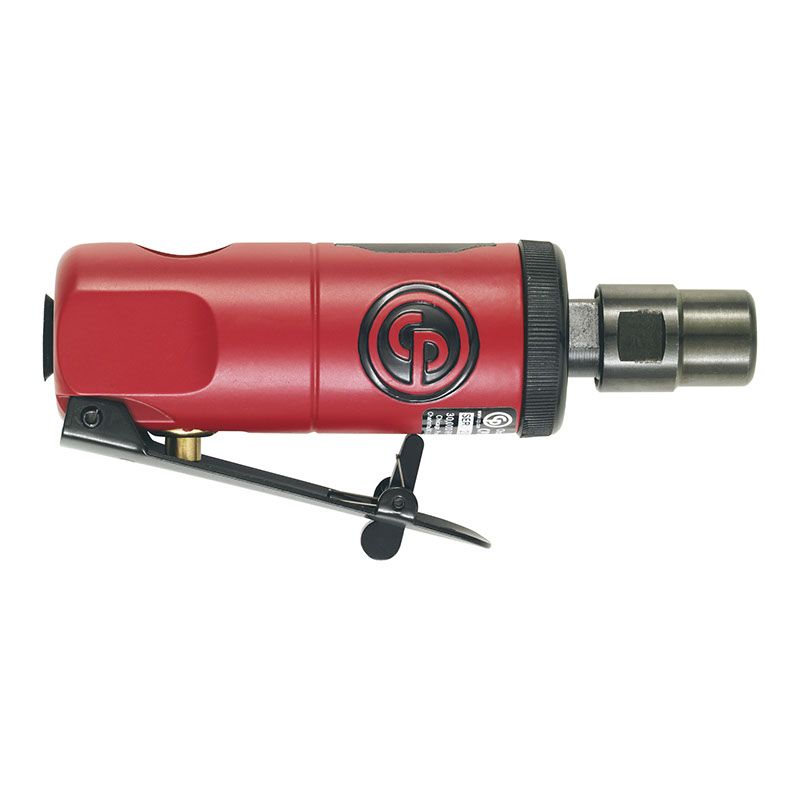

Chicago Pneumatic CP876 1/4" Mini Die Grinder โ T023996
1/4"(6 mm) PNEUMATIC DIE GRINDER
The CP876 series is designed for general maintenance in limited spaces applications. It has an integrated pneumatic regulator with a power of 0.3 hp (220 W). It is a very compact and lightweight tool, ensuring extreme maneuverability in high-speed grinding applications.
Features
- Compact and lightweight tool designed for easy maneuverability and ideal for limited space applications
- Front exhaust for better comfort
- Built-in air regulator
- Includes 1/4" and 6 mm collets
Specifications
| Length (L) | 4.76 in |
| Weight | 0.75 lb |
| Free Speed | 30000 rpm |
| Air consumption at free speed | 23 cfm |
| Air consumption at load | 23 cfm |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Sound Power | 112.3 dB(A) |
| Sound Pressure | 101.3 dB(A) |
| Vibration (m/sยฒ) | <2.5 |
| Max power | 0.3 hp |
| Collet max capacity | 1/4 (6.4mm) |
| Exhaust | Front |
| Main Material type | Aluminium, Composite over-sleeve |
| Starting system | Safety lever |
| CP part # | T023996 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
