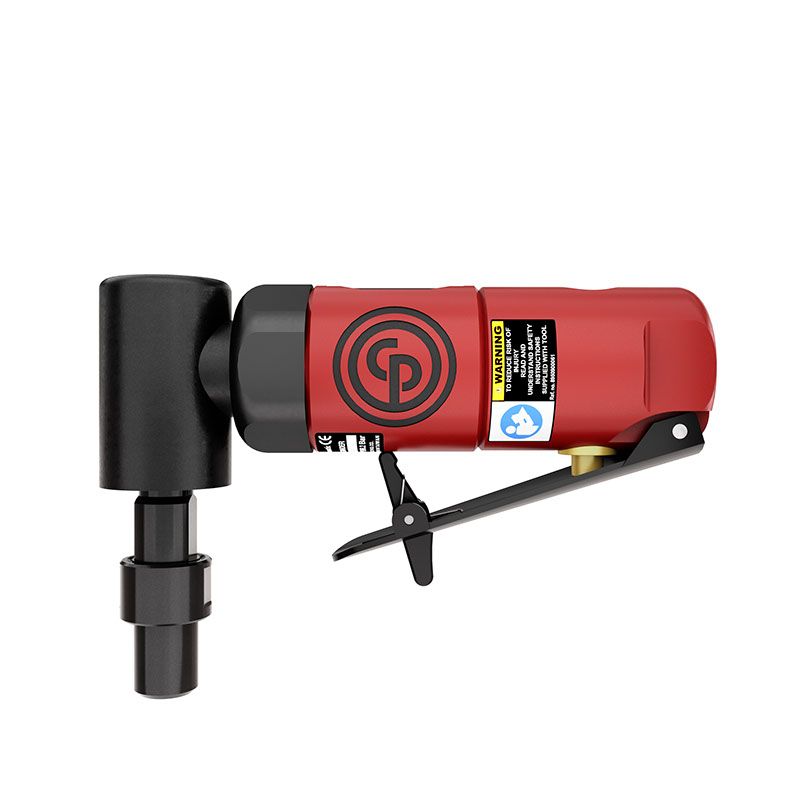

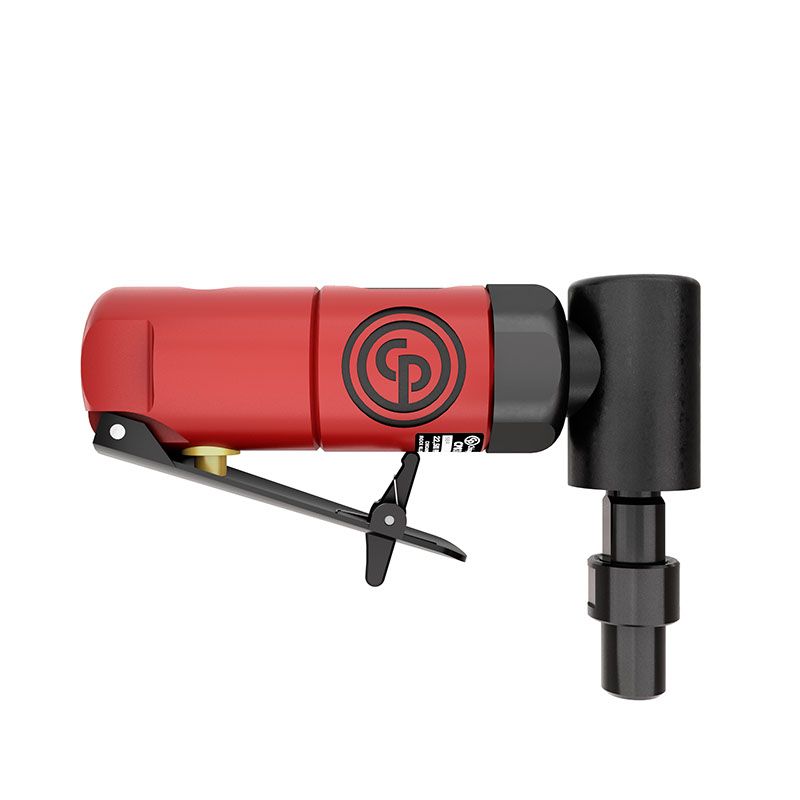

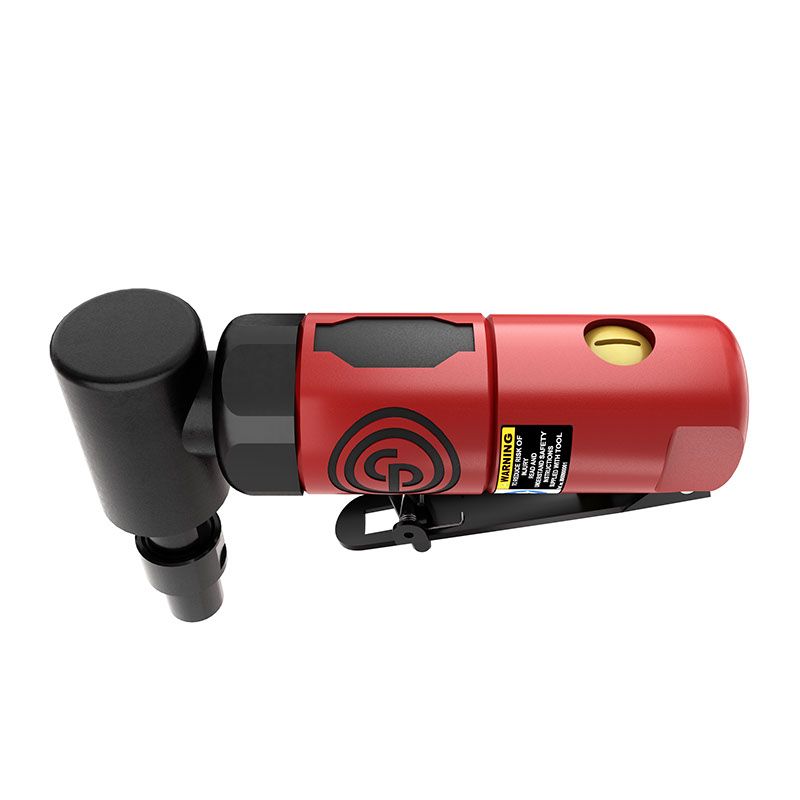

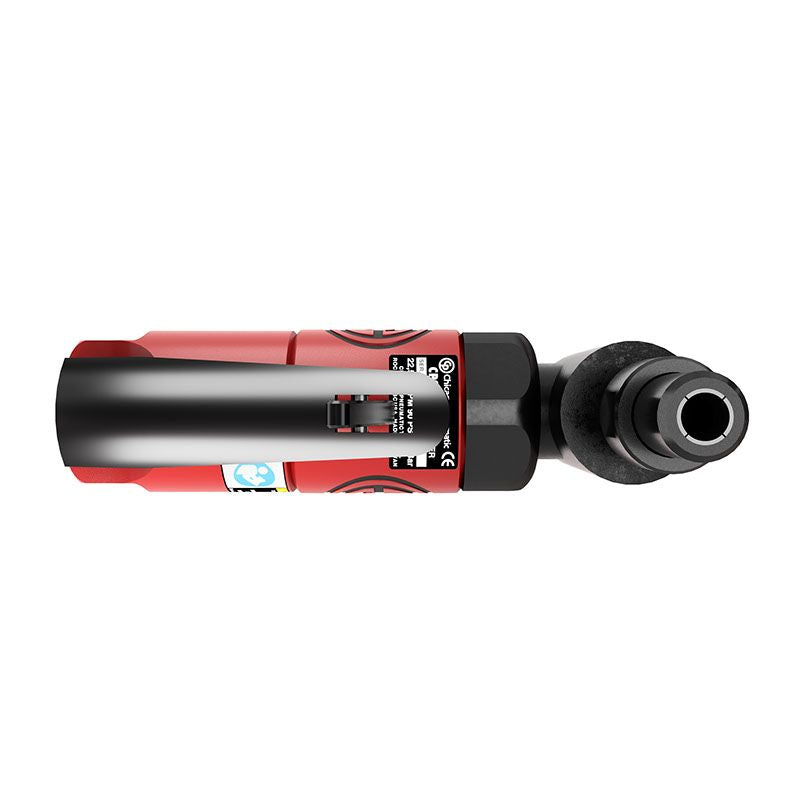

Chicago Pneumatic CP875 1/4" Mini 90° Angle Die Grinder – T023995
1/4"(6 mm) PNEUMATIC DIE GRINDER
The CP875 series is designed for general maintenance in limited spaces. It has an integrated pneumatic regulator with a power of 0.3 hp (220 W). It is a very compact and lightweight tool, ensuring extreme maneuverability in high-speed grinding applications. Available as a bare tool or as a kit.
Features
- 90° angle head allows flexibility in tight areas
- Compact and lightweight tool designed for easy maneuverability
- Built-in air regulator
- Includes 1/4" and 6 mm collets
Specifications
| Length (L) | 4.88 in |
| Weight | 0.99 lb |
| Free Speed | 22500 rpm |
| Air consumption at free speed | 22 cfm |
| Air consumption at load | 22 cfm |
| Air inlet thread size (in) | 1/4 |
| Air inlet thread type | NPT |
| Max dynamic air working pressure | 90 psi |
| Min hose diam (16 ft hose length) | 0.38 in |
| Min hose diam (5 m hose length) | 10 mm |
| Sound Power | 112.3 dB(A) |
| Uncertainty vibration-K | 6.2 ft/s² |
| Angle Type | 90° |
| Max power | 0.3 hp |
| Collet max capacity | 1/4 (6.4mm) |
| Exhaust | Rear |
| Governor type | NA |
| Main Material type | Aluminium, Composite over-sleeve |
| Rotative inlet | No |
| Spindle lock | No |
| Starting system | Safety lever |
| CP part # | T023995 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model T023995
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
