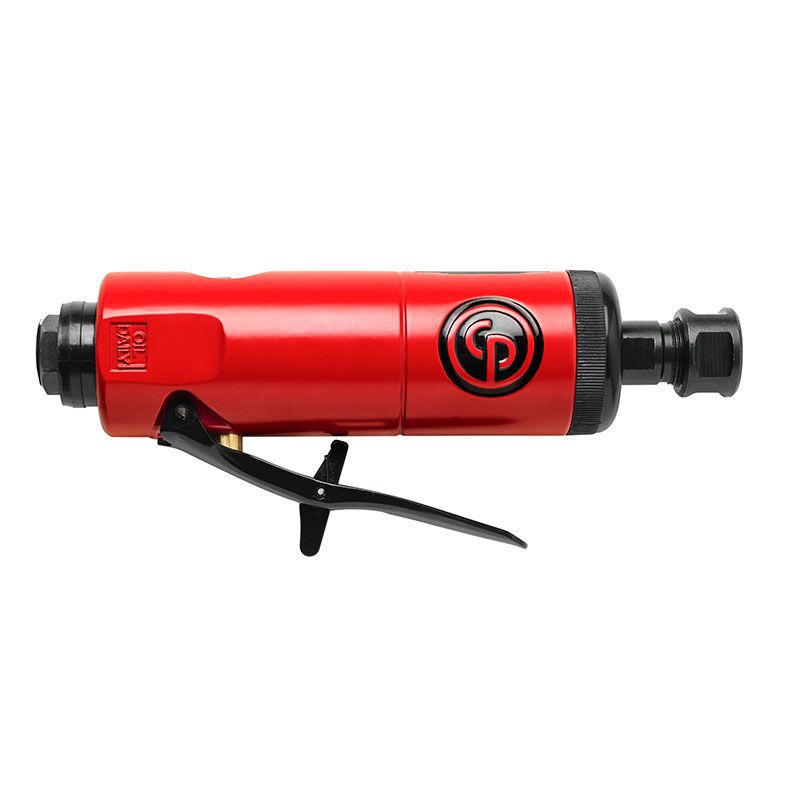

1/4"(6 mm) PNEUMATIC DIE GRINDER
Designed for general maintenance, the CP872 series is equipped with a reliable 0.6 hp (470 W) motor and an aluminum body for strength and lightness. It features an integrated pneumatic regulator and a contoured safety lever to ensure operator safety during high-speed grinding applications.
Features
- Aluminum alloy body for better robustness
- Built-in air regulator
- CP streamlined safety lever
- Includes 1/4" and 6 mm collets
Specifications
| Length (L) | 6.5 in |
| Weight | 1.26 lb |
| Free Speed | 27000 rpm |
| Air consumption at free speed | 26 cfm |
| Air consumption at load | 26 cfm |
| Air inlet thread size (in) | 1/4 |
| Max dynamic air working pressure | 90 psi |
| Min hose diameter (16 ft hose length) | 0.38 in |
| Min hose diameter (5 m hose length) | 10 mm |
| Sound Power | 111.9 dB(A) |
| Sound Pressure | 100.9 dB(A) |
| Vibration (m/sยฒ) | <2.5 |
| Max power | 0.63 hp |
| Collet max capacity | 1/4 (6.4mm) |
| Exhaust | Rear |
| Starting system | Safety lever |
| CP part # | T025373 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
