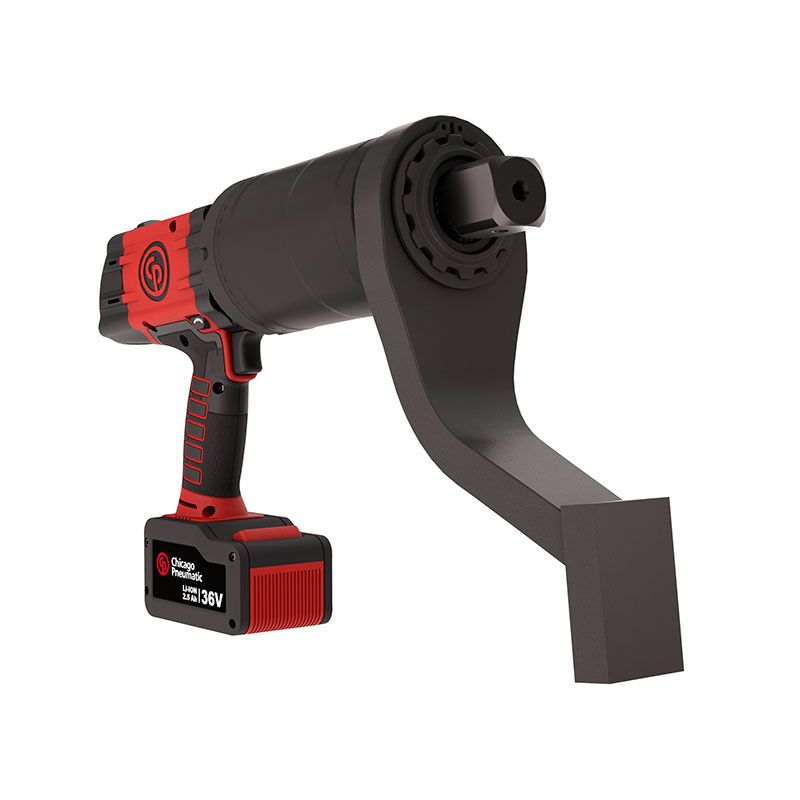

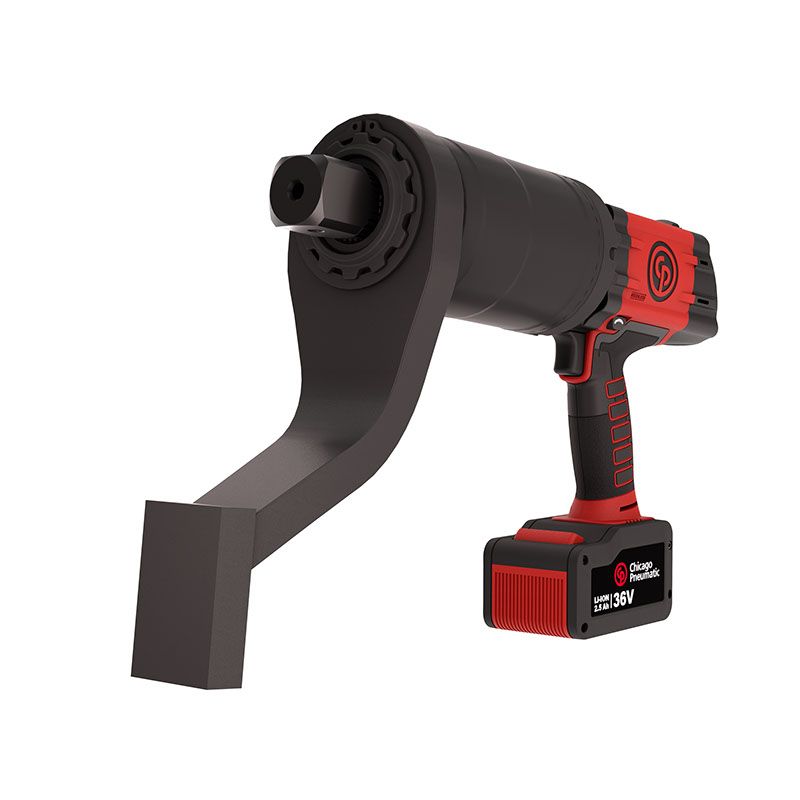

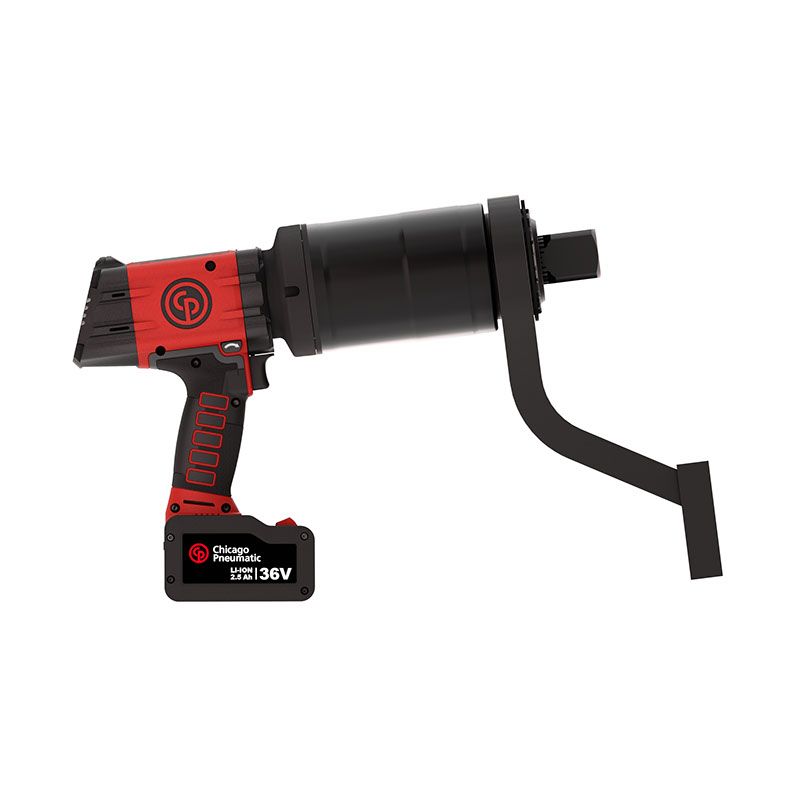

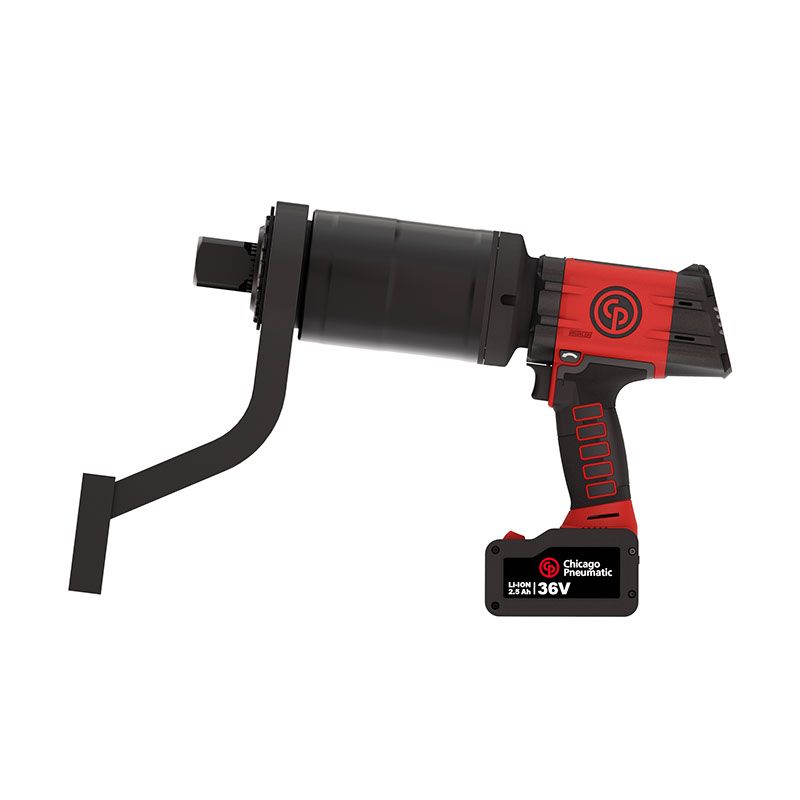

Chicago Pneumatic CP8681TC Pack 36V 2.5AH โ 6151570700
1-1/2" Battery Torque Wrench Torque Check dual trigger
Torque tightening and torque check from 2000 Nm / 1470 ft.lb to 8100 Nm / 5970 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm

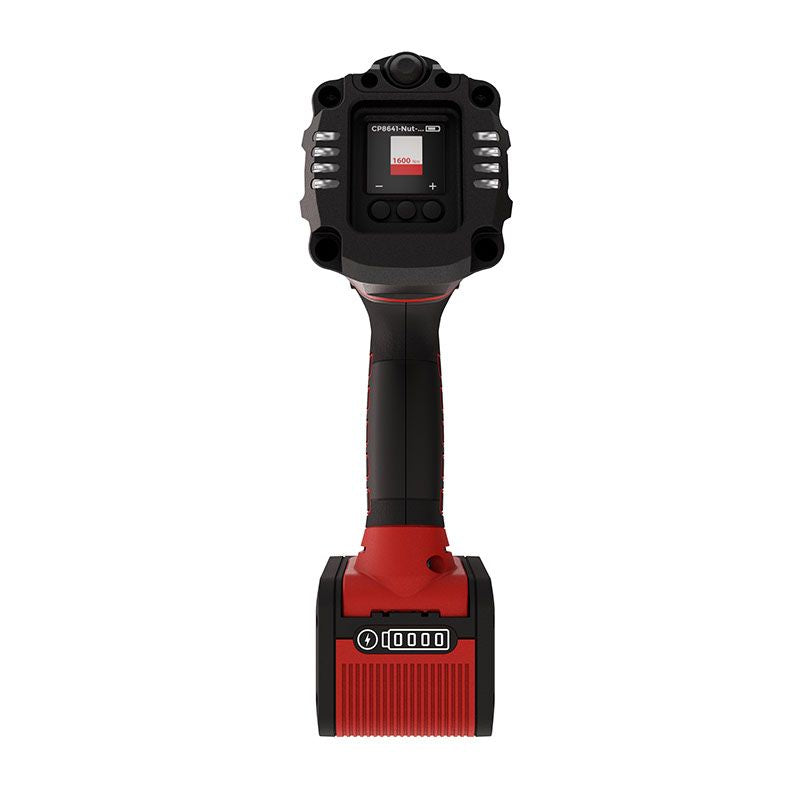

- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
- CPLinQ app for better control and traceability of your process
- Angle tightening
- Counting sequence to avoid missed tightenings
- Torque Check to control bolt loosening over time
- Automatic reaction arm release to avoid tool to stay blocked on the application
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Sound Pressure | 83 dB(A) |
| Vibration | <2.5 m/sยฒ |
| Height | 11.22 in |
| Length | 16.3 in |
| Width | 4.17 in |
| Weight | 25.1 lb |
| Battery Weight | 1.76 lb |
| Weight with reaction arm | 34.6 lb |
| Max torque in forward | 5970 ft.lbf |
| Min torque in forward | 1480 ft.lbf |
| Torque scatter | ยฑ4% |
| Output drive size | 1-1/2 in |
| Reversible | Yes |
| Free Speed | 1 rpm |
| CP part # | 6151570700 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
