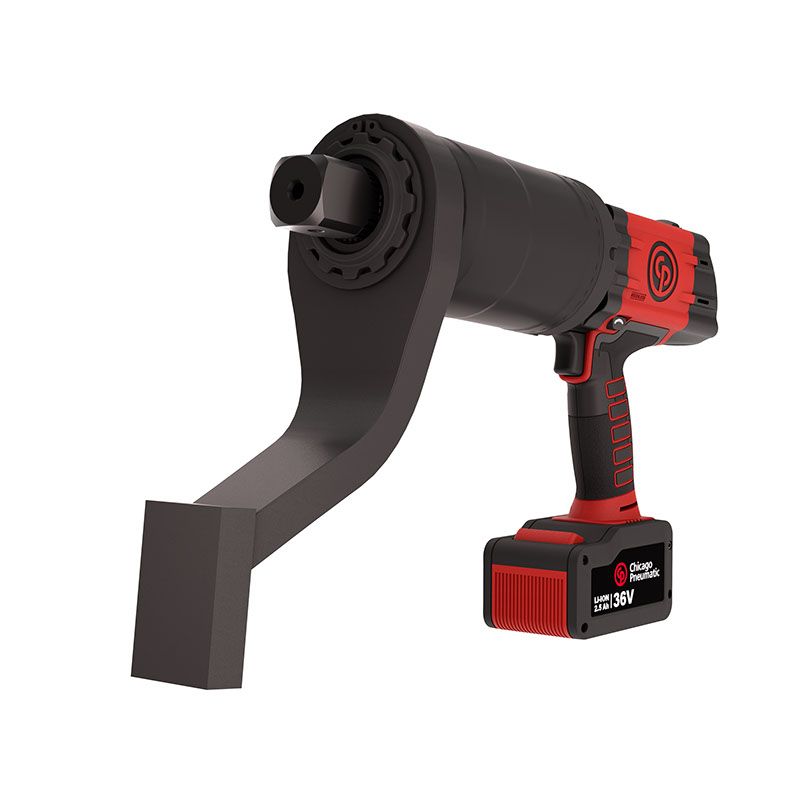

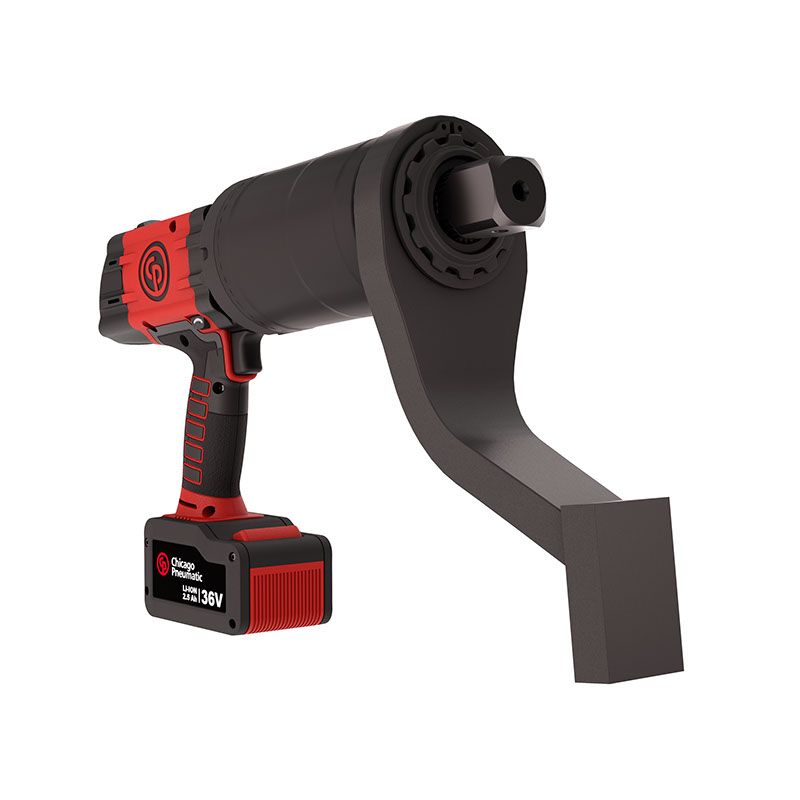

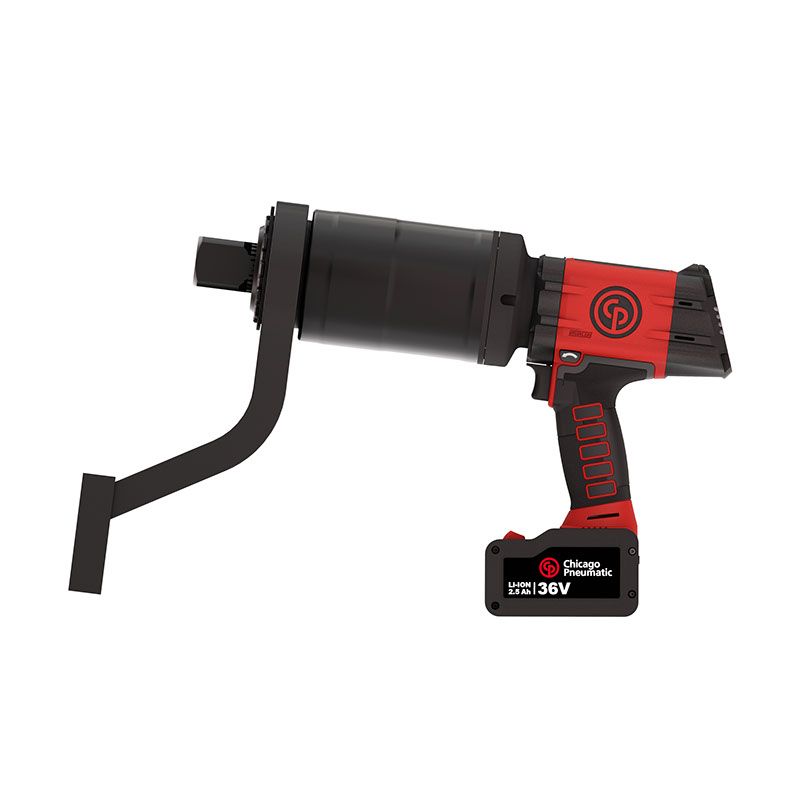

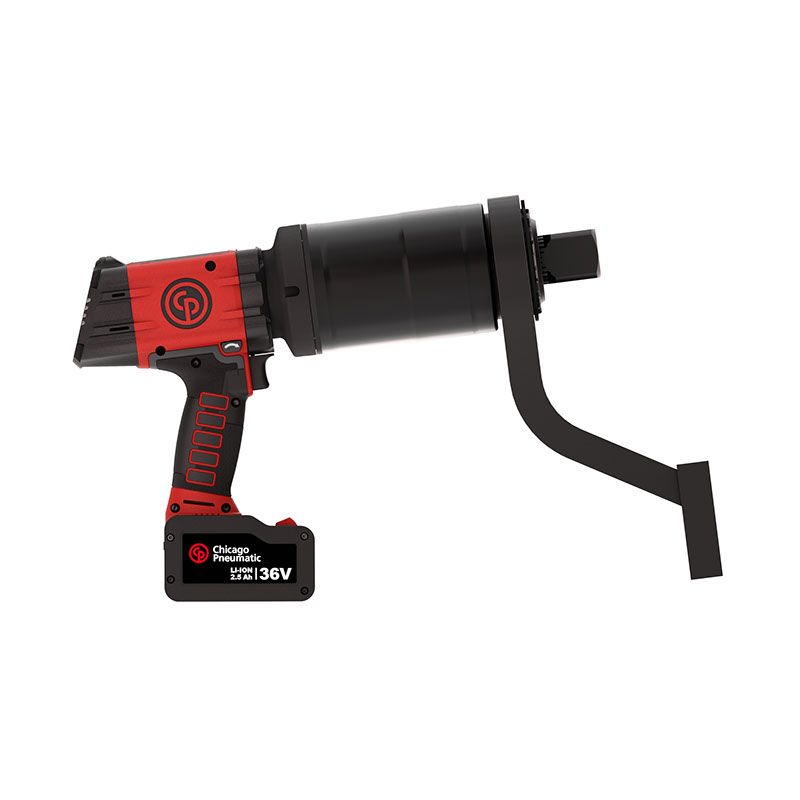

Chicago Pneumatic CP8681CQ Pack 36V 2.5AH โ 6151570200
1-1/2" Battery Torque Wrench Connected Quality dual trigger
Torque tightening from 2000 Nm / 1470 ft.lb to 8100 Nm / 5970 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm

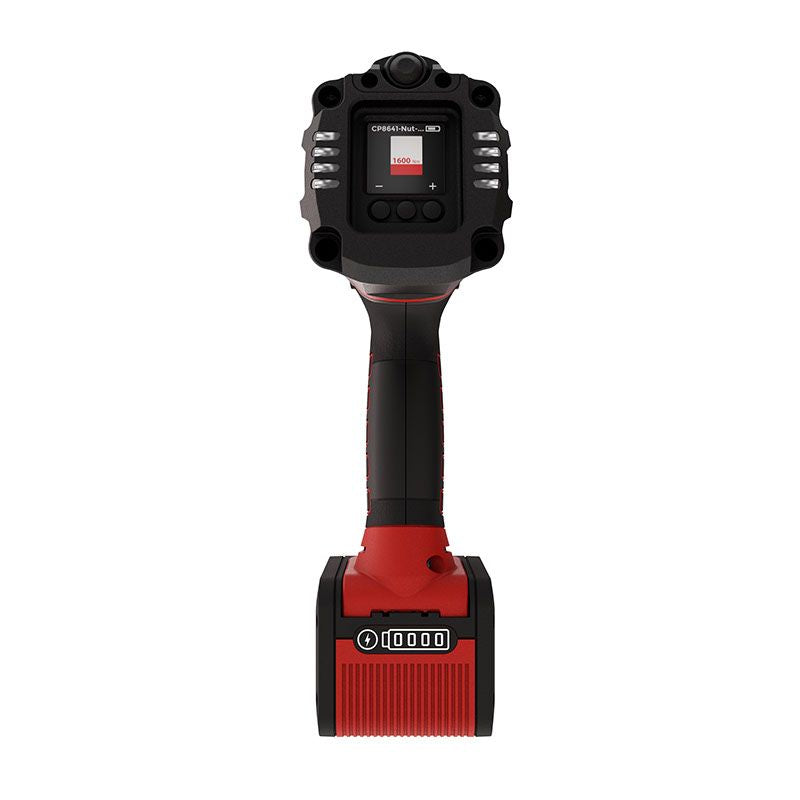

- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
- CPLinQ app for better control and traceability of your process
- Angle tightening
- Counting sequence to avoid missed tightenings
- Automatic reaction arm release to avoid tool to stay blocked on the application
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Sound Pressure | 83 dB(A) |
| Vibration (m/sยฒ) | <2.5 |
| Height (H) | 11.22 in |
| Length (L) | 16.3 in |
| Width (W) | 4.17 in |
| Power weight ratio | 710 Nm/kg |
| Weight | 25.1 lb |
| Weight with reaction arm | 34.6 lb |
| Free Speed | 1 rpm |
| 6s Torque scatter % | ยฑ4 % |
| Max torque in forward | 5970 ft.lbf |
| Max torque reverse | 5970 ft.lbf |
| Min torque in forward | 1480 ft.lbf |
| Recommended Torque | 4780 ft.lbf |
| Output drive size (in) | 1-1/2 |
| Output drive type | Sq |
| Reaction bar type | S-type included |
| Reversible | Yes |
| CP part # | 6151570200 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151570200
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
