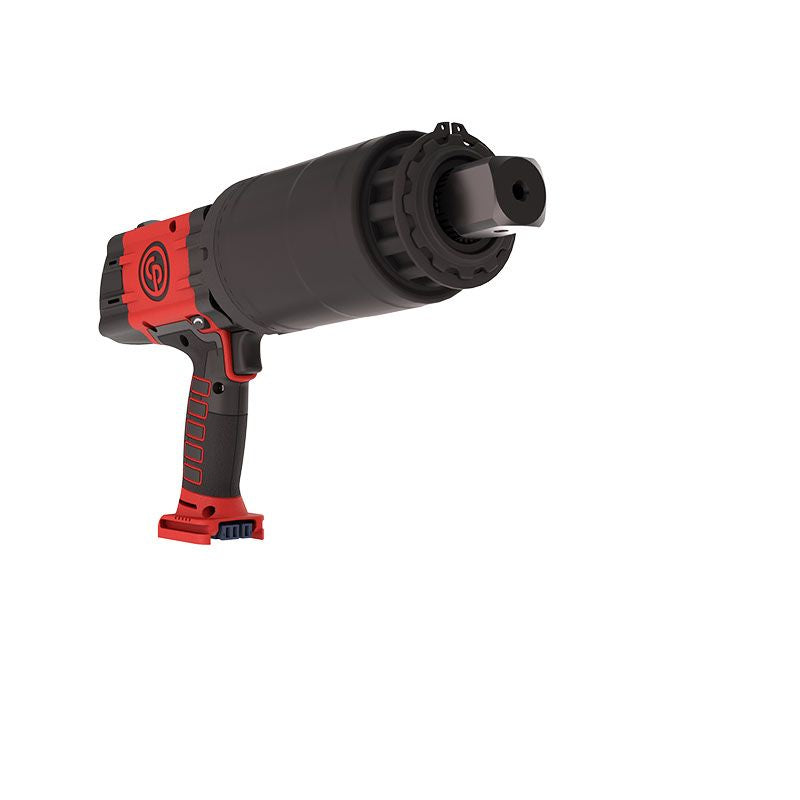

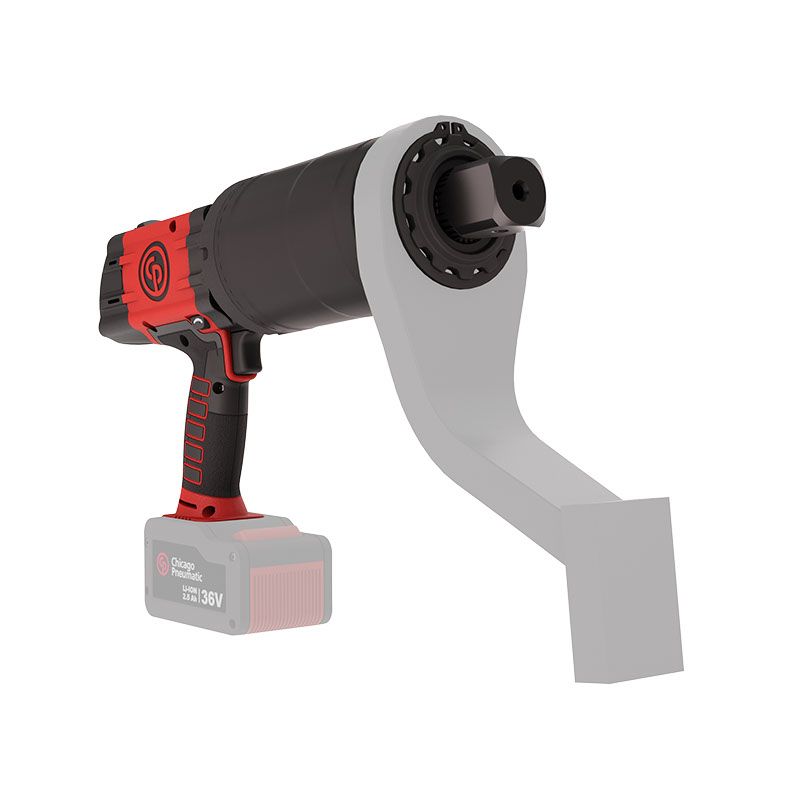

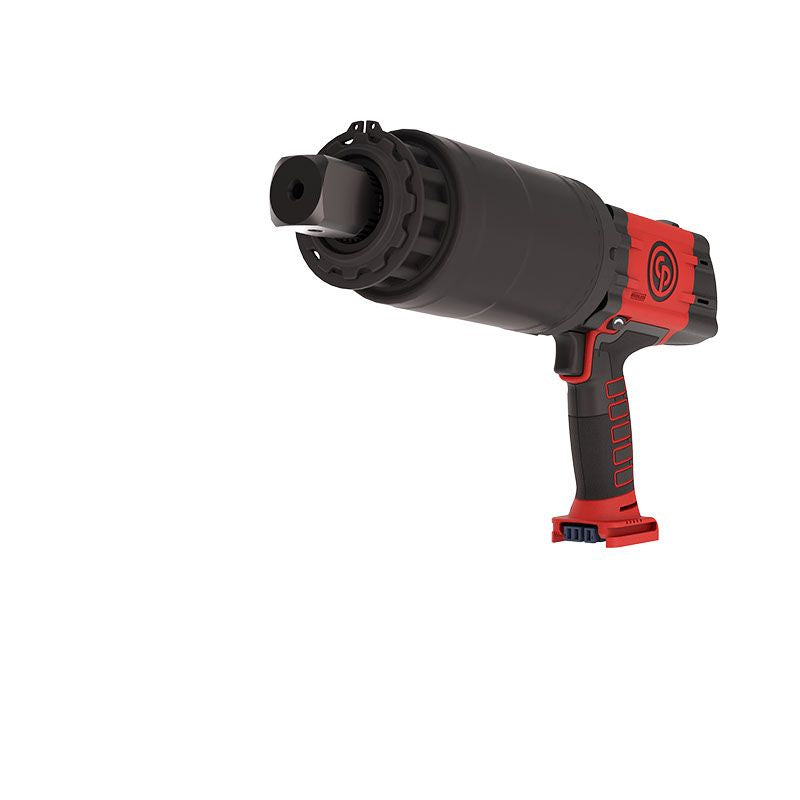

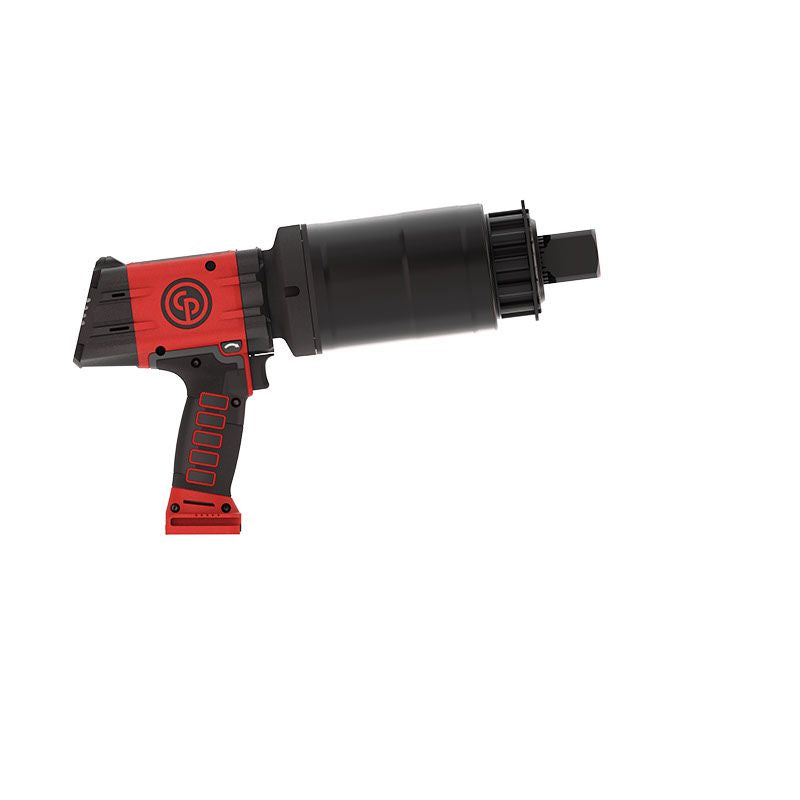

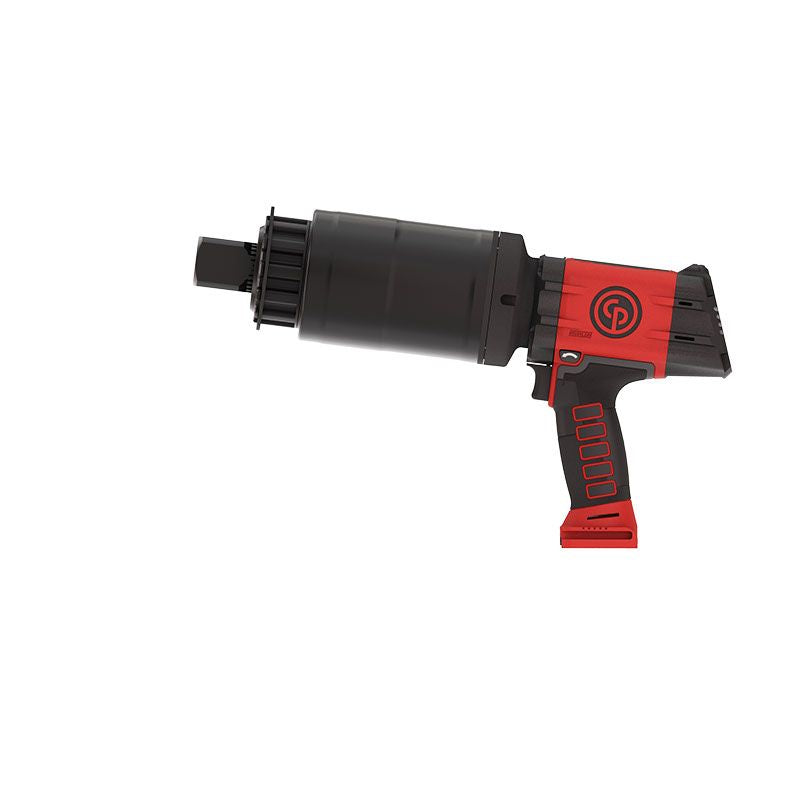

Chicago Pneumatic CP8681CQ BARE TOOL Air Tool β 6151570320
1-1/2" Battery Torque Wrench Connected Quality dual trigger - tool only
Torque tightening from 2000 Nm / 1470 ft.lb to 8100 Nm / 5970 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
- CPLinQ app for better control (only on C, CQ and TC versions) and traceability
- Angle tightening (only on C, CQ and TC versions)
- Counting sequence to avoid missed tightenings (only on CQ and TC versions)
- Automatic reaction arm release to avoid tool to stay blocked on the application
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Max Ambient Operating Temperature | 140 ΒΊF |
| Sound Pressure | 83 dB(A) |
| Vibration | <2.5 m/sΒ² |
| Height | 11.22 in |
| Length | 16.3 in |
| Width | 4.17 in |
| Weight | 25.1 lb |
| Weight with reaction arm | 34.6 lb |
| Free Speed | 1 rpm |
| Max torque in forward | 5970 ft.lbf |
| Max torque reverse | 5970 ft.lbf |
| Min torque in forward | 1480 ft.lbf |
| Output drive size | 1-1/2" |
| Output drive type | Square |
| Handle type | Pistol |
| Reversible | Yes |
| CP part # | 6151570320 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1β2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151570320
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
