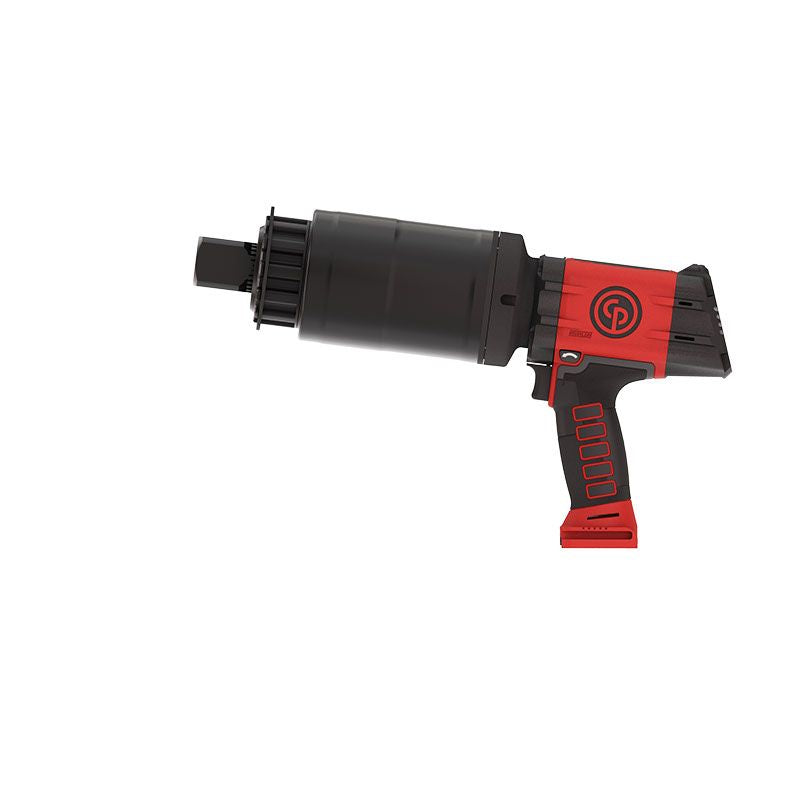

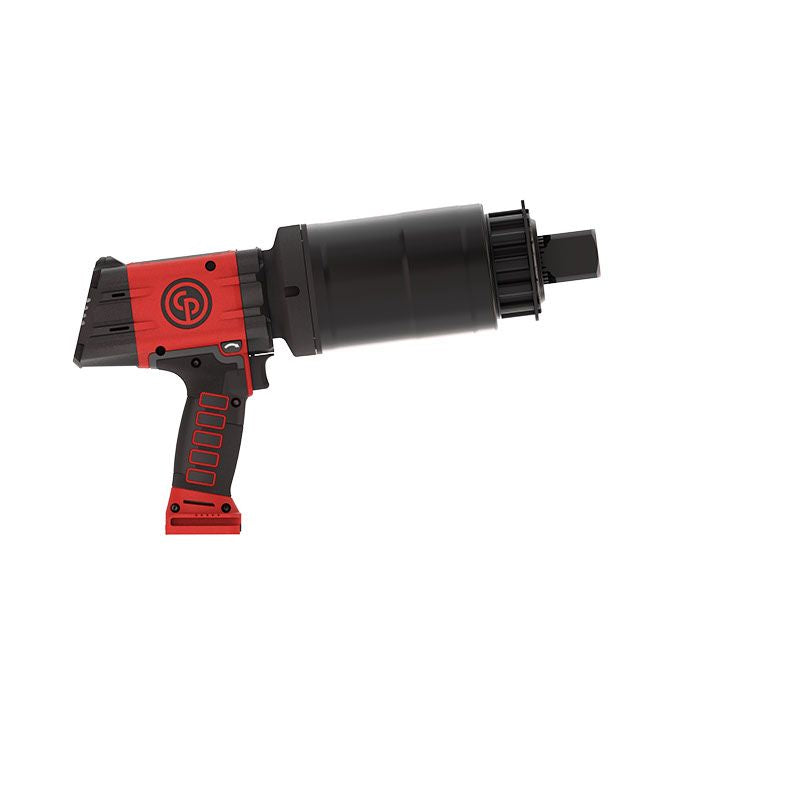

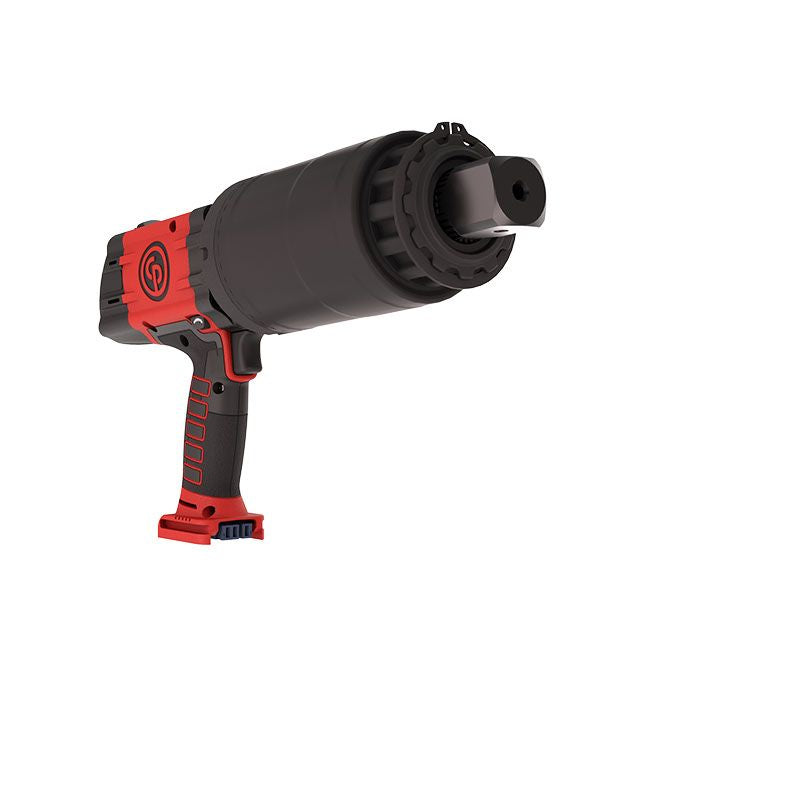

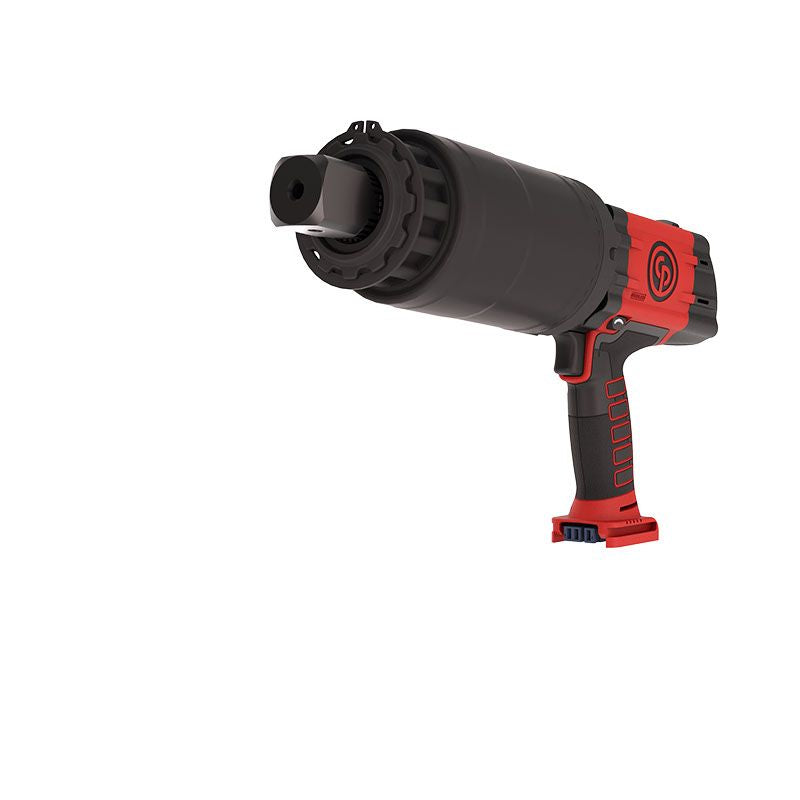

Chicago Pneumatic CP8681C BARE TOOL Air Tool β 6151570310
1-1/2" Battery Torque Wrench Connected dual trigger - tool only
Torque tightening from 2000 Nm / 1470 ft.lb to 8100 Nm / 5970 ft.lb with high precision (+/- 4%) and angle tightening. Intuitive handling on digital screen of the tool or via CPLinQ app. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery

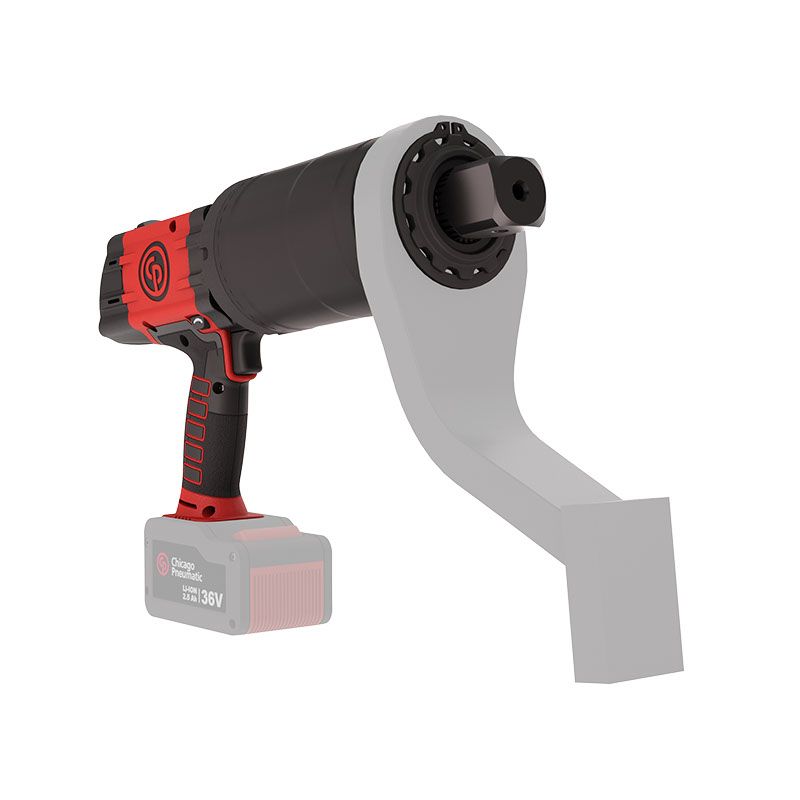

- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
- CPLinQ app for better control (only on C, CQ and TC versions) and traceability
- Angle tightening (only on C, CQ and TC versions)
- Counting sequence to avoid missed tightenings (only on CQ and TC versions)
- Torque Check to control bolt loosening over time (only on TC version)
- Automatic reaction arm release to avoid tool to stay blocked
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Max Ambient Operating Temperature | 140 ΒΊF |
| Min Ambient Operating Temperature | 32 ΒΊF |
| Sound Pressure | 83 dB(A) |
| Vibration | <2.5 m/sΒ² |
| Height | 11.22 in |
| Length | 16.3 in |
| Width | 4.17 in |
| Battery Weight | 1.76 lb |
| Weight | 25.1 lb |
| Weight with reaction arm | 34.6 lb |
| Free Speed | 1 rpm |
| 6s Torque scatter | Β±4% |
| Max torque in forward | 5970 ft.lbf |
| Max torque reverse | 5970 ft.lbf |
| Min torque in forward | 1480 ft.lbf |
| Output drive size | 1-1/2" |
| Output drive type | Square |
| Reversible | Yes |
| CP part # | 6151570310 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1β2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
