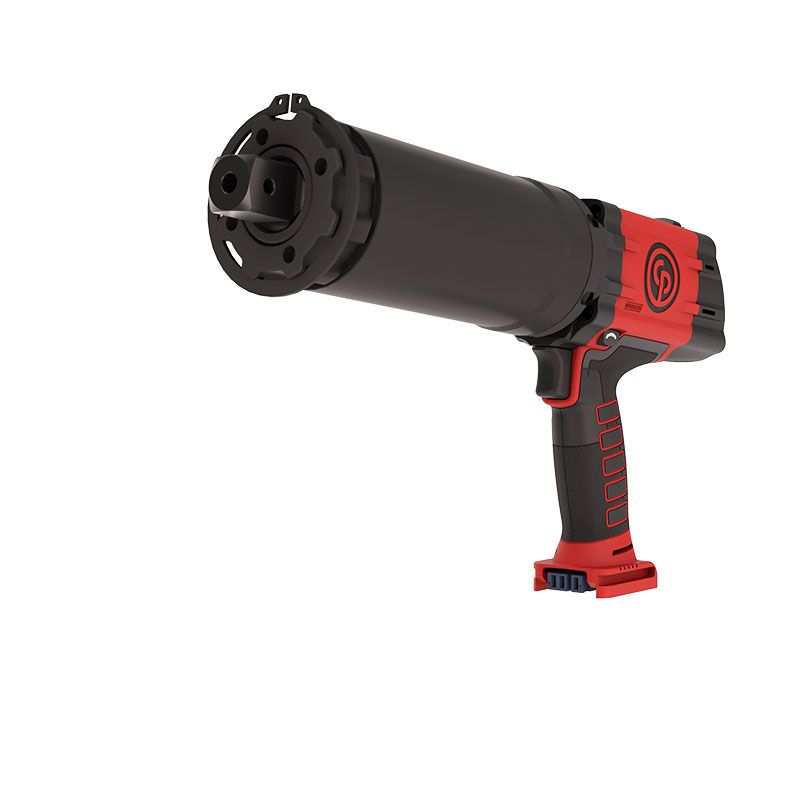

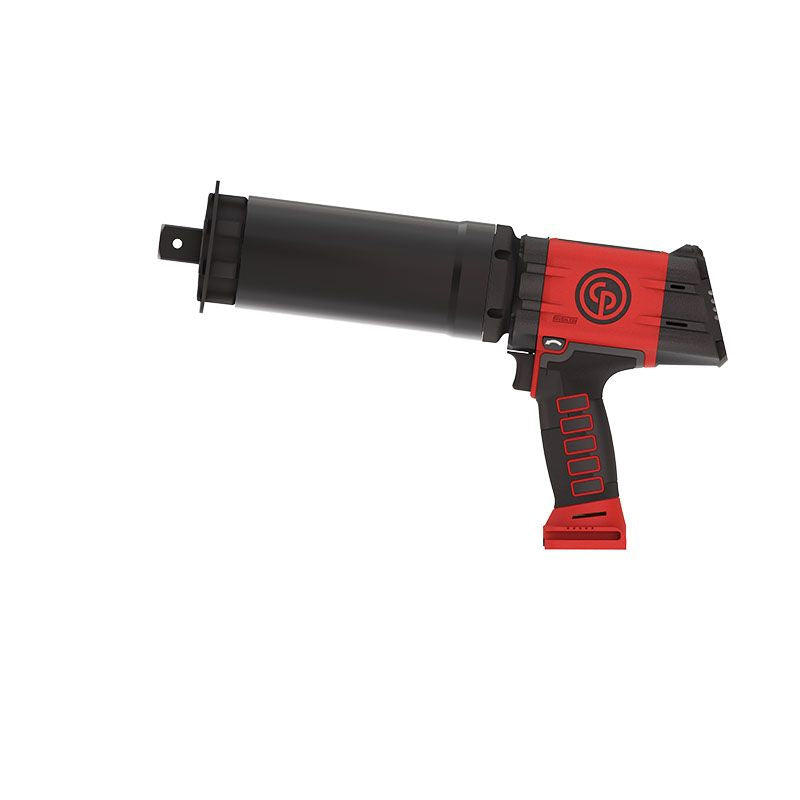

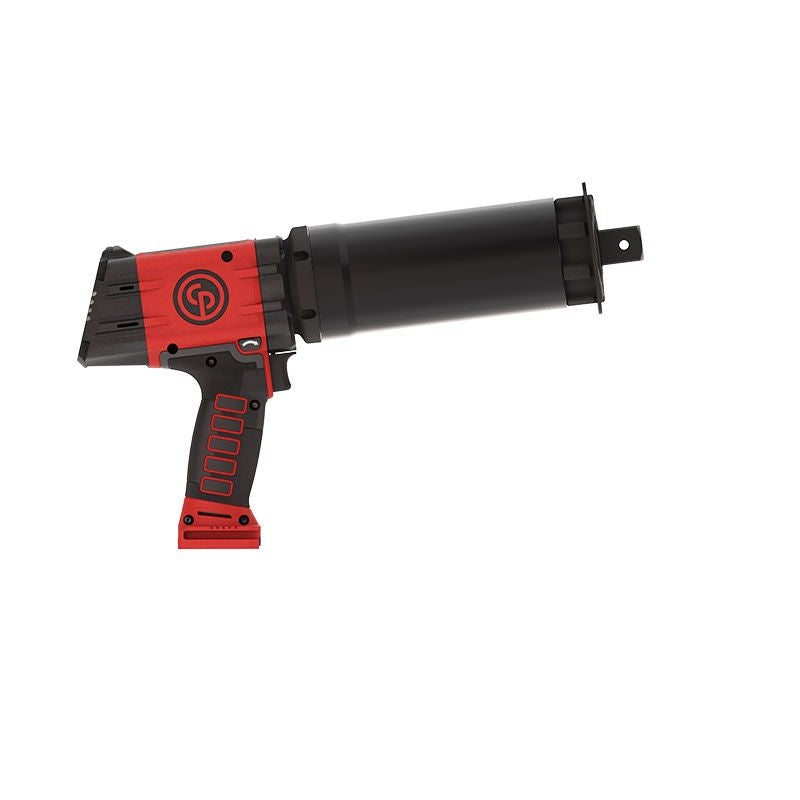

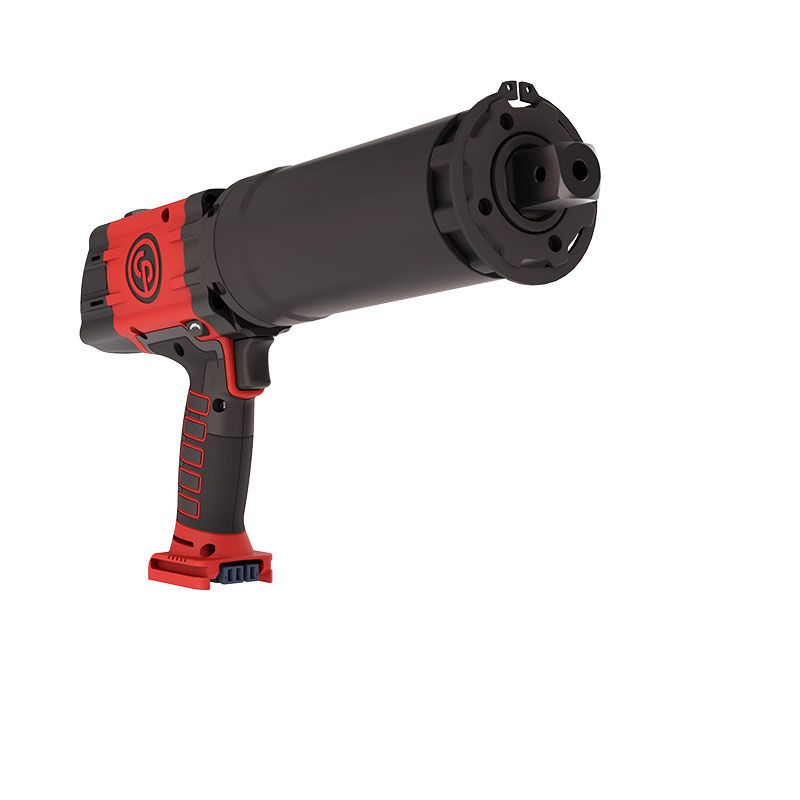

Chicago Pneumatic CP8641CQ BARE TOOL Air Tool – 6151570290
1" Battery Torque Wrench Connected Quality dual trigger - tool only
Torque tightening from 1000 Nm / 740 ft.lb to 4100 Nm / 3020 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery

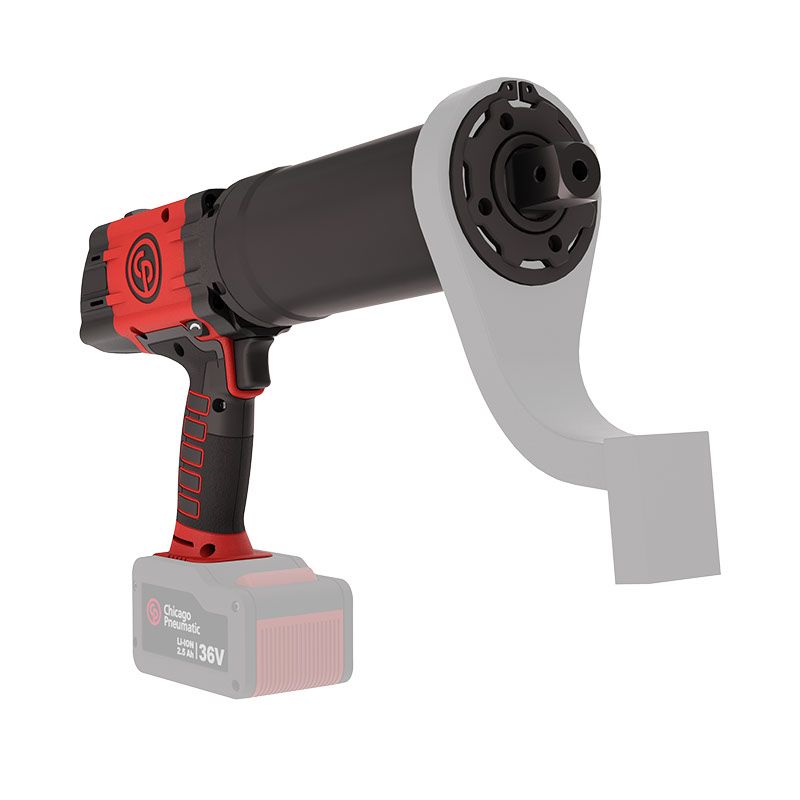

- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
- CPLinQ app for better control and traceability of your process
- Angle tightening
- Counting sequence to avoid missed tightenings
- Automatic reaction arm release to avoid tool to stay blocked on the application
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Max Ambient Operating Temperature | 140 ºF |
| Max Recommended Ambient Charging Temperature | 113 ºF |
| Min Ambient Operating Temperature | 32 ºF |
| Min Recommended Ambient Charging Temperature | 32 ºF |
| Sound Power (dba) | <72 |
| Sound Pressure | 83 dB(A) |
| Vibration (m/s²) | <2,5 |
| Max Ambient Storage Temperature | 140 ºF |
| Min Ambient Storage Temperature | -4 ºF |
| Battery Weight | 1.76 lb |
| Height (H) | 11.22 in |
| Length (L) | 16.1 in |
| Width (W) | 3.98 in |
| Power weight ratio | 470 Nm/kg |
| Weight | 18.9 lb |
| Weight without reaction arm | 18.9 lb |
| Weight with reaction arm | 23.3 lb |
| Free Speed | 3 rpm |
| 6s Torque scatter % | ±4 % |
| Max torque in forward | 3020 ft.lbf |
| Max torque reverse | 3020 ft.lbf |
| Min torque in forward | 738 ft.lbf |
| Recommended Torque | 2420 ft.lbf |
| Torque Control System | Shut-off-current control |
| Adjustment | Digital |
| Handle type | Pistol |
| Joint Type | Hard & Soft |
| Main Material type | Steel |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Output retainer type | Hole |
| Reversible | Yes |
| Spline type | 0 |
| Starting system | Double-trigger |
| Suspension option | Optional |
| CP part # | 6151570290 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
