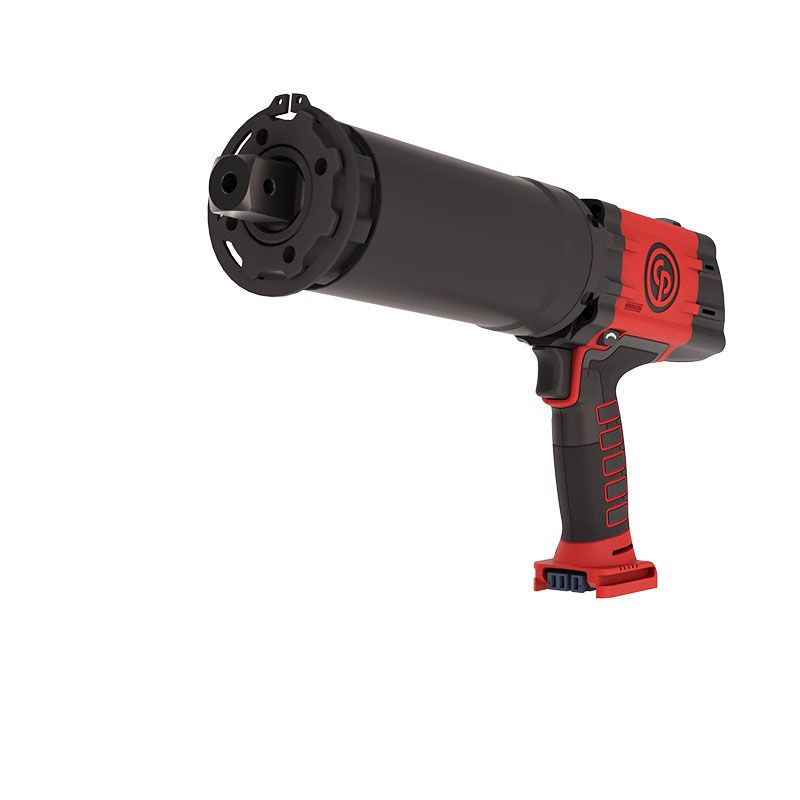

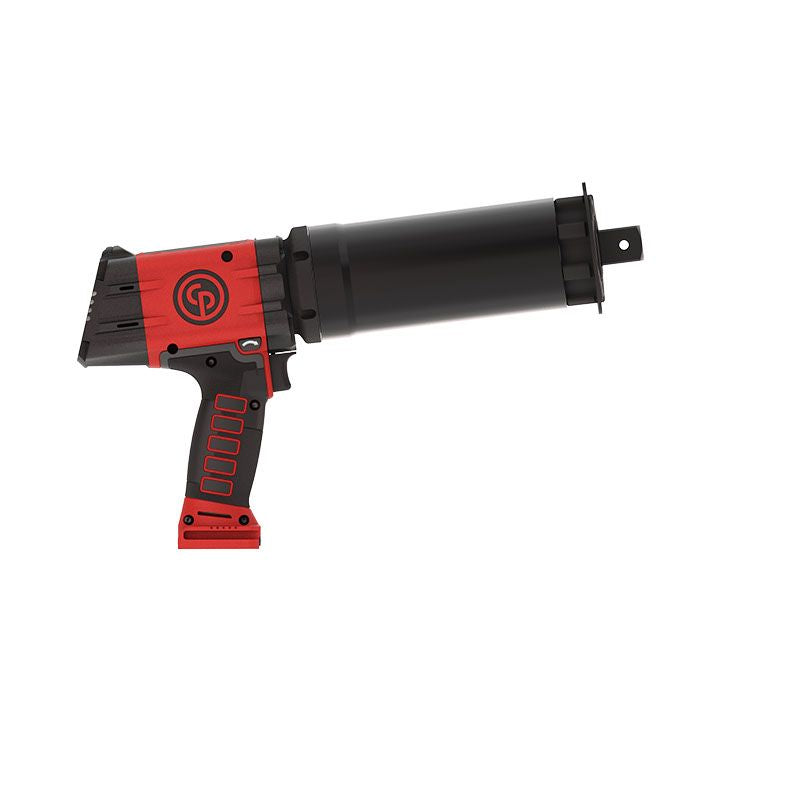

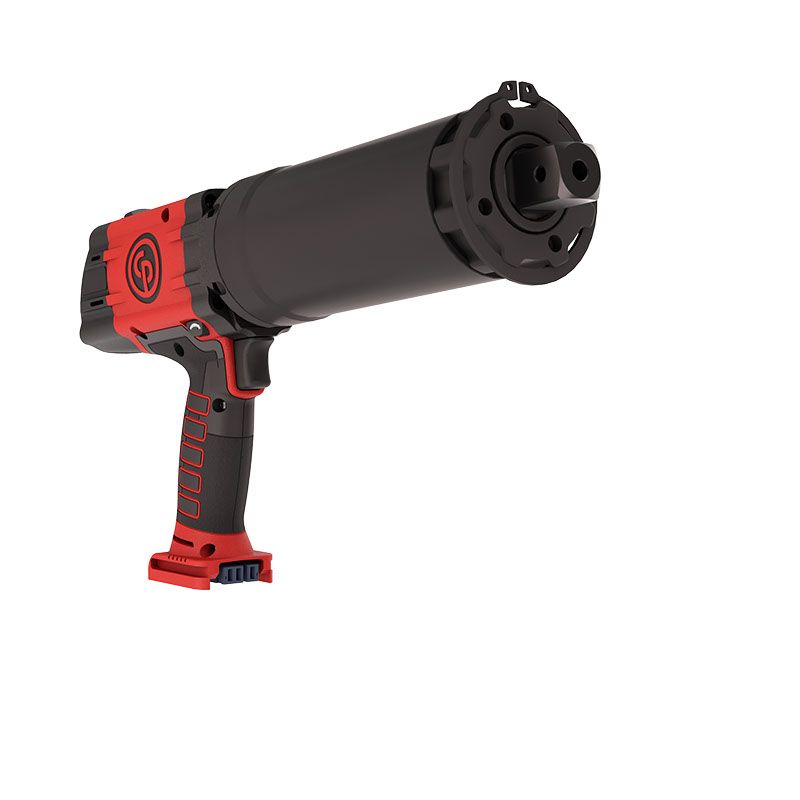

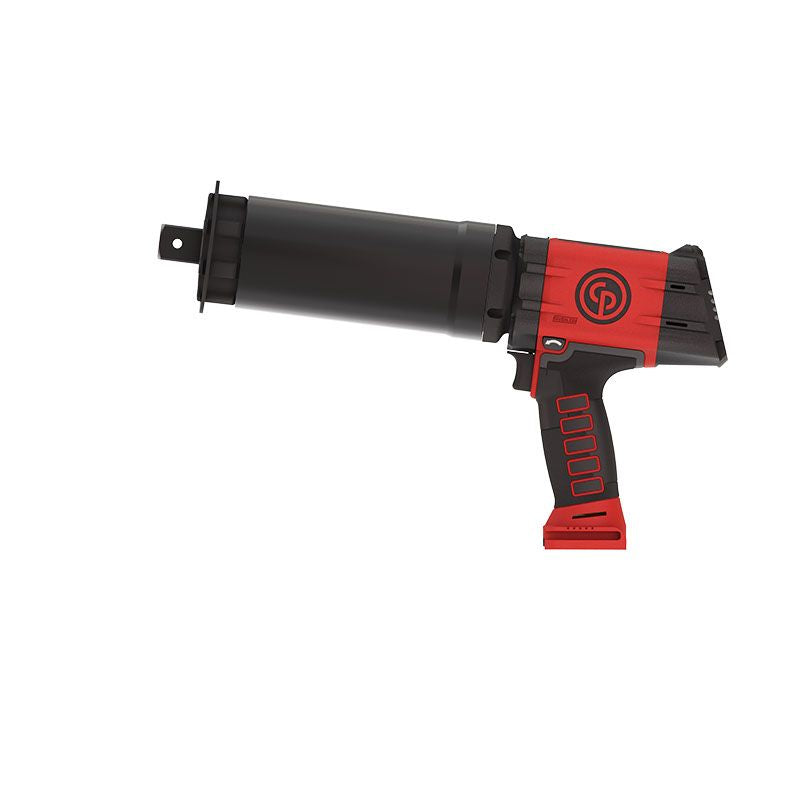

Chicago Pneumatic CP8641C BARE TOOL Air Tool โ 6151570280
1" Battery Torque Wrench Connected dual trigger - tool only
Torque tightening from 1000 Nm / 740 ft.lb to 4100 Nm / 3020 ft.lb with high precision (+/- 4%) and angle tightening. Intuitive handling on digital screen of the tool or via CPLinQ app. This tool is eligible for CP Care, which includes calibration as part of its preventive maintenance package to ensure optimal performance and long-term reliability.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
- CPLinQ app for better control (only on C, CQ and TC versions) and traceability of your process
- Angle tightening (only on C, CQ and TC versions)
- Counting sequence to avoid missed tightenings (only on CQ and TC versions)
- Torque Check to control bolt loosening over time (only on TC version)
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Sound Power (dba) | <72 |
| Sound Pressure | 83 dB(A) |
| Vibration (m/sยฒ) | <2,5 |
| Height (H) | 11.22 in |
| Length (L) | 16.1 in |
| Width (W) | 3.98 in |
| Weight | 18.9 lb |
| Weight with reaction arm | 23.3 lb |
| Battery Weight | 1.76 lb |
| Free Speed | 3 rpm |
| Max torque in forward | 3020 ft.lbf |
| Max torque reverse | 3020 ft.lbf |
| Min torque in forward | 738 ft.lbf |
| Recommended Torque | 2420 ft.lbf |
| 6s Torque scatter % | ยฑ4 % |
| Output drive size (in) | 1 |
| Output drive type | Sq |
| Handle type | Pistol |
| Adjustment | Digital |
| Reversible | Yes |
| CP part # | 6151570280 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151570280
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
