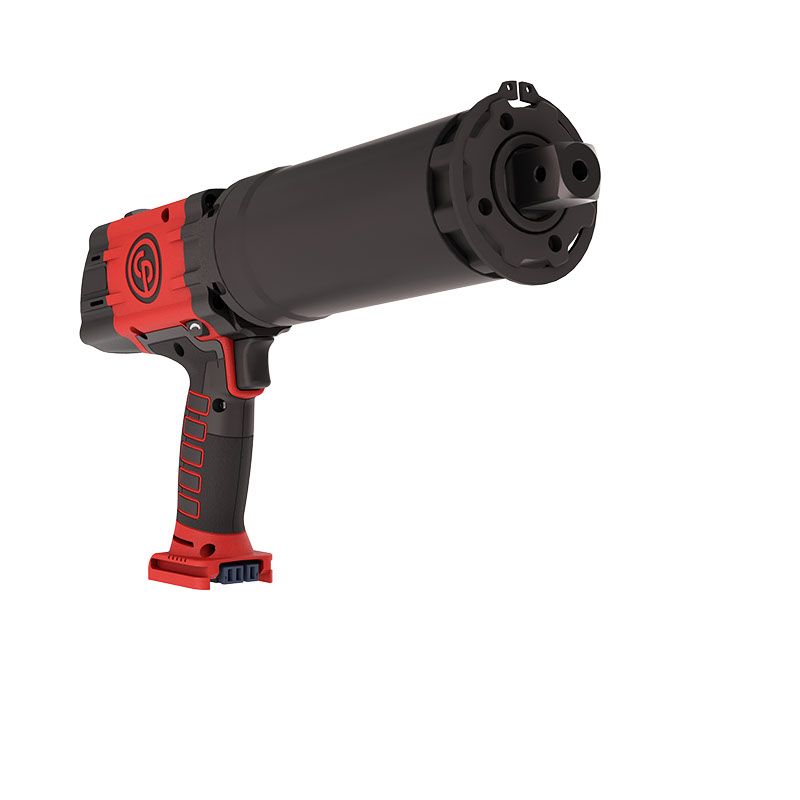

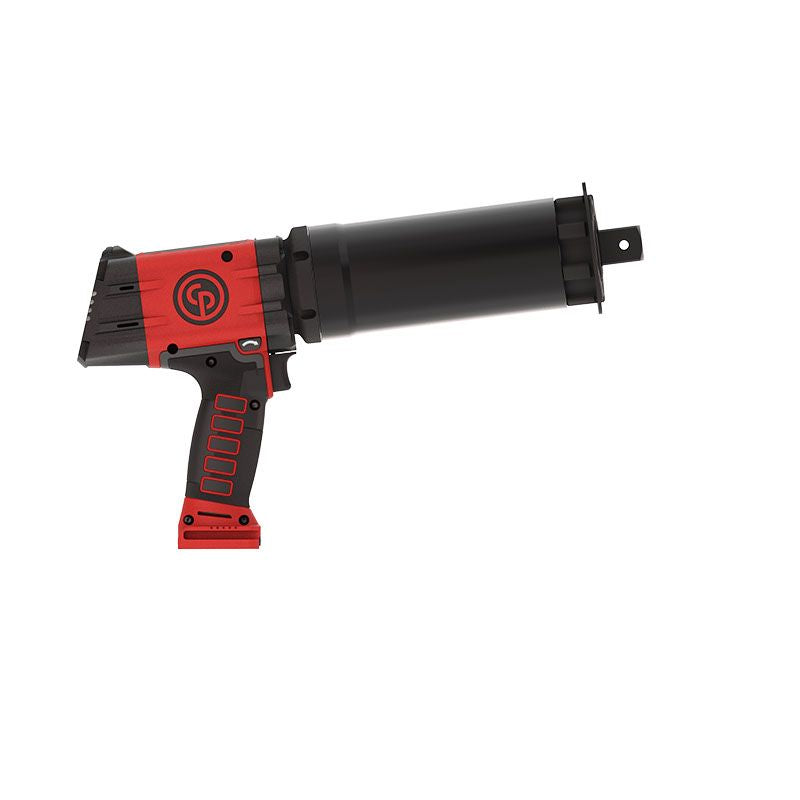

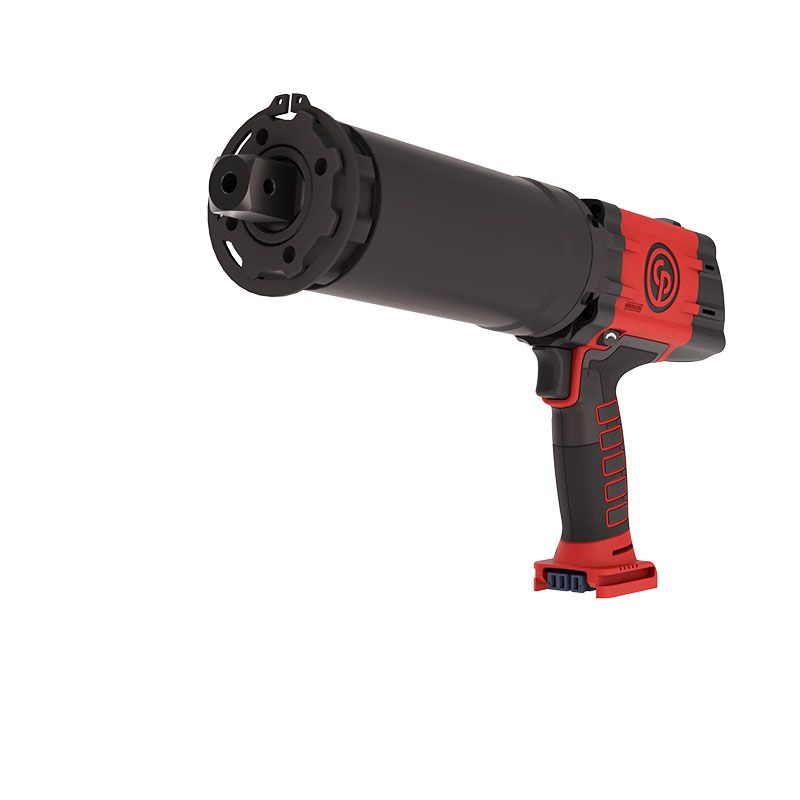

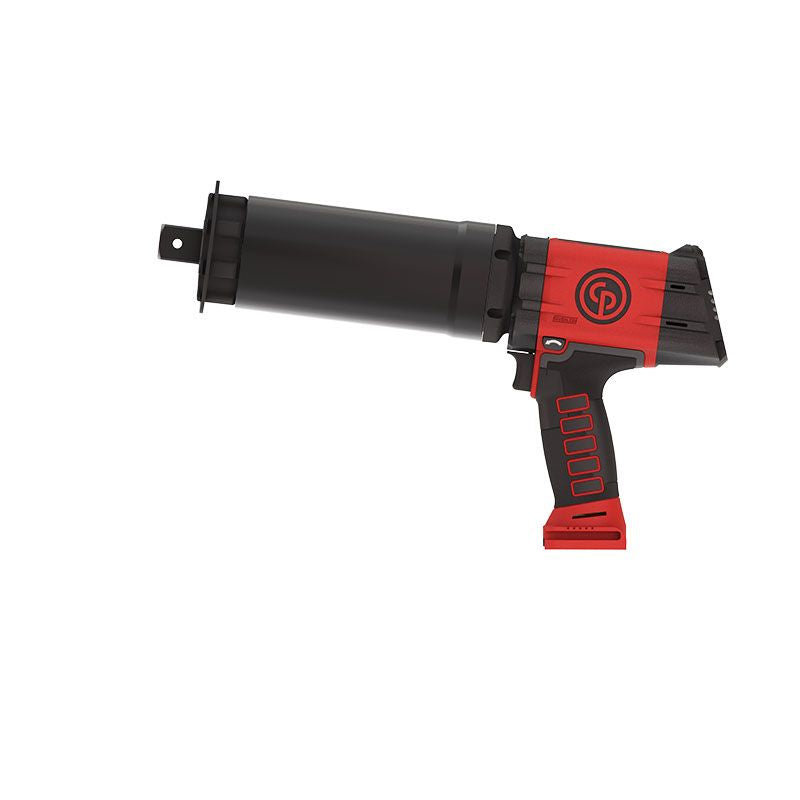

Chicago Pneumatic CP8641 BARE TOOL Air Tool – 6151570270

Description

1" Battery Torque Wrench dual trigger - tool only

Torque tightening from 1000 Nm / 740 ft.lb to 4100 Nm / 3020 ft.lb with high precision (+/- 4%). Intuitive handling on digital screen of the tool.

Features

• High precision with +/- 4%
• Safe tightening with second start button as standard
• Extended mobility with lightweight and compact battery

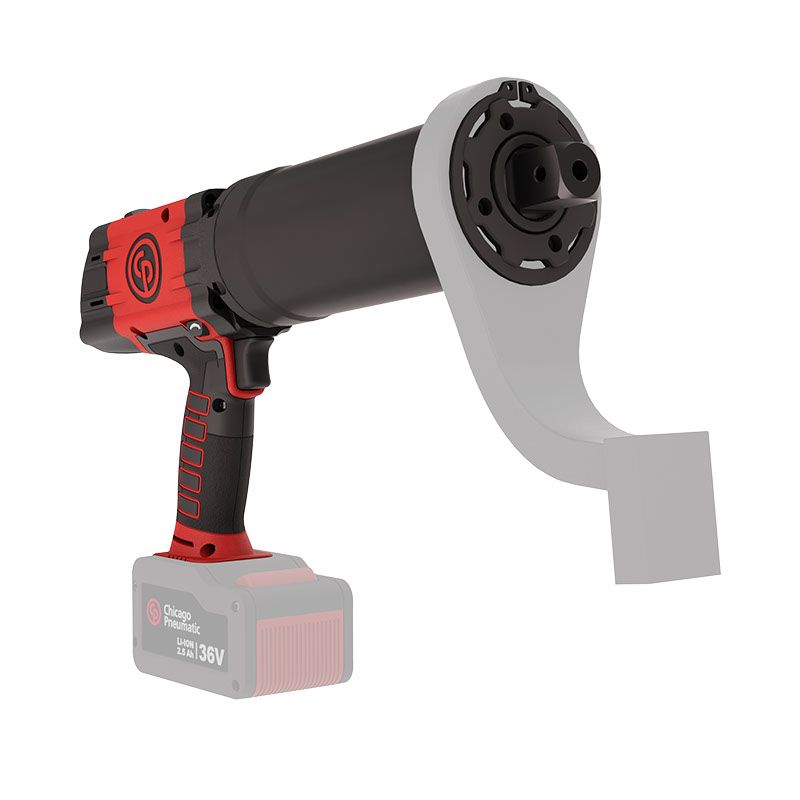

• Automatic release reaction arm
• Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
• CPLinQ app for better control and traceability of your process
• Angle tightening
• Counting sequence to avoid missed tightenings
• Torque Check to control bolt loosening over time
• Automatic reaction arm release to avoid tool to stay blocked on the application

Specifications

Battery capacity	2.5 Ah
Battery type	Lithium-ion
Battery voltage	36 V
Sound Power (dba)	<72
Sound Pressure	83 dB(A)
Vibration (m/s²)	<2,5
Height (H)	11.22 in
Length (L)	16.1 in
Width (W)	3.98 in
Weight	18.9 lb
Weight with reaction arm	23.3 lb
Free Speed	3 rpm
Max torque in forward	3020 ft.lbf
Max torque reverse	3020 ft.lbf
Min torque in forward	738 ft.lbf
Recommended Torque	2420 ft.lbf
Output drive size (in)	1
Output drive type	Sq
Reversible	Yes
CP part #	6151570270
