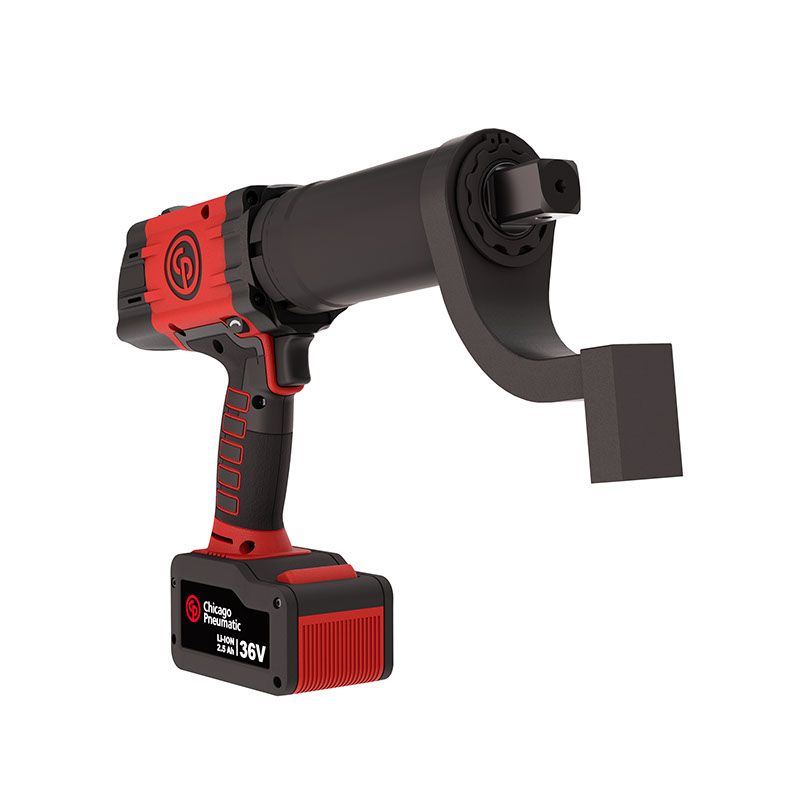

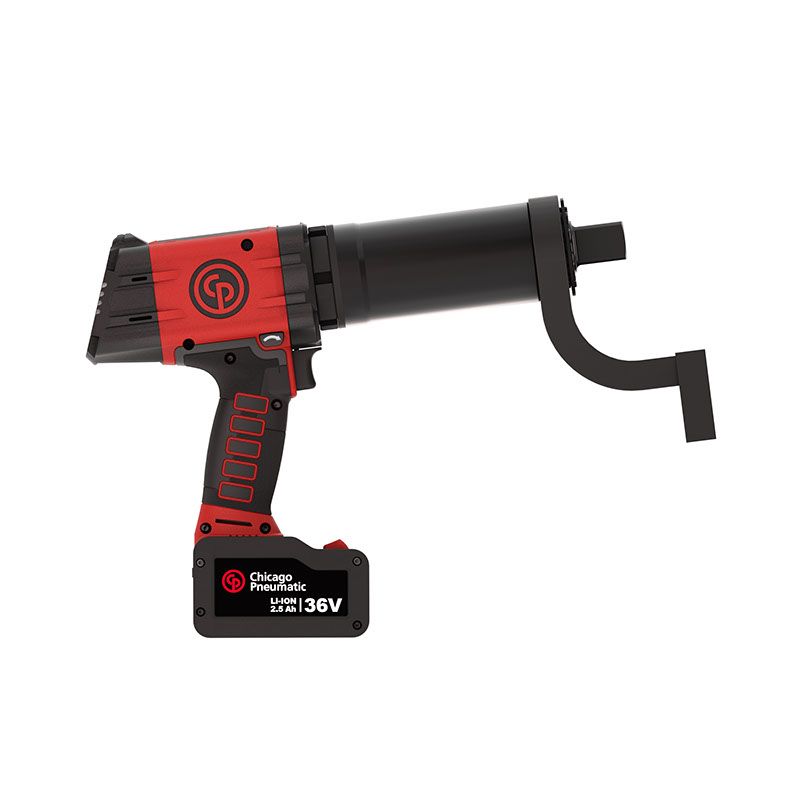

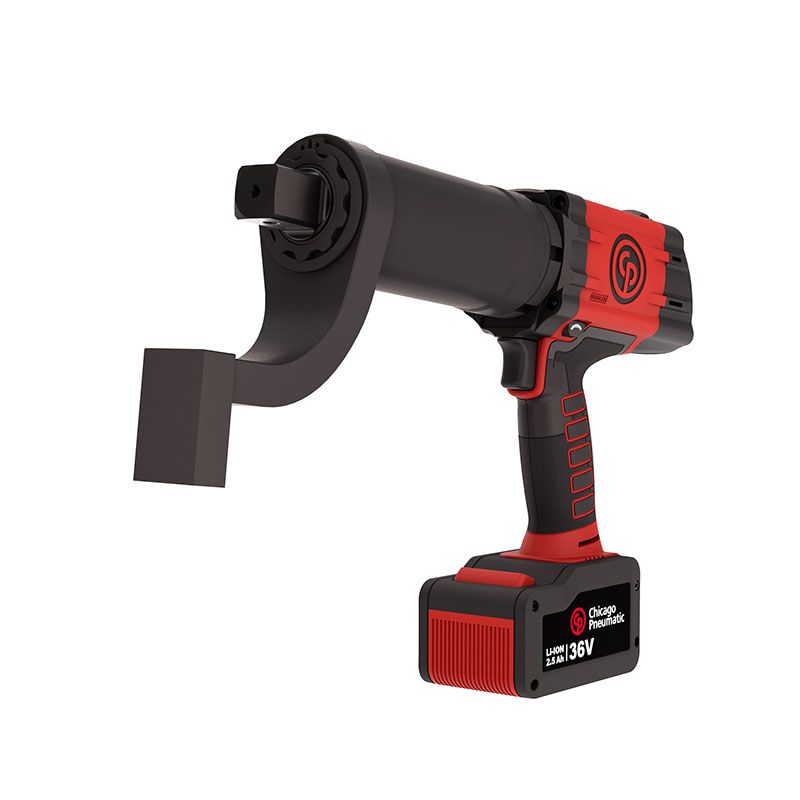

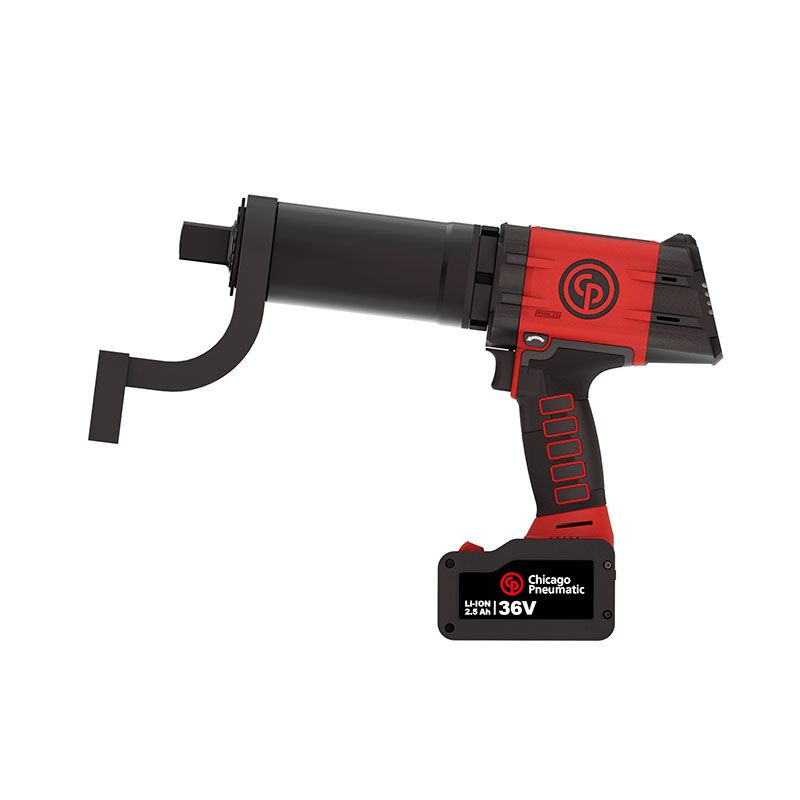

Chicago Pneumatic CP8626CQ Connected Quality Pack 36V 2.5AH – 6151570050
1" Battery Torque Wrench Connected Quality dual trigger
Torque tightening from 700 Nm / 520 ft.lb to 2600 Nm / 1910 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm

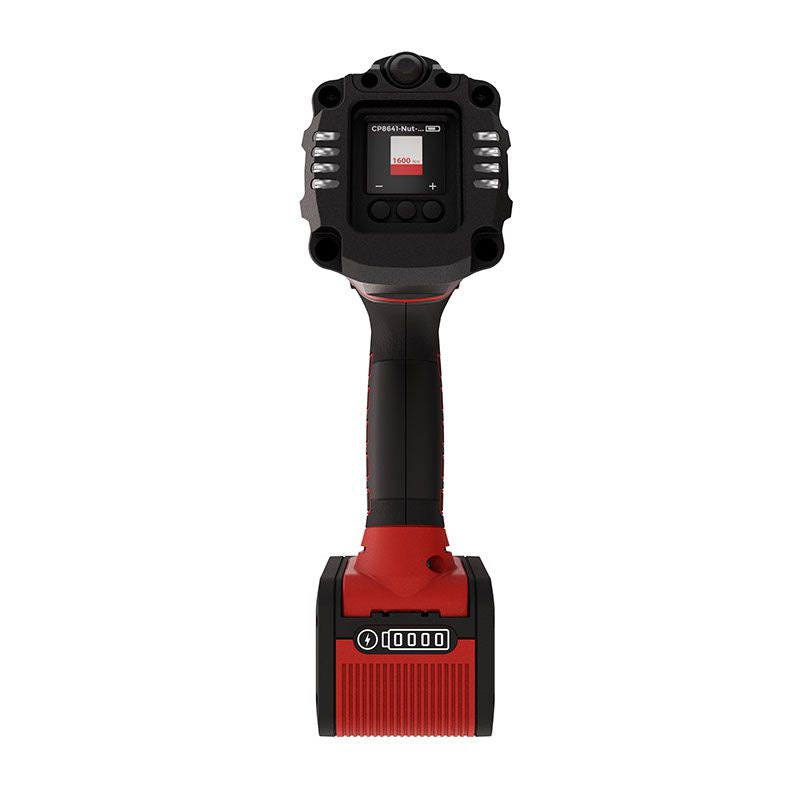

- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
- CPLinQ app for better control and traceability of your process
- Angle tightening
- Counting sequence to avoid missed tightenings
- Automatic reaction arm release to avoid tool to stay blocked
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Max Ambient Operating Temperature | 140 ºF |
| Max Recommended Ambient Charging Temperature | 113 ºF |
| Min Ambient Operating Temperature | 32 ºF |
| Min Recommended Ambient Charging Temperature | 32 ºF |
| Sound Power | <72 dba |
| Sound Pressure | 83 dB(A) |
| Vibration | <2,5 m/s² |
| Max Ambient Storage Temperature | 140 ºF |
| Min Ambient Storage Temperature | -4 ºF |
| Battery Weight | 1.76 lb |
| Height | 11.22 in |
| Length | 14.29 in |
| Width | 3.03 in |
| Power weight ratio | 520 Nm/kg |
| Weight | 11 lb |
| Weight without reaction arm | 11 lb |
| Weight with reaction arm | 14.1 lb |
| Free Speed | 5 rpm |
| 6s Torque scatter | ±4 % |
| Max torque in forward | 1920 ft.lbf |
| Max torque reverse | 1920 ft.lbf |
| Min torque in forward | 516 ft.lbf |
| Recommended Torque | 1530 ft.lbf |
| Torque Control System | Shut-off-current control |
| Adjustment | Digital |
| Handle type | Pistol |
| Joint Type | Hard & Soft |
| Main Material type | Steel |
| Output drive size | 1 in |
| Output drive type | Sq |
| Output retainer type | Hole |
| Reaction bar type | S-type included |
| Reversible | Yes |
| Spline type | 0 |
| Starting system | Double-trigger |
| Suspension option | Optional |
| CP part # | 6151570050 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1–2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
