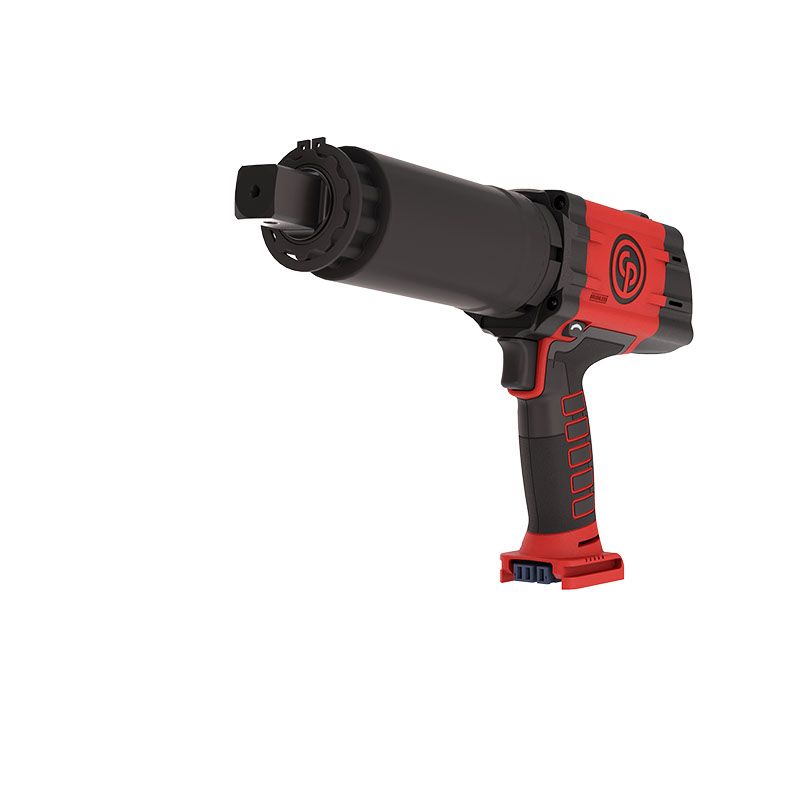

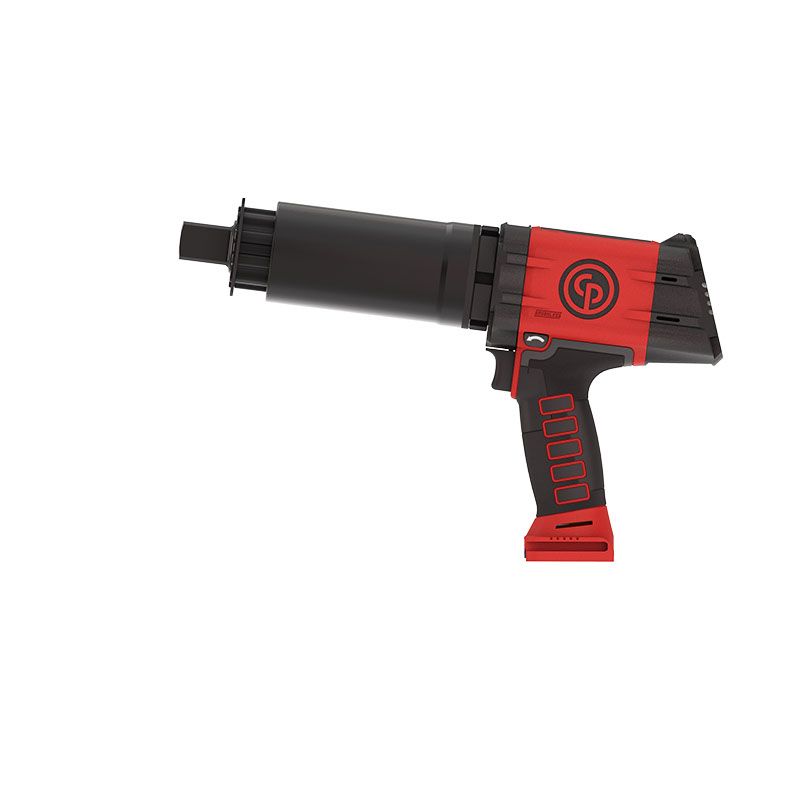

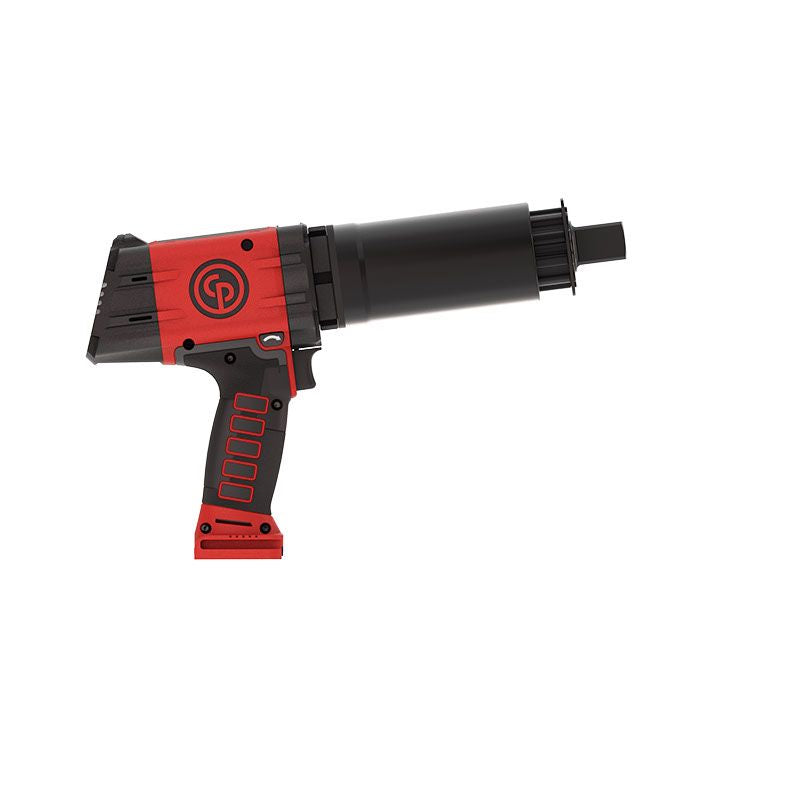

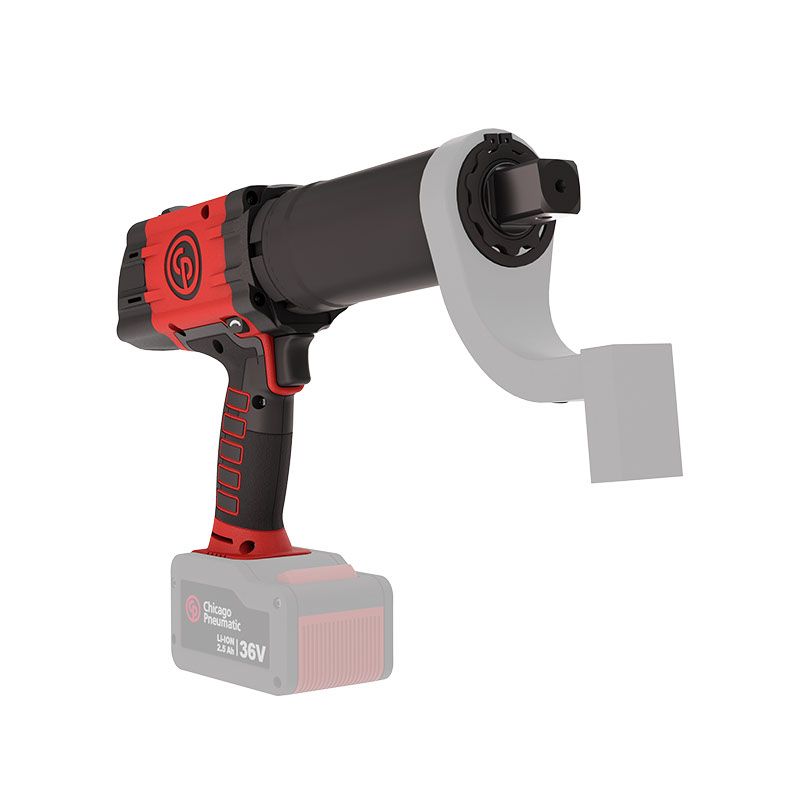

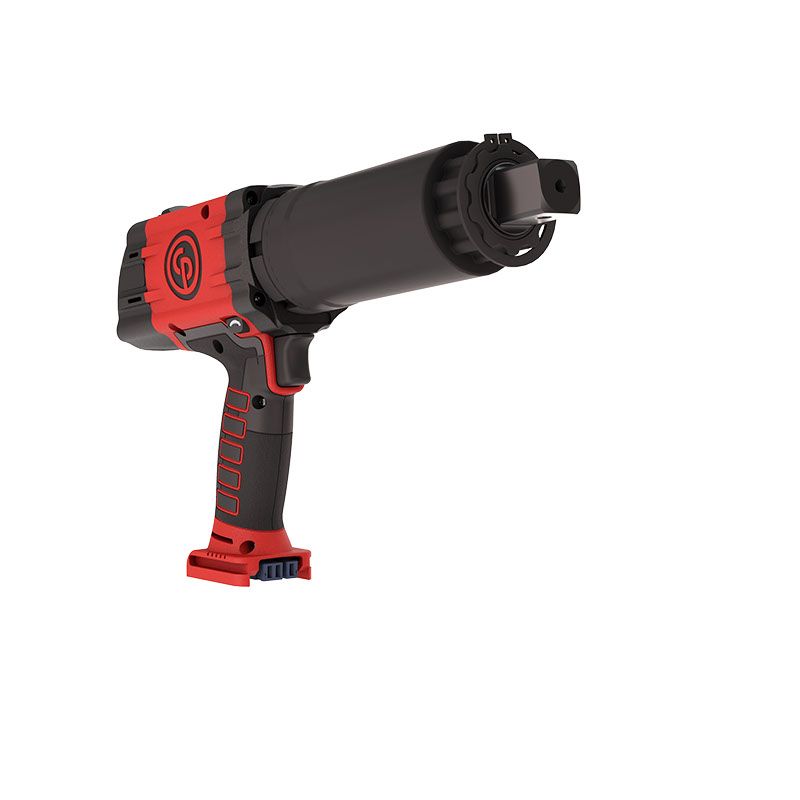

Chicago Pneumatic CP8626CQ BARE TOOL Air Tool โ 6151570260
1" Battery Torque Wrench Connected Quality dual trigger - tool only
Torque tightening from 700 Nm / 520 ft.lb to 2600 Nm / 1910 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
- CPLinQ app for better control and traceability of your process
- Angle tightening
- Counting sequence to avoid missed tightenings
- Automatic reaction arm release to avoid tool to stay blocked on the application
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Sound Power | <72 dba |
| Sound Pressure | 83 dB(A) |
| Vibration | <2,5 m/sยฒ |
| Height | 11.22 in |
| Length | 14.29 in |
| Width | 3.03 in |
| Weight | 11 lb |
| Battery Weight | 1.76 lb |
| Weight with reaction arm | 14.1 lb |
| Free Speed | 5 rpm |
| 6s Torque scatter | ยฑ4 % |
| Max torque in forward | 1920 ft.lbf |
| Max torque reverse | 1920 ft.lbf |
| Min torque in forward | 516 ft.lbf |
| Recommended Torque | 1530 ft.lbf |
| Output drive size | 1 in |
| Output drive type | Square |
| Handle type | Pistol |
| Reversible | Yes |
| CP part # | 6151570260 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151570260
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
