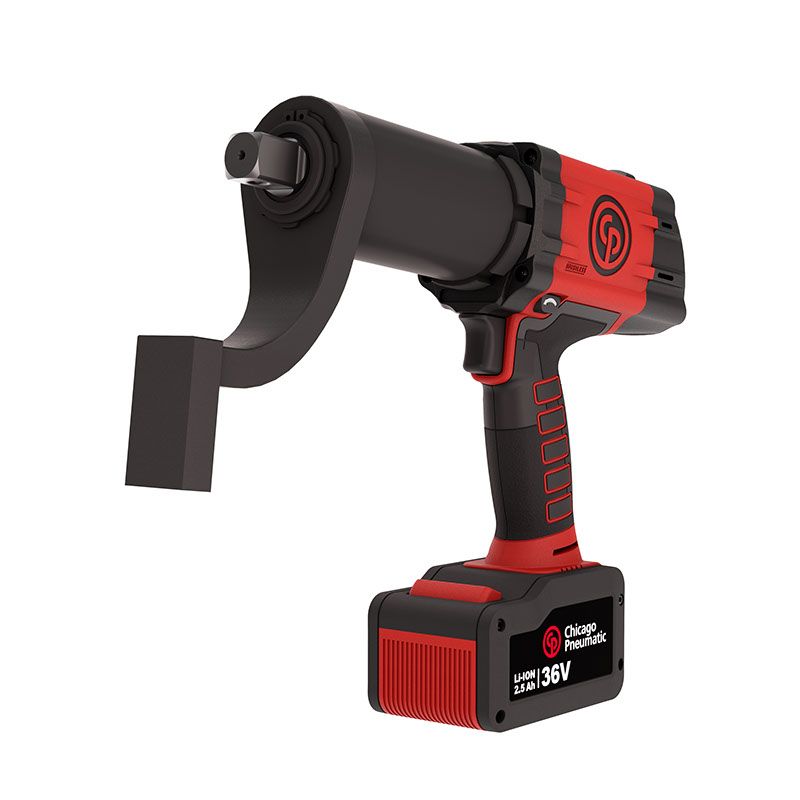

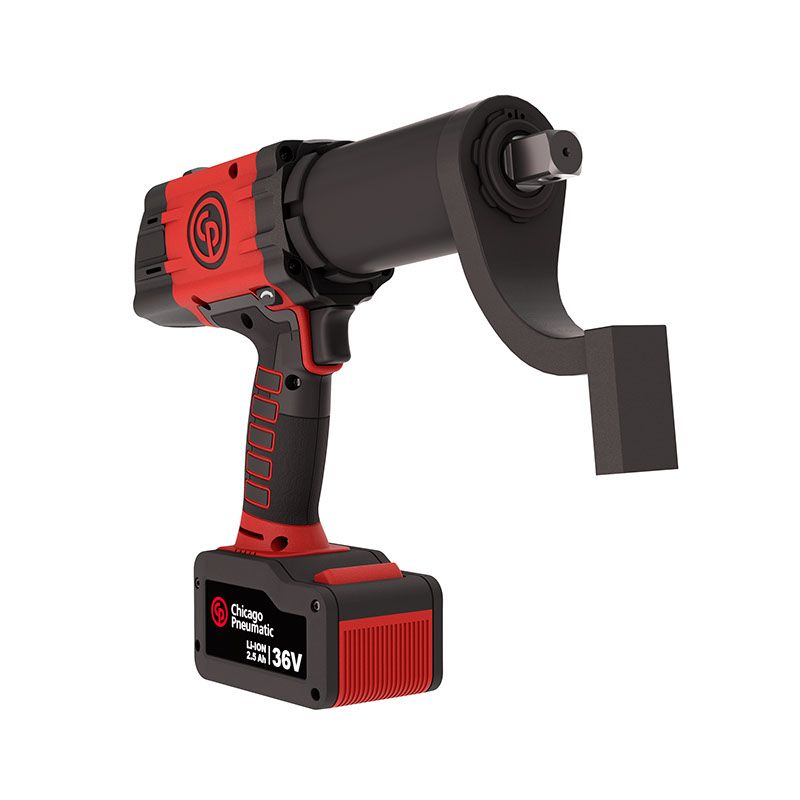

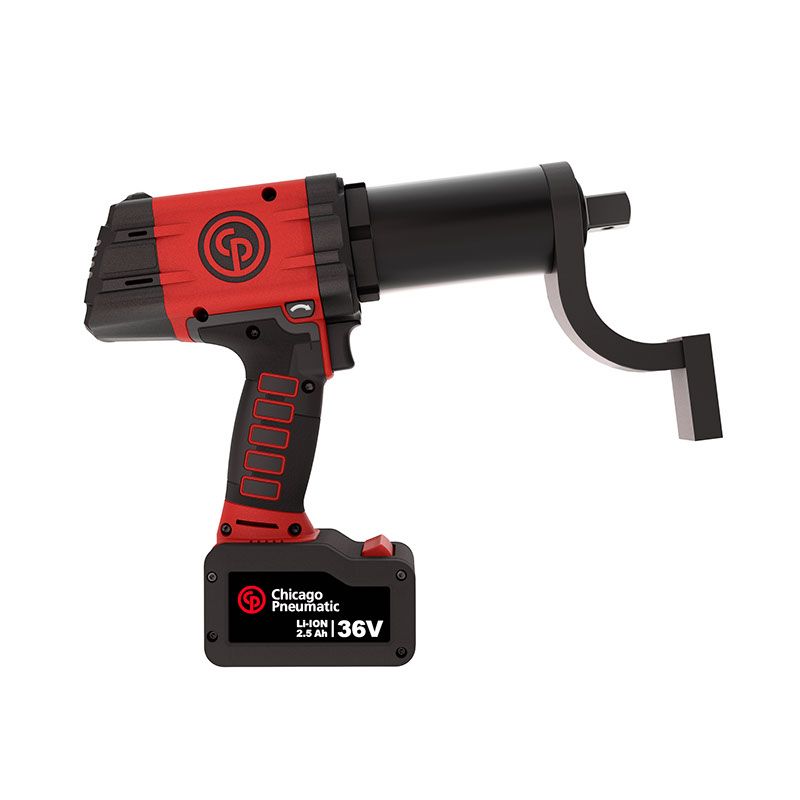

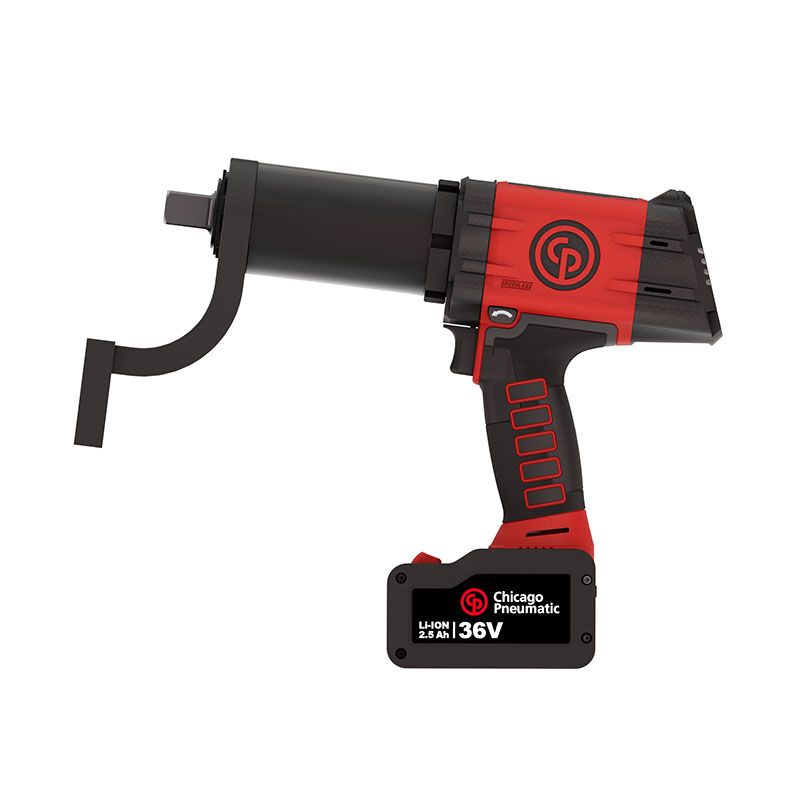

Chicago Pneumatic CP8613TC Pack 36V 2.5AH โ 6151570670
3/4" Battery Torque Wrench Torque Check dual trigger
Torque tightening and torque check from 300 Nm / 220 ft.lb to 1300 Nm / 960 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability. Pack includes 1 S type reaction bar, 2 batteries, 1 battery charger, 1 charger cable, 1 plastic case.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen or via CPLinQ app
- CPLinQ app for better control and traceability
- Angle tightening capability
- Counting sequence to avoid missed tightenings
- Torque Check to control bolt loosening over time
- Automatic reaction arm release
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Sound Power | <72 dba |
| Sound Pressure | 83 dB(A) |
| Vibration | <2,5 m/sยฒ |
| Height | 11.22 in |
| Length | 12.52 in |
| Width | 3.03 in |
| Weight | 8.16 lb |
| Weight with reaction arm | 9.92 lb |
| Battery Weight | 1.76 lb |
| Free Speed | 10 rpm |
| Max torque in forward | 959 ft.lbf |
| Max torque reverse | 959 ft.lbf |
| Min torque in forward | 221 ft.lbf |
| Recommended Torque | 767 ft.lbf |
| Output drive size | 3/4 in |
| Output drive type | Sq |
| Handle type | Pistol |
| Reversible | Yes |
| CP part # | 6151570670 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
🔧 Manuals & Parts
Parts diagrams and manuals for model 6151570670
Need a replacement part for your Chicago Pneumatic? Our parts department can help: call 1-888-598-6657 or 604-873-5394, email sales@wctool.ca, or shop all parts.
