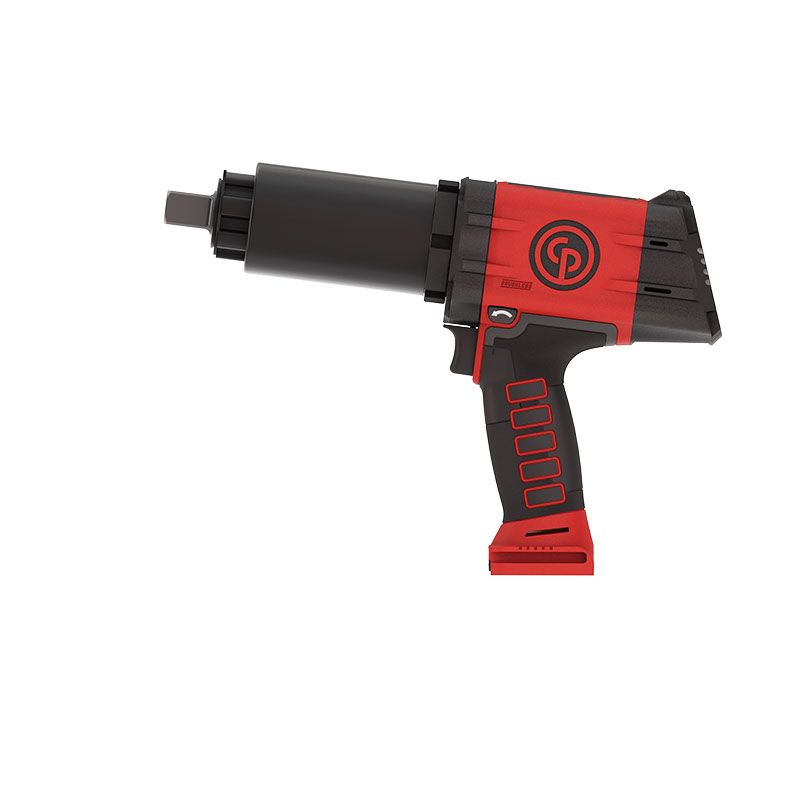

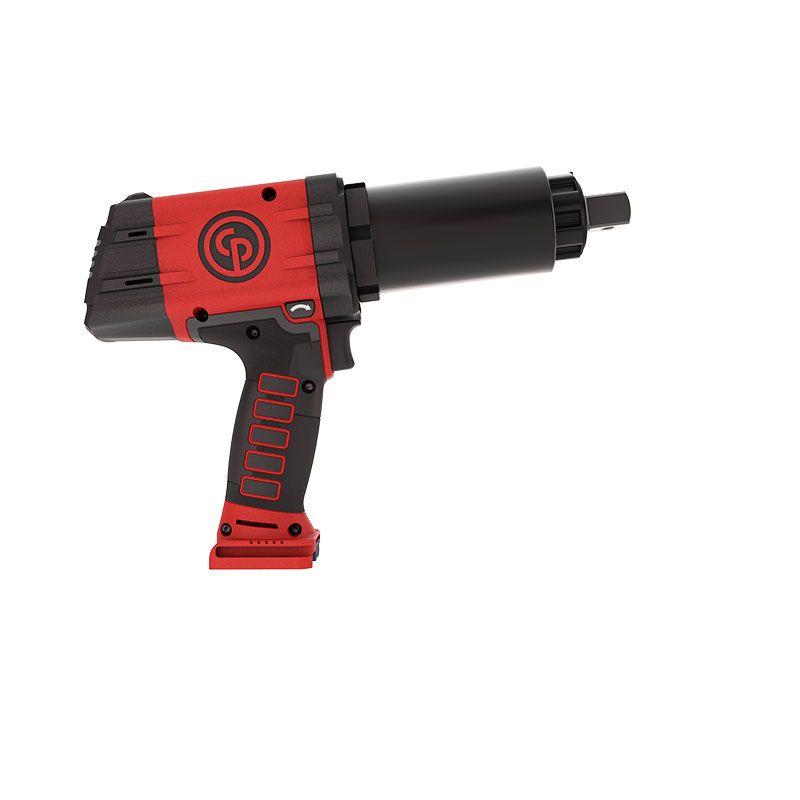

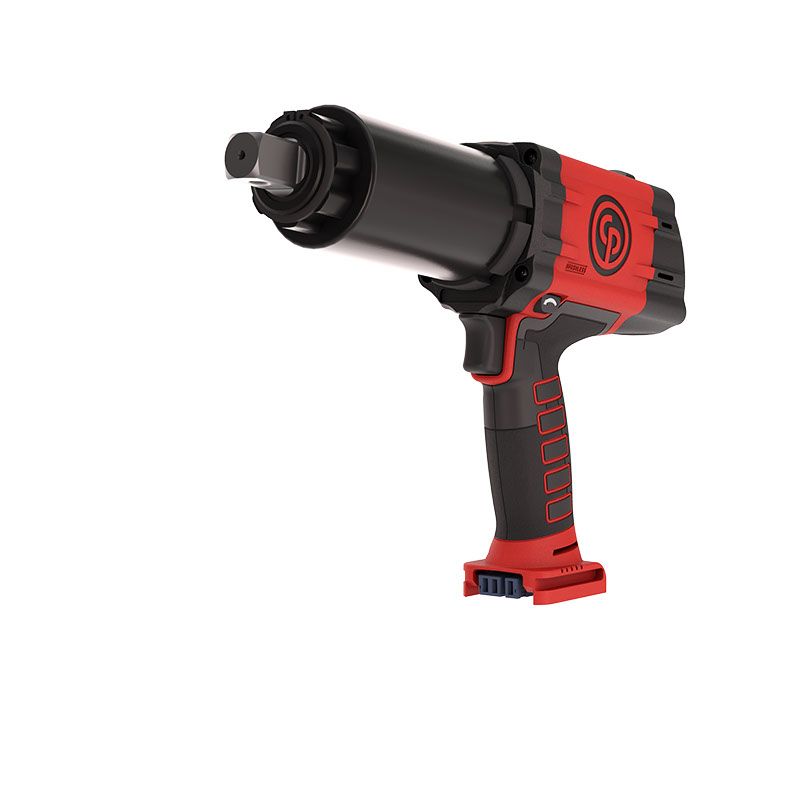

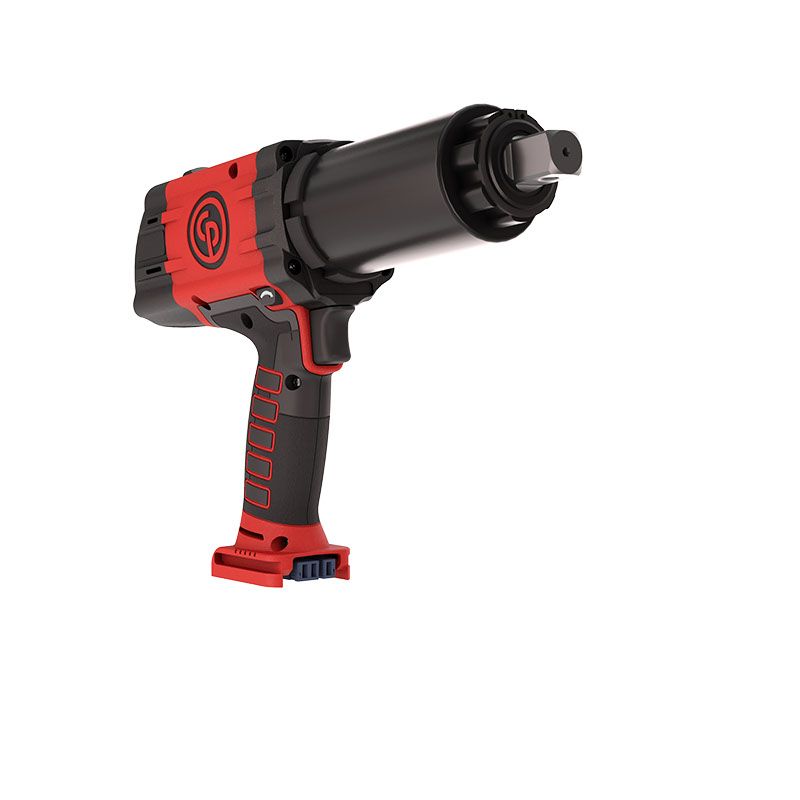

Chicago Pneumatic CP8613CQ BARE TOOL Air Tool โ 6151570230
3/4" Battery Torque Wrench Connected Quality dual trigger - tool only
Torque tightening from 300 Nm / 220 ft.lb to 1300 Nm / 960 ft.lb with high precision (+/- 4%), as well as angle tightening and counting sequence. Intuitive handling on digital screen of the tool or via CPLinQ app, which also includes data collection for traceability.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery

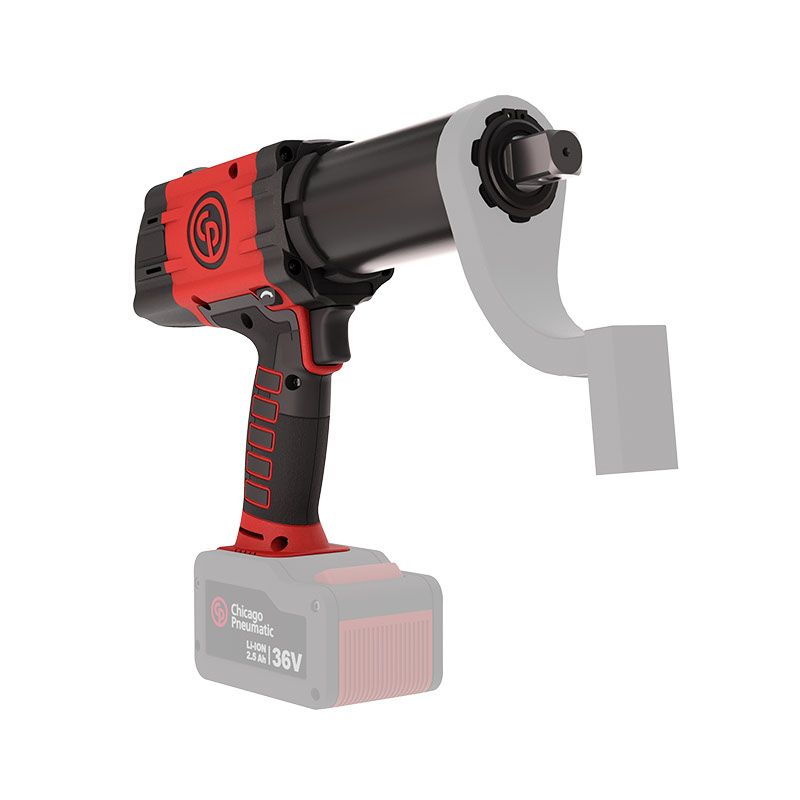

- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
- CPLinQ app for better control (only on C, CQ and TC versions) and traceability
- Angle tightening (only on C, CQ and TC versions)
- Counting sequence to avoid missed tightenings (only on CQ and TC versions)
- Automatic reaction arm release to avoid tool to stay blocked
Specifications
| Battery Capacity | 2.5 Ah |
| Battery Type | Lithium-ion |
| Battery Voltage | 36 V |
| Max Torque in Forward | 959 ft.lbf |
| Max Torque Reverse | 959 ft.lbf |
| Min Torque in Forward | 221 ft.lbf |
| Torque Scatter | ยฑ4 % |
| Free Speed | 10 rpm |
| Output Drive Size | 3/4" |
| Output Drive Type | Sq |
| Handle Type | Pistol |
| Weight | 8.16 lb |
| Weight with Reaction Arm | 9.92 lb |
| Height | 11.22 in |
| Length | 12.52 in |
| Width | 3.03 in |
| Sound Pressure | 83 dB(A) |
| Sound Power | <72 |
| Vibration | <2,5 m/sยฒ |
| Reversible | Yes |
| CP part # | 6151570230 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
