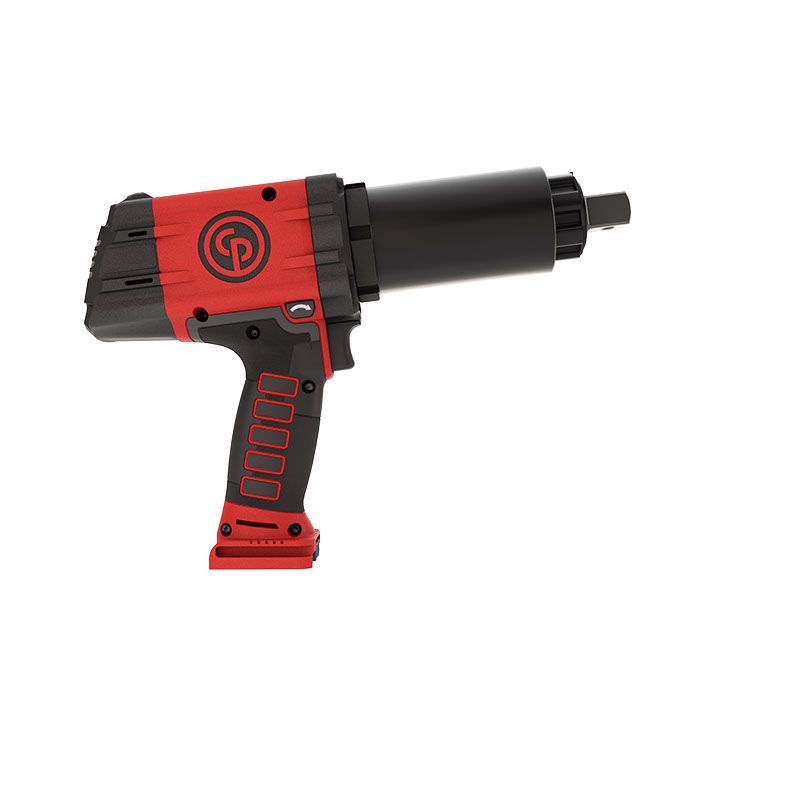

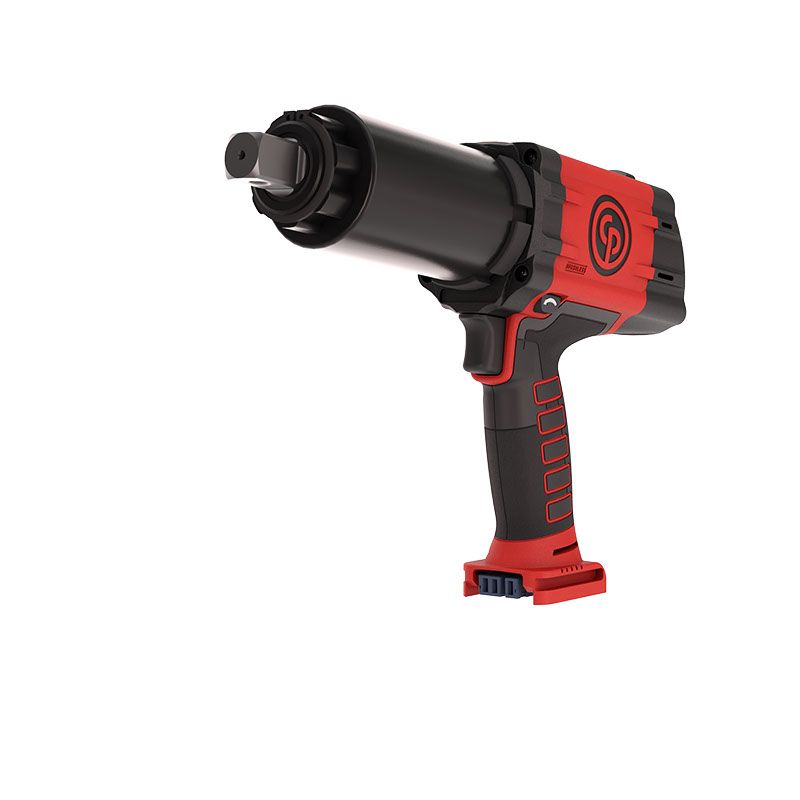

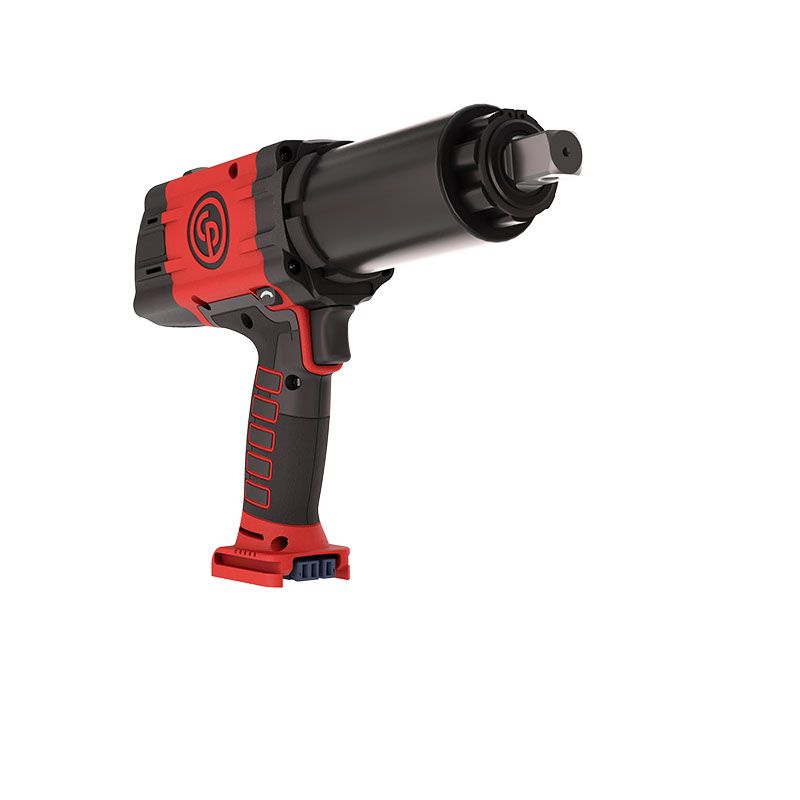

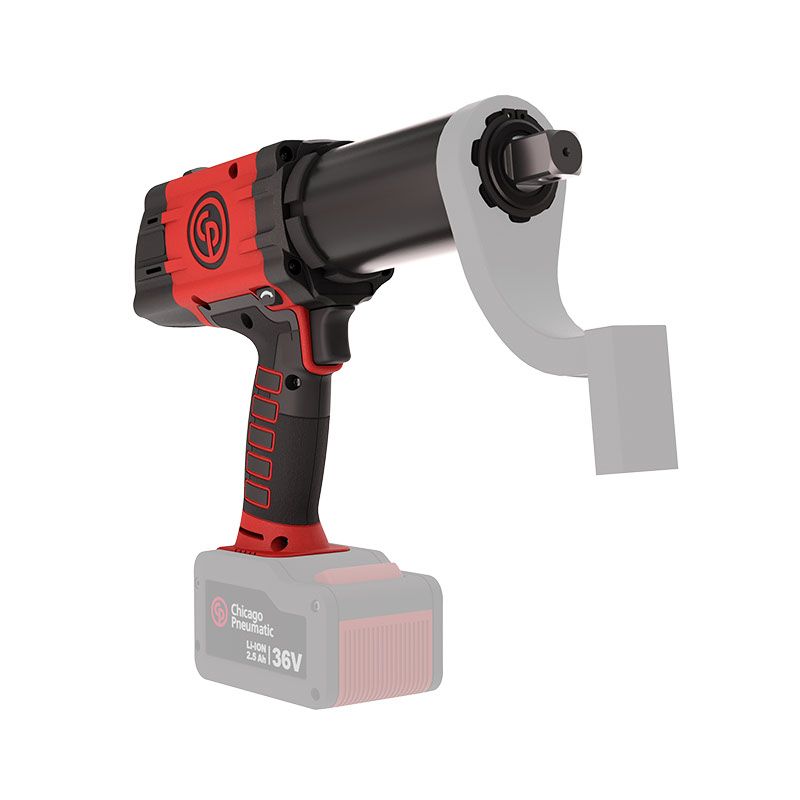

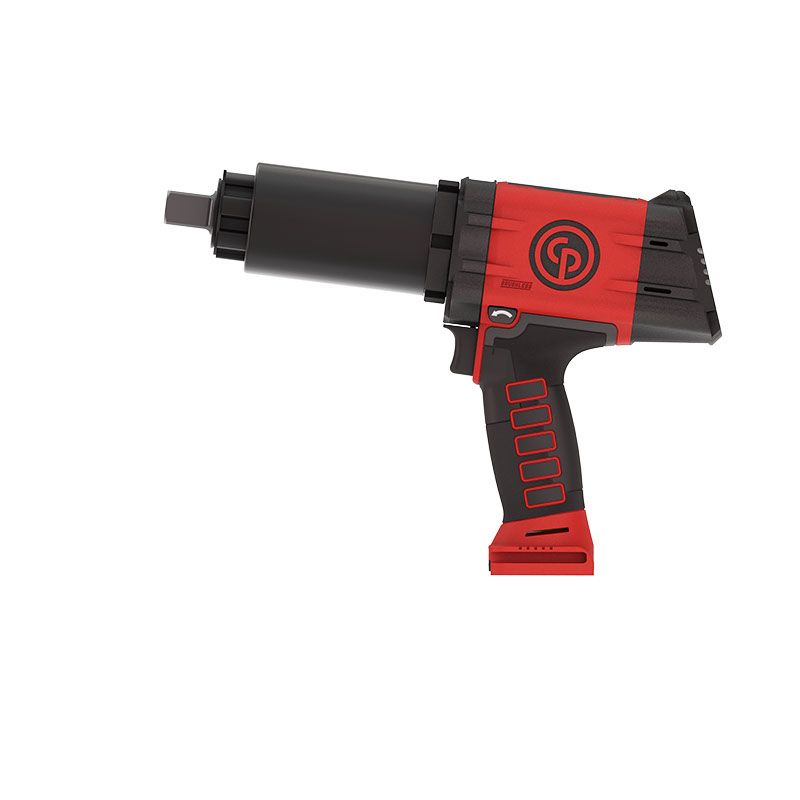

Chicago Pneumatic CP8613C BARE TOOL Air Tool โ 6151570220
Regular price
$13,659.40 CAD
Model / Part #6151570220
Special Order Product · Delivery 1–2 WeeksDelivery is 1–2 weeks once your order is placed. Questions? Call 1-888-598-6657 or contact us.
Stock Item · Ships Within 2–3 Business DaysIn stock at TrueNorth — your order ships within 2–3 business days.
Free shipping on tools over $299.99Under $299.99, shipping is calculated at checkout · Shipping details
3/4" Battery Torque Wrench Connected dual trigger - tool only
Torque tightening from 300 Nm / 220 ft.lb to 1300 Nm / 960 ft.lb with high precision (+/- 4%) and angle tightening. Intuitive handling on digital screen of the tool or via CPLinQ app.
Features
- High precision with +/- 4%
- Safe tightening with second start button as standard
- Extended mobility with lightweight and compact battery
- Automatic release reaction arm
- Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app
- CPLinQ app for better control (only on C, CQ and TC versions) and traceability of your process (only on CQ and TC versions)
- Angle tightening (only on C, CQ and TC versions)
- Counting sequence to avoid missed tightenings (only on CQ and TC versions)
- Torque Check to control bolt loosening over time (only on TC version)
- Automatic reaction arm release to avoid tool to stay blocked on the application
Specifications
| Battery capacity | 2.5 Ah |
| Battery type | Lithium-ion |
| Battery voltage | 36 V |
| Sound Power (dba) | <72 |
| Sound Pressure | 83 dB(A) |
| Vibration (m/sยฒ) | <2,5 |
| Battery Weight | 1.76 lb |
| Height (H) | 11.22 in |
| Length (L) | 12.52 in |
| Width (W) | 3.03 in |
| Power weight ratio | 350 Nm/kg |
| Weight | 8.16 lb |
| Weight without reaction arm | 8.16 lb |
| Weight with reaction arm | 9.92 lb |
| Free Speed | 10 rpm |
| 6s Torque scatter % | ยฑ4 % |
| Max torque in forward | 959 ft.lbf |
| Max torque reverse | 959 ft.lbf |
| Min torque in forward | 221 ft.lbf |
| Recommended Torque | 767 ft.lbf |
| Torque Control System | Shut-off-current control |
| Adjustment | Digital |
| Handle type | Pistol |
| Joint Type | Hard & Soft |
| Main Material type | Steel |
| Output drive size (in) | 3/4 |
| Output drive type | Sq |
| Output retainer type | Hole |
| Reversible | Yes |
| Spline type | 0 |
| Starting system | Double-trigger |
| Suspension option | Optional |
| CP part # | 6151570220 |
Chicago Pneumatic tools are ordered in for you and usually ship within 1โ2 weeks. Need a quote on multiple units or help choosing a model? Send us a quote request or call 604-873-5394.
Sold by TrueNorth Industrial Tool Company. Ships from Burnaby, BC.
